Description
Bale Spear (Round & Square) | Bobcat
Bobcat® Bale Spear Attachments provide fast, efficient handling of round and square hay bales across a variety of agricultural applications. Available in round, medium square, and large square configurations, these attachments offer lifting capacities up to 3,000 pounds, depending on the model. Angled, bolt-in tines help keep bales secure during transport while providing long-lasting durability and convenient replacement. Compatible with multiple Bobcat machine platforms, these versatile attachments make loading, stacking, and transporting hay easier and more productive.
What Makes the Bale Spear (Round & Square) Different

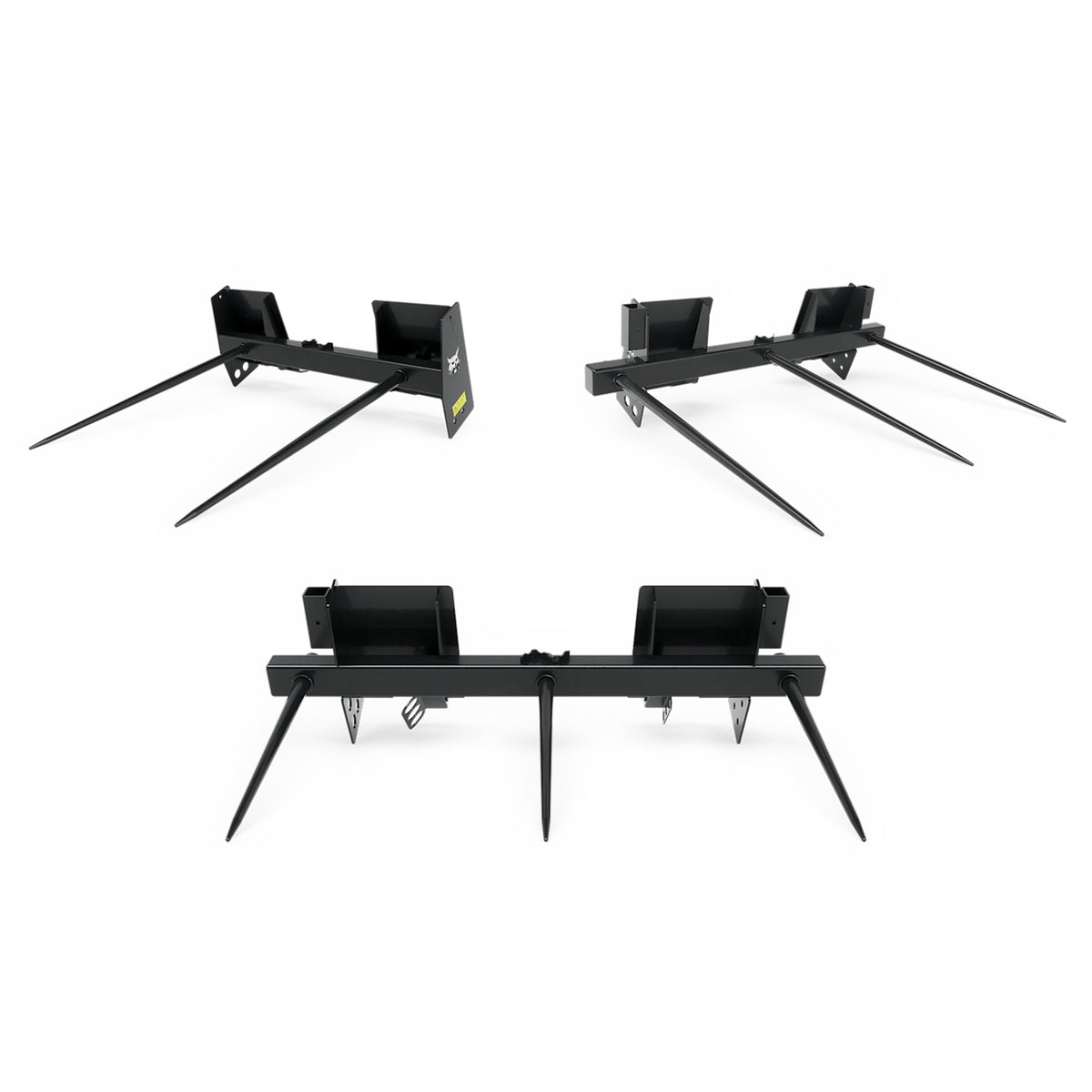

Three purpose-built configurations for moving, stacking and loading round or square hay bales.
Three Bale Configurations
Choose a round, medium square or large square model to match the bales you handle.
Up to 3,000-Pound Lift Capacity
Bobcat's overview lists lift capacities up to 3,000 pounds depending on the selected model.
Angled Bolt-In Tines
Angled tines help secure the bale during lifting and transport and can be replaced when required.
Broad Carrier Compatibility
Compatible configurations are available across eight Bobcat carrier and tractor families.
Round & Square Bale Spear Features & Benefits
Features & Benefits 2
Angled Bolt-In Tines
The tine angle helps hold bales securely when the carrier is tilted back for transport, while the bolt-in design supports straightforward replacement.
Purpose-Built Configurations
Round, medium square and large square models provide the tine length, width and capacity needed for different bale profiles.
Secure Handling for Round and Square Bales
Three models match round, medium square and large square bales
Lift capacities are matched to each bale configuration
Angled bolt-in tines help retain bales during transport
Compatible with multiple Bobcat machine platforms
Move, Stack and Load Hay Efficiently
Handle round or square bales in fields, barns and lots for feeding, storage, stacking and truck or trailer loading.
Top Tasks
- Lift and move round or square bales
- Stack hay for storage
- Load feeding and transport areas
- Handle hay for livestock operations
How It Works
- Attach the bale spear to a compatible Bobcat carrier.
- Align the tines with the center of the bale and drive straight in.
- Lift and tilt slightly back so the angled tines help retain the bale.
- Lower the bale at the destination, then back straight out to release it.
Options & Accessories

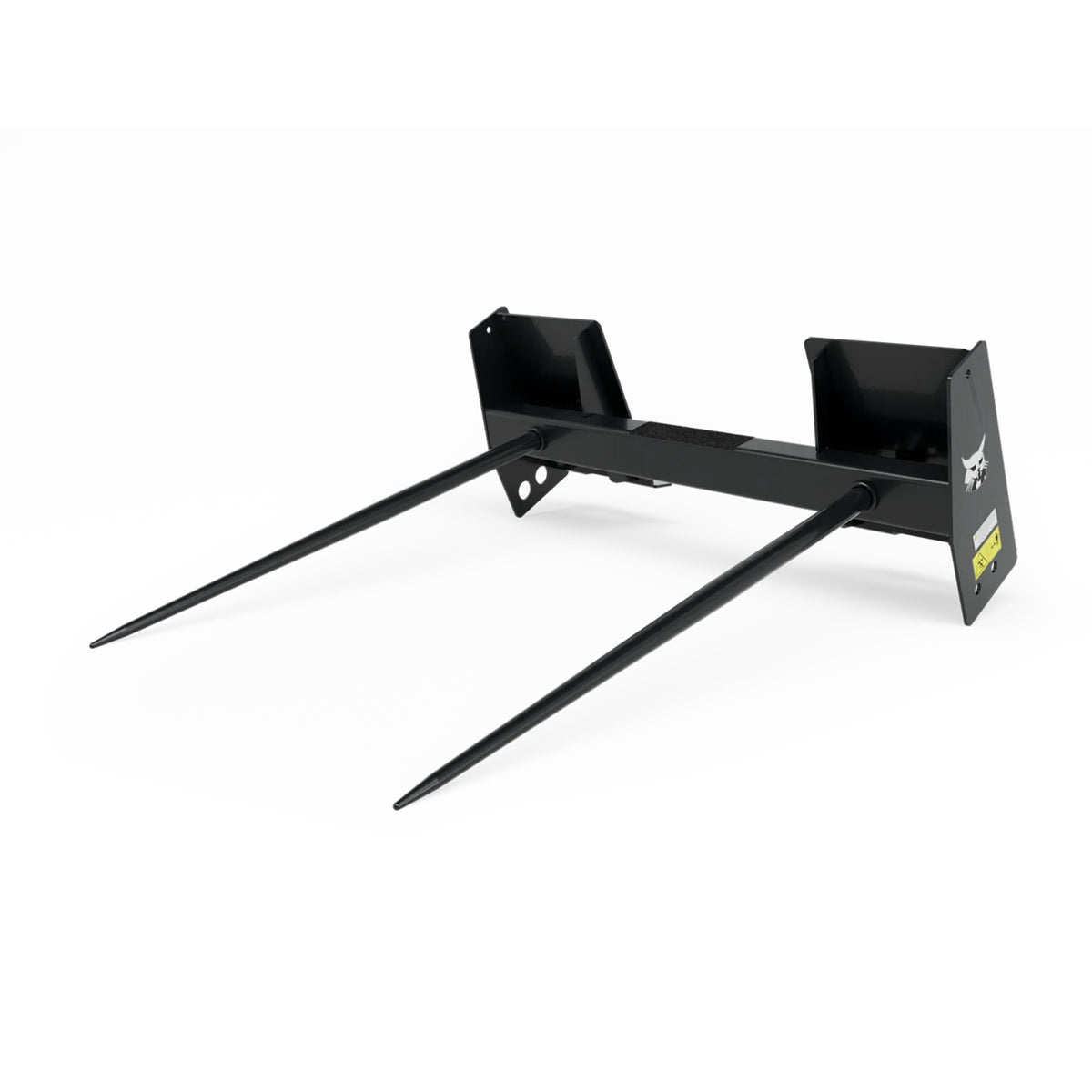

- Round bale model

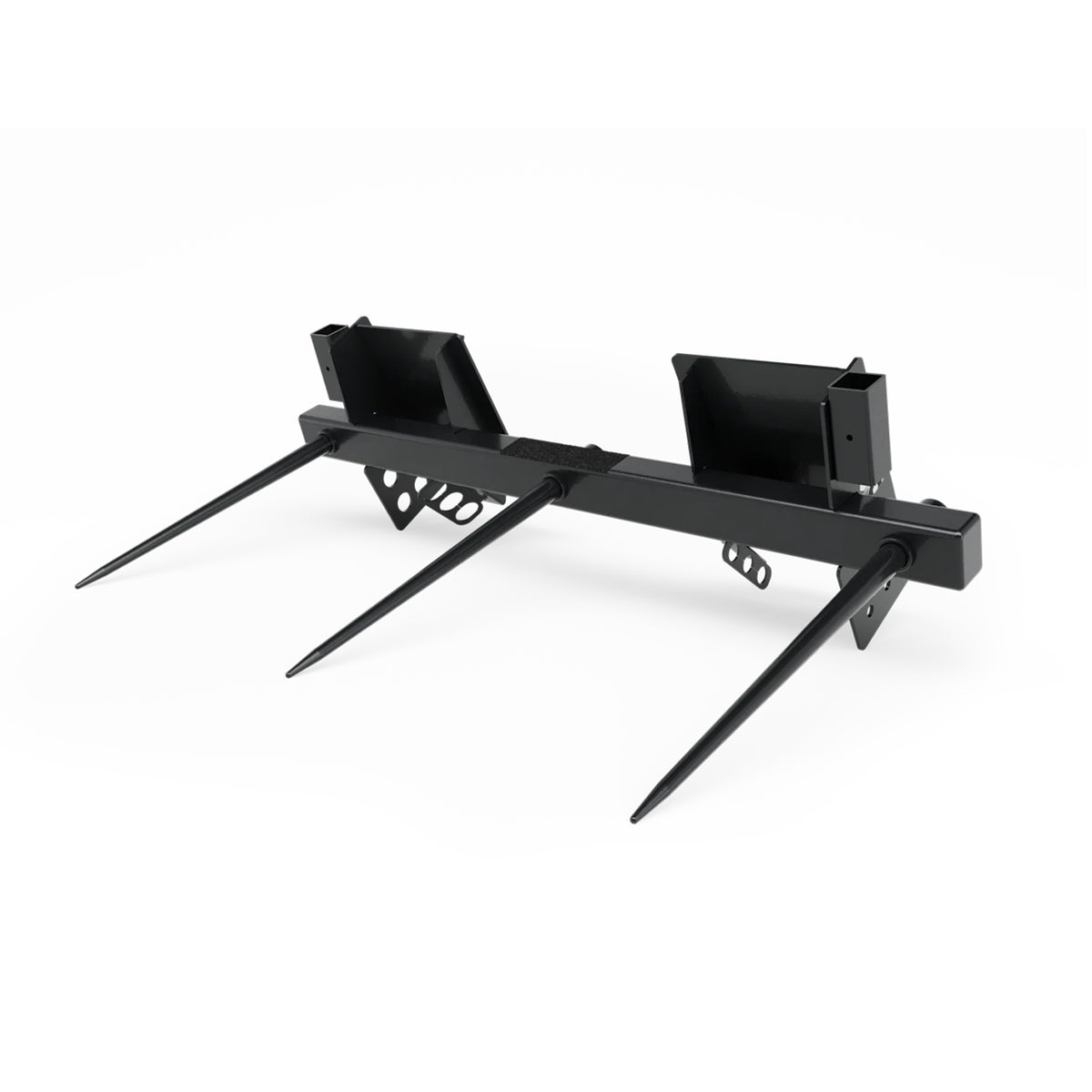

- Medium square bale model

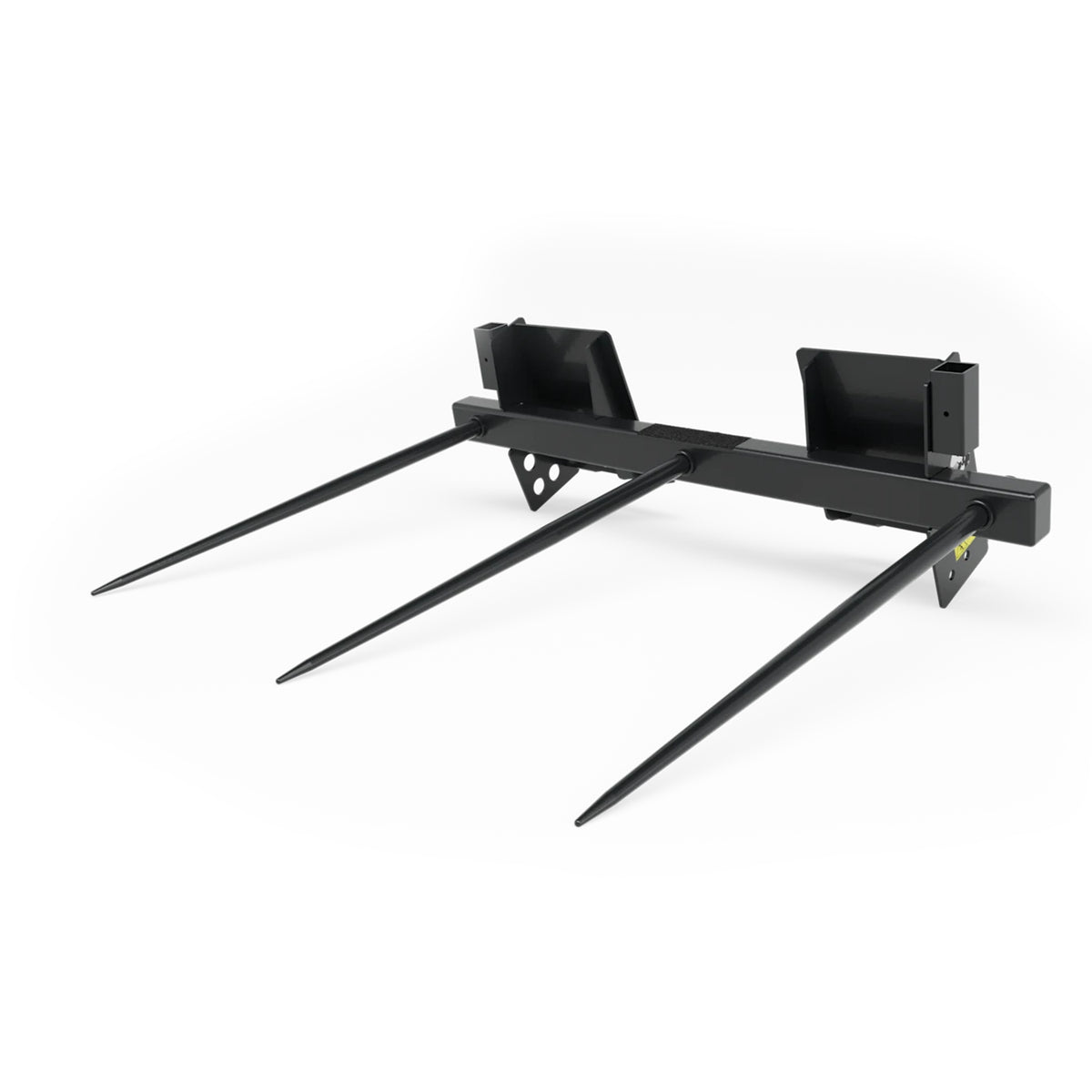

- Large square bale model
- Each is sized for efficient, secure handling of its intended bale type
Compatible Equipment
- 6 compact track loaders and 4 skid-steer loaders
- 13 compact tractors and 3 utility tractors
- 2 compact wheel loaders and 1 small articulated loader
- 2 telehandlers and 2 Toolcat utility work machines
Talk to a person about the Bale Spear (Round & Square)
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Bale Spear (Round & Square) Specifications
| Specification | Large Square Bale | Medium Square Bale | Round Bale |
|---|---|---|---|
| General | |||
| Operating Weight | 190 lbs | 165 lbs | 146 lbs |
| Performance | |||
| Bale Capacity | 4,000 lbs | 3,000 lbs | 3,000 lbs |
| Dimensions | |||
| Main Tine Length | 42 in | 26 in | 42 in |
| Overall Height | 18.5 in | 18.5 in | 18.5 in |
| Overall Width | 60.5 in | 60.5 in | 43 in |
Confirm the selected configuration, carrier compatibility, lift capacity and required ballast with Carleton Equipment before handling bales.
