Description

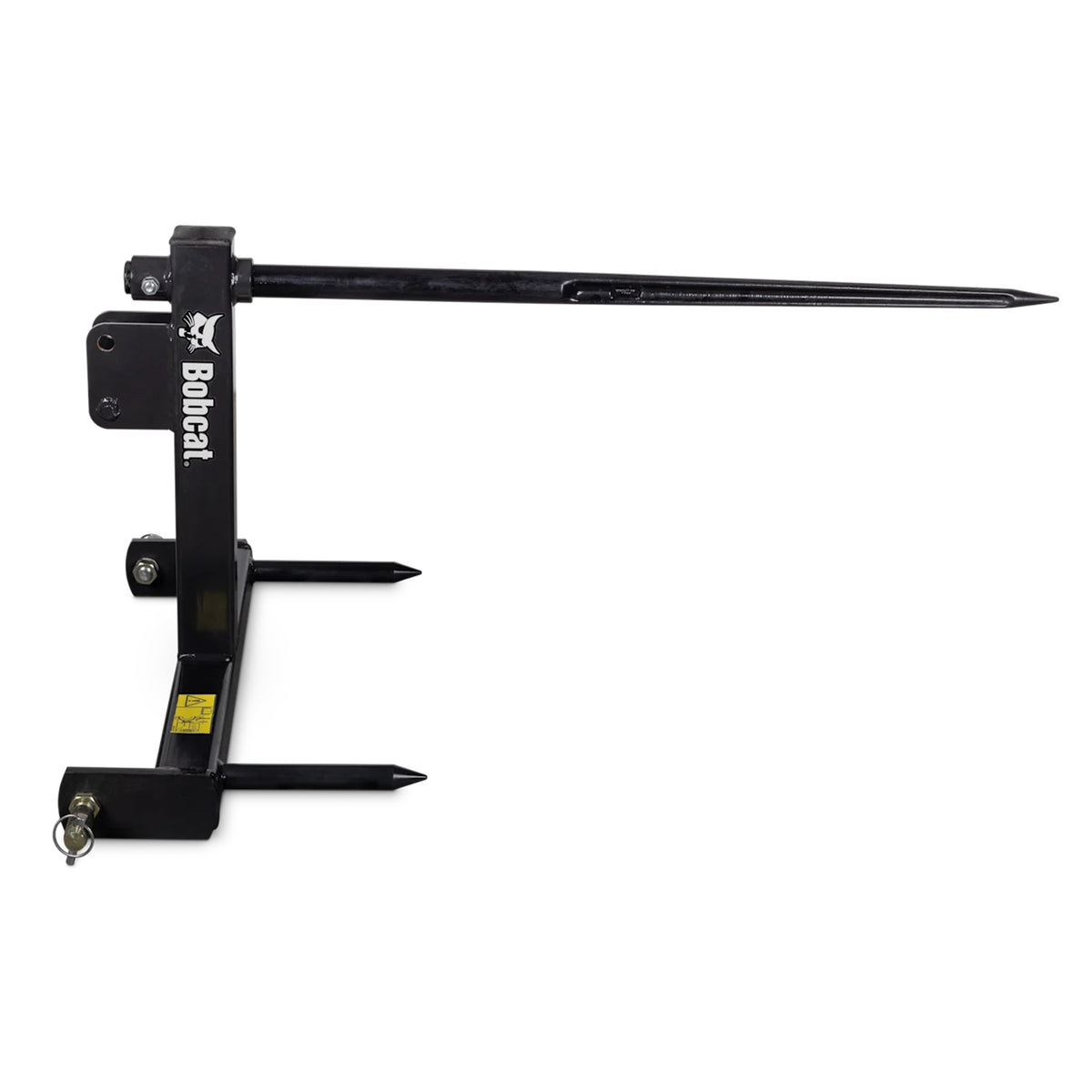

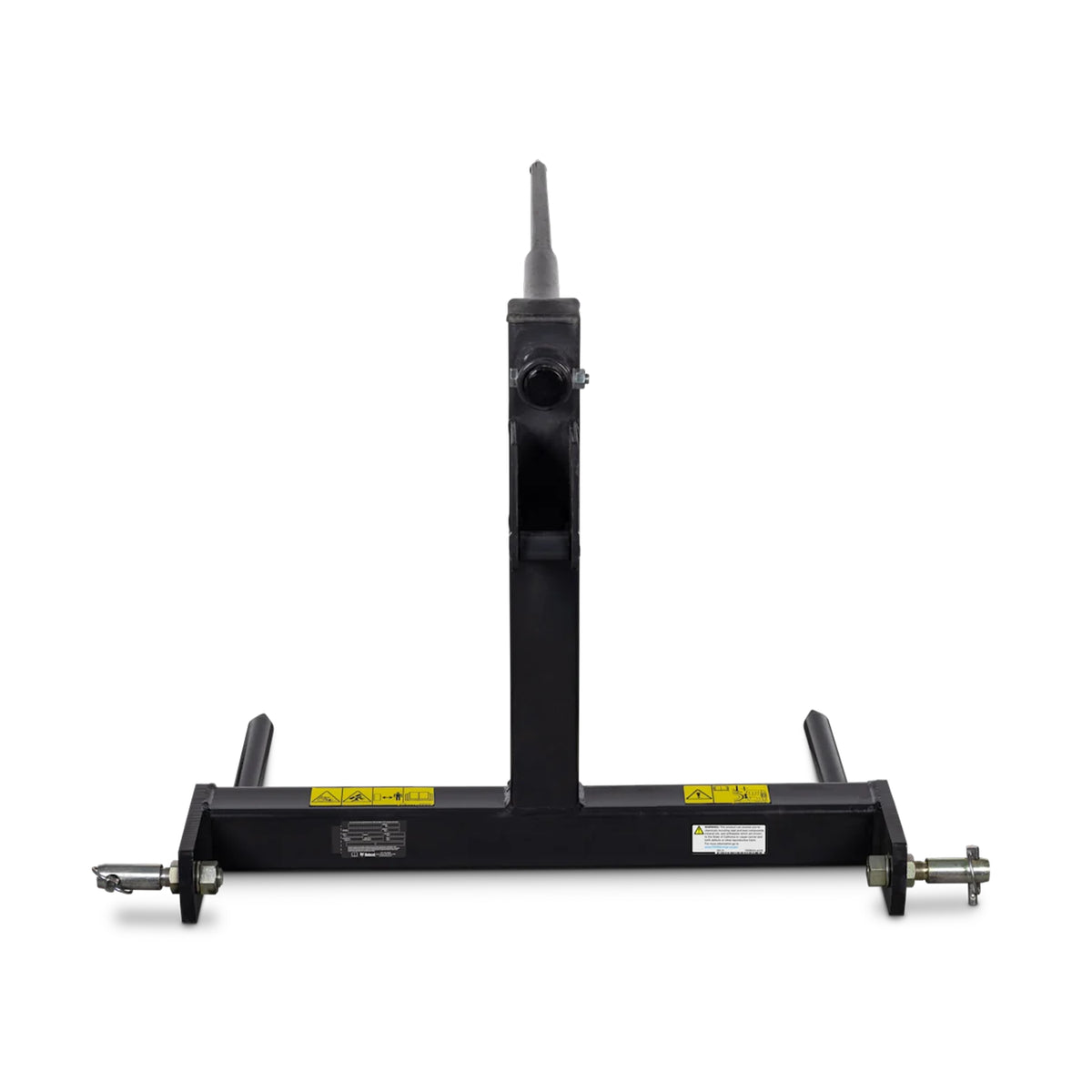

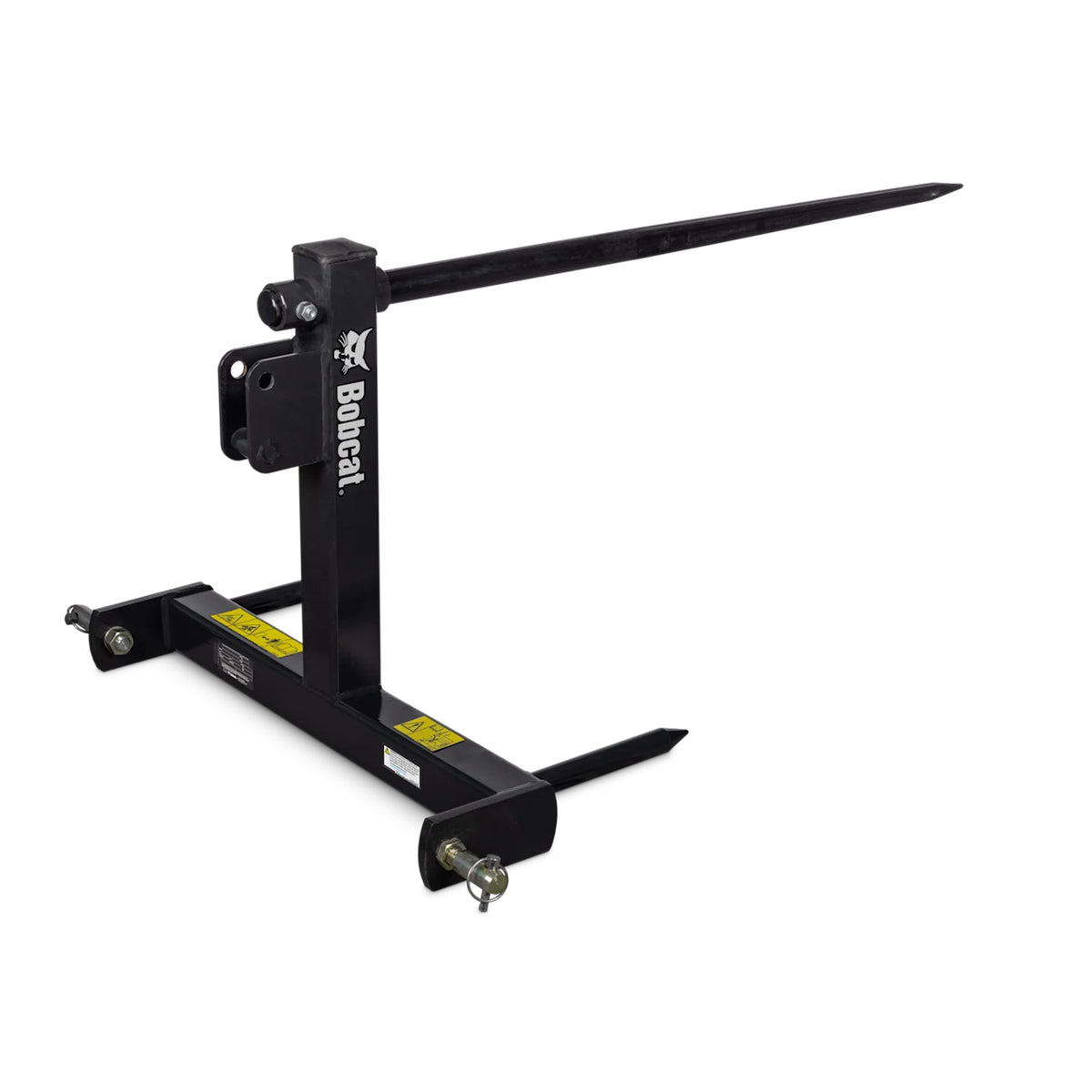

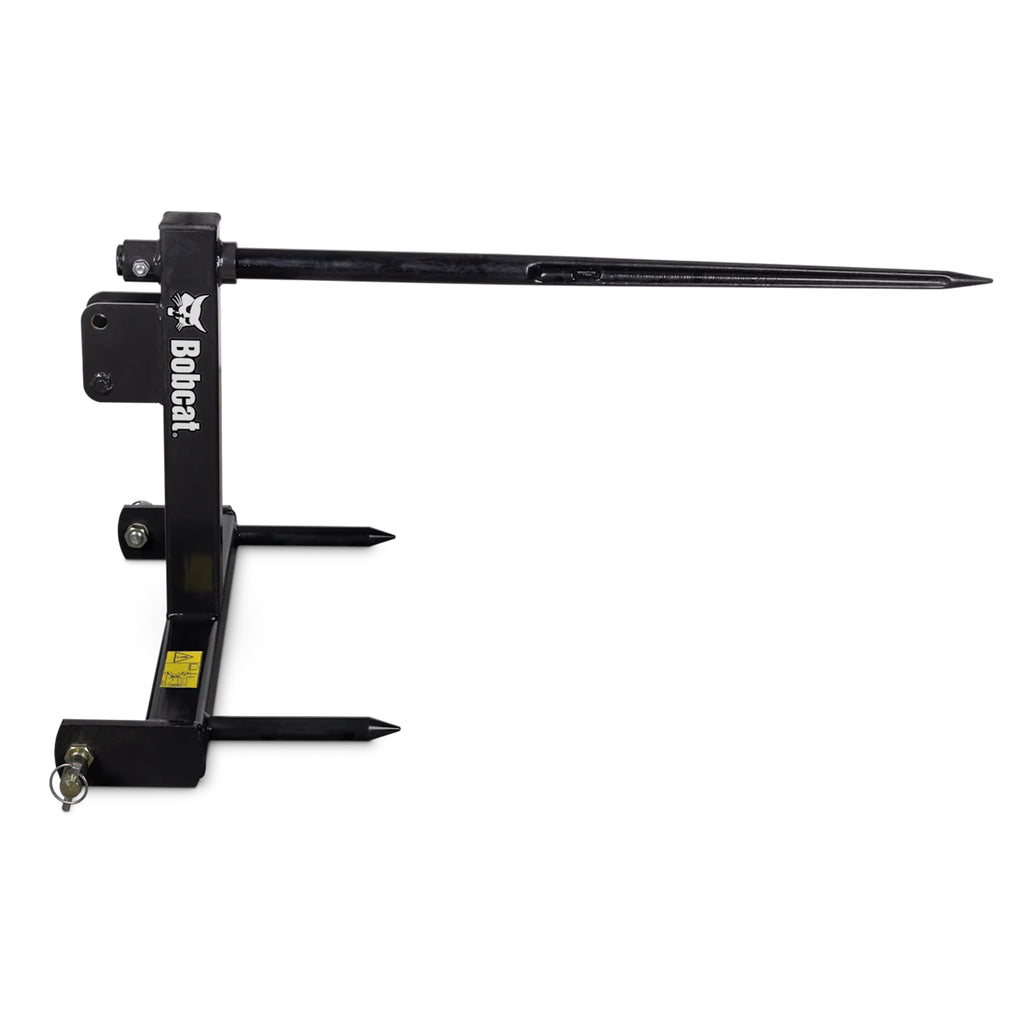

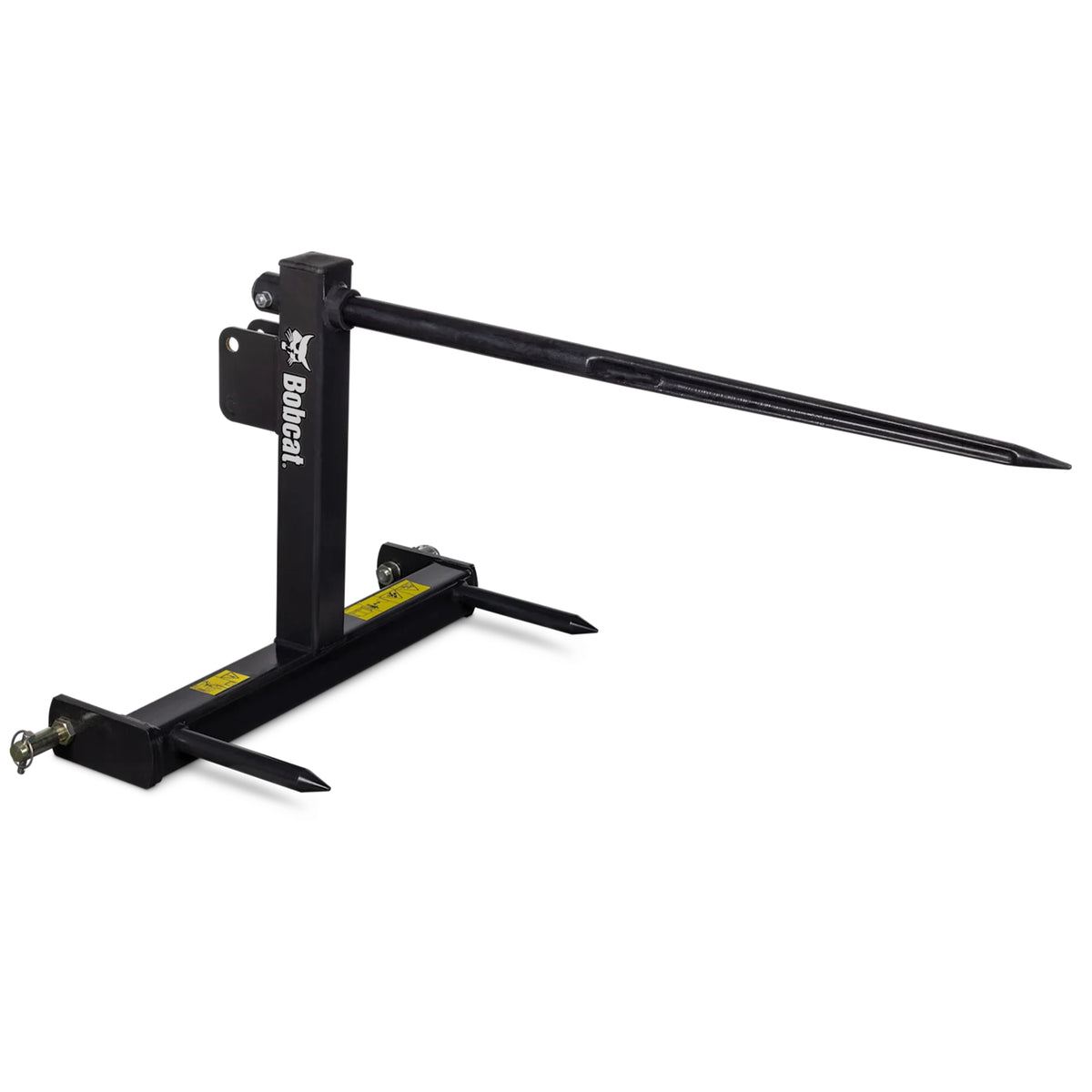

Bale Spear (3-Point) | Bobcat
The Bobcat® Bale Spear Attachment makes lifting, transporting, and loading round hay bales weighing up to 2,200 pounds quick and efficient. Its 42-inch tapered spear provides secure bale handling, while two additional stabilizing spikes help prevent rotation during transport. Designed for dependable performance, this tractor implement gives operators the strength and control needed for efficient hay handling on farms, ranches, and other agricultural operations.
What Makes the Bale Spear (3-Point) Different
A rear-mounted tractor implement for moving round hay bales weighing up to 2,200 pounds.
2,200-Pound Bale Capacity
Move and load round hay bales weighing up to 2,200 pounds with a compatible compact or utility tractor.
Tapered Tine Design
The tapered main tine penetrates the bale and helps hold it steady during transport.
42-Inch Main Spear
A 42-inch main tine provides deep penetration and control for large round bales.
Two Stabilizing Spikes
Two 10-inch secondary tines secure the bale and help prevent rotation while the tractor is moving.
3-Point Bale Spear Features & Benefits
Features & Benefits 1
Tapered Tine Design
The tapered tine stabilizes the load by balancing round bales and making them easier to transport.
Simple 3-Point Handling for Heavy Round Bales
Rated to handle round hay bales weighing up to 2,200 pounds
A 42-inch tapered main tine penetrates and balances the bale
Two stabilizing spikes help prevent bale rotation during transport
The tractor's 3-point hitch controls spear height and angle
What the 3-Point Bale Spear Does
Move large round hay bales efficiently for feeding, storage, trailer loading and field work with a simple rear-mounted tractor implement.
Handling & Storage
- Move, lift and stack hay bales
- Place and store bales
- Load or unload trailers and trucks
Farm & Landscape Work
- Transport bales for livestock feeding
- Move straw bales for erosion control
- Place straw for landscaping projects
How It Works
- Connect the bale spear to the tractor's 3-point hitch.
- Adjust spear height and angle with the tractor's 3-point hitch position lever.
- Back the tractor toward the bale and align the upper spear with the bale's center.
- Drive the main spear into the bale as the two stabilizing spikes secure it and prevent rotation.
- At the drop-off point, lower the bale and move the tractor forward to withdraw the spear.
Tine Configuration
- 42-inch tapered main tine
- Two 10-inch stabilizing tines
- 25-inch overall height
- 72-pound operating weight
Compatible Equipment
- 7 compatible compact tractor models
- 3 compatible utility tractor models
- Confirm 3-point hitch and tractor lift capacity with Carleton Equipment
Talk to a person about the Bale Spear (3-Point)
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Bale Spear (3-Point) Specifications
General & Performance
| Model | Bale Spear (3-Point) |
| Operating Weight | 72 lbs |
| Bale Capacity | 2,200 lbs |
Dimensions
| Main Tine Length | 42 in |
| Secondary Tine Length | 10 in |
| Overall Height | 25 in |
Confirm tractor 3-point hitch compatibility, lift capacity and required ballast with Carleton Equipment before handling heavy bales.
