Backhoe Attachment

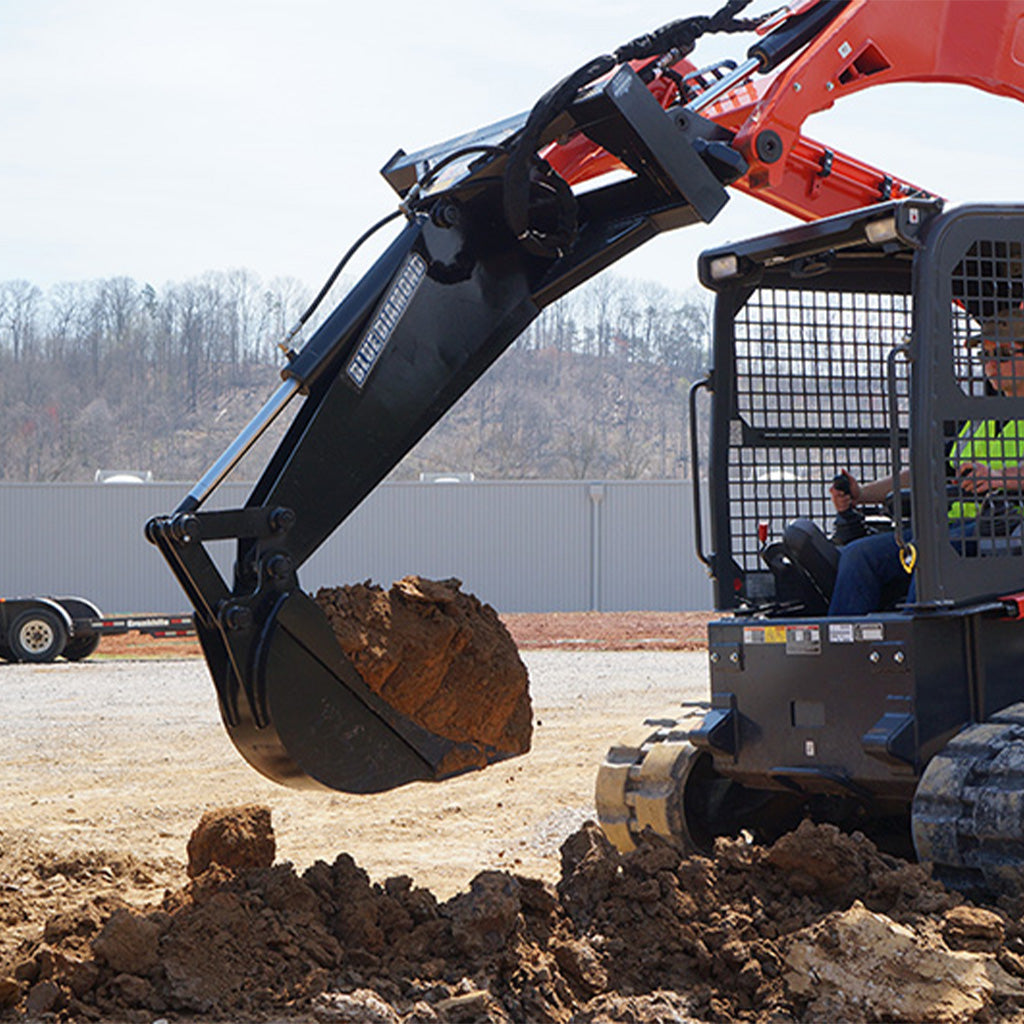

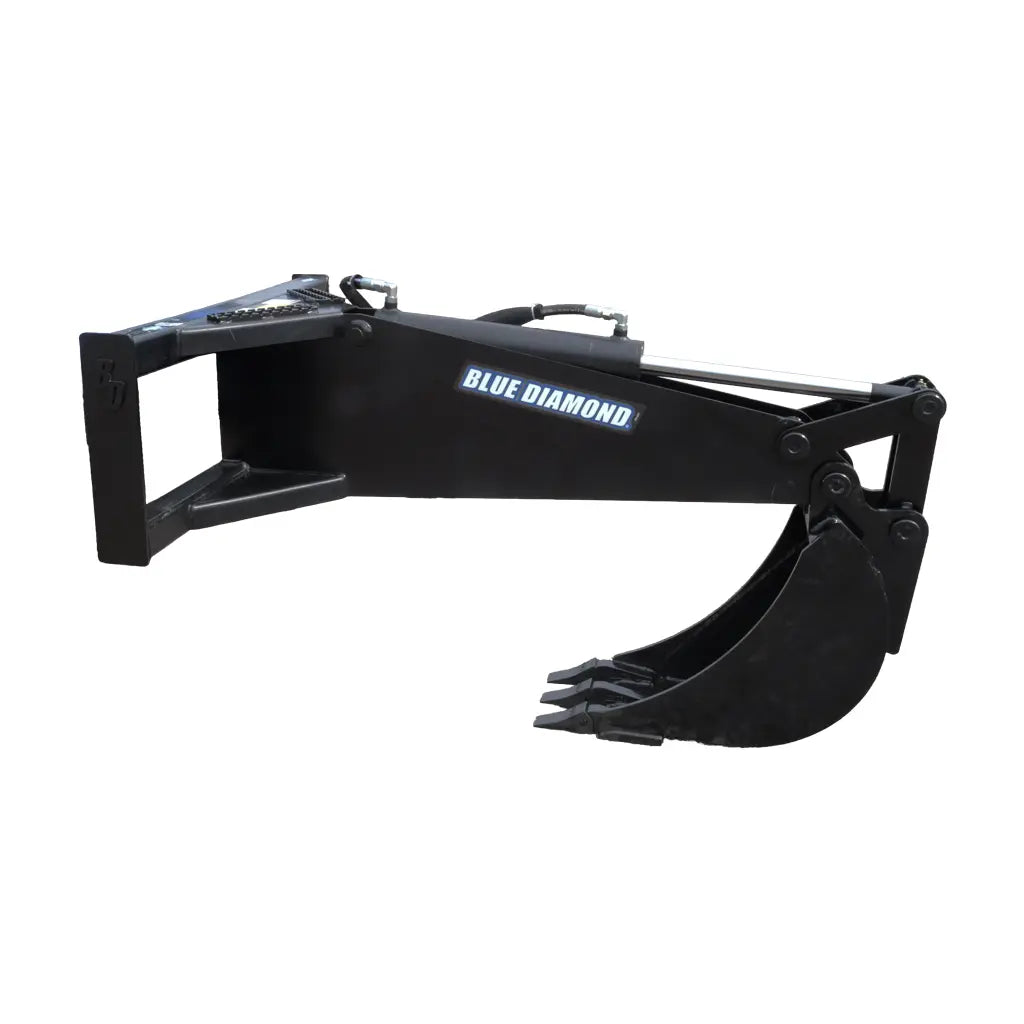

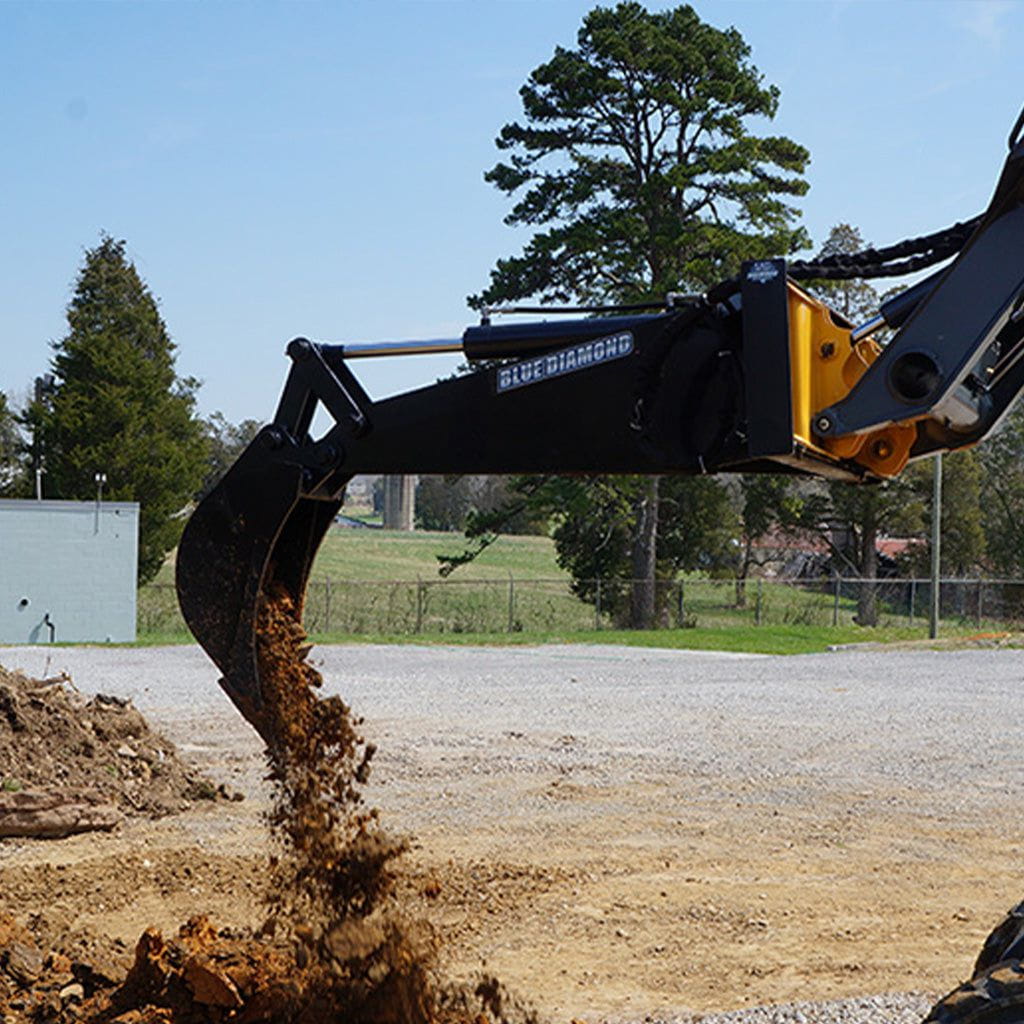

The Blue Diamond skid steer backhoe attachment is a quick and easy way to dig trenches with a skid steer. This powerful unit uses the biggest cylinder in the industry and the largest bucket capacity. The linkage geometry gives exceptional bucket rotation and breakout force. When the bucket is fully extended the overall length is 8′ and it can dig a 6′ depth. This brutally powerful attachment will outperform other backhoes both in production and strength. The side pin #230 cast teeth are replaceable and the bucket options range from a 9″ width to a 24″ width.

Features:

• 3 1/2″ bore, 20″ stroke cylinder
• Linkage between cylinder and bucket
• Includes flat face couplers
• Bucket sizes comes in 9″, 12″, 18″ and 24″
• Large capacity bucket
• Heavy duty cast replaceable teeth
• Grease fittings on all pivot points
• Quick off and on machine
• No specific machine requirements
• Easy to operate
• Requires no electrical hookups
