Description

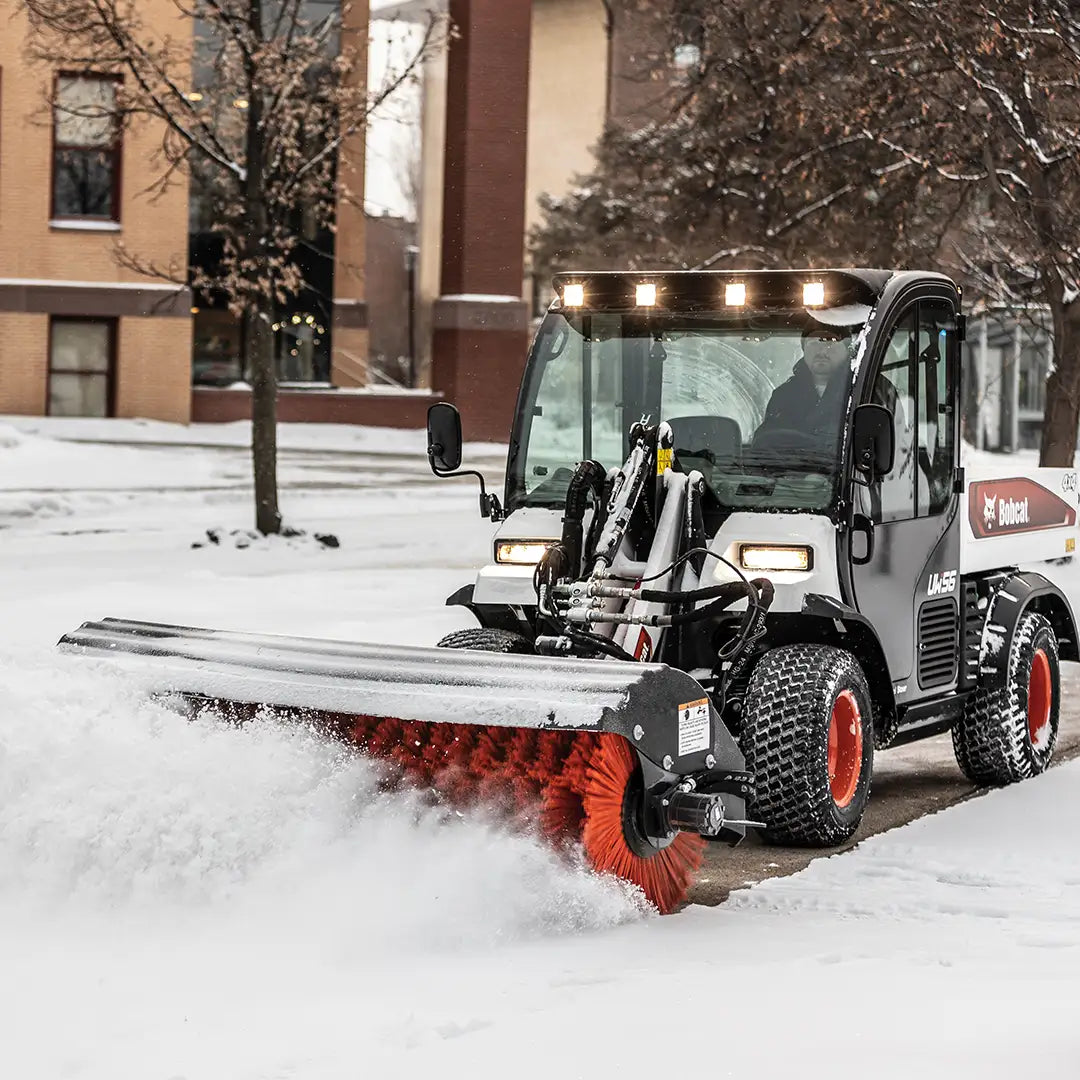

Angle Broom - Mini | Bobcat

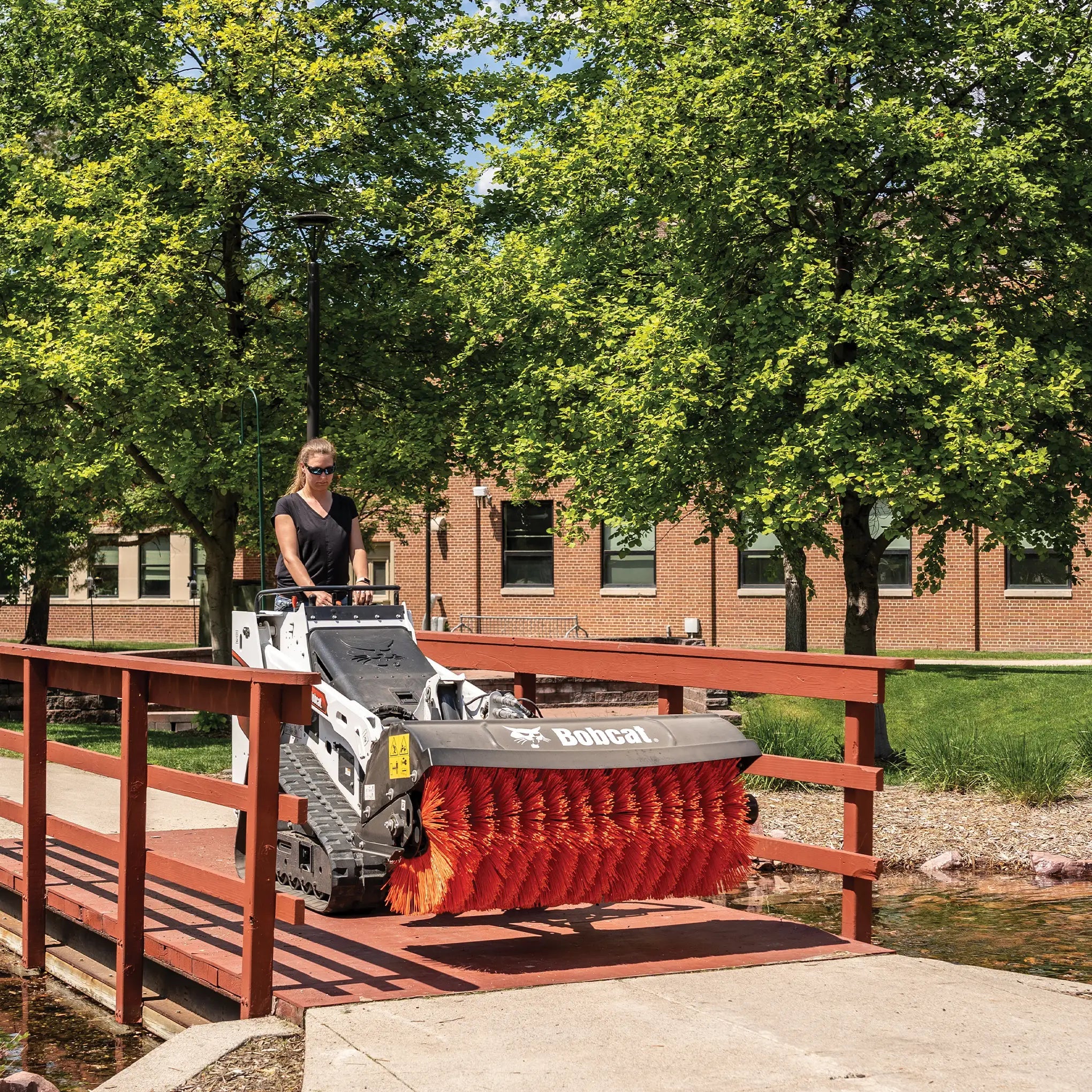

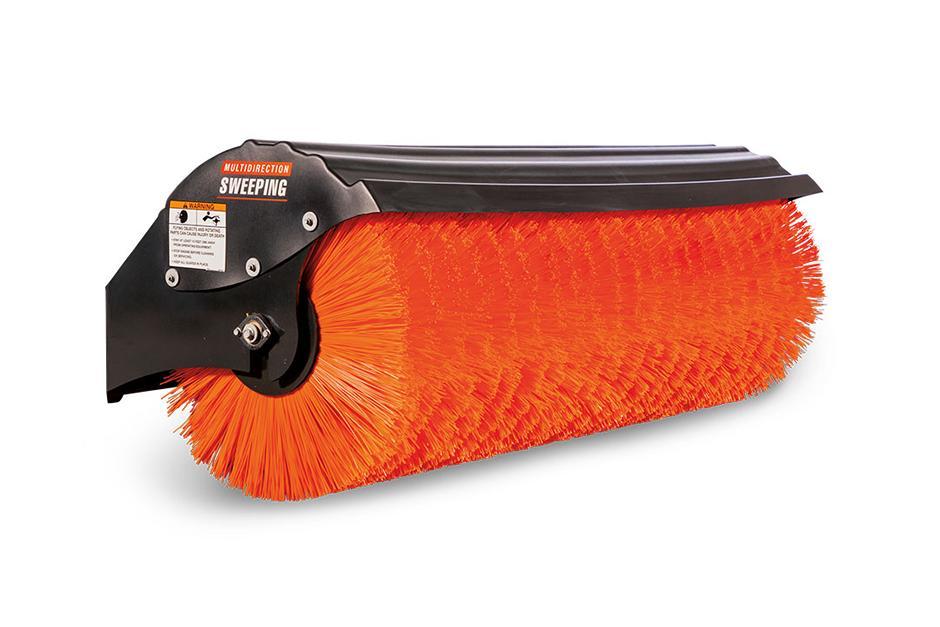

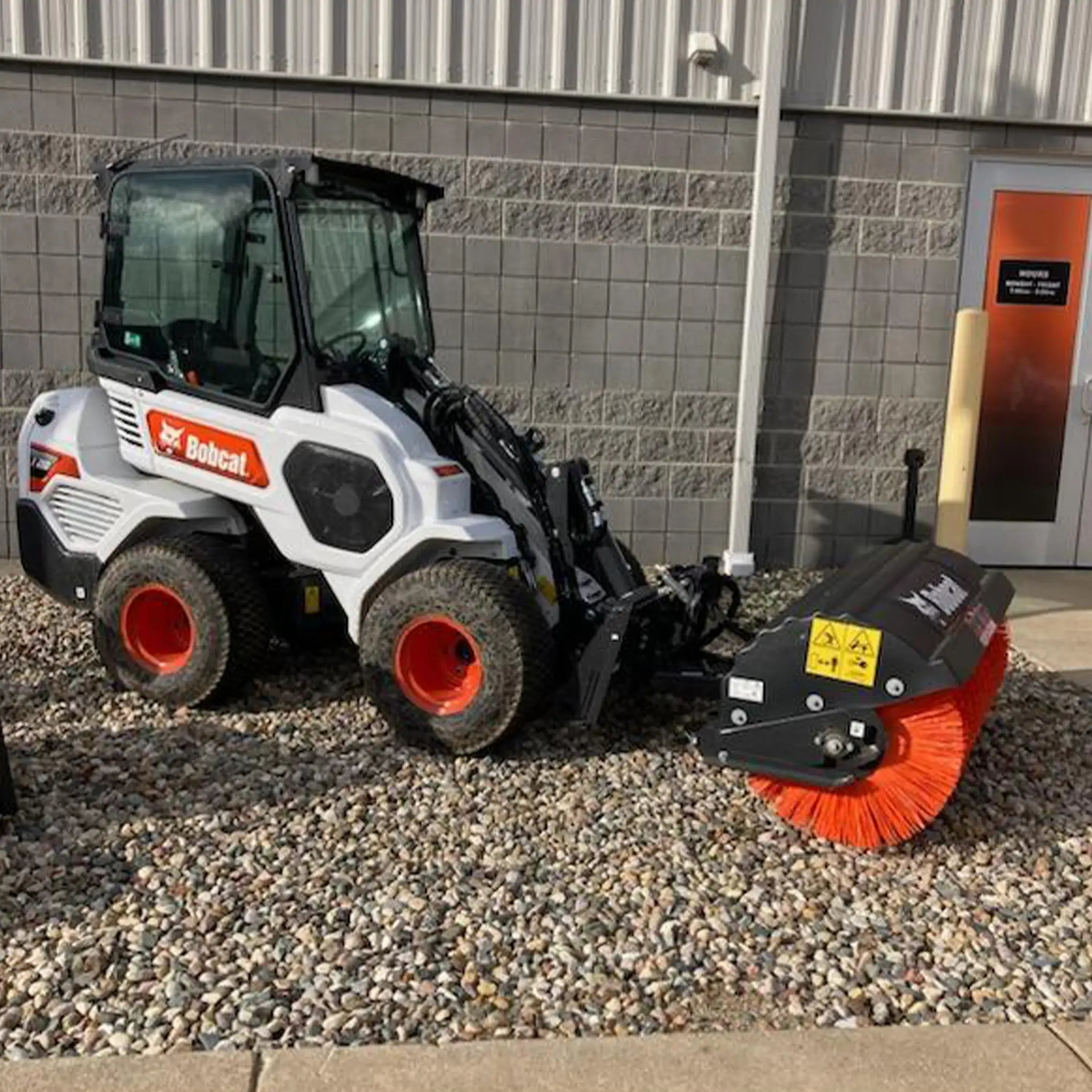

Engineered by Bobcat for use with the Mini Bob-Tach system, the mini angle broom offers a versatile and efficient solution for keeping your workspace free of dirt, snow, and other debris. Powered by a hydraulic motor, it continuously rotates, clearing unwanted material from the immediate area. Available in 48-inch, 52-inch, and 64-inch widths, each broom can angle up to 25 degrees in either direction to easily direct debris away. In tighter areas, operators can reverse rotation for a simpler, more complete cleanup. Built to handle a range of tasks, this handy attachment helps you maintain productivity on the job.
Required Components
- Hose extension kit (Small Articulated Loaders)
- Attachments control kit
What Makes the Angle Broom (Mini) Different
A compact hydraulic broom attachment for clearing dirt, debris and light snow from finished surfaces.

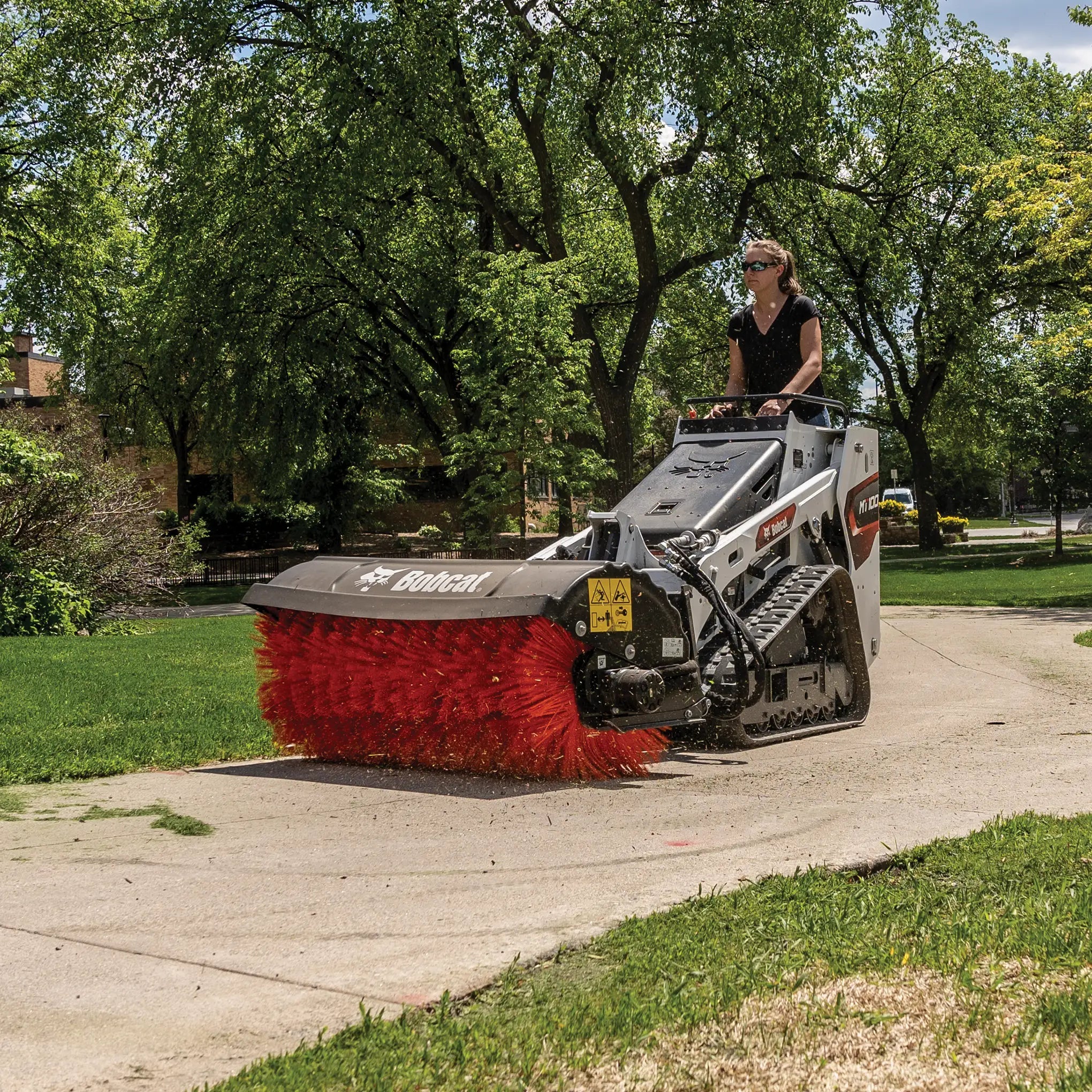

Hydraulic Sweeping Power
Continuously rotating bristles clear dirt, dried mud, leaves, light snow and loose debris.
Three Broom Widths
Choose a 48-, 52- or 64-inch broom configuration to match the work area and cleanup task.
Angled Sweeping
Direct material away from the cleaned path with up to 25 degrees of angling on hydraulic models.
Compact Cleanup

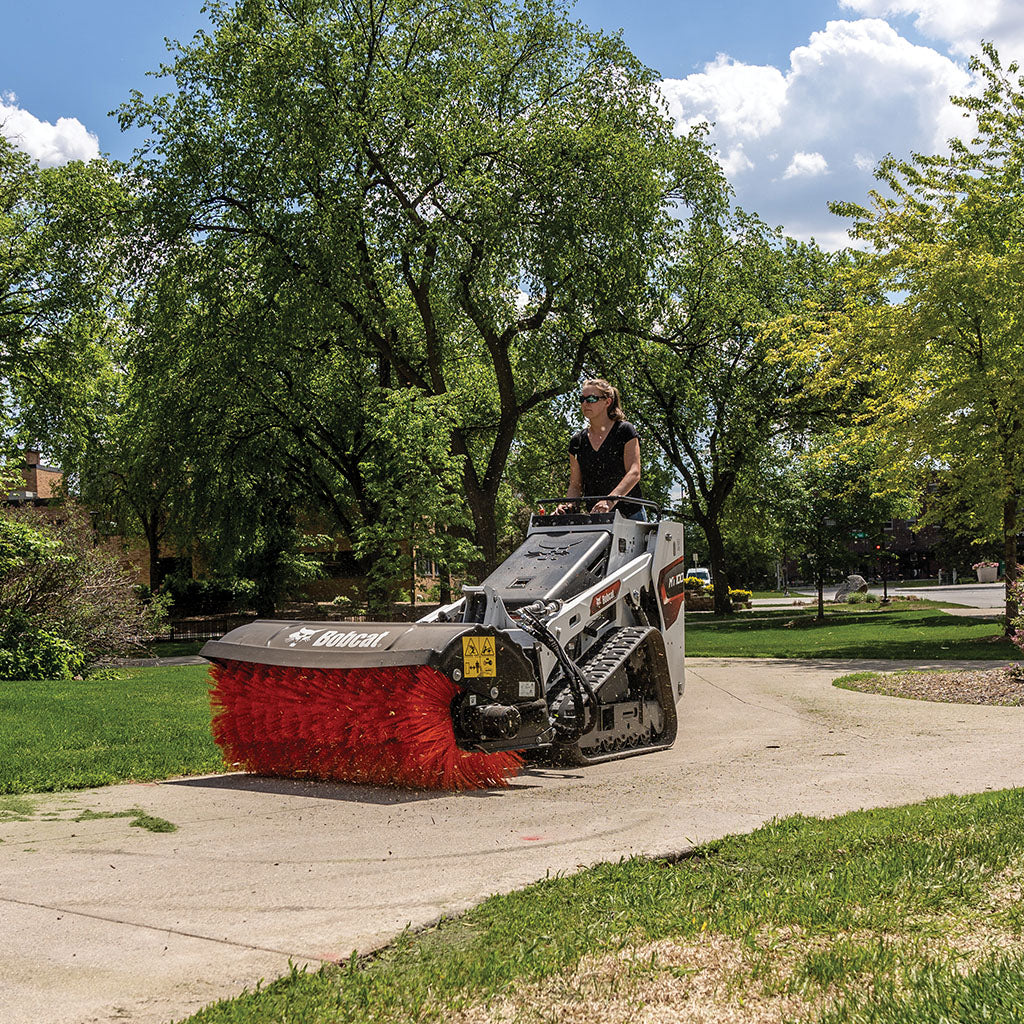

Work efficiently on sidewalks, driveways, parking areas and confined jobsites.

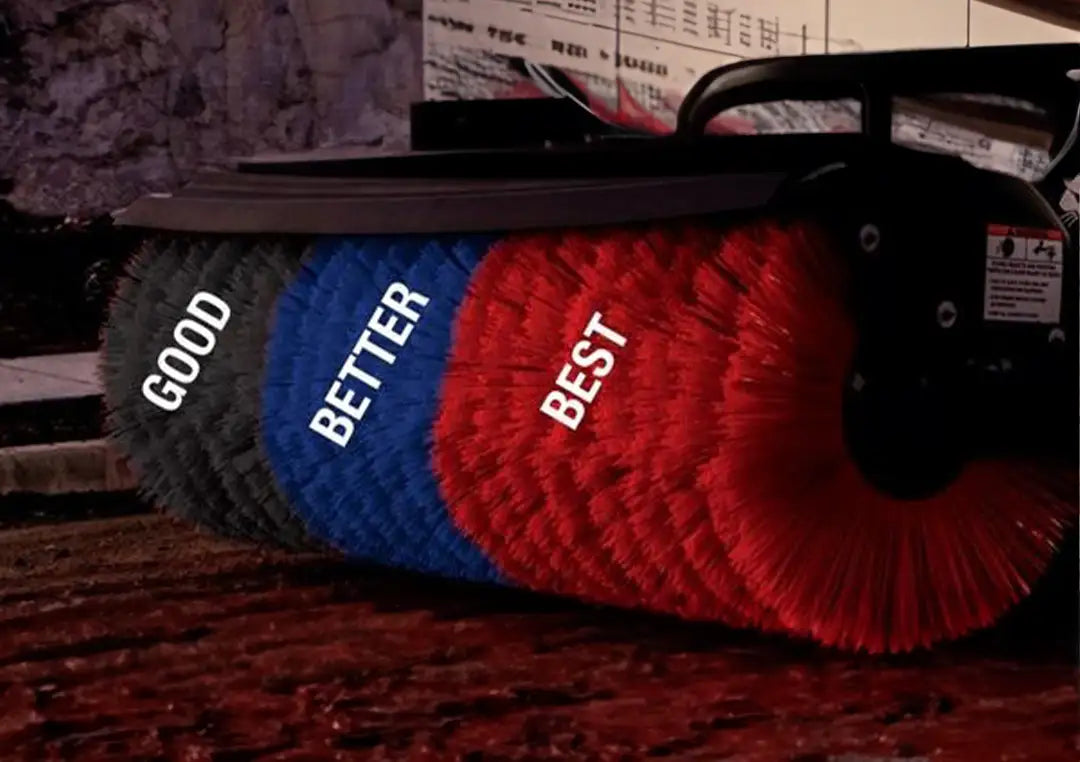

Replaceable Bristles
Durable polypropylene bristles provide effective cleaning and straightforward replacement.

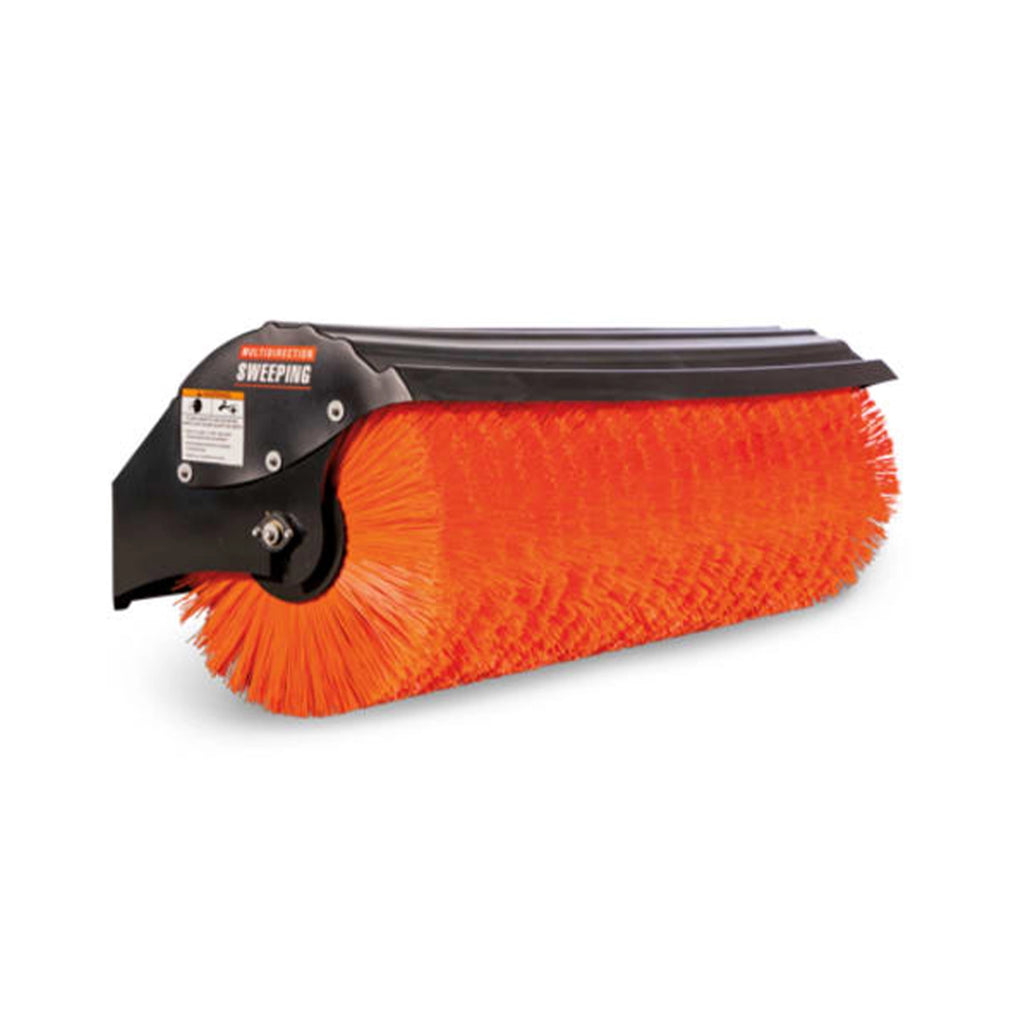

Mini Angle Broom Features & Benefits
Features & Benefits 6

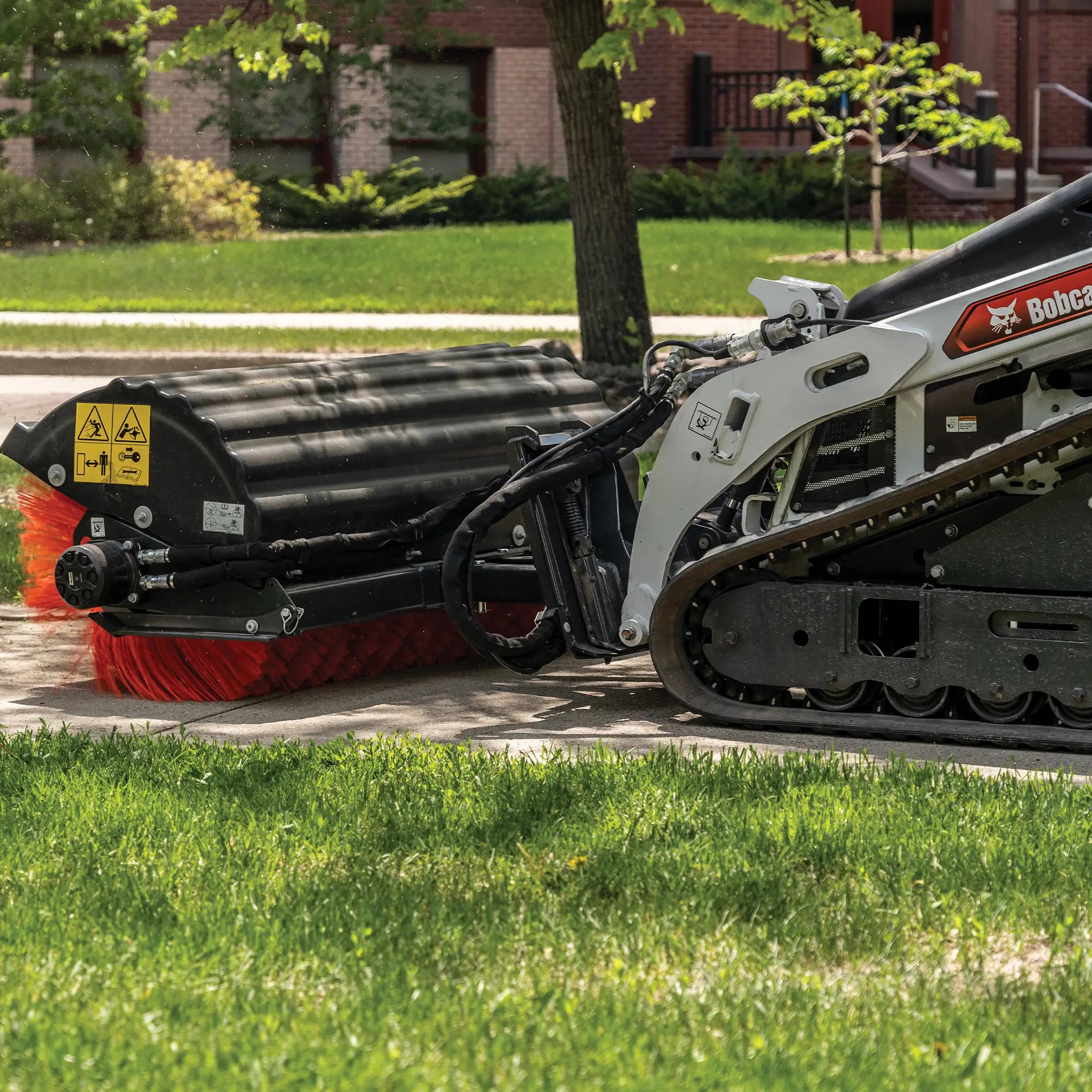

Mini Bob-Tach Mounting
Connect the attachment through the compact Mini Bob-Tach mounting interface for fast attachment changes.
High-Torque Hydraulic Drive
Hydraulic power keeps the broom rotating through dirt, debris and light snow.
Flush Sweeping
Clean closely along curbs, walls and other edges for a more complete finished path.
Controlled Angling
Angle the broom to direct material away from the cleaned surface and form a controlled windrow.

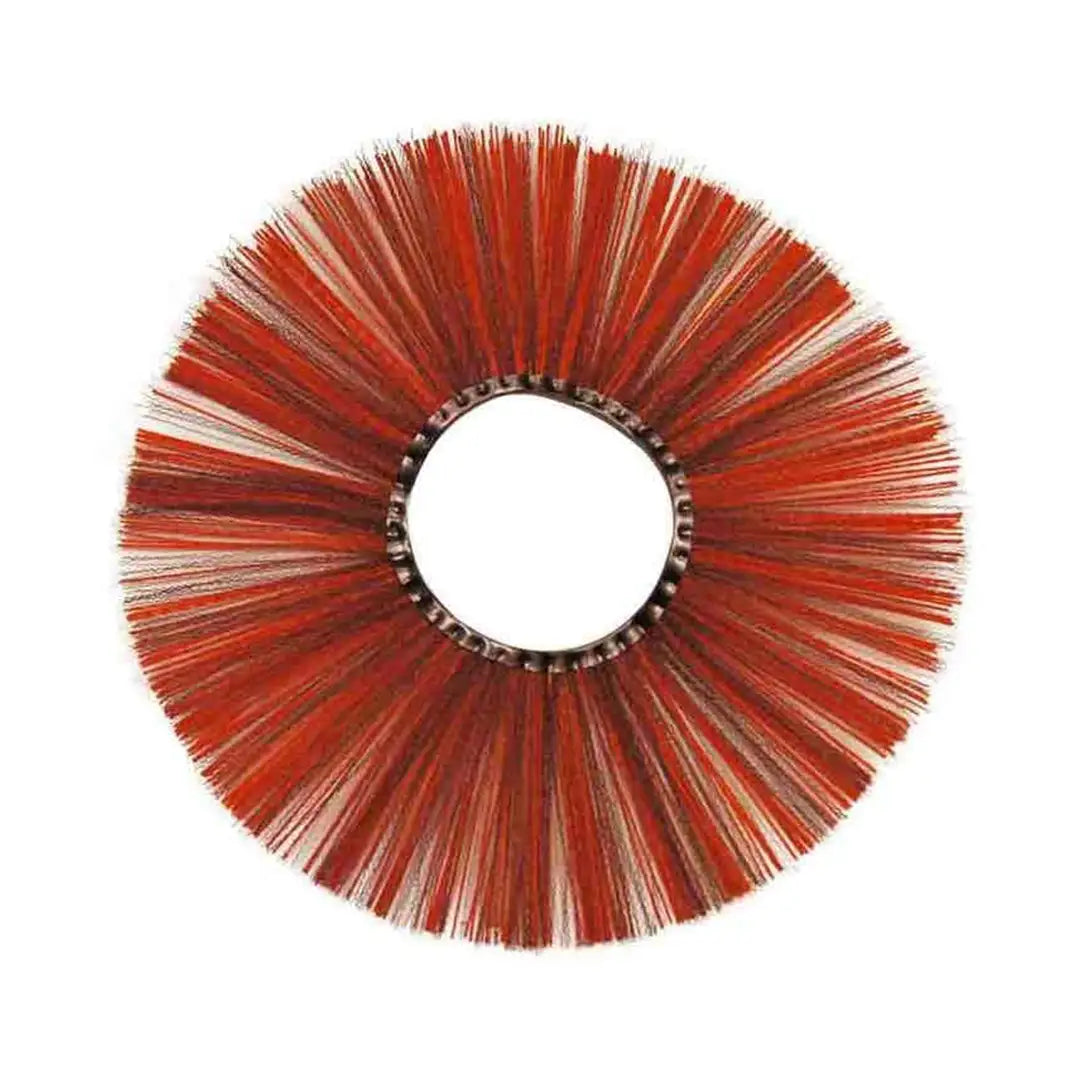

Polypropylene Bristles
Replaceable wafer bristles offer long service life and dependable cleaning performance.
Compact Design
A maneuverable attachment footprint supports efficient cleanup in narrow or congested spaces.
Versatile Cleanup in Tight Work Areas
Sweeps dirt, dried mud, leaves, debris and light snow
Three available widths cover narrow paths and larger paved areas
Angled sweeping directs material away from the cleaned path
Compact design maintains maneuverability around obstacles
What the Mini Angle Broom Attachment Does
Surface Maintenance
- Clean sidewalks and driveways
- Sweep parking areas
- Maintain paved jobsites

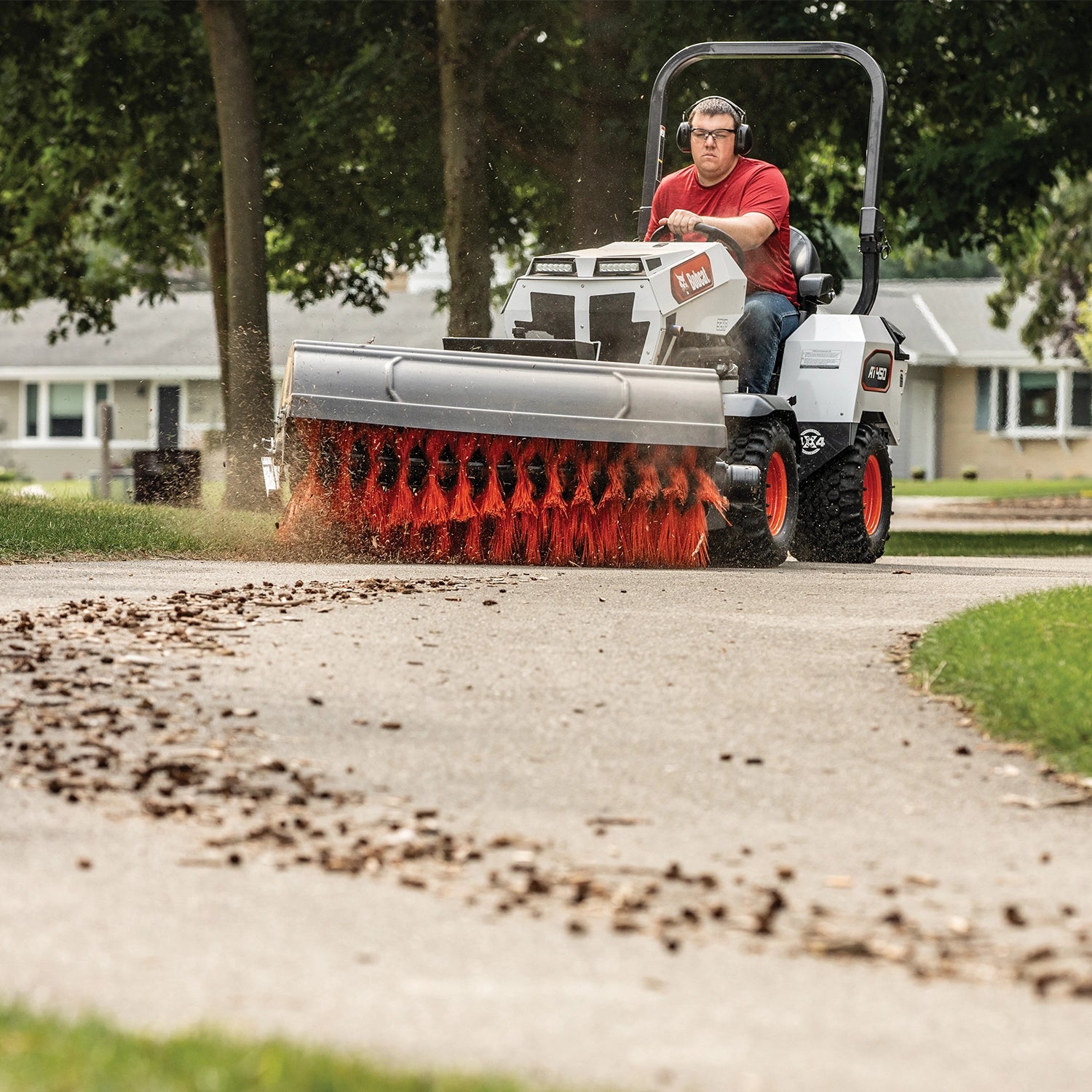

Debris Cleanup
- Move dirt and dried mud
- Clear leaves and loose debris
- Sweep along curbs and walls

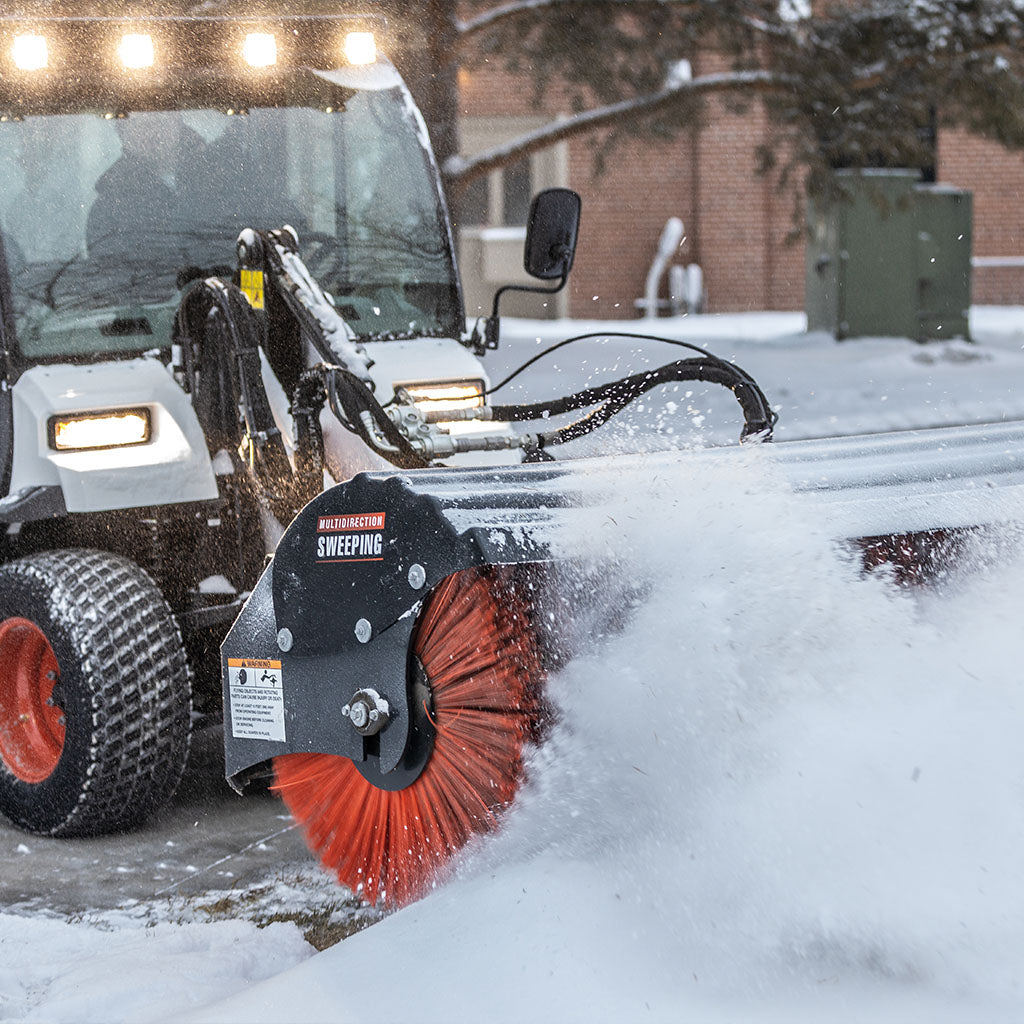

Light Snow Removal
- Sweep light snow from finished surfaces
- Angle material away from the path
Talk to a person about the Angle Broom (Mini)
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Mini Angle Broom Specifications
| General | 48-Inch | 52-Inch | 64-Inch |
|---|---|---|---|
| Length | 46.9 in | 48.26 in | 48.26 in |
| Operating Weight | 260 lbs | 355 lbs | 385 lbs |
| Width | 54.9 in | 54.5 in | 67.5 in |
| Height | 22.8 in | 28.6 in | 28.2 in |
| Bristle Material | Replaceable polypropylene | Replaceable polypropylene | Replaceable polypropylene |
| Broom Angling | Manual | Hydraulic | Hydraulic |
| Bristle Diameter | 21.4 in | 26 in | 26 in |
| Drive System | Hydraulic motor with chain-drive reduction | Hydraulic motor | Hydraulic motor |
| Sweep Width, Straight | 48 in | 51.5 in | 63.5 in |
| Sweep Width, Fully Angled | 41.5 in | 48 in | 60 in |
| Maximum Angle | 30 degrees | 25 degrees | 25 degrees |
| Hydraulic Flow Range | 8–13 gpm | 9–18 gpm | 9–18 gpm |
Specifications apply to the angle broom attachment configurations. Confirm width, mounting interface and compatibility with Carleton Equipment.
|
