Description
Angle Broom - AT | Bobcat

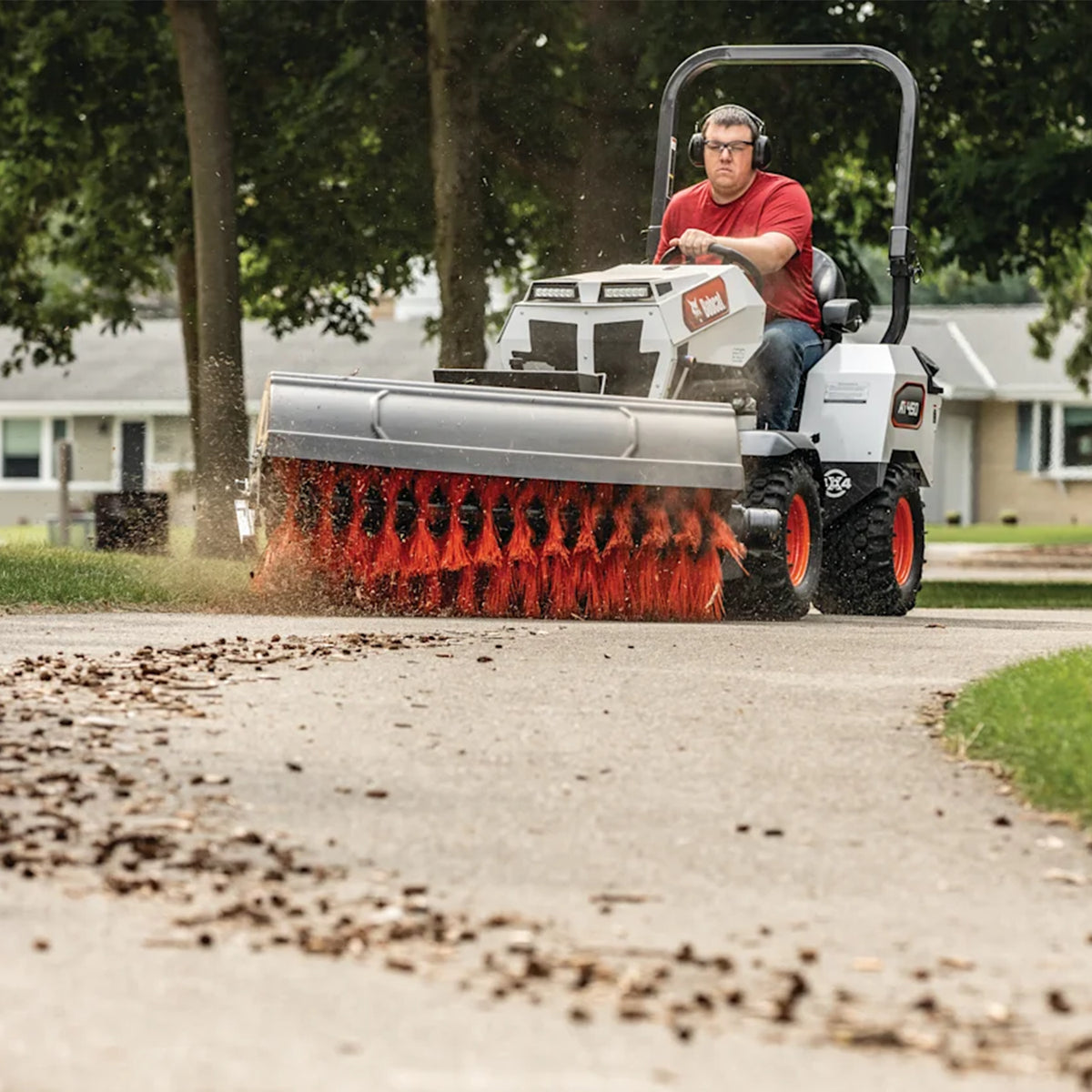

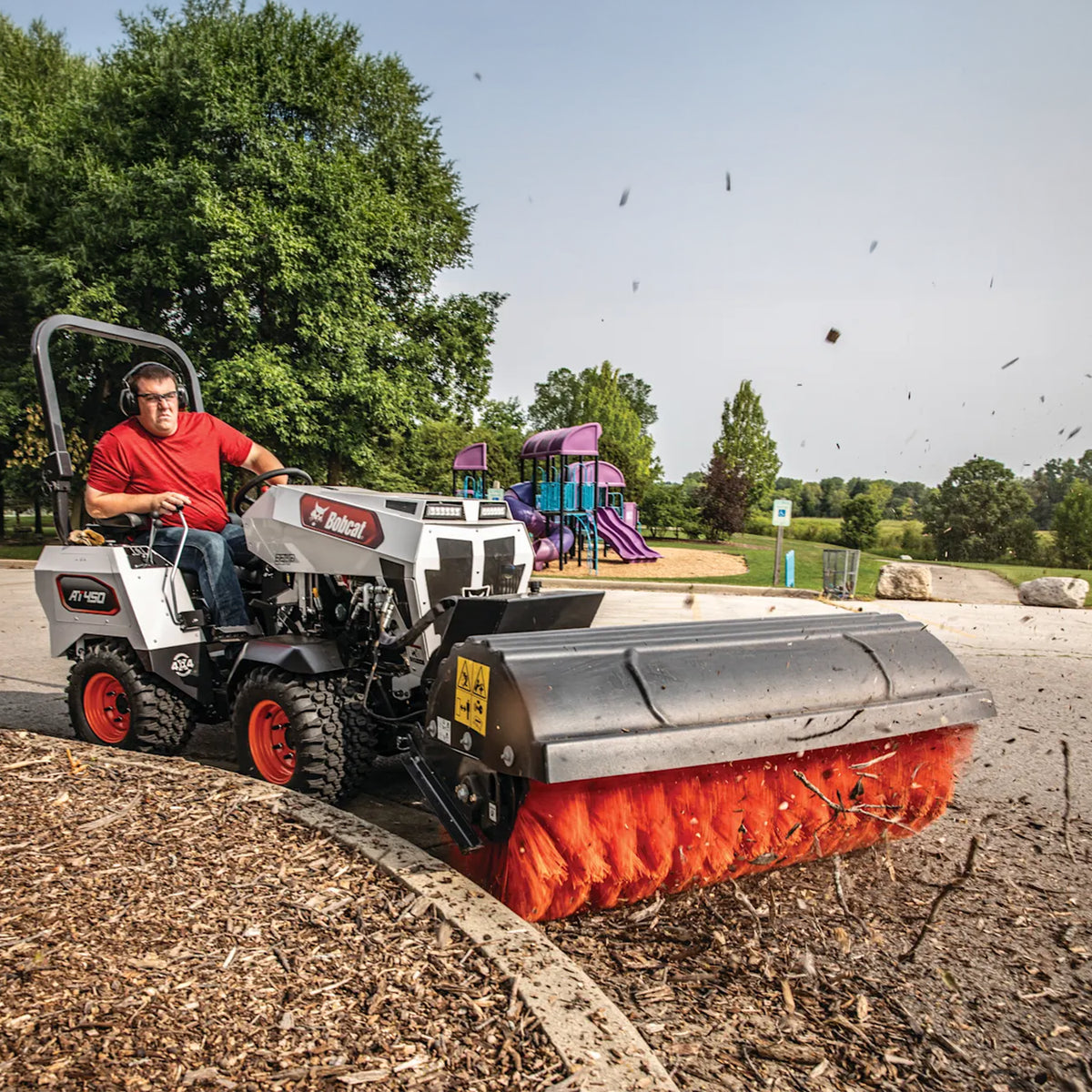

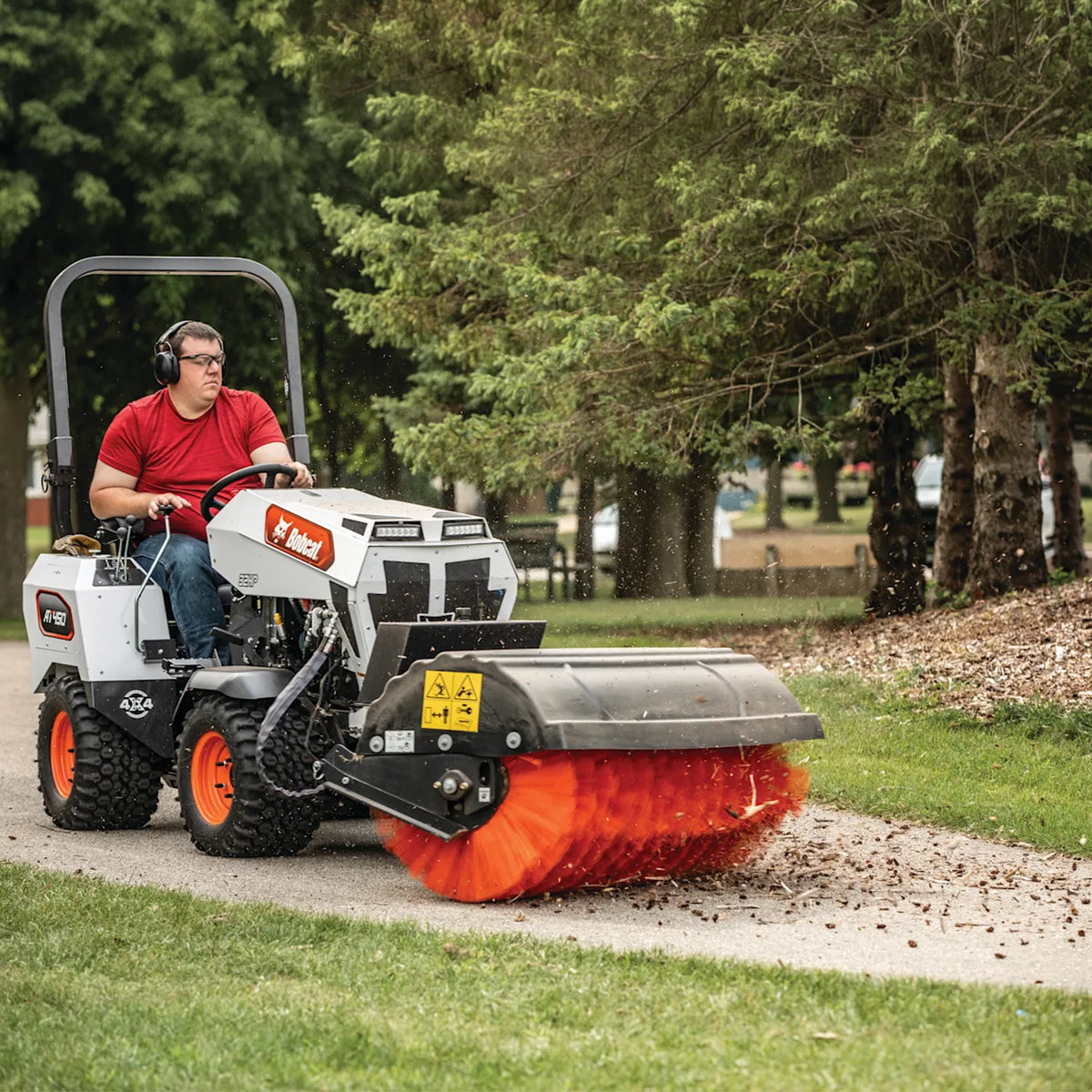

The 52-inch Angle Broom delivers efficient, year-round sweeping performance for clearing leaves, debris, and snow from driveways, sidewalks, and other paved surfaces. Forward and reverse brush rotation provides greater versatility, while adjustable brush speed allows operators to clean delicate surfaces with improved precision. A self-centering hydraulic angling system helps maintain full broom contact with the ground for consistent sweeping results, while thicker, durable bristles provide extended service life and reduced downtime.
What Makes the Angle Broom (Articulating Tractors) Different
A compact 52-inch hydraulic broom attachment for controlled cleanup of leaves, debris and light snow.
52-Inch Working Width
Powerful sweeping performance and efficiency with a 52-inch working width.
Year-Round Cleanup
Clear leaves, debris and snow effectively from paths and driveways throughout the year.
Forward and Reverse Rotation
Control brush rotation in either direction for effective cleanup around curbs, corners and obstacles.
Adjustable Broom Speed
Adjust broom speed for more precise operation on delicate surfaces.
Self-Centering Hydraulic Angling
Keeps the broom centered and maintains full broom contact with the ground.
Thicker Bristles
Durable bristles improve attachment uptime and sweeping performance.
Angle Broom Features & Benefits
Features & Benefits 11
Quick-Hitch System
Make toolless attachment changes in minutes and move conveniently from task to task.
Heavy-Duty Bristles
Replaceable polypropylene wafer bristles provide excellent service life and cleaning ability.
Multi-Direction Sweeping
Reverse bristle direction to remove debris from curbs, gutters, corners and obstacles.
Fingertip Control (Palm Control)
Precisely control the attachment to finish cleanup quickly and efficiently.
Storage Stand
Supports the angle broom during storage to help prevent bristle distortion and protect uptime.
High-Torque Motor
Provides strong power for efficient sweeping, even when engaging heavier debris.
Flush Sweeping
Sweep closely along curbs and walls for improved cleaning.
Angle Control
Electric-over-hydraulic control adjusts the broom angle up to 25 degrees.
Easy Maintenance
The quick-change rotor makes bristle replacement simple; removing two bolts releases the entire rotor.
Compact Design
A compact, highly maneuverable design supports efficient cleanup in confined areas.
Self-Centering Hydraulic Angling
Keeps the attachment centered, helps prevent offset and supports accurate sweeping along sidewalks without disturbing adjacent surfaces.
Controlled, Year-Round Surface Cleanup
Moves leaves, debris and light snow across a 52-inch working width
Forward and reverse rotation reaches curbs, gutters, corners and obstacles
Adjustable speed provides greater control on delicate surfaces
Compact design and self-centering hydraulic angling support precise maneuvering
What the Angle Broom Attachment Does
Landscaping
- Clear leaves and loose debris
- Clean landscaped properties
Sidewalk and Driveway Maintenance
- Sweep paved paths and driveways
- Clean along curbs, gutters and walls
Light Snow Removal
- Sweep light snow from paved surfaces
- Angle material away from the cleared path
How It Works
- Hydraulic power rotates the 26-inch-diameter broom.
- Electric-over-hydraulic control angles the attachment as much as 25 degrees.
- Adjust brush speed and rotation direction to suit the surface and material.
Talk to a person about the Angle Broom (Articulating Tractors)
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw

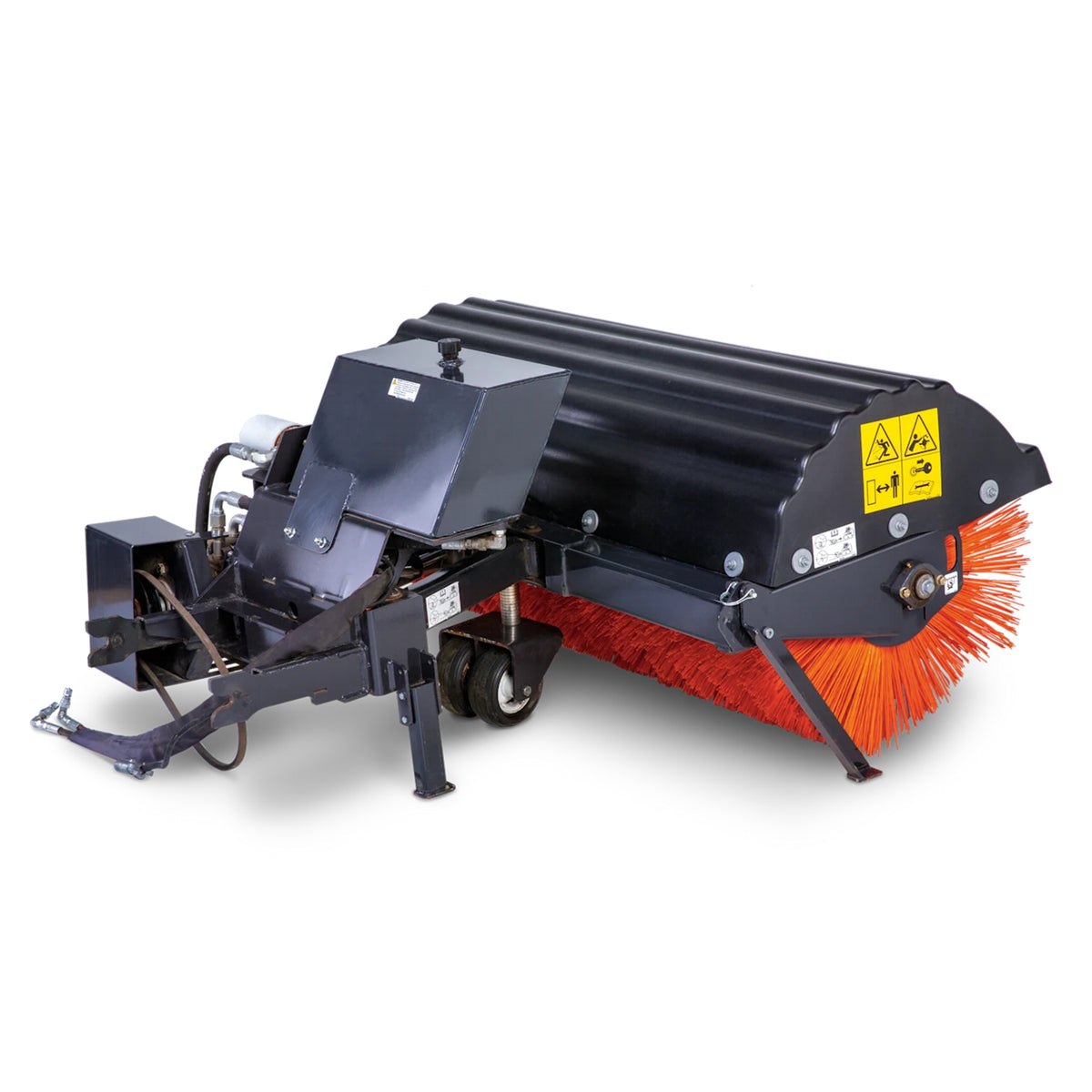

Angle Broom Specifications
| General | Angle Broom (Articulating Tractors) |
|---|---|
| Length | 60 in |
| Model Name (Public) | Angle Broom - 52" |
| Operating Weight | 395 lbs |
| Width | 63 in |
| Height | 28.5 in |
| Sweep Width, Straight | 52 in |
| Sweep Width, Fully Angled | 47 in |
| Maximum Angle | 25 degrees |
| Bristle Diameter | 26 in |
Specifications apply to the Angle Broom attachment. Confirm attachment compatibility with Carleton Equipment.
|
