Description

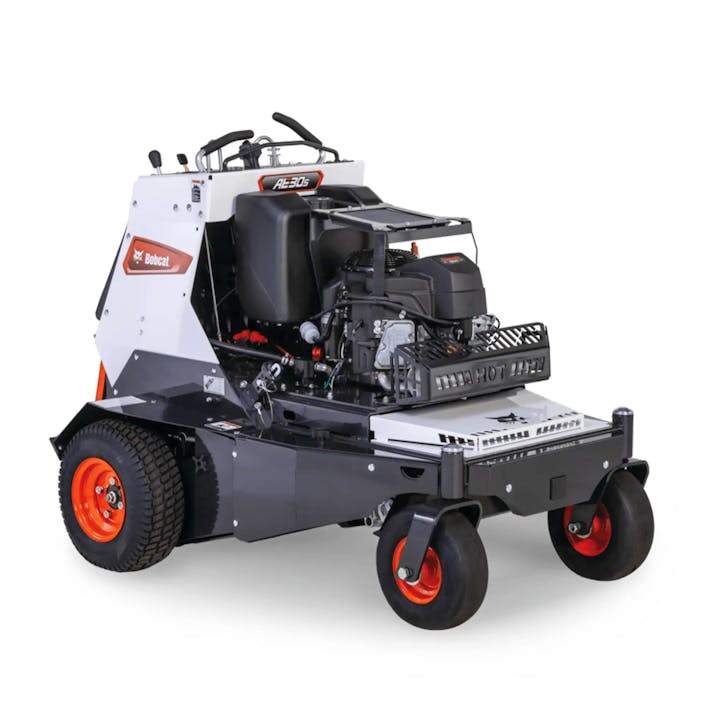

Bobcat AE30S Stand-On Aerator
Swift and efficient, the Bobcat® AE30S aerator is capable of covering two-and-a-quarter acres per hour at ground speeds up to 7 mph.
- 30 in. working width
- 48 hardened alloy steel coring tines
- Stand-on anti-vibration operator platform
- All operating controls are located at the handlebar for convenient and easy operation
- Patented depth stops ensure consistent and accurate results
Aeration season doesn’t last forever, that’s why you need a swift, efficient machine that saves you time while increasing your productivity. The Bobcat AE30S does just that, capable of covering two-and-a-quarter acres per hour at ground speeds up to 7 mph. Its innovative features and controls also give you the power and speed to take on the biggest jobs. It’s packed with features including an anti-vibration operator platform that can be flipped up for walk-behind applications, patented depths that create a hard limit for tine penetration, a patented cooling system that provides optimal engine temperature, and a patented chain tensioner system that automatically keeps the chains properly tightened.
What Makes the AE30S Different
High-output core aeration, accurate depth control and a flexible stand-on platform help crews make the most of a short aeration season.
2.25 Acres per Hour Potential
A 30-inch working width and travel speeds up to 7.4 mph help crews cover more turf in less time.
48 Coring Tines up to 5 Inches Deep
Hardened alloy-steel tines create thorough, consistent core aeration for healthier turf.
Stand-On / Walk-Behind Platform
The anti-vibration platform flips up for flexible operation in varied property and access conditions.
Fingertip Tine Control & Depth Stops
A thumb-operated tine switch, pressure dial and patented depth stops support accurate, repeatable results.
ZT-3200 Hydrostatic Drive
Hydro-Gear transaxles support smooth travel and zero-turn maneuverability with the tines raised.
Built for Uptime
Hydraulic cooling, automatic chain tensioning and tool-free service access reduce maintenance time.
Bobcat Aerators
Compare working width, productivity and operating style to choose the right aerator for your turf-care workload.
 |  |  |  |  | |
| AE19Walk-behind | AE26Walk-behind | AE30SViewing | AE36Tow-behind | AE72Tow-behind | |
|---|---|---|---|---|---|
| Operating Style | Walk-behind | Walk-behind | Stand-on / walk-behind | Tow-behind | Tow-behind |
| Aeration Width | 19 in | 26.5 in | 30 in | 36 in | 72 in |
| Maximum Productivity | 28,975 sq. ft./hr | 40,400 sq. ft./hr | 97,800 sq. ft./hr | 65,340 sq. ft./hr | 130,680 sq. ft./hr |
| Maximum Aeration Depth | 2.8 in | 2.8 in | 5 in | 5 in | 5 in |
| Standard Tines | 30 | 42 | 48 | 48 | 96 |
| Overall Width | 28 in | 35.5 in | 47.2 in | 46 in | 96 in |
| Drive / Mobility | Self-propelled Easy-Steer | Self-propelled Easy-Steer | Zero-turn hydrostatic | Tow-behind | Tow-behind |
| Engine | 3.2 hp or 6.5 hp | 3.2 hp or 6.5 hp | 15 hp | Vehicle powered | Vehicle powered |
| Weight | 260–270 lb | 290–300 lb | 1,235 lb | 500 lb | 1,518 lb |
| Best For | Tight, landscaped access | Mid-size properties | High-output routes | Open turf areas | Large fields and turf |
AE30S Features & Benefits
Performance
High-Productivity Aeration
The AE30S can aerate 30 inches per pass at 7.4 mph—more than 2 acres per hour in potential productivity.
48 Coring Tines
Forty-eight coring tines penetrate as deep as 5 inches, helping water, air and nutrients reach deep into turf roots.
Built-In Tire Scrapers
Built-in tire scrapers clean the tires while you work to help maintain traction and high performance.
Durability & Uptime Protection
15 hp Kawasaki® Engine
A 15 hp Kawasaki® FS541V engine provides dependable power for demanding aeration work.
Patented Hydraulic Cooling System
The patented hydraulic cooling system helps maintain optimal operating temperature for uninterrupted productivity.
Patented Automatic Chain Tensioner
Automatic chain tensioning maintains proper tension, supports sprocket life and reduces routine adjustment needs.
Rugged Design
A welded 7-gauge steel frame and heavy-duty steel tubing are built to withstand harsh working conditions season after season.
Comfort & Ease of Operation
Convenient Operator Platform
The operator platform provides smooth, comfortable operation and strong visibility to reduce fatigue and strain.
All Operating Controls at the Handlebar
All controls are conveniently located at the handlebar for straightforward operation.

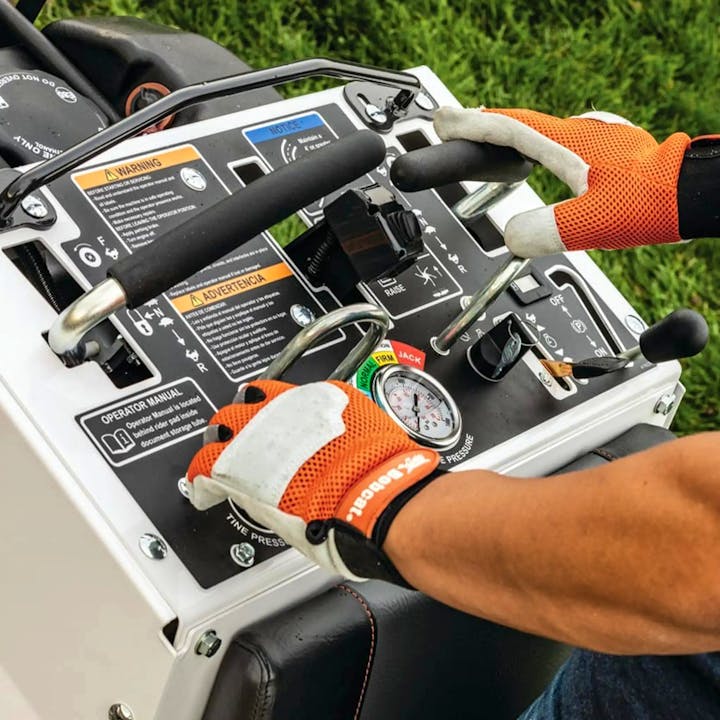

Fingertip Tine Switch and Pressure Dial
A fingertip control lifts and lowers the tines, while the pressure dial sets downward tine force for precise control with minimal effort.

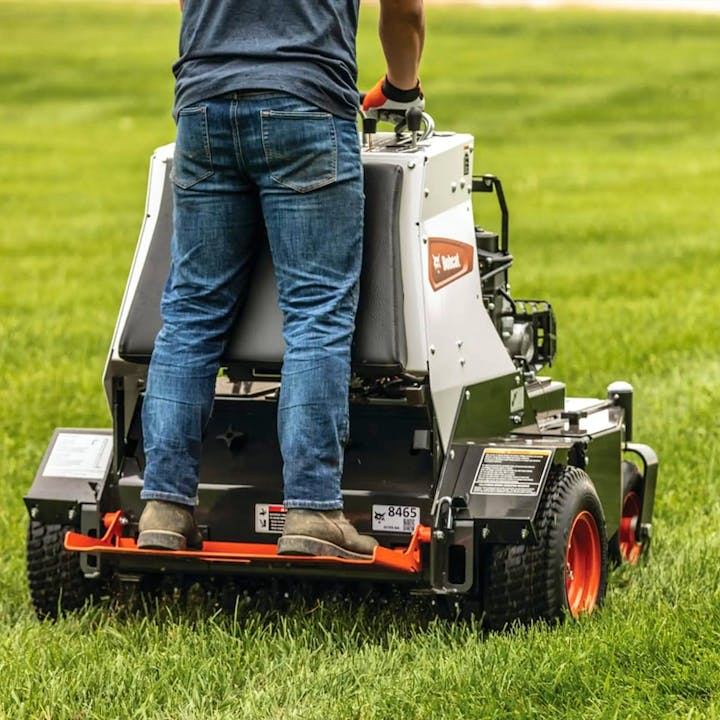

Operator Pad and Anti-Vibration Platform
A durable operator pad and shock-absorbing platform minimize ground feedback for more comfortable long-hour operation.
Narrow Profile
The 47.2-inch-wide AE30S passes through gates and access points as narrow as 48 inches.
Zero-Turn Travel (Tines Up)
With the tines raised, zero-turn mobility helps operators navigate tight spaces and obstacles.
Patented Depth Stops
Patented depth stops limit tine penetration for accurate, consistent aeration results.
Serviceability
Easy Maintenance
The operator pad and maintenance-point covers remove without tools for quick access. Integrated jack stands simplify access beneath the aerator.
Versatility
Flip-Up Operator Platform
Flip the platform up and out of the way to use the AE30S as a walk-behind aerator.
Optional Seed Spreader
Overseed after aeration with the optional seed spreader to efficiently establish thicker, healthier turf.
Optional Light Kit
Extend working hours into early morning and low-light conditions with the AE30S light kit.
Why Buyers Choose the AE30S
30-inch aeration width and 7.4 mph travel speed for up to 97,800 sq. ft. of potential productivity per hour
48 hardened coring tines penetrate up to 5 inches for thorough, consistent turf renovation
Stand-on anti-vibration platform flips up for walk-behind flexibility in varied property conditions
Patented depth stops and a fingertip tine switch support accurate, repeatable aeration depth
Zero-turn hydrostatic travel with tines raised helps crews work efficiently around obstacles
Hydraulic cooling, automatic chain tensioning and tool-free access help protect uptime
Who Uses the AE30S and What For
The AE30S is built for operators who need professional aeration output, precise depth control and flexibility across a variety of turf properties.
- High-volume seasonal aeration routes
- Residential and commercial turf
- Overseeding after core aeration
- Obstacle-rich maintained properties
- Apartment and campus common areas
- Schools, parks and athletic turf
- Compacted turf improvement
- Professional grounds maintenance
- Water and nutrient infiltration
- Seasonal turf renovation work
- Core aeration before overseeding
- Improving turf health and density
Full Specifications
General
| Machine Type | Stand-On Aerator |
| Operating Style | Stand-on platform flips up for walk-behind use |
Engine
| Engine Model | Kawasaki FS541V |
| Horsepower | 15 hp |
Performance
| Maximum Productivity | 97,800 sq ft/hr |
| Travel Speed | 7.4 mph |
| Travel Speed - Reverse | 3.1 mph |
| Product Weight | 1,235 lbs |
Capacities
| Fuel Tank | 5 gal |
| Hydraulic Oil Capacity | 7 qt |
Aeration
| Aeration Width | 30 in |
| Maximum Aeration Depth | 5 in |
| Number of Tines | 48 |
| Tine Type | 0.75 in (19 mm), formed from 0.08 in (2 mm) hardened chrome-molybdenum alloy steel |
| Aeration Pattern | 3.75 in x 8 in (95 mm x 203 mm) |
| Max Tine Pressure | 700 lbs |
| Depth Adjustment | Hydraulic pressure control and two depth-stop pins on either side of the machine in 0.5 in increments |
| Tine Engagement | Thumb-operated tine lift switch |
Drive
| Transmission | Hydro-Gear ZT-3200 transaxles; hydraulic cooling system |
| Drive System | Belt from engine to hydrostat input shafts; hydrostatic drive to jackshaft via auto-tensioned #50 chain; jackshaft to wheels and tines via two #50 chains |
Wheels
| Front Wheel(s) | Two 13 in x 5 in - 6 in smooth-tread pneumatic caster wheels |
Dimensions
| Overall Length | 60.5 in |
| Overall Width | 47.2 in |
| Overall Height | 48 in |
Serviceability & Features
| Frame | Welded 7-gauge steel; 0.25 in wall steel tubing |
| Cooling | Patented hydraulic cooling system |
| Chain Tensioning | Patented automatic chain tensioner system |
| Service Access | Tool-free removable operator pad and maintenance covers; integrated jack stands |
| Available Options | Seed spreader and light kit |
