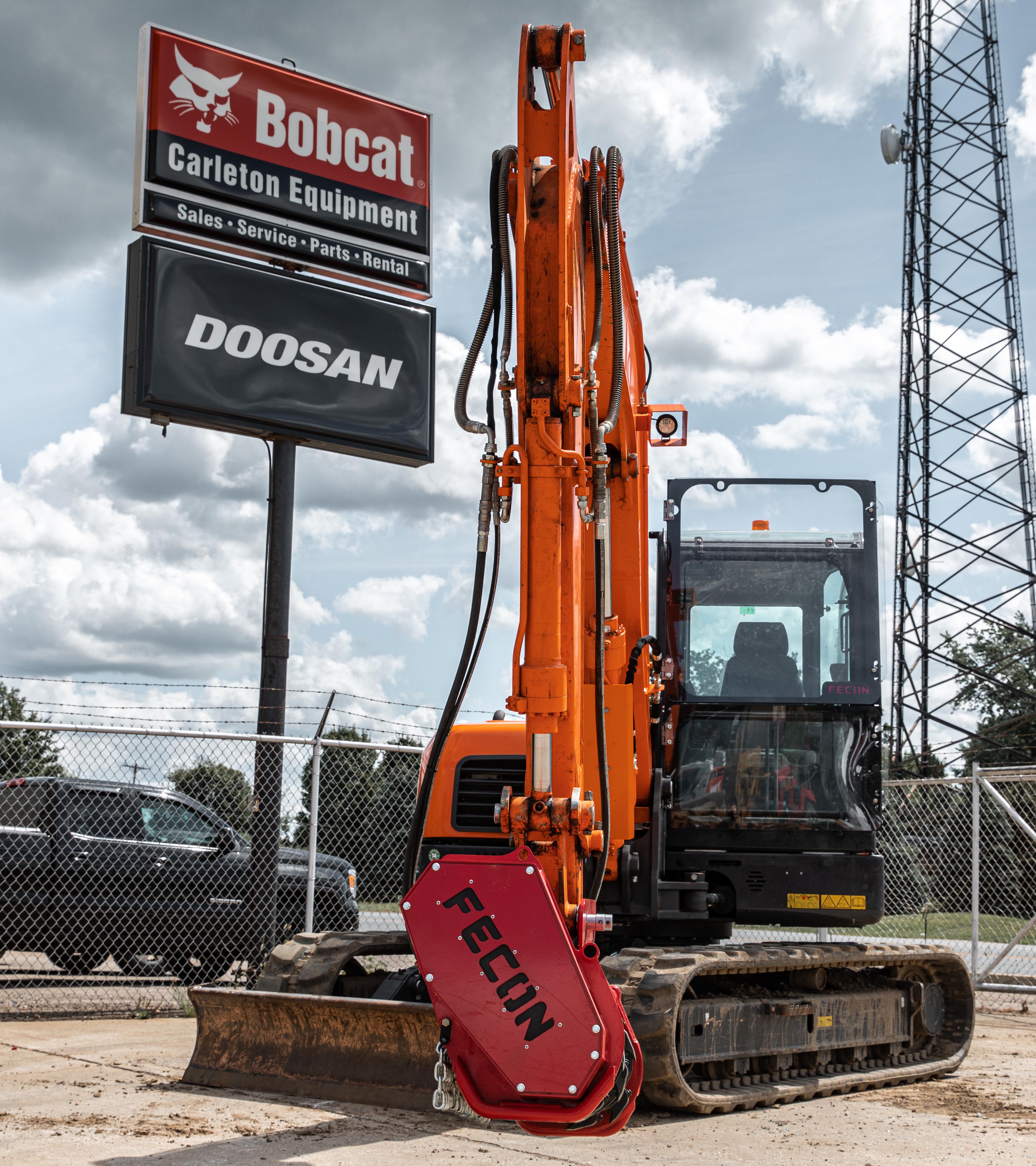

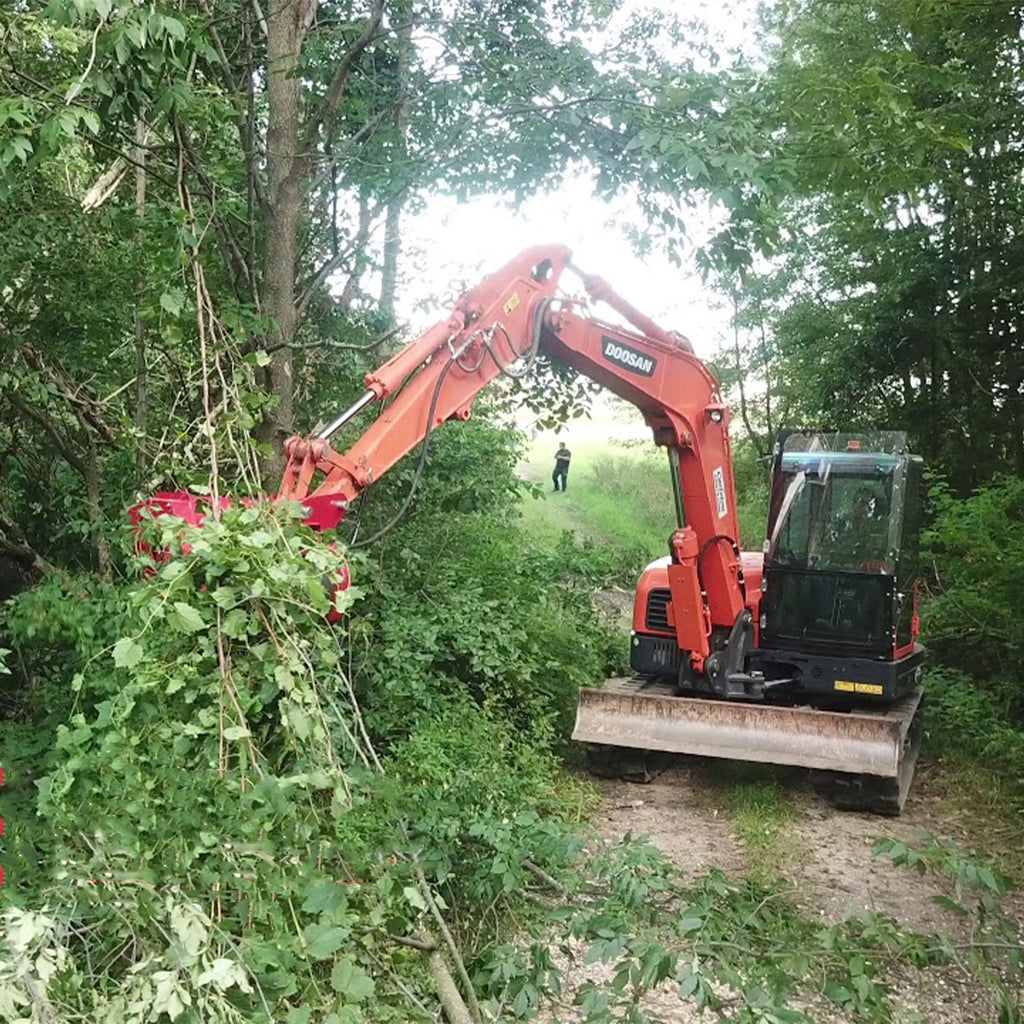

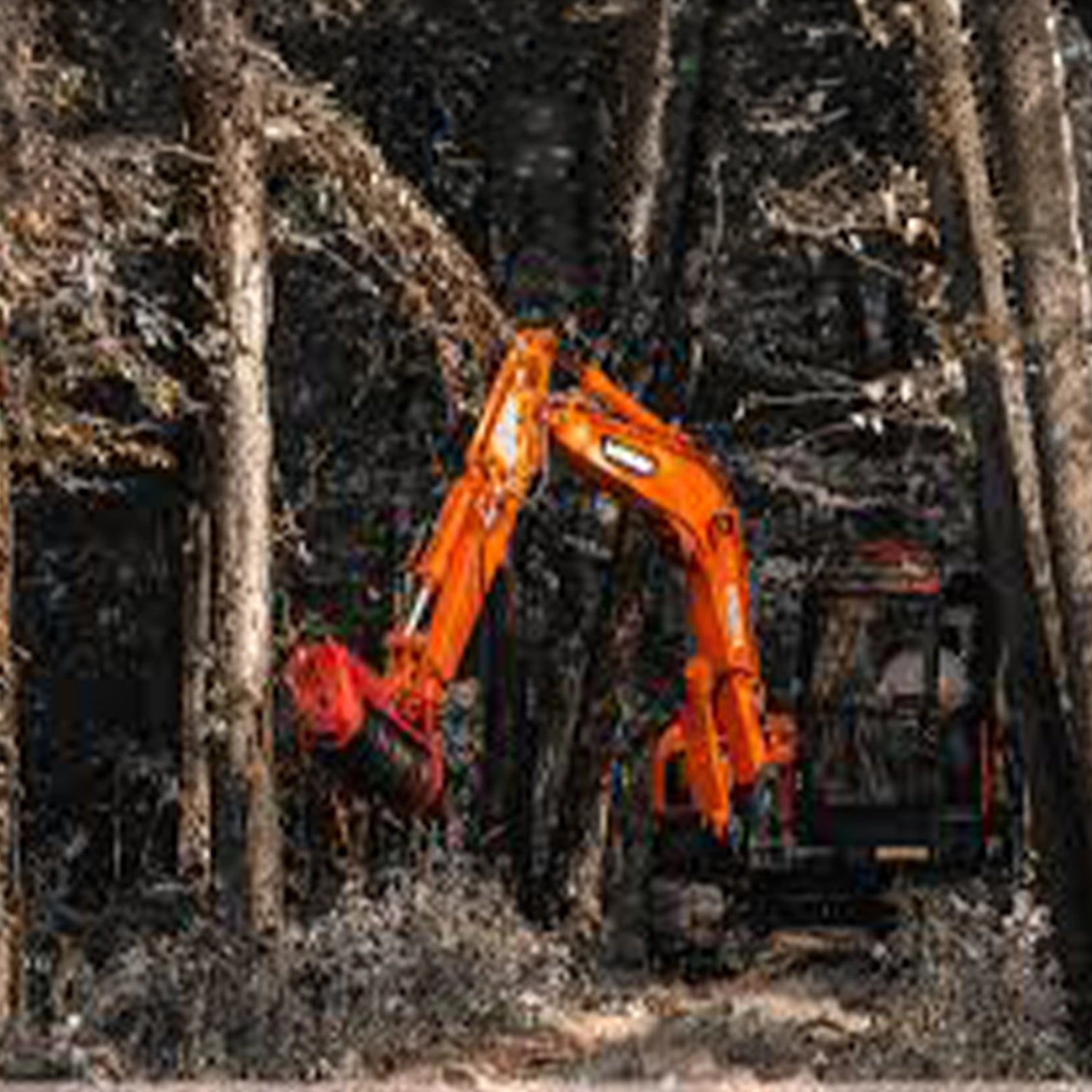

8.5 Ton Crawler Excavator with Mulching Package
VIDEO
Description
The reduced tail swing Develon DX85R-3 provides enhanced fuel efficiency, industry-leading bucket forces, and fast cycle times to power through a wide variety of jobs.
Specs
Engine
Rated Flywheel Power (Gross)
59.4 hp @ 2,100 rpm (SAE-J1995)
Rated Horse Power (Net) 58.6 hp @ 2,100 rpm
Max. Torque (Net) 178 lbf·ft @ 1,365 rpm
Engine Emissions Tier (EPA) Tier 4
Control Valve: Relief Valve Pressure (Normal) 4,054 psi
Control Valve: Relief Valve Pressure (Boost) 3,983 psi
Undercarriage
Upper Rollers: Quantity Per Side
1
Track Length
9' 3"
Track Link: Track Gauge
6' 0"
Weights
Operating Weight
18,960 lb
Standard Boom Length
11.09 ft
Standard Arm Length
7.38 ft
Standard Bucket Size
0.37 yd³
Shoe Width
1' 5"
