More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Watchdog |
| Model: | GBA Equipment Trailer |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

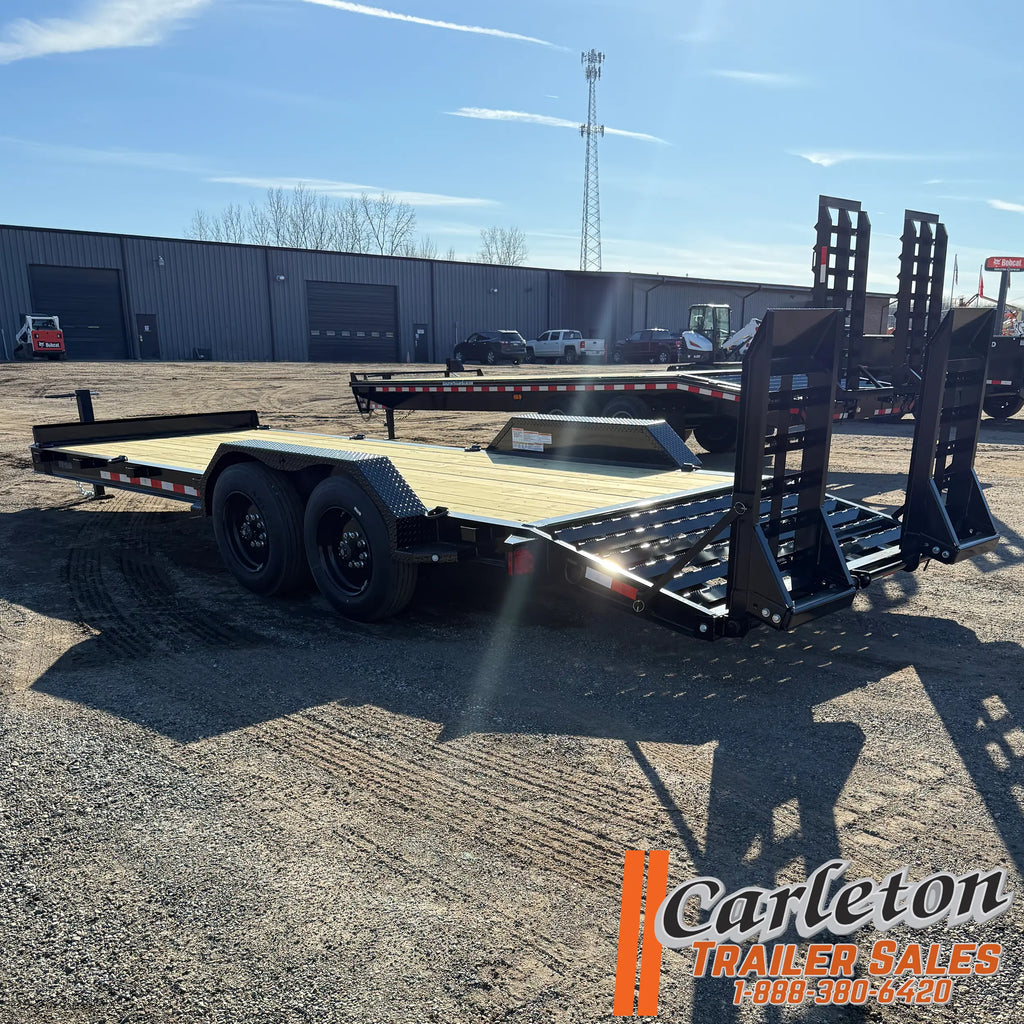

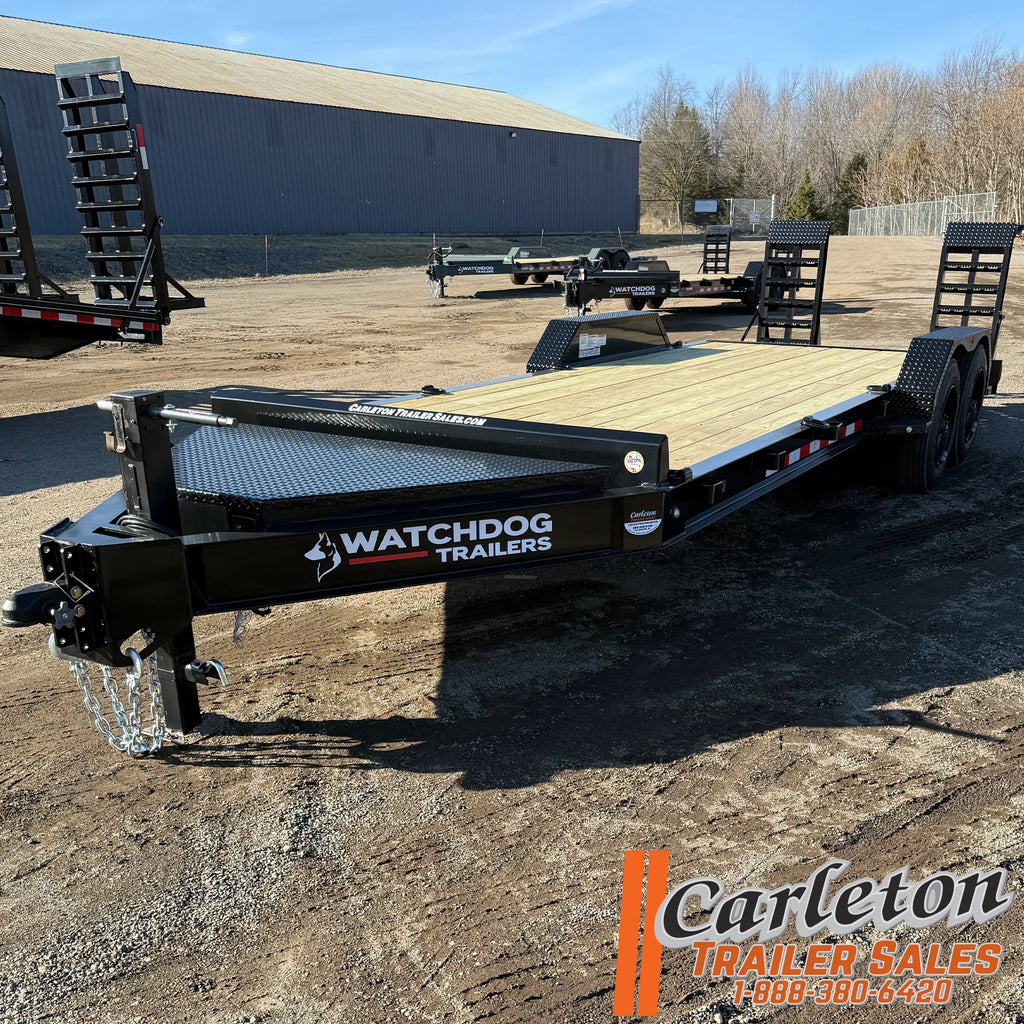

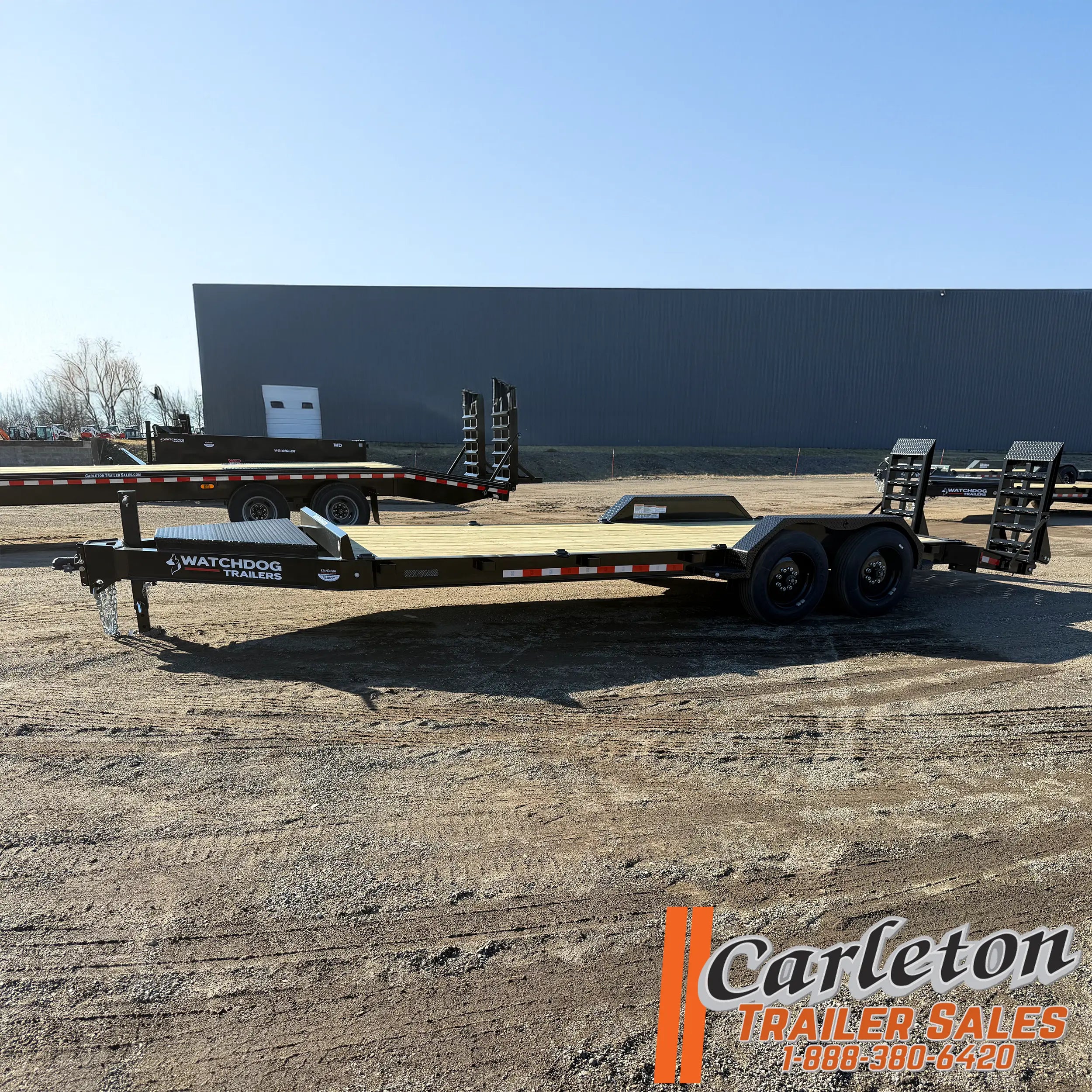

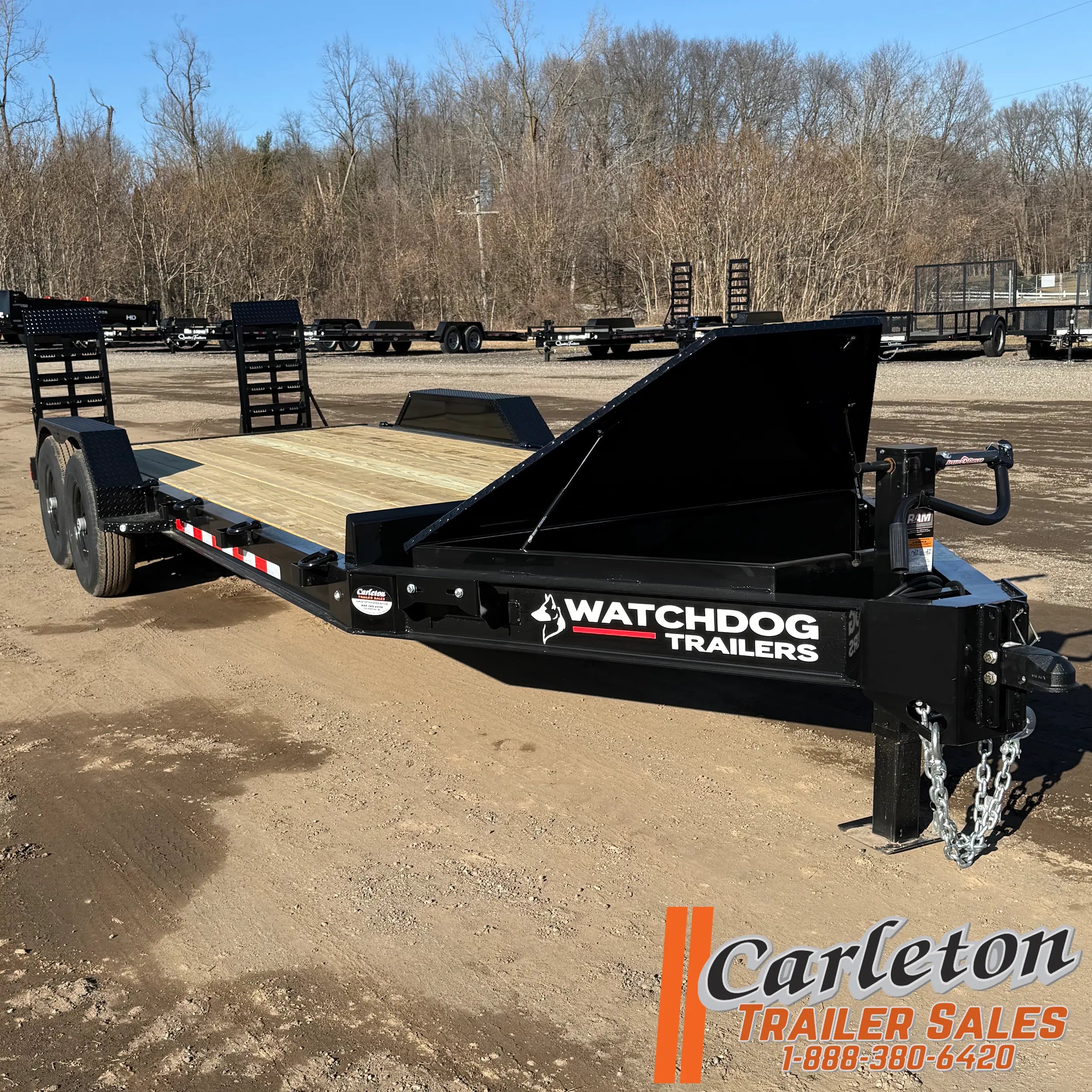

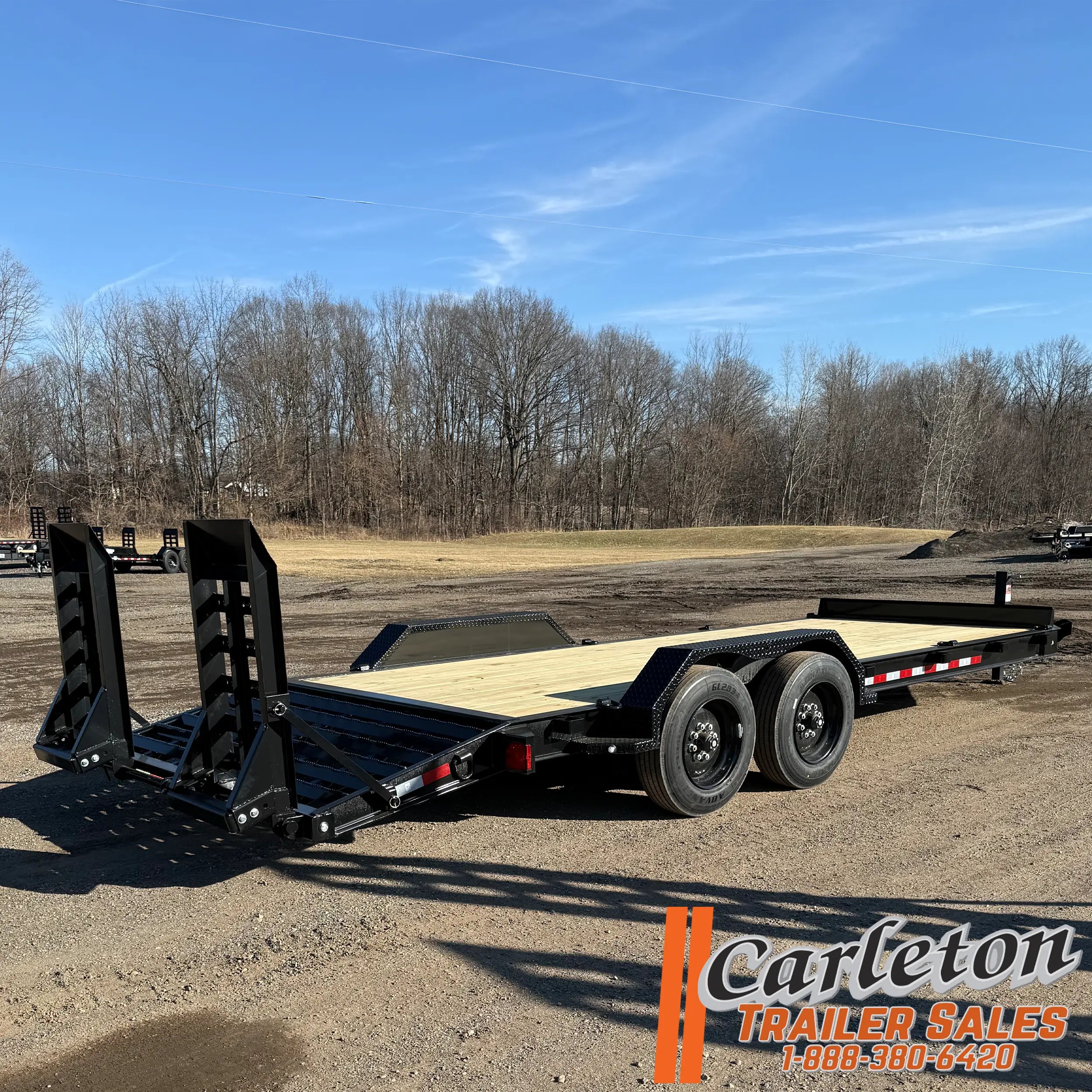

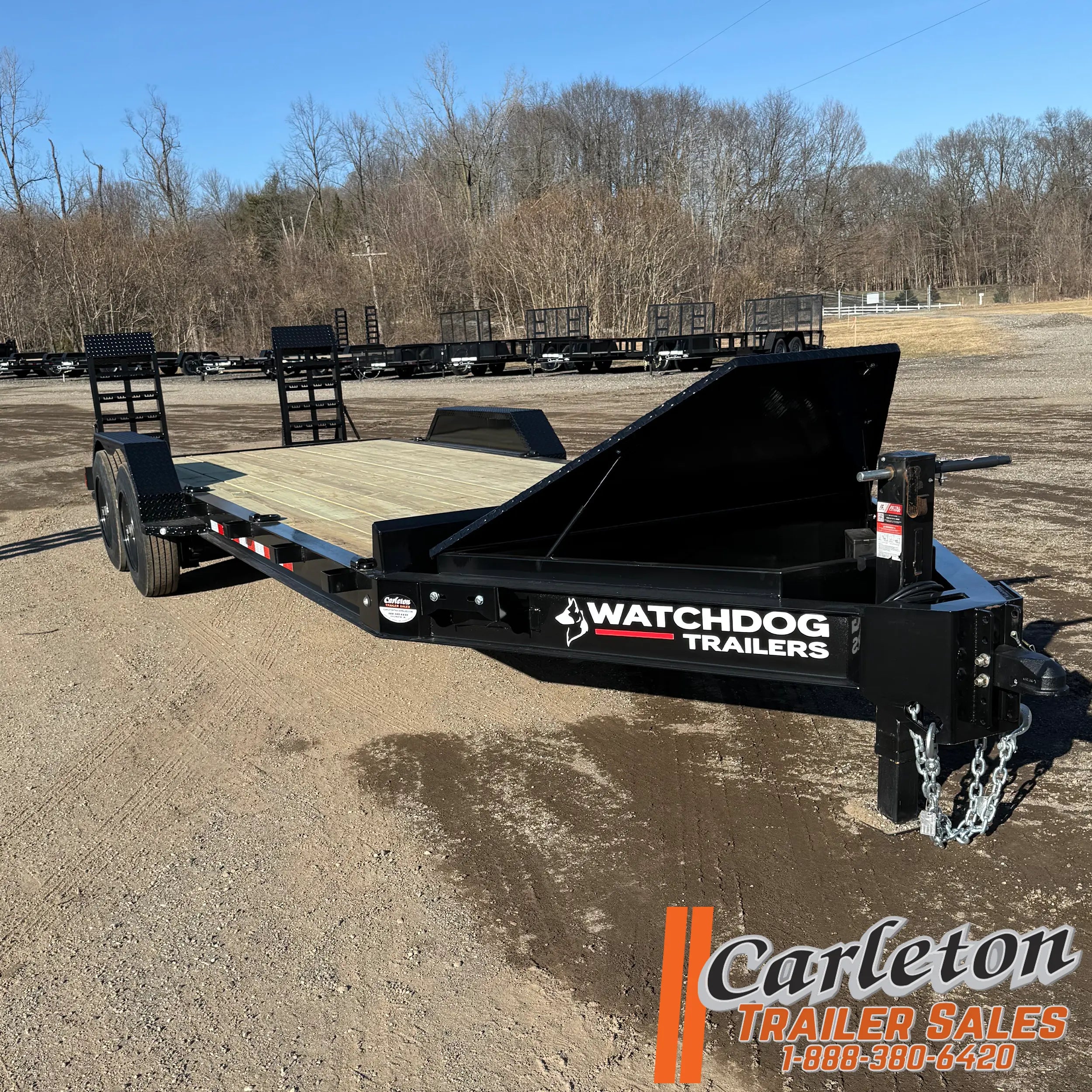

22' GBA Equipment Trailer - 14K GVWR
Features:
- Pull Type: Bumper Pull
- GVWR: 14,000
- Length: 22'
- Tie-Downs: Stake Pockets & D-Rings
- Ramps: 44" Stand up or Wedge Ramps
- Frame: I-Beam
Optional Upgrades:
- Hydraulic Jack
- HOSS Wedge Ramps, Spring Assisted
- 8,000 lb Axles w/ 16ply 17.5 Wheels
- 14ply or 16 ply Tires
| GBA Equipment Trailer | Standard Features | Available Options |
|---|---|---|
| Frame | 8", 13# I-beam Frame and Tongue | |
| Crossmembers | 2"x4"x1/4" C-Channel | 12" On Center |

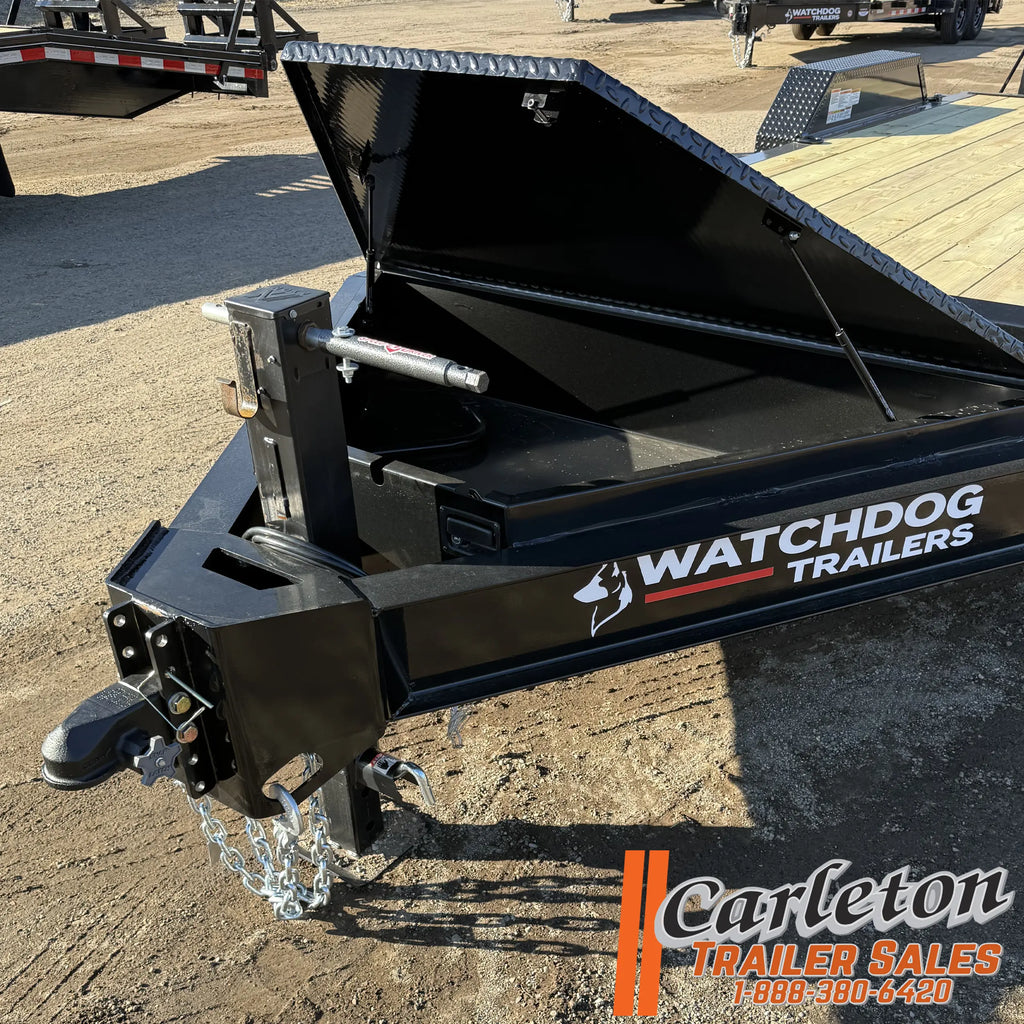

| Storage | Extra Large Tongue Mounted Toolbox | |
| Tie-downs | Stake Pockets and D-Rings | |
| Coupler | 2-5/16" Gen-Y Admiral Adjustable Coupler | |
| Jack | 12k Support, 10k Lift, w/ Spring Loaded Drop Leg and Watchdog SpeedDriver | Hydraulic Jack |
| Deck | 2"x8" Treated Lumber w/ Winch Plate | |
| Wiring | Molded Wiring Harness | |
| Ramps | Spring Assisted, Adjustable Ladder Ramps | HOSS Wedge Ramps, Spring Assisted |
| Fenders | 11Ga Fenders | |
| Axles | Tandem 7000# Axles w/ Champhered Spindle for Better Tracking Tolerance | 8000# Axles w/ 16ply, 17.5" Wheels |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer and Wet Bolt | |
| Brakes | Self-Adjusting Electric Brakes | |
| Axle Studs | 9/16" Studs | |
| Tires | 235/80/R16 Load Range E, 10ply | 14ply, 235/80/R16 |
| Spare Tire | Optional | 10ply, 14ply, or 16ply |
| Convenience | Optional Gen-Y Step, Standard or 42" | |
| Powdercoat | WD Coatings, Standard Gloss Black, or Battleship Grey | Colors Available |
Talk to a person about the GBA Equipment Trailer
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
General
| Condition | Showroom |
Engine
Performance
Capacities
Hydraulics
Dimensions & Weight
Serviceability
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
|
