Flail Cutter | Bobcat

Download Spec Sheet

Get detailed specifications, dimensions, and performance data for this Flail Cutter | Bobcat.

More specifications
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: Flail Cutter
Engine
Performance
Hydraulics
Dimensions

Description

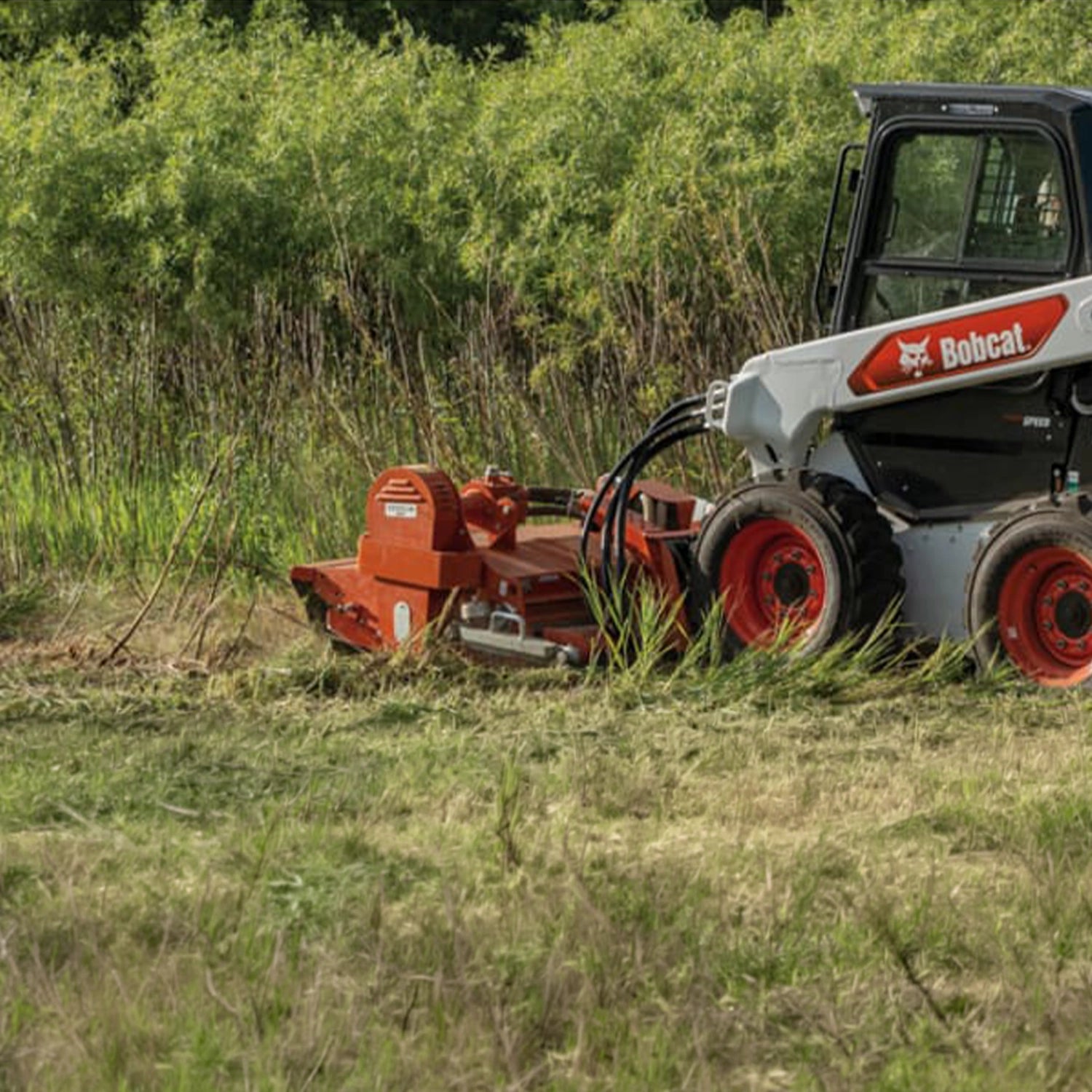

Bobcat Flail Cutter

    The flail cutter attachment clears brush and small trees while distributing cut materials evenly.

    With a cutting width of 79 in., the flail cutter (or flail mower) delivers excellent cutting, mulching, and mowing action for materials up to 3 in. in diameter. The flotation linkage and compact deck length allow the flail cutter to float over ground contours, maintaining surface contact for optimal mowing performance. The thick steel deck design protects the attachment and provides maximum strength for tough clearing jobs.

    This efficient attachment excels in applications such as agriculture, landscaping, utility, and rental. Other applications include maintenance around personal and lakefront property, construction sites, power lines, road right-of-ways, trails, and other areas needing brush mowing or small tree removal.

    Flail Cutter Key Features

    What Makes the Flail Cutter Different

    A carrier-tunable attachment for cutting, mulching and evenly distributing brush, small trees and long grass.

    Cut, Mulch and Mow up to 3-Inch Material

    Twenty-one vertically cutting hammers process brush, small trees and long grass while directing material down for a fine, evenly distributed finish.

    Variable Displacement Motor

    Adjustable displacement tunes the cutter to compatible carriers across Bobcat's published 17- to 40-gpm hydraulic range.

    Forward or Reverse Operation

    The attachment can cut while the carrier travels in either direction for efficient clearing and maneuvering.

    Thick Steel Deck

    A 1/4-inch steel deck protects the attachment and provides strength for demanding agriculture, landscaping, utility and rental work.

    Flail Cutter

    Flail Cutter Features & Benefits

    Cutting Performance & Versatility 5
    Variable Displacement Motor

    An attachment-mounted control adjusts motor displacement to match compatible carrier hydraulic capacity across the published 17- to 40-gpm operating range.

    Adjustable Rear Gate

    Open the rear gate for coarse, high-production cutting or close it to produce smaller discharged material for mulching applications.

    Floating Linkage (Standard)

    Standard flotation linkage and the compact deck help the cutter follow ground contours and maintain surface contact.

    Full-Width Adjustable Rear Roller

    The adjustable, tapered roller supports ground following and improves turning ability in confined areas.

    Three Cutting Heights

    Three height settings help operators match the cutter to changing terrain and brush conditions.

    Safety, Containment & Durability 4
    Automatic Blade Shut-Off

    Flail rotation stops when the attachment is raised off the ground, helping prevent debris from being thrown toward the operator.

    Safety Compliant

    The attachment complies with the SAE J1001 standard for industrial flail mowers.

    Thick Steel Deck

    The 1/4-inch steel deck provides strength and attachment protection for tough clearing work.

    Heavy-Duty Front Rubber Flap

    The heavy-duty front flap helps contain cut material and debris within the attachment.

    Why Buyers Choose It

    A Finer Finish for Tough Vegetation

    Processes brush and small trees up to 3 inches in diameter

    Vertical hammer action throws material down for even distribution

    Variable displacement supports a wide range of compatible carrier flows

    Floating linkage and rear roller follow terrain and improve maneuverability

    Tasks, Setup & Operation

    Cut, Mulch, Mow and Spread a Fine Finish

    The FC200 Flail Cutter combines controlled material discharge, ground following and carrier flexibility for agriculture, landscaping, utility and rental applications.

    Top Tasks

    • Clear brush and small trees
    • Cut long grass and overgrowth
    • Mulch material into a finer finish
    • Maintain utility, agricultural and landscaped areas

    How It Works

    • Twenty-one hammers cut vertically on the rotor.
    • Material is directed downward instead of sideways.
    • The rear gate controls discharge coarseness.
    • Operate while traveling forward or reverse.

    Carrier Setup

    • Tune motor displacement to carrier hydraulic capacity
    • Published feature range: 17 to 40 gpm
    • Confirm flow, controls and carrier approval
    • Select cutting height for terrain and material

    Compatible Equipment

    • 6 compact track loaders
    • 7 skid-steer loaders
    • 2 telehandlers
    • 2 Toolcat utility work machines

    Debris Control

    • Front rubber flap and side safety chains contain debris
    • Automatic shut-off stops raised flails
    • Rotor brake stops rotation within 7 seconds
    • SAE J1001 industrial flail-mower compliance

    Drivetrain Protection

    • Rubber torsion disc absorbs impact loads
    • Heavy-duty rotor flanges shield the drivetrain
    • Flanges help block dust, debris and wire
    • Inspect hammers, guards and containment parts before use

    Talk to a person about the Flail Cutter

    Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.

    • Chesterfield
    • Coldwater
    • Grand Rapids
    • Howell
    • Kalamazoo
    • Livonia
    • Saginaw

    Flail Cutter Specifications

    SpecificationFlail Cutter - FC200
    General
    Length57.4 in
    Flow Rate17 gpm
    Model Name (Public)Flail Cutter, FC200
    Hammers21
    Cutting CapacityBrush material up to 3 in diameter
    Blade Tip Speed @ 2,000 rpm8,200 ft/min
    Cutting Width78 in
    Blade Tip Speed @ 2,200 rpm9,000 ft/min
    Maximum Blade Tip Speed9,000 ft/min
    Operating Weight1,640 lbs
    Width90.8 in
    Height29.7 in

    The specification table publishes 17 gpm; Bobcat's variable-motor feature copy describes compatibility from 17 to 40 gpm. Confirm carrier approval, hydraulic flow and required protection with Carleton Equipment.
