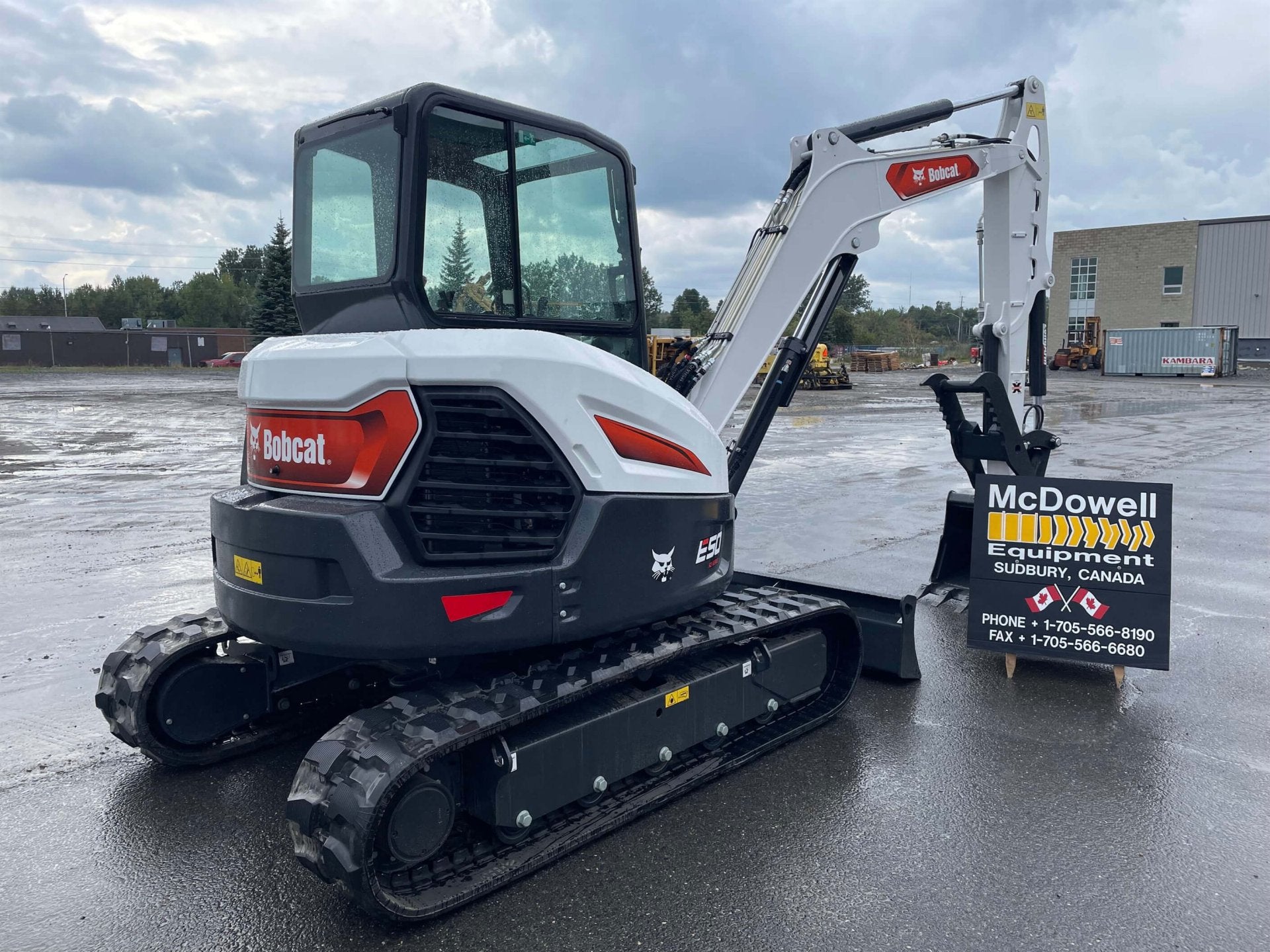

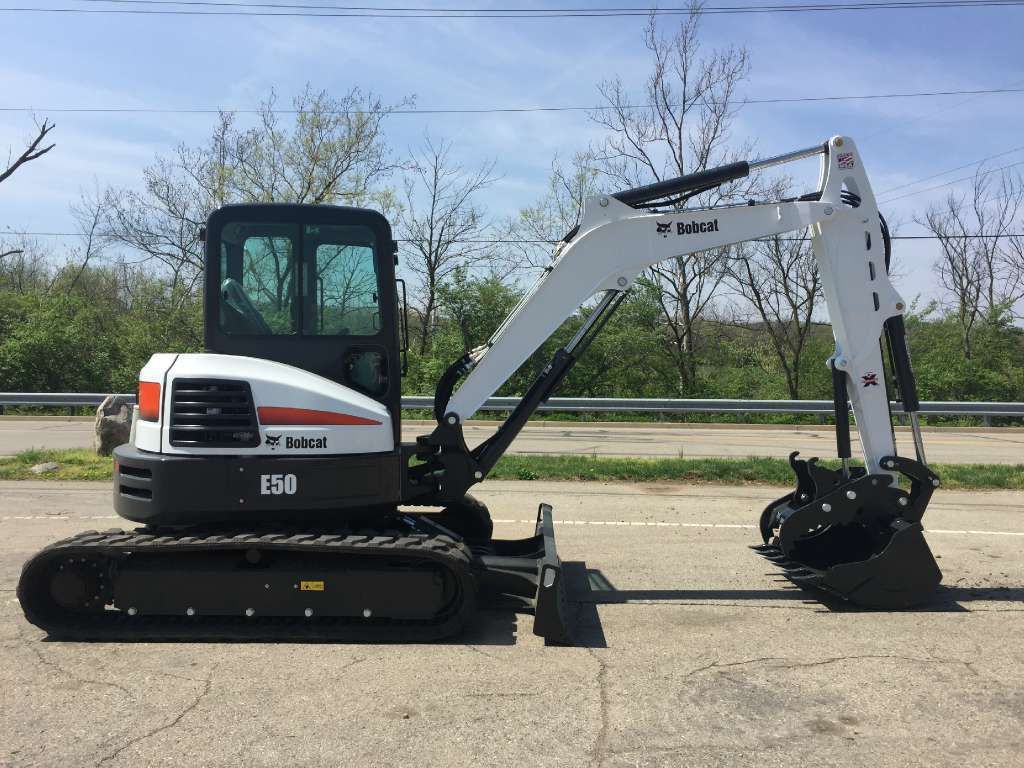

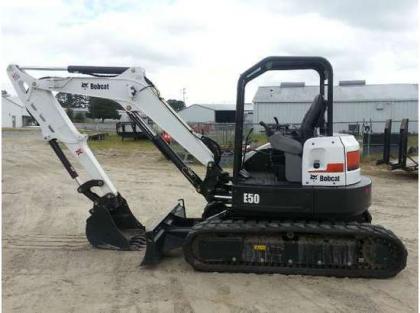

E50 | Bobcat


Arm Options: Standard Arm

Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: E50
Machine Type: Compact Excavator
Coupler: X-CHANGE
Engine
Horsepower: 49.7
Performance
Bucket Digging Force: 9,511 lbf
Arm Digging Force: 9,511 lbf
Max Digging Reach (Ground): 20.6 FT.
Max Digging Depth: 12.7 FT.
Operating Weight: 11894 lb
Hydraulics
Aux. Standard Flow: 20 GPM
Dimensions
Width: 77.2 IN.
Fuel Tank: 19 GAL

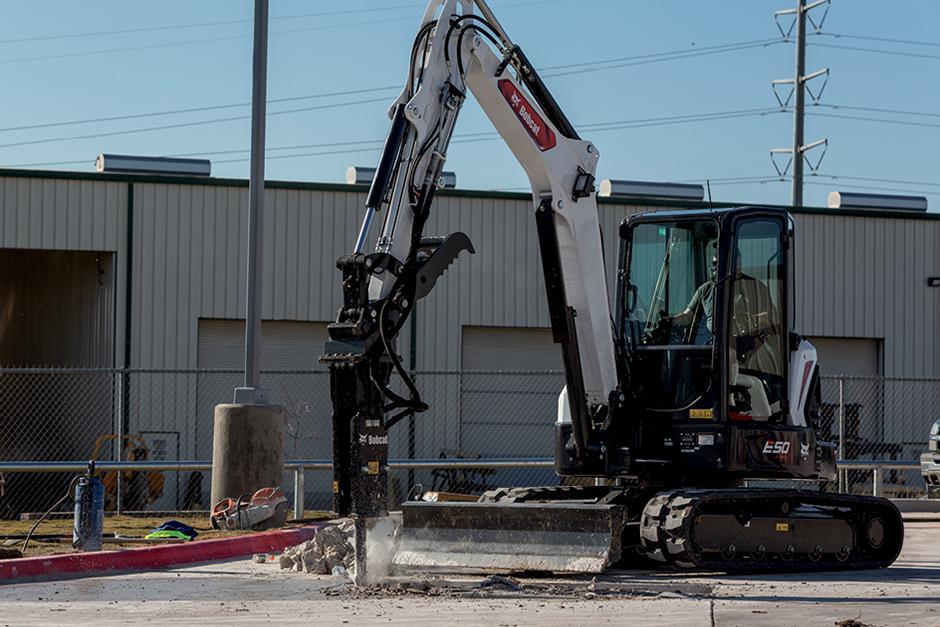

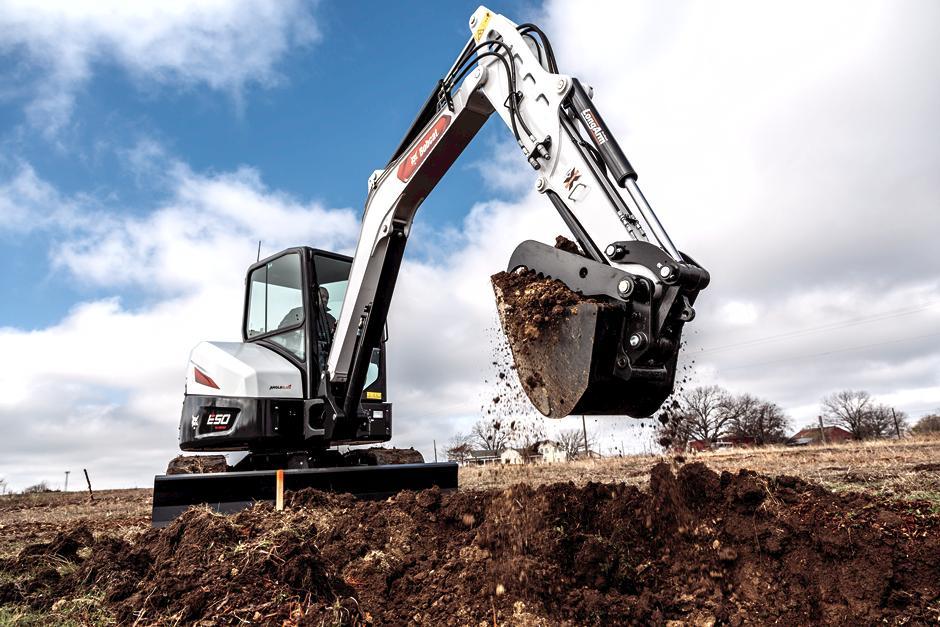

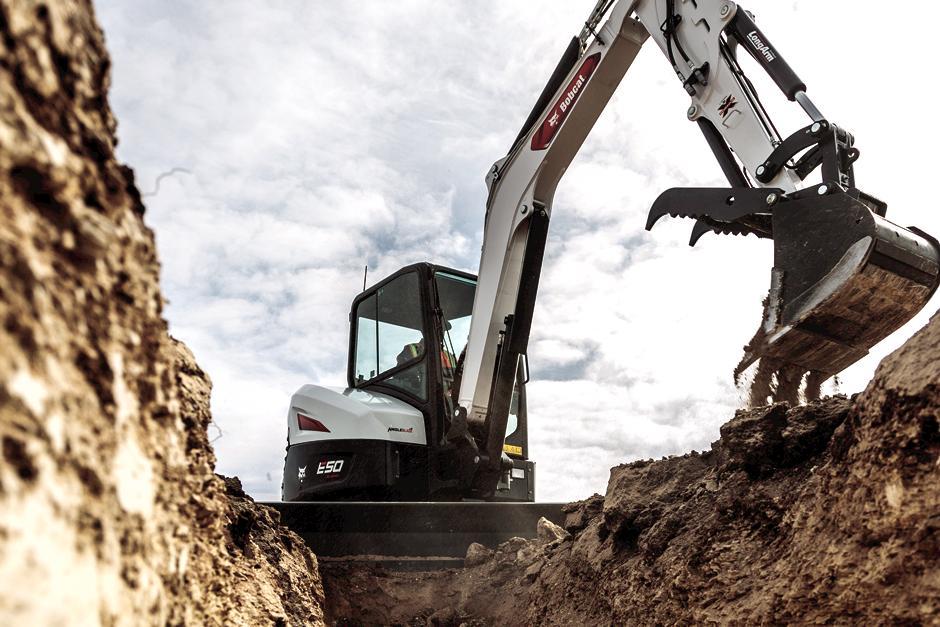

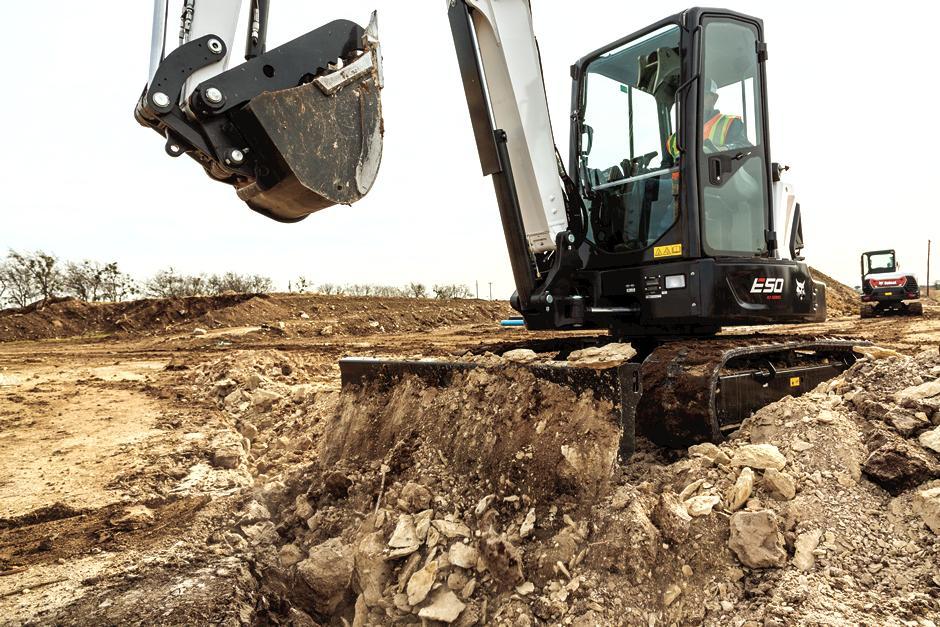

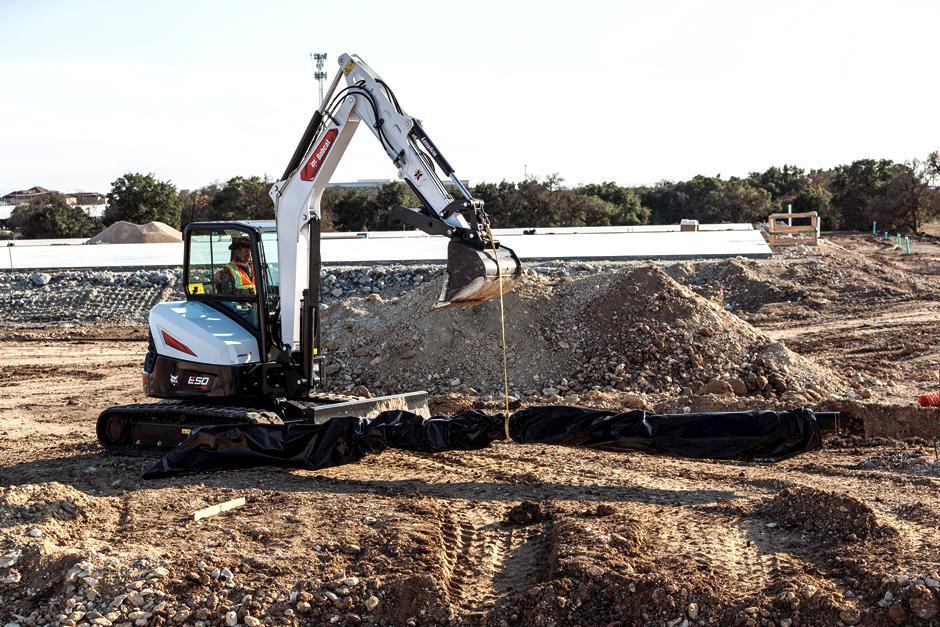

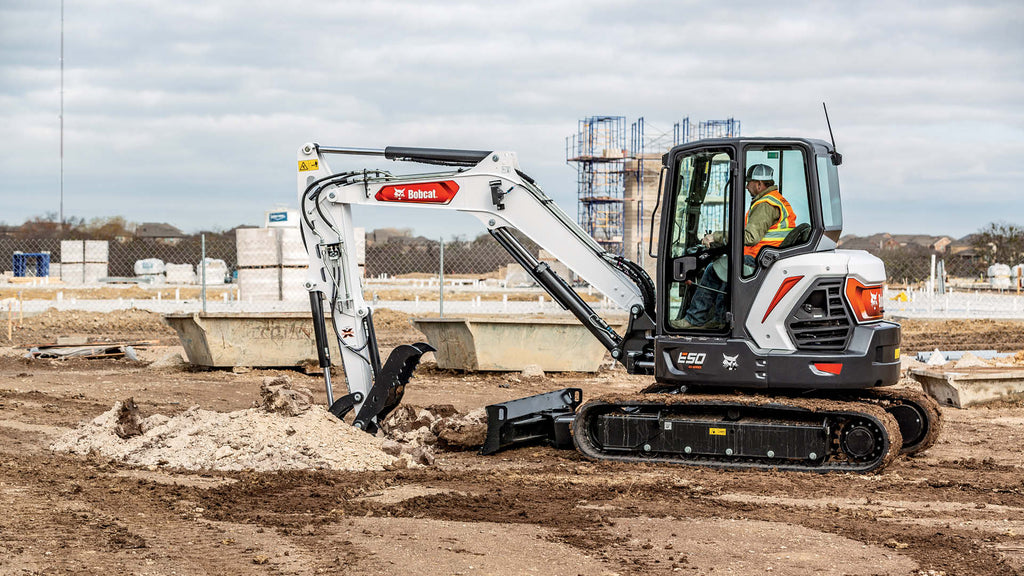

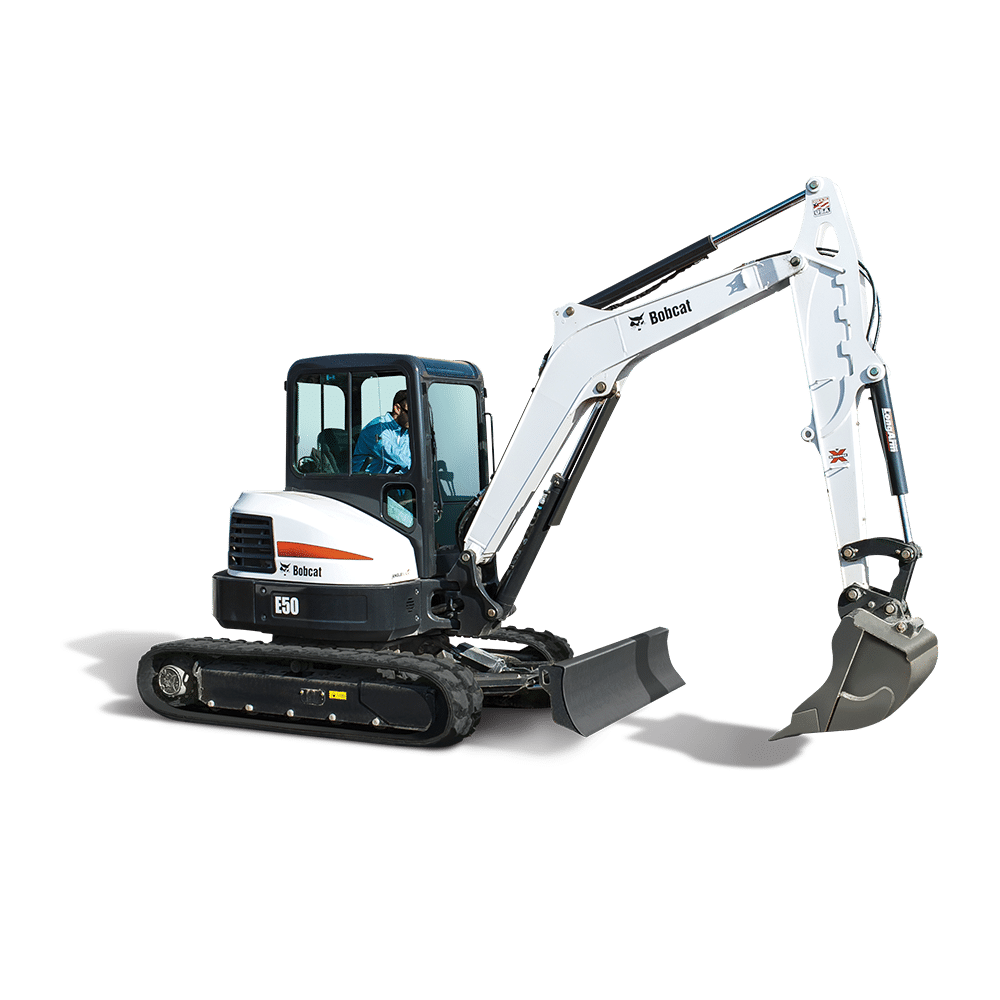

Bobcat® E50 Compact Excavator

Description

The powerful E50 compact (mini) excavator helps you push the limits of productivity with enhanced hydraulic performance, improved efficiency, simplified maintenance and more precise control. Featuring a redesigned Bobcat®  engine, this R2-Series excavator boasts a long list of standard features including an improved cooling system to enhance performance, serviceability and component life; low-effort joysticks that respond easily to operator input; hydraulic control for better metering, finite movement and controllability on level grading; and fast cycle times. The excavator also offers a minimal tail swing – less than one inch of overhang – to ensure easy work in tight areas. And, it can be equipped with a long arm to increase dig depth and reduce the frequency of repositioning. Additional options include a state-of-the-art touch display, automatic heat and air conditioning, a rearview camera, and angle blade.

Specs
 Configuration Standard Long Arm

Engine



Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,200 rpm
Horsepower 49.8 hp
Turbocharged Engine Optional



Optional Horsepower

N/A

Performance

Operating Weight 10,677 lb 11,195 lb
Weight Class 4.8 t 5.1 t
Travel Speed - High 3.1 mph 3.1 mph
Travel Speed - Low 1.9 mph 1.9 mph
Arm Digging Force 6,744 lbf 5,751 lbf
Bucket Digging Force 8,977 lbf 8,977 lbf
Rated Lift Capacity 6,034 lb 5,926lb
Lift Radius 118 in 118 in
Boom Swing - Left 75° 75°
Boom Swing - Right 55° 55°
Maximum Dig Depth 11.6 ft 12.9 ft
Max Dump Height 12.7 ft 13.6 ft
Maximum Reach at Ground Level 19.5 ft 20.8 ft

Capacities

 Fuel Tank 21.1 gal

Hydraulic System

Auxiliary Std Flow 20 gal/min
Auxiliary Pressure 3,045 psi

Dimension

 Length 218.7 in 219 in
Overall Length in Travel Position 218.7 in 219 in
Width 77.2 in 77.2 in
Height 99.7 in 99.7 in
Height with Operator Cab 99.7 in 99.7 in
Attachments
Features may include:
  • Powerful Hydraulics
  • Arm Configurations
  • Hydraulic X-Change System
  • Selectable Auxiliary Hydraulic Flow
  • Angle Blade
  • Selectable Control Pattern
  • Auto Idle
  • Auto Shift
  • Fingertip Boom Swing Control
  • 2-Speed Travel
  • Depth Check
  • Blade Float
  • Engine Monitoring
  • In-Track Swing Frame
  • Instrumentation
  • Protected Components
  • Machine Protection
  • Minimal and Zero Tail Swing
  • Keyless Start
  • Separable Cooling Cores
  • Steel Tracks
  • Integrated Slew Brakes
  • Reversible Cutting Edge
  • Fuel Fill Alert
