General Info
Condition:	Showroom
Manufacturer:	Bobcat
Model:	Soil & Asphalt Spreader

Engine

Performance
Operating Weight:	1488 lb

Hydraulics

Dimensions
Height:	33"
Length:	64.7"
Width:	79.1"

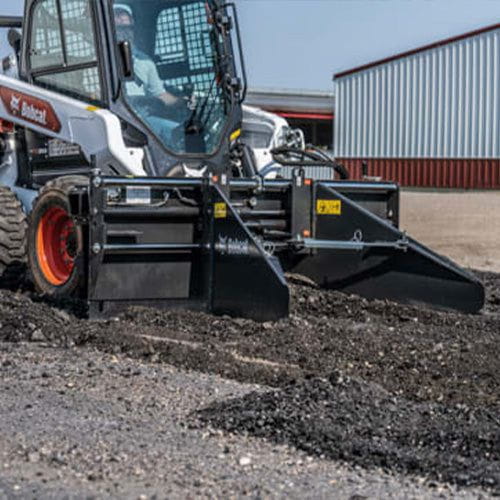

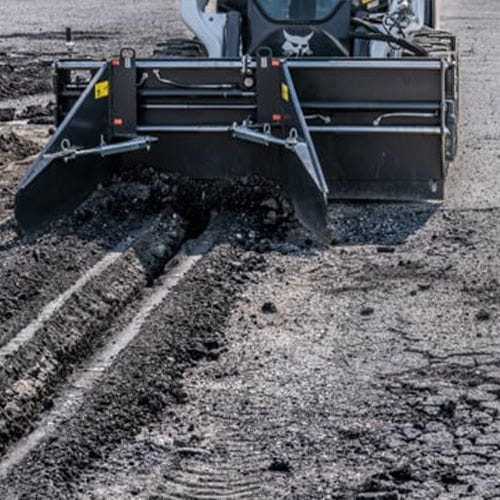

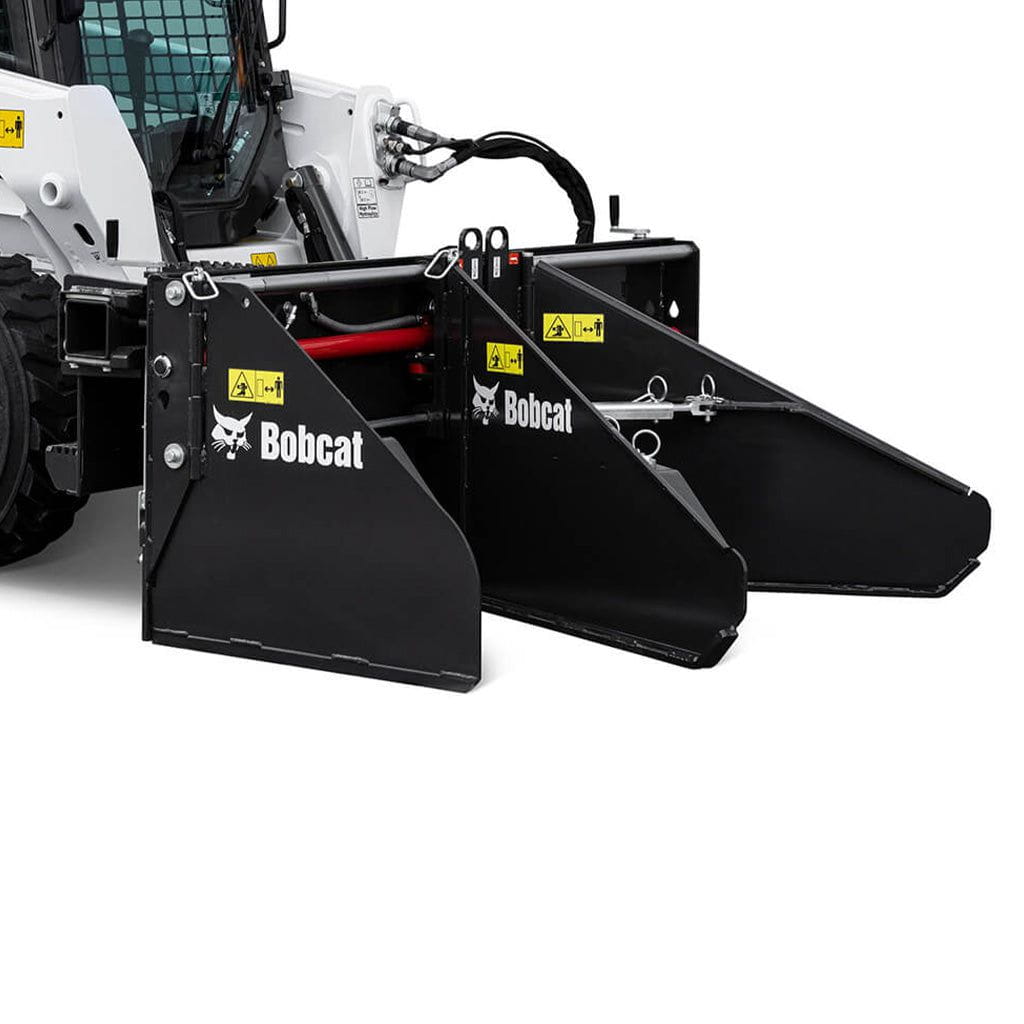

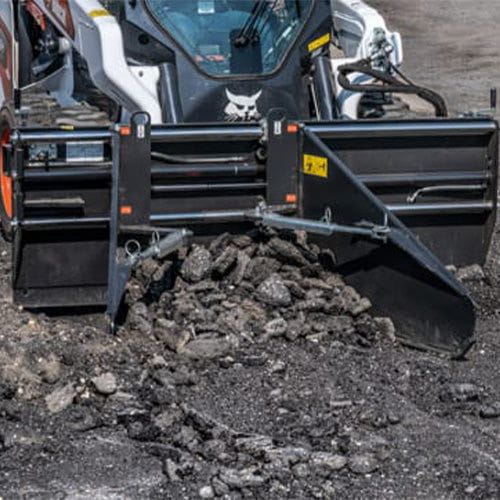

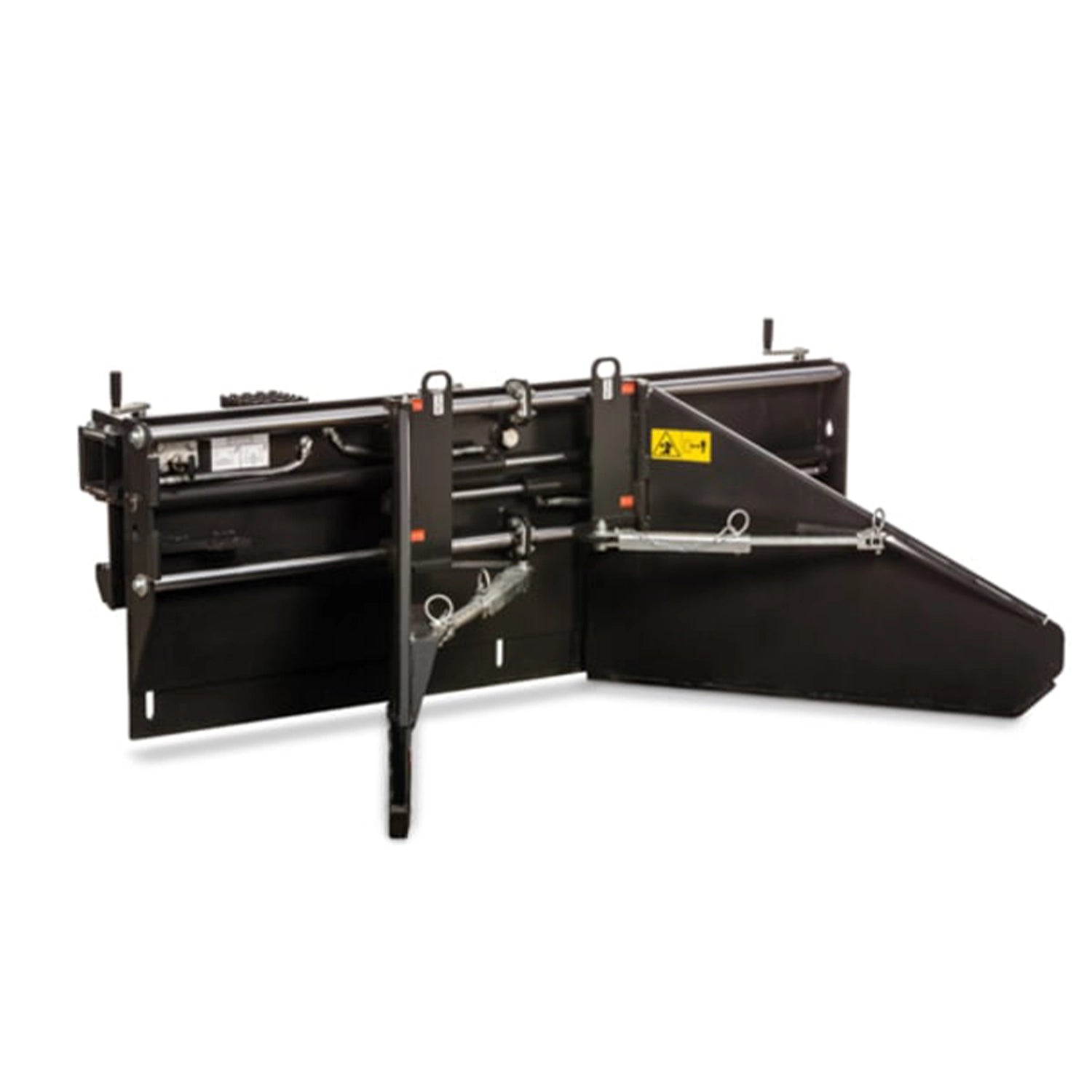

Bobcat Soil & Asphalt Spreader

Designed to save time and labor costs, the Bobcat® Soil and Asphalt Spreader is easy to use and easy to maintain for exceptional operator uptime and maximum efficiency. Its compact design and low weight make it easy to transport and quickly operational compared to larger machines dedicated to applying asphalt or other roadwork. The Bobcat Soil and Asphalt Spreader can be quickly mounted to any Bobcat compact loader using the Power Bob-Tach® attachment mounting system.

Ideal for spreading soil, asphalt or other loose materials
Easy to operate and easy to maintain for exceptional operator uptime and maximum efficiency
Quickly mount to any Bobcat® compact loader using the Power Bob-Tach® attachment mounting system
Compact design and low weight make it easy to transport and quickly operational

Features:

Hydraulic Side Wings adjustable for any spread path from 5 inches to 6 feet.
Adjustable Blade leaves layer materials up to 4 inches above ground level
Hydraulic Offset can shift material guide up to 6 feet to the right. It allows the spread of materials without the loader passing over the material, leaving a flawless surface.
Floating Transverse Tilt to compensate for sloping terrain
Optional Fixed Side Wing Kit for curb & gutter applications

Compare the Family

Bobcat Skid-Steer Loaders


	S70	S450	S590	S64-2	S66-2	S650	S76-2	S770	S86-2
Frame / Role	Ultra-compact classic	Compact classic	Mid-size classic	Mid-frame Pro	Mid-frame Pro	Large classic	Large-frame Pro	Largest classic	High-output large-frame
Horsepower	23.5 hp	49 hp	68 hp	68 hp	74 hp	74 hp	74 hp	92 hp	115 hp
Rated Operating Capacity	760 lbs	1,370 lbs	2,000 lbs	2,300 lbs	2,400 lbs	2,690 lbs	2,900 lbs	3,350 lbs	3,500 lbs
Tipping Load	1,520 lbs	2,740 lbs	4,000 lbs	4,600 lbs	4,800 lbs	5,380 lbs	5,800 lbs	6,700 lbs	7,000 lbs
Operating Weight	2,892 lbs	5,370 lbs	6,649 lbs	6,974 lbs	7,154 lbs	7,901 lbs	8,615 lbs	9,154 lbs	10,237 lbs
Travel Speed	6.3 mph	7.6 / 9.2 mph	7.3 / 11.7 mph	7.4 / 11 mph	7.4 / 11 mph	7.1 / 12.3 mph	7.1 / 12.3 mph	7.1 / 12.3 mph	7.1 / 12.3 mph
Standard Aux Flow	8.9 gpm	16.7 gpm	17.1 gpm	23.3 gpm	23.3 gpm	23 gpm	23.3 gpm	23 gpm	23 gpm
High / Super Flow	—	—	26.7 gpm	30.3 gpm	30.3 gpm	30.5 gpm	30.3 gpm	36.6 gpm	36.6 / 42 gpm
Height to Hinge Pin	94.5 in	109.5 in	119 in	120 in	120 in	124 in	128.3 in	132 in	144 in
Overall Width	35.5 in	58.6 in	64.7 in	67.8 in	67.8 in	72.1 in	72.9 in	72.1 in	78 in
