S64 | Bobcat

R-Series

Configuration: Starting at $57,998

Offers & Financing

Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: S64
Machine Type: Skid/Track Loader
Coupler: Bob-Tach
Engine
Horsepower: 68.0
Emissions: Tier 4
Performance
Rated Operating Capacity (ISO): 2,300 lb
Operating Weight: 6974 lb
Height to Bucket Hinge Pin: 120 IN.
Hydraulics
Aux. Standard Flow: 17.6 GPM
Aux. High Flow: 26.9 GPM
Dimensions
Height: 80.5 in.
Length: 135 in.
Width: 64.6 IN.
Wheelbase: 44.6 in.
Turning Radius: 79.8 in.
Fuel Tank: 28.3 GAL
Wheelbase: 44.6 in.

Description

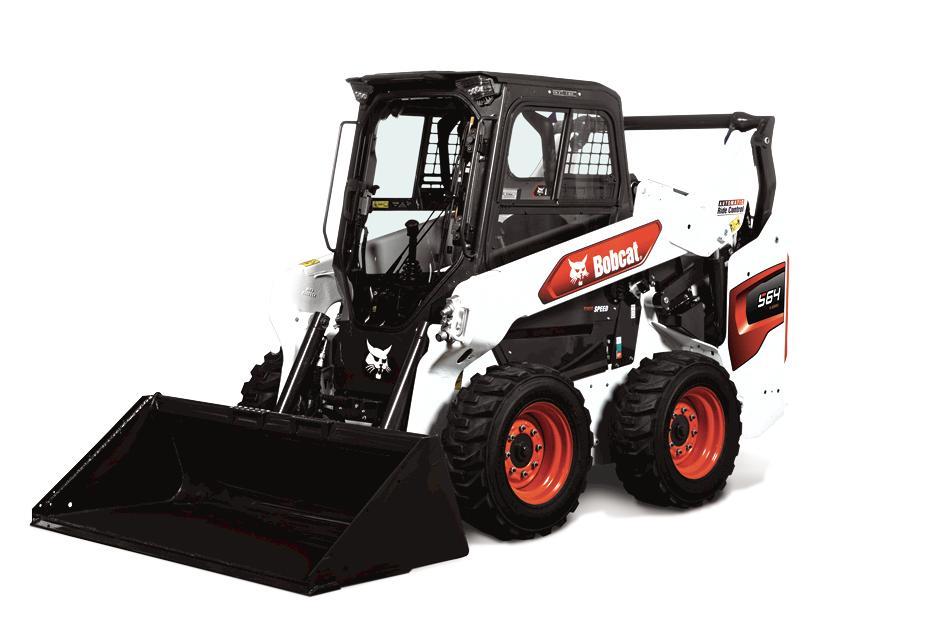

Bobcat S64 Skid Steer Loader

The Bobcat S64 R-Series skid-steer loader brings new meaning to revolutionary performance with a redesigned inline engine and direct-drive system, improved cooling and enhanced machine protection. Featuring exceptional maneuverability and excellent turning and skidding abilities, the 68-hp S64 makes it easy to accomplish more when working in tight spaces. In addition to its powerful breakout forces, rapid cycle times and increased lift height and capacity, the S64 skid-steer loader also delivers powerful hydraulics for maximum productivity. Combine that with a spacious, one-piece sealed and pressurized cab, ergonomic controls and optional clear side enclosure with automatic heating and air conditioning, and it’s clear why operators choose this powerful, agile machine.

Features:

When not carrying a load, Bobcat® skid-steer loaders deliver balanced, easy turning for ideal performance. They offer effective turning and skidding, reduced fuel consumption and power requirements, increased drive train and tire life, and less wear and tear compared to "flat-footed" machines sold by other manufacturers.

With Bobcat Standard Controls, available on select models, a lever controls the drive on each side independently, while your feet control the lift arms and bucket. The farther you stroke the lever, the faster you go. The shorter the stroke, the more torque is delivered to the wheels or tracks – allowing maximum power for pushing into a pile. This tried-and-true system is still a popular style of control.

Bobcat Selectable Joystick Control, or SJC, is becoming the most popular control choice among operators. No other joystick in the industry comes close to delivering the level of customization and control. With SJC, you control your loader and attachments easily and comfortably. They're loaded with many Bobcat-exclusive features.

R-Series loaders feature a Bobcat® engine. An efficient design provides the performance you need while reducing and simplifying routine maintenance. Thanks to an innovative new fuel system, low fuel levels are more forgiving for busy operators. The engine also improves cold-weather operation and includes a variety of features that make maintenance and service more convenient.

The Two-Speed travel option boosts your top travel speed. Reduce your travel time across jobsites, limit the need to load and unload your machine on a trailer, and shorten your long-haul tasks.

When it comes to performance, Bobcat® loaders are in a class by themselves. Each component – including the engine, pumps and hydraulic system – is engineered to deliver maximum hydraulic performance so you can work quicker, lift more and outperform your competition.

An easy-to-read display panel provides full-featured machine interaction and monitoring capabilities from inside the cab. Run your equipment more efficiently and solve more problems in the field with the innovative IQ display, which supports multiple languages.

With the most advanced in-cab display for compact equipment, you’ll experience detailed machine information and unparalleled device connectivity. The optional Touch Display features an 800x480-pixel display resolution. Operators can easily view and toggle through machine performance and information on the wide, easy-to-use touchscreen that supports seven languages. Plus, it’s waterproof and hardened to reduce scratching.

The cast-steel lift arm sections of the R-Series loaders are stronger to ensure optimal performance. Combined with the optimized lift-arm linkage, you can handle more challenging jobs with greater confidence and ease.

Automatic ride control reduces material spillage, allowing you to travel at faster speeds across rough terrain. Thanks to its dampening effect, the option also increases operator comfort by offering a smoother ride.

With two lift path options, Bobcat loaders have you covered. Vertical-lift-path machines provide more reach at full lift height, while radius-lift-path models offer maximum reach at truck bed height.

With the most advanced in-cab display for compact equipment, you’ll experience detailed machine information and unparalleled device connectivity. The optional Touch Display features an 800x480-pixel display resolution. Operators can easily view and toggle through machine performance and information on the wide, easy-to-use touchscreen that supports seven languages. Plus, it’s waterproof and hardened to reduce scratching.

All loaders that are equipped with Selectable Joystick Control (SJC) can be operated by a remote-control system, so you can operate the machine without an operator in the cab. The remote control is completely portable. If you have multiple machines, you can quickly remove the remote from one machine and attach it to another in minutes.

Dual-direction bucket positioning, offered on R-Series loaders, keeps the load at a consistent angle throughout the lift cycle – both up and down – to reduce spilling which increases efficiency and improves ease of operation.

A one-piece, sealed and pressurized cab on R-Series loaders provides a near-seamless interior for a new level of operator comfort. The cab design along with improved seals help reduce noise and vibration for enhanced sound isolation. There are no maintenance items under the rear hood for improved access to hose and electronic connections and major components. Most service items can be accessed without raising the lift arm.

R-Series loaders maximize open viewing areas by minimizing and removing surfaces and structures that intrude on your sightlines. Thanks to innovative engineering, robust materials and cutting-edge manufacturing, you get the best view on the jobsite.

If you work on a busy jobsite, you know that noise can be a daily frustration. Bobcat® loaders include many sound-dampening features that keep your cab quieter.

Maneuver more confidently. Enhance your productivity. Easily see to the sides of your machine. R-Series loaders offer an optional enclosure that maximizes visibility by reducing steel mesh screens from the side windows. The mesh-free windows are made from 3/8-inch-thick polycarbonate with an abrasion-resistant coating to allow the optimal view you demand with the durability you expect.

Bobcat® skid-steer loaders and compact track loaders are engineered with large swing-open doors, and a lowered door threshold, which provide ample headroom for exit and entry. Inside, even tall operators will be comfortable with plenty of headroom. Additionally, the swing-open door doesn't take up cab space and can be removed without tools.

Smooth and quick Bobcat® lift cylinders are automatically cushioned at the fully lowered position. The tilt cylinders are also cushioned at the full dump and rollback positions. This reduces noise and increases comfort during operation.

Time-tested controls on Bobcat® skid-steer loaders and compact track loaders make it easier to work longer and perform precise work. The engine speed control is conveniently located in front of you. Fingertip controls simplify the operation of soil conditioners, sweepers, tillers, buckets, grapples and other attachments. Foot pedals can be adjusted to your preferences.

A one-piece, sealed and pressurized cab on R-Series loaders provides a near-seamless interior for a new level of operator comfort. The cab design along with improved seals help reduce noise and vibration for enhanced sound isolation. There are no maintenance items under the rear hood for improved access to hose and electronic connections and major components. Most service items can be accessed without raising the lift arm.

Bobcat® loaders are designed with operators in mind. Comfort features include a roomy cab, a heated air-ride seat, automatic heat and air conditioning, ergonomic controls, innovative displays and options to keep you productive on long, challenging days.

Loader seats are upholstered in comfortable, breathable cloth and equipped with operator-controlled heat for warmth in cold weather. This optional seat provides peak operator comfort with air suspension that adjusts to your weight, smoothing out bumps on the jobsite for an industry-leading operator experience.

The redesigned Bobcat® engine on R-Series loaders offers a variety of fuel features, including an efficient fuel tank vent filter, fuel filter pressure sensor, improved fuel recirculation value and more to improve performance and uptime to keep you running strong all day long.

As operators depend on their compact equipment to run longer and do bigger, more difficult jobs, effective cooling is essential. The R-Series cooling system is completely redesigned for optimal operation and maximum uptime.

The biggest advantage of our Tier 4 solution is simplicity. Bobcat engines meet Tier 4 regulations without a diesel particulate filter (DPF). This reduces downtime that occurs with DPF regeneration and long-term DPF maintenance costs. That allows operators to focus on working.

R-Series loaders are engineered to protect critical components from jobsite hazards, vibrations and tough conditions to keep your machine in operation and you on the job.

Many brands will tout the ability to adjust their loaders' drive chains. These periodic adjustments cost you time, productivity and money. Bobcat has offered a better way for years with its skid-steer loaders: No adjustments. Bobcat welds its axle tubes to the loader chaincase. This, along with tight tolerance chain placement, eliminates the need for adjustments. So instead of spending time in the shop, you can spend time on the job with Bobcat skid-steer loaders.

Quickly secure your skid-steer loader or compact track loader without searching for hard-to-reach tie-downs. The tie-downs are easy to locate and use.

R-Series loaders not only look tougher – they are tougher. Bobcat® lift arms feature cast-steel construction for increased material strength and rigidity. Cast-steel allows more material where it's needed, which provides greater strength while enabling a slimmer profile arm that also enhances visibility.

Check your hydraulic oil level quickly and easily as you walk by your machine. Keep an eye on hydraulic oil levels and simplify your daily checks.

On R-Series loaders, the battery is located under the cab – separated from the engine compartment. Just lift the one-piece cab away for easy access. It's a convenient service location that protects the condition of your battery and provides more room for component access in the engine compartment. A remote terminal, located in the engine compartment, makes it easy to charge the battery or jumpstart the loader if needed.

When it's time for maintenance or repairs, simply lift the entire R-Series cab out of the way using the hardware on the exterior of the cab.

When your engine maintenance is easy to do, your engine maintenance actually gets done. With the redesigned Bobcat® engine, checkpoints are within easy reach. Time is money, and preventive maintenance is quick and simple with R-Series loaders.

Maintenance is easier and faster with easy-to-access grease zerk locations on critical pivot points. Avoid laying on the ground or standing on tracks to grease the pins.

Change attachments quickly and easily using the time-tested standard Bob-Tach mounting system included with every loader, or upgrade to the Power Bob-Tach system - available on select models - for swapping non-hydraulic attachments without leaving your seat.

Several attachments require control of more than one function, and our small, seven-pin attachment harness activates power and fingertip control functions while eliminating the need for the mechanical relays used on other loaders. Controls are fully integrated with your Bobcat® loader for a clean look and protected routing.

Our attachments help you do much more than dig. Bobcat offers attachment versatility across carriers combined with unbeatable attachment support from the Bobcat dealer network.

As essential as workboots, Machine IQ is Bobcat's cutting-edge telematics solution that unlocks your machine's data and insights, enabling you to monitor performance, track usage, and identify maintenance needs from your mobile phone or desktop. Stay in control of your operations, protect your investment, and make informed decisions with Machine IQ.

Take command of your compatible Bobcat model like never before with MaxControl - Bobcat's remote operating system. Navigate challenging environments and simplify two-person jobs with an intuitive iOS app that keeps you productive even when you're short-handed. Available with the Selectable Joystick Control package.

Tailor your equipment to meet your changing needs with Bobcat Features On Demand, available on select R-Series loaders. This technology allows you to select the features you want at the time of purchase, then enable additional features at a later date as your needs change. When you want to enable additional features on your equipment, your dealer can turn them on quickly and easily to help you accomplish more.

Bobcat S64 Specs

Horsepower 68 hp
Rated Operating Capacity 2,300 lbs.
Operating Weight 6,974 lbs.
Auxiliary Standard Flow 17.6 GPM
Auxiliary High Flow 26.9 GPM
Emissions Tier Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 68 hp
Turbocharged Engine Yes
Rated Operating Capacity 2,300 lbs.
Tipping Load 4,600 lbs.
Operating Weight 6,974 lbs.
Travel Speed 7.4 mph
Trave Speed (2 Speed) 11 mph
Fuel Tank 28.3 gal.
System Relief @ Quick Couplers 3,500 psi
Auxiliary Standard Flow 17.6 GPM
Auxiliary High Flow 26.9 GPM
Length with Standard Bucket 135 in.
Width with Bucket 68 in.
Height 80.5 in.
Height to Bucket Hinge Pin 120 in.
Reach @ Max Height 34.2 in.
Turning Radius 80.1 in.
Wheelbase 44.6 in.
