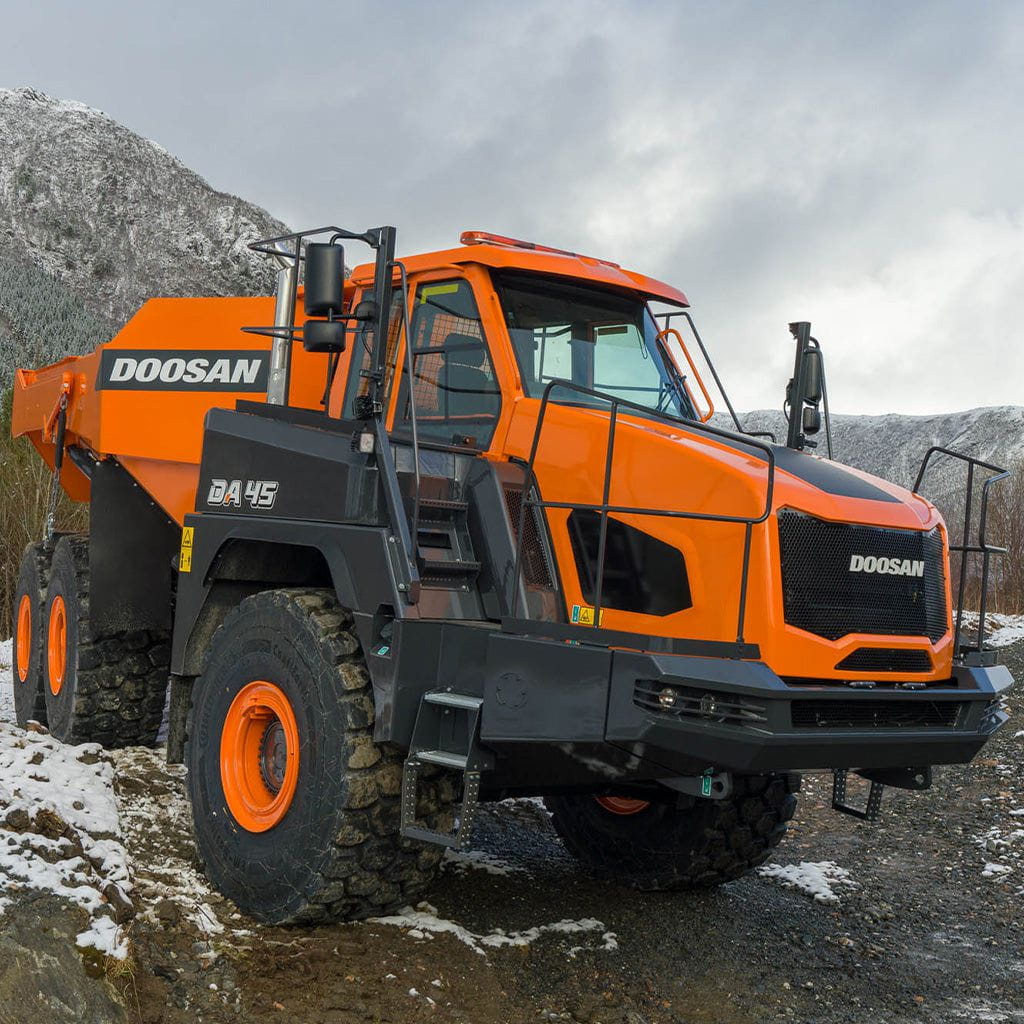

DA45-5 | Develon


Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Develon
Model: DA45-5
Machine Type: Articulated Dump Truck
Engine
Engine: DC13
Horsepower: 483.0
Performance
Operating Weight: 66359 lb
Travel Speed: 34.2 mph
Hydraulics

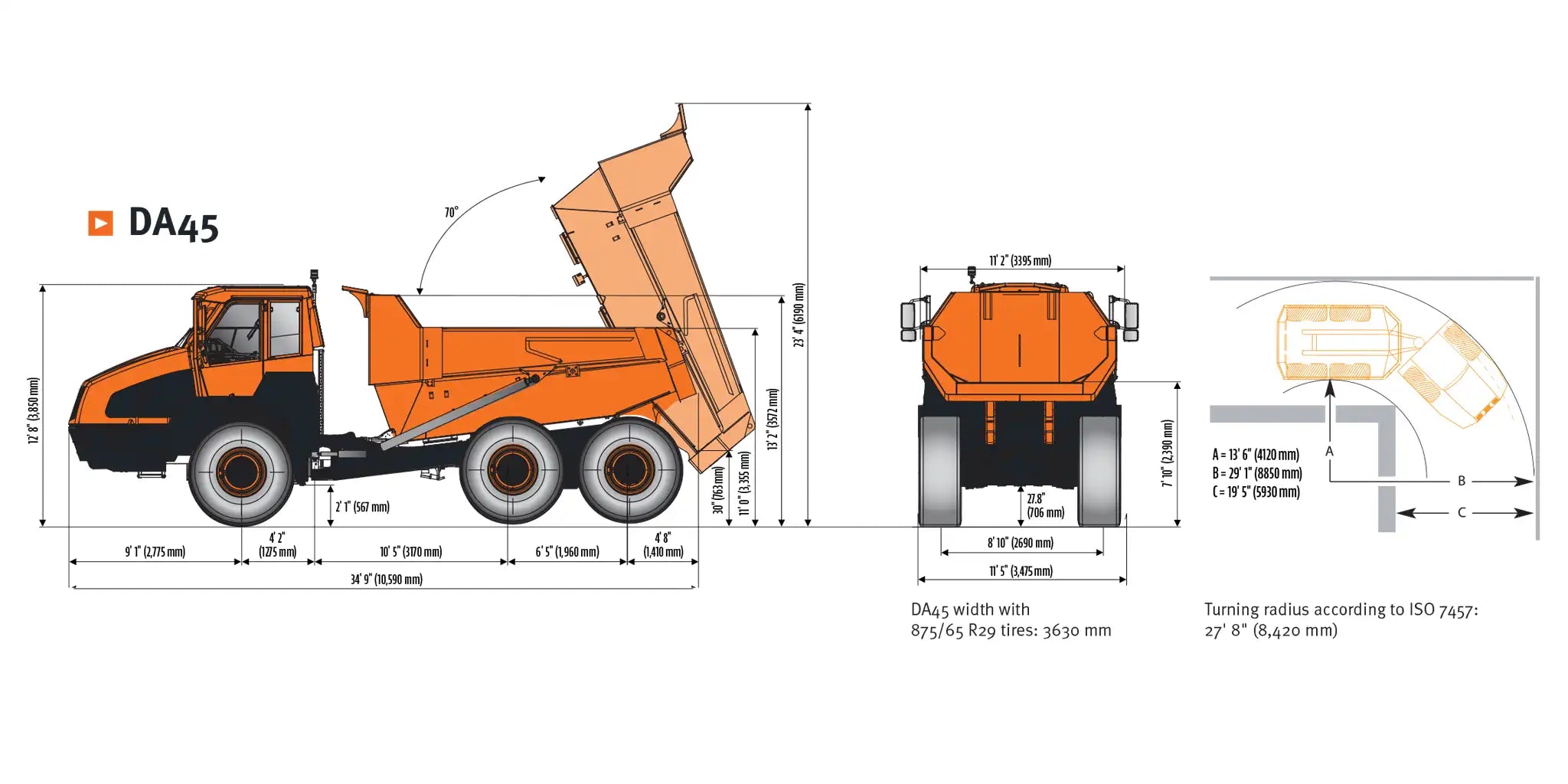

Dimensions
Fuel Tank: 140 gal.

Description

DevelonDA45-5

Ideal for construction sites as well as mining and quarrying applications, the Develon DA40-5 offers excellent driving stability, equal weight distribution and superior traction along with additional load capacity, superior power and better productivity.

ADT DA30-5 DA45-5
Gross Weight 112,877 lbs. 156,749 lbs.
Net Weight 51,147 lbs. 66,359 lbs.
Pay Load 61,730 lbs. 90,390 lbs.
Level Capacity - Tailgate 18.6 yd3 26.7 yd3
Heaped Capacity - Tailgate 23.3 yd3 34 yd3
Level Capacity - without Tailgate 17.8 yd3 25.6 yd3
Heaped Capacity - without Tailgate 22 yd3 31.9 yd3

Extreme Performance & Large Payload Capacity

The DA45-5 articulated dump truck offers the power, technology, comfort and larger payload capacity for challenging non-road construction and mining applications. The standard active payload measuring system helps protect against overloading for confidence when hauling big loads.

You can count on better weight distribution for extreme performance and traction in off-road conditions. The unique DEVELON design with front-mounted turning ring, sloping rear frame and free-swinging rear tandem bogie ensures permanent 6-wheel ground contact. The limited slip differential delivers the highest torque to the wheel offering the best traction.

Extra Comfort for Long Work Days

The hydro-gas, self-leveling front suspension system of the DA45-5 provides superior performance and greater shock absorption – which means a smoother ride and improved operator comfort especially when the machine is empty. The system includes a self-leveling feature and the ability to change characteristics by adjusting the pressure.

When it’s time to head out to another job, the machine's less-than-12-foot width makes it easier to transport from site to site.

Easy Serviceability

Key service and maintenance points make required daily service checks and maintenance procedures more convenient, including ground-level fuel and DEF fill, more accessible power module and a centralized maintenance panel.

Common oil is used in the DA45-5 wheel hubs, tandem rear bogie and limited slip differential, and grease distribution is improved to reduce grease requirements. A diesel-powered engine heater and fuel pump are available as options. The DA45-5 articulated dump truck includes DEVELON Fleet Management with free cellular service for monitoring the machine’s health, location and productivity for the life of the machine.

Unmatched Interior Cab Comfort

Unparalleled cab comfort includes fully automatic climate control, an air suspension seat, precise steering, exceptional visibility and low noise levels. Ergonomic controls are at your fingertips and a soft-touch dashboard is easier to keep clean.

The vehicle control unit includes robust hardware, a faster processor and more input channels. The monitor displays critical information including speed, engine rpm, machine warnings and more – and offers bigger gauges, user-friendly graphics and the ability to display multiple camera views. Standard features include electrically adjustable mirrors and a mobile USB charger.
