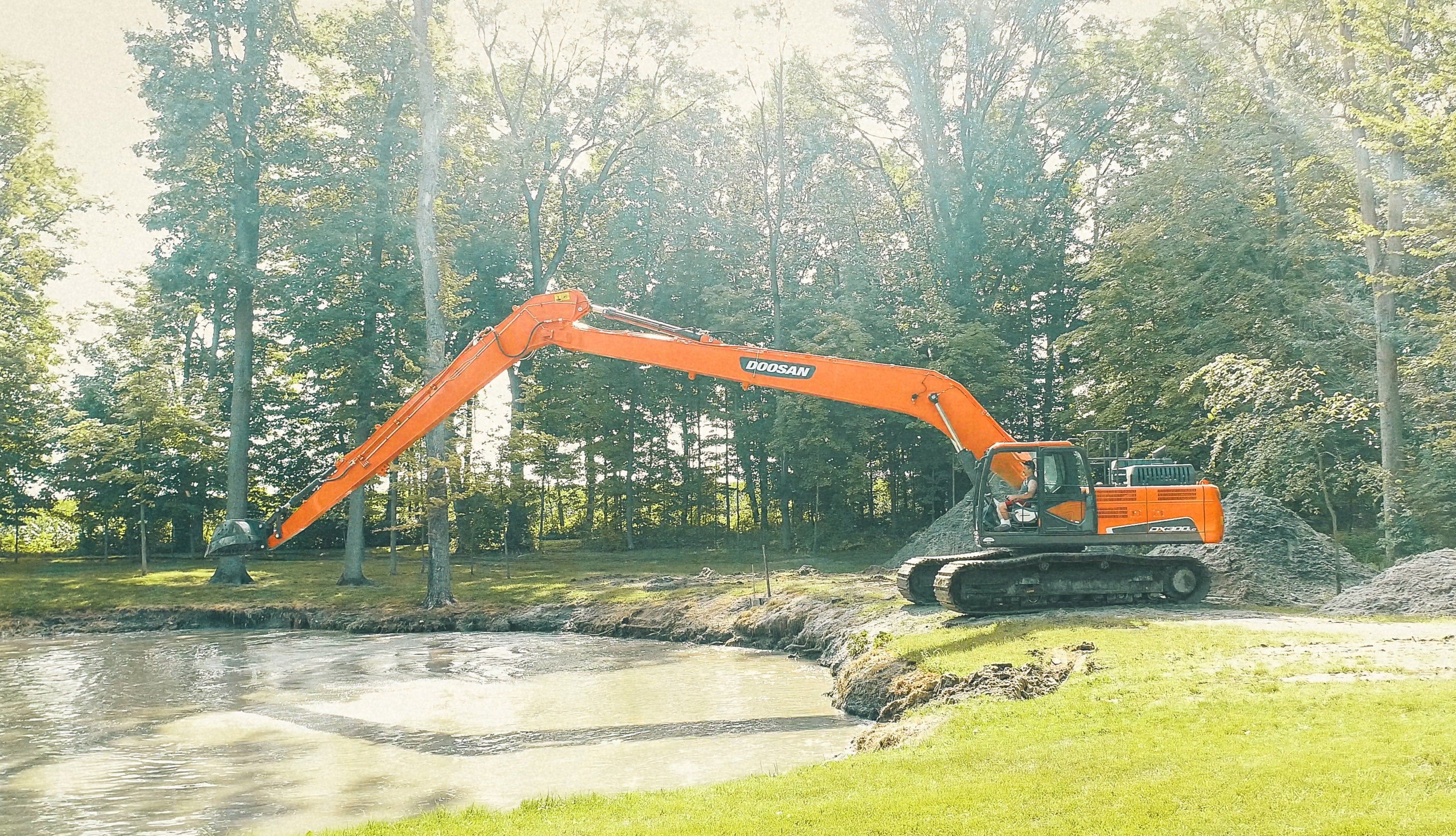

Develon DX300LC-5 Super Long Reach - Rental
Take on larger excavation projects with the Develon DX300LC-5 Super Long Reach, a powerful and fuel-efficient excavator designed for durability and reliability in the 28–33 metric ton size class. Built to handle demanding applications, this machine features an impressive 72,462 lbs operating weight for excellent stability and a 33.5-inch shoe size for secure footing on various terrains. With maximum dig reach extending to 57' 5" and a 6.1 psi ground pressure rating, the DX300LC-5 excels in tough environments, keeping maintenance and operating costs lower while delivering exceptional digging depth and loading height. Rely on its robust performance to handle large-scale jobs with precision.
| Model | DX300LC-5 SLR |
| Weight |
72,462 lbs |
| Ground Pressure | 6.1 psi |
| Shoe Size | 33.5" |
| Boom Type |
32' 10" |
| Arm Type |
23' |
Working Ranges:
| Max Dig Reach | 57' 5" |
| Max Dig Reach (Ground) | 57' |
| Max Dig Depth | 45' 2" |
| Max Loading Height | 39' 3" |
| Min Loading Height | 8' 11" |
| Max Digging Height | 46' 7" |
| Max Bucket Pin Height | 43' 7" |
| Max Vertical Wall Depth | 38' |
| Max Radius Vertical | 35' 9" |
| Max Depth to 8' Line | 43' 11" |
| Min Radius 8' Line | 13' 6" |
| Min Digging Reach | 45.7" |
| Min Swing Radius | 20' |
| Bucket Angle | 169° |
