General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | Seeder |
|
Engine
|
|---|
|
Performance
|
|
|---|---|
| Operating Weight: | 1300 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 44 in. |
| Length: | 43 in. |
| Width: | 88 in. |
Description

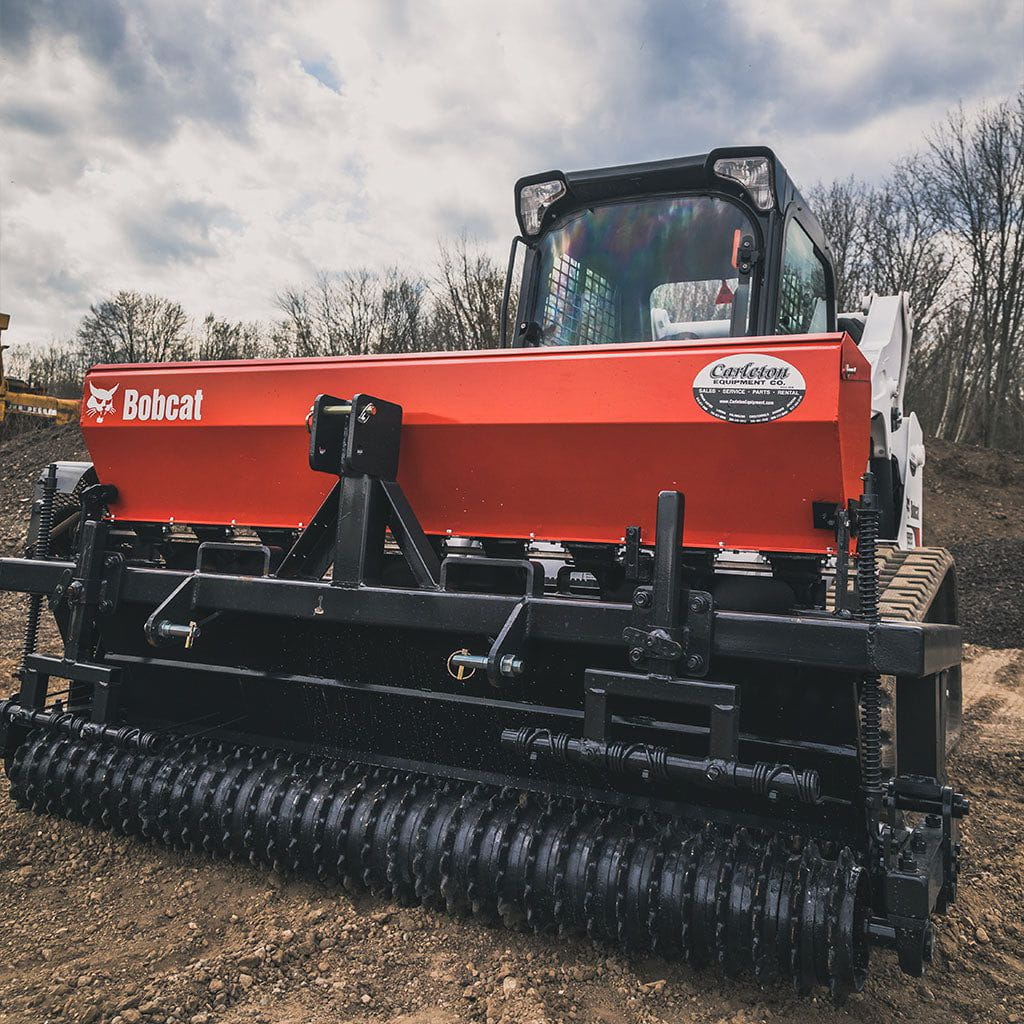

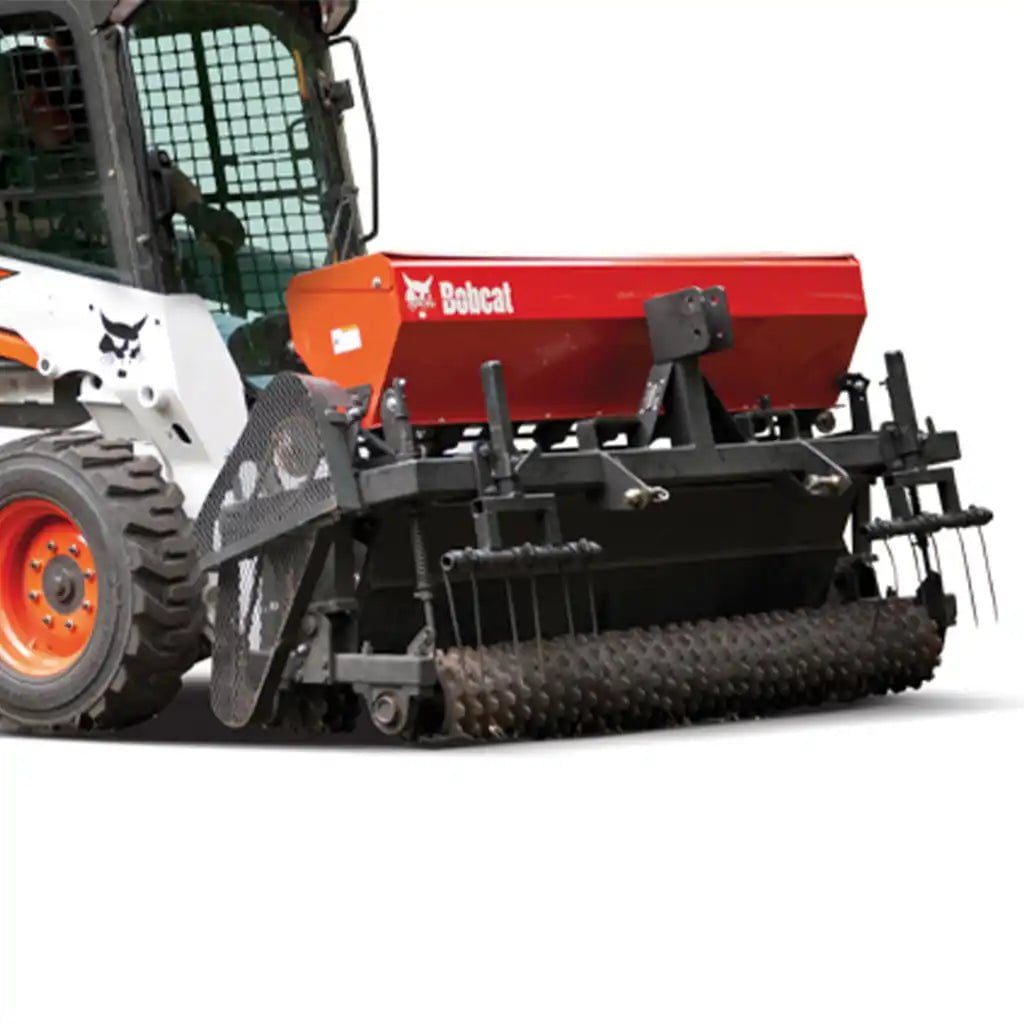

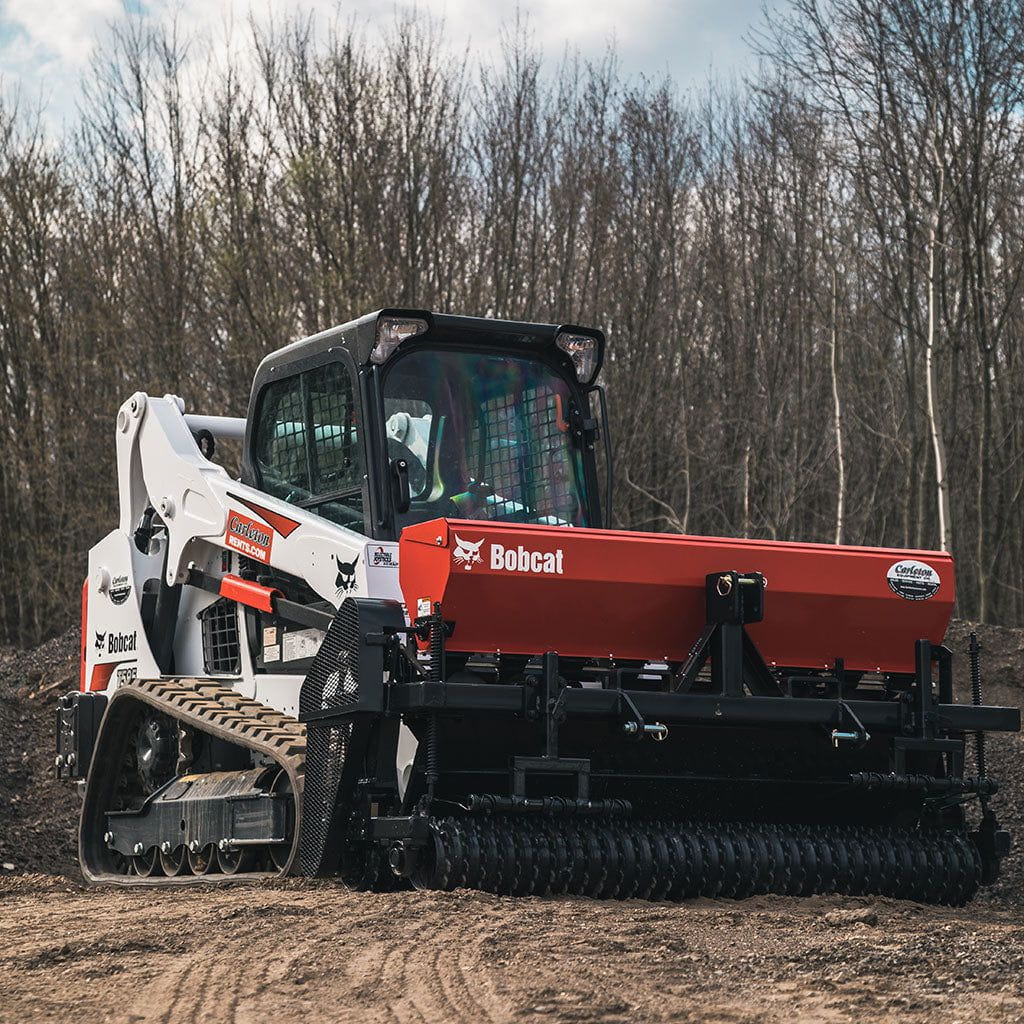

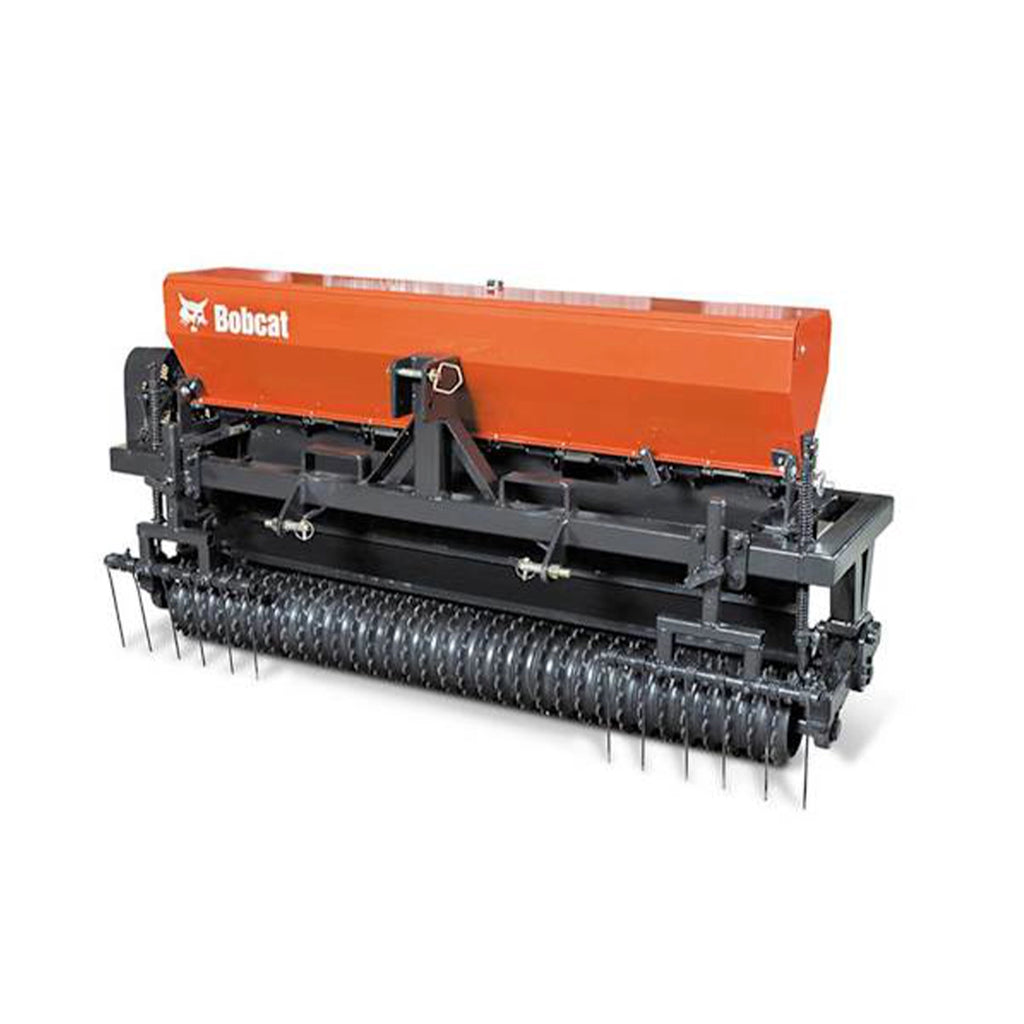

Seeder Attachment
- Place seed with proper spacing and at precisely the right depth
- Unlike broadcast seeders, this attachment seeds directly into the soil for better germination and coverage
- Production rate of more than two acres per hour
- Optimum seed-to-soil contact

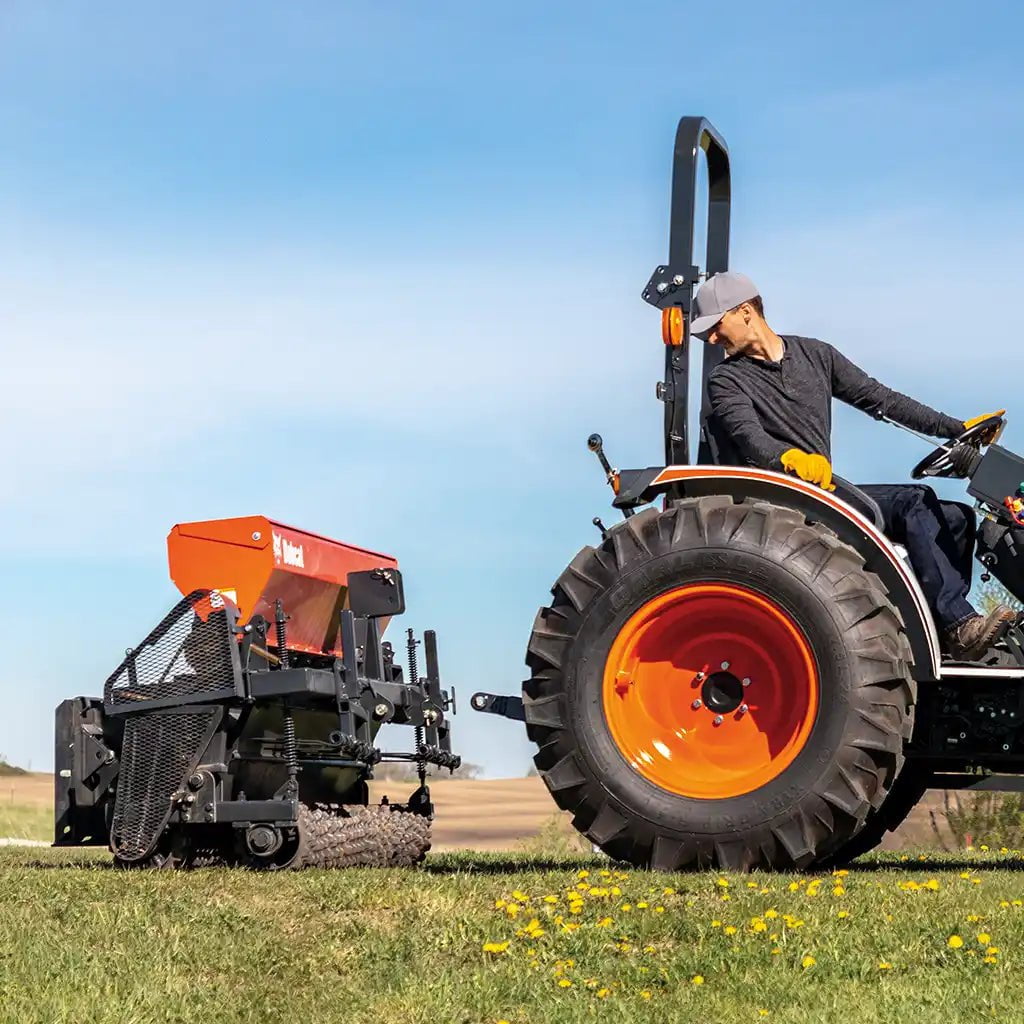

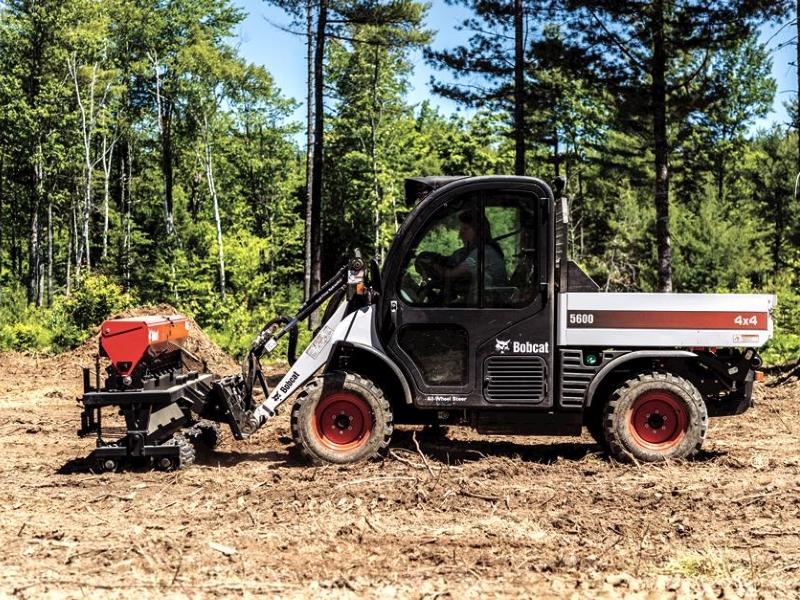

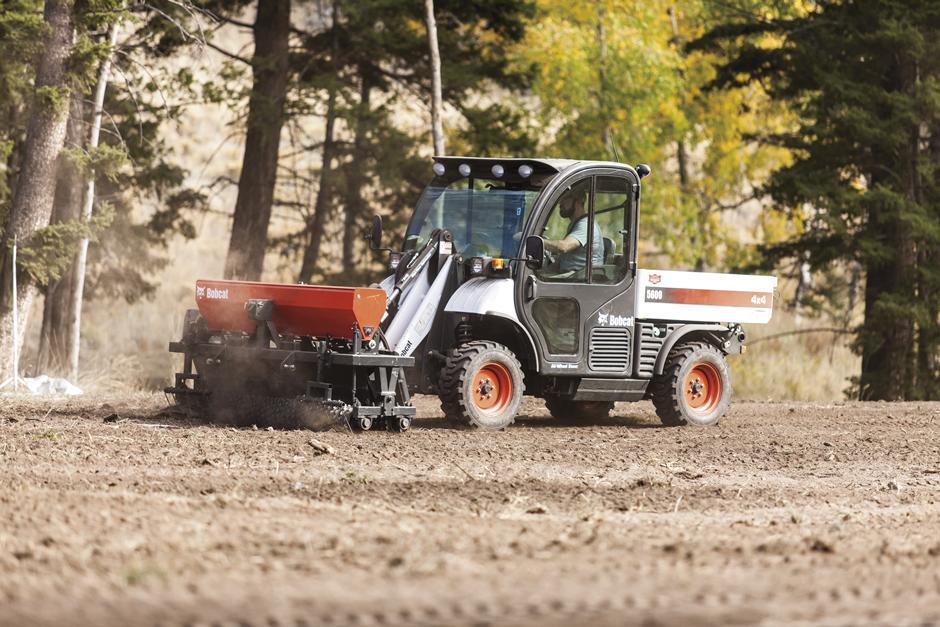

- Front mounted on a loader or Toolcat™ utility work machine or rear mounted on a 3-point hitch
Front rollers crush lumps and press down small stones to form a firm, well-prepared seedbed. Seed is precisely metered with the proper spacing and at the right depth, where it will germinate quickly.
Rear rollers split the shallow ridges made by the front rollers and gently form the soil around the seeds, ensuring optimum seed-to-soil contact. The result is a perfect seedbed — smooth and firm, with small stones pressed down.
Bobcat Skid-Steer Loaders
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
| S70 | S450 | S590 | S64-2 | S66-2 | S650 | S76-2 | S770 | S86-2 | |
|---|---|---|---|---|---|---|---|---|---|
| Frame / Role | Ultra-compact classic | Compact classic | Mid-size classic | Mid-frame Pro | Mid-frame Pro | Large classic | Large-frame Pro | Largest classic | High-output large-frame |
| Horsepower | 23.5 hp | 49 hp | 68 hp | 68 hp | 74 hp | 74 hp | 74 hp | 92 hp | 115 hp |
| Rated Operating Capacity | 760 lbs | 1,370 lbs | 2,000 lbs | 2,300 lbs | 2,400 lbs | 2,690 lbs | 2,900 lbs | 3,350 lbs | 3,500 lbs |
| Tipping Load | 1,520 lbs | 2,740 lbs | 4,000 lbs | 4,600 lbs | 4,800 lbs | 5,380 lbs | 5,800 lbs | 6,700 lbs | 7,000 lbs |
| Operating Weight | 2,892 lbs | 5,370 lbs | 6,649 lbs | 6,974 lbs | 7,154 lbs | 7,901 lbs | 8,615 lbs | 9,154 lbs | 10,237 lbs |
| Travel Speed | 6.3 mph | 7.6 / 9.2 mph | 7.3 / 11.7 mph | 7.4 / 11 mph | 7.4 / 11 mph | 7.1 / 12.3 mph | 7.1 / 12.3 mph | 7.1 / 12.3 mph | 7.1 / 12.3 mph |
| Standard Aux Flow | 8.9 gpm | 16.7 gpm | 17.1 gpm | 23.3 gpm | 23.3 gpm | 23 gpm | 23.3 gpm | 23 gpm | 23 gpm |
| High / Super Flow | — | — | 26.7 gpm | 30.3 gpm | 30.3 gpm | 30.5 gpm | 30.3 gpm | 36.6 gpm | 36.6 / 42 gpm |
| Height to Hinge Pin | 94.5 in | 109.5 in | 119 in | 120 in | 120 in | 124 in | 128.3 in | 132 in | 144 in |
| Overall Width | 35.5 in | 58.6 in | 64.7 in | 67.8 in | 67.8 in | 72.1 in | 72.9 in | 72.1 in | 78 in |
Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.
Full Specifications
General
| Condition | Showroom |
Engine
Performance
Capacities
Hydraulics
Dimensions & Weight
| Height | 44 in. |
| Length | 43 in. |
| Width | 88 in. |
| Operating Weight | 1300 lb |
Serviceability
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
