QuattroPlow | SnowWolf


Size: QP-102"
General Info
Condition: Showroom
Manufacturer: SnowWolf
Model: QuattroPlow
Engine
Performance
Hydraulics
Dimensions

Description

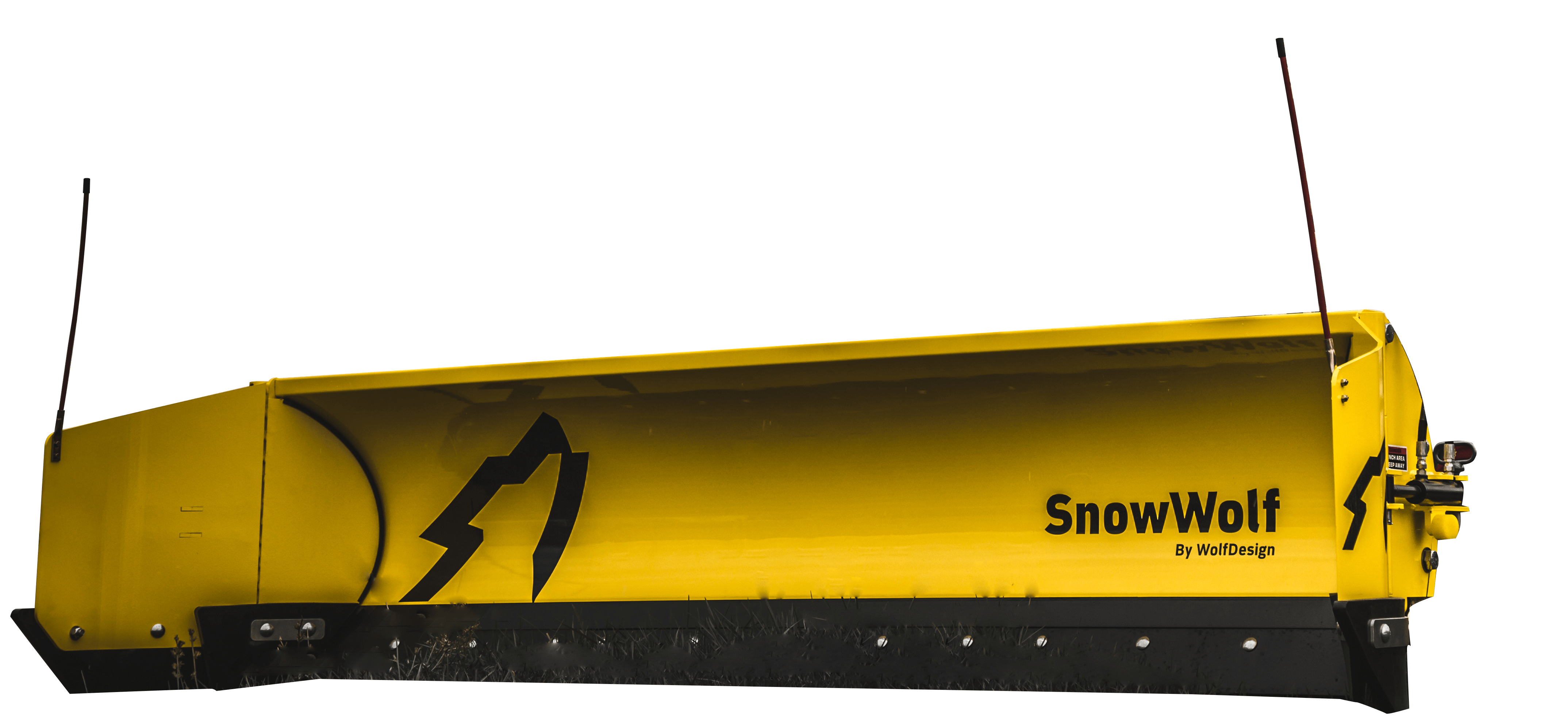

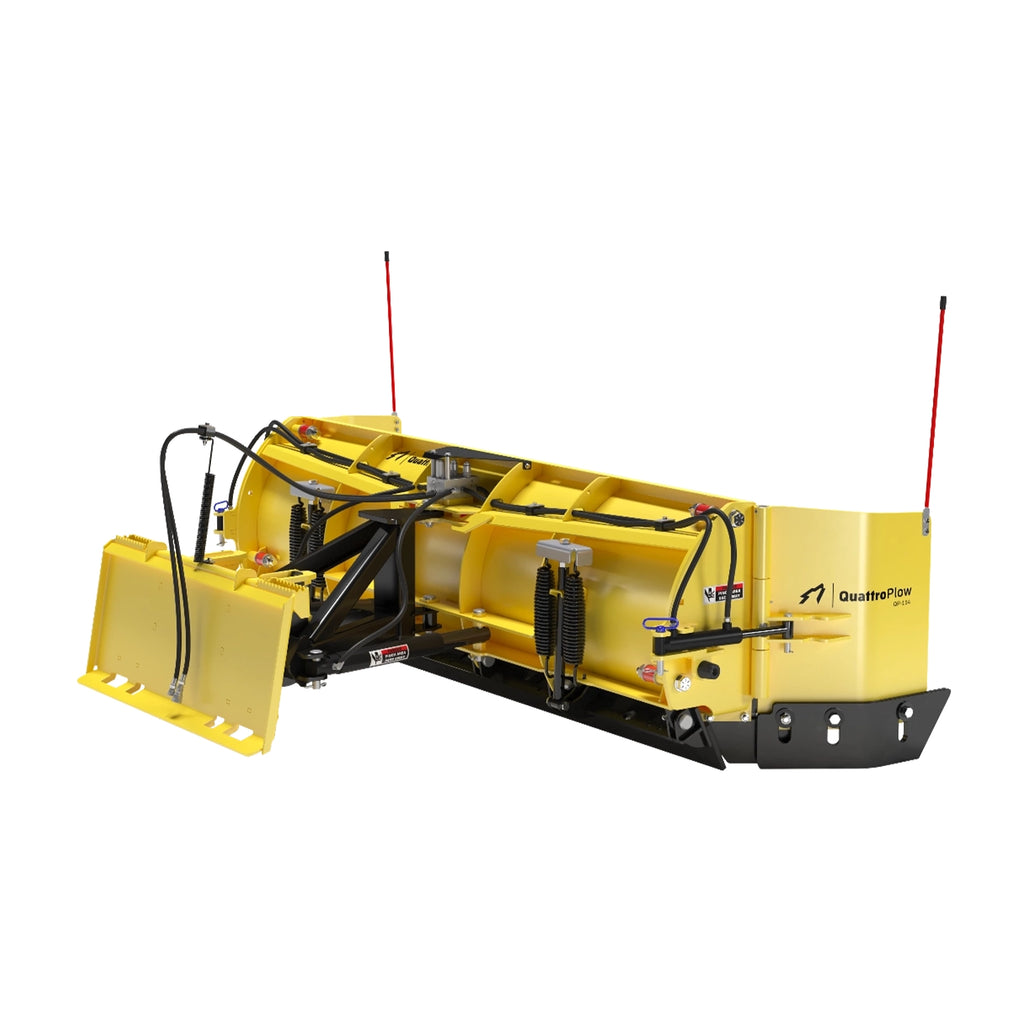

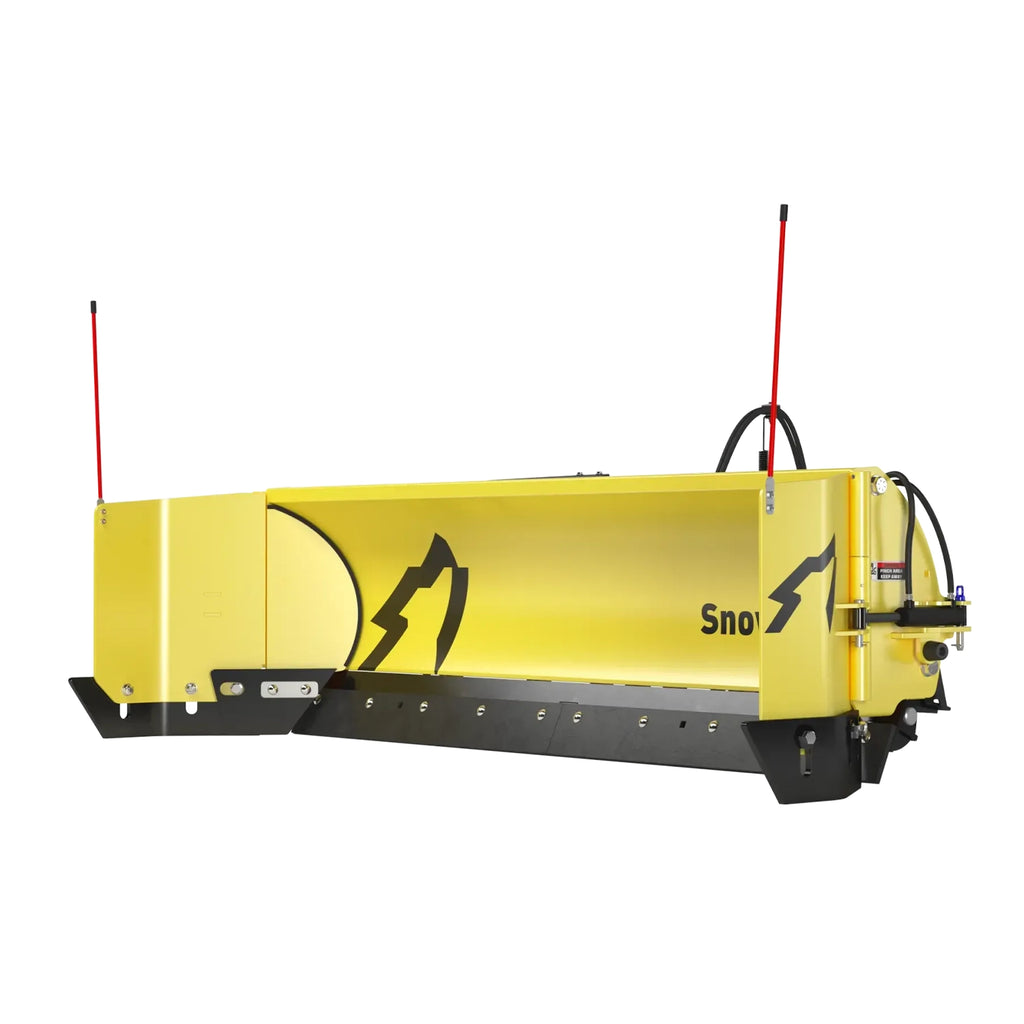

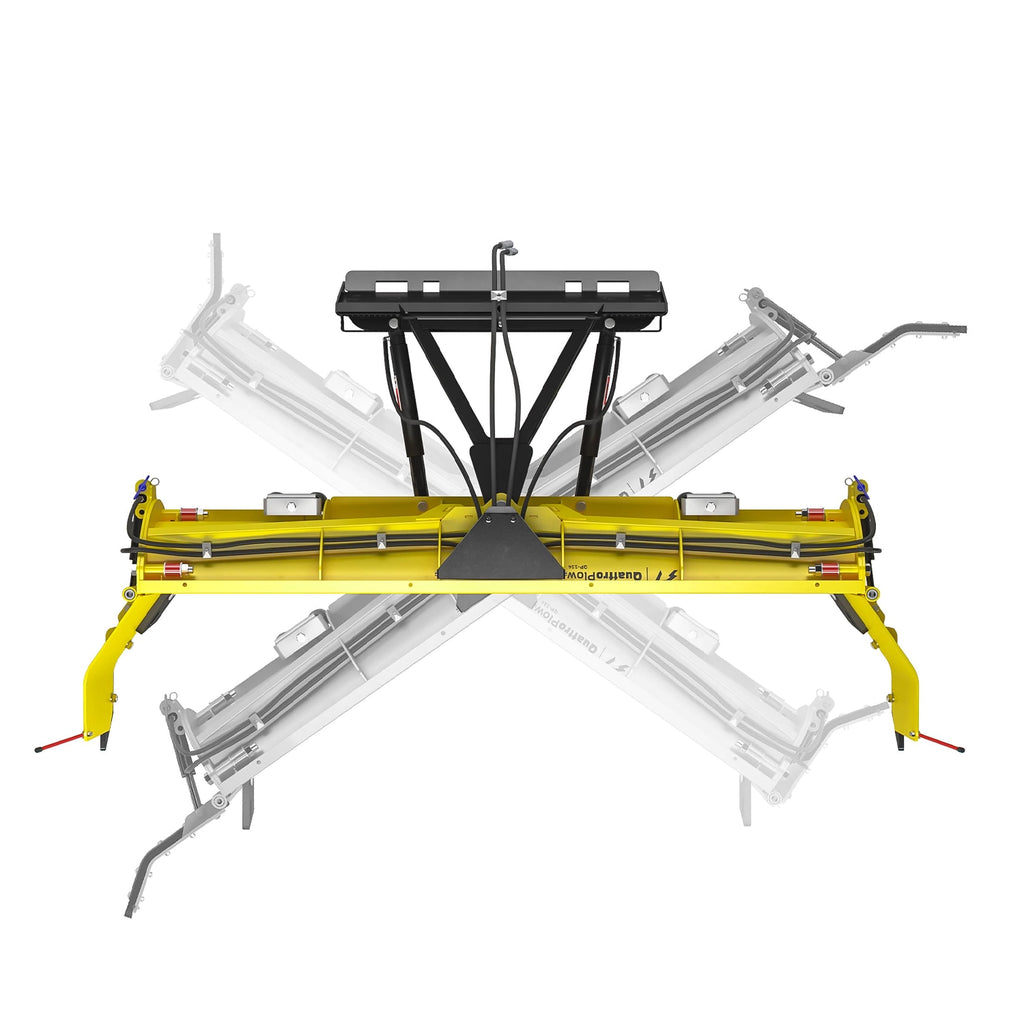

QuattroPlow by SnowWolf

For: 6,000-10,000 lb. Machinery

Description

The QuattroPlow is the most advanced plow in snow removal.

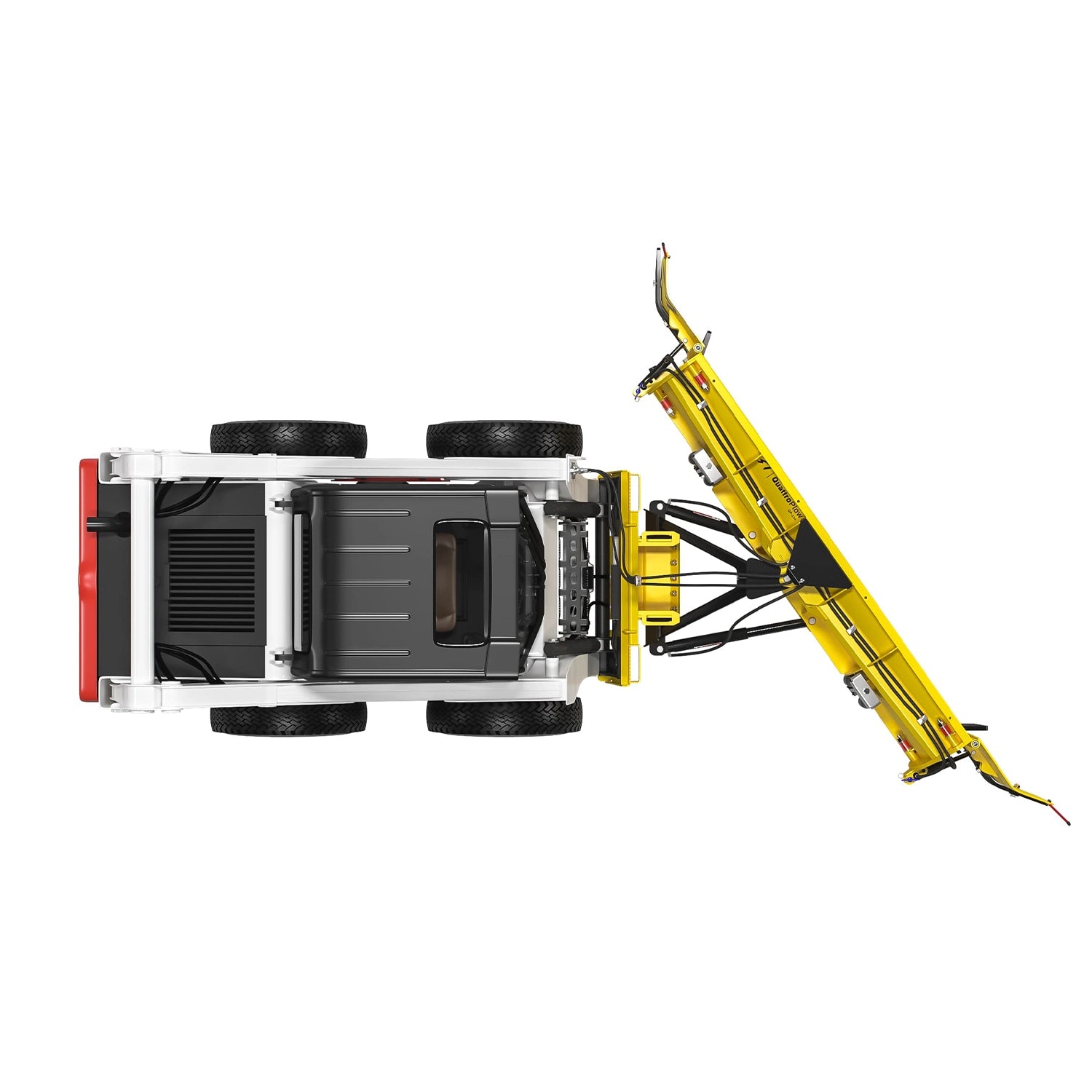

This innovative equipment combines and improves upon the ingenuity of two prior SnowWolf innovations, the FastTach® and WolfWings™. The results are greater flexibility, efficiency and effectiveness in four distinct functions, all without any extra electric harnesses or controllers in your machine. Easily shift from angle plowing to straight plowing to high-capacity pushing to backdragging in just seconds without ever leaving your machine or even pushing a button. A fifth function, wide-angle plowing, extends your plow by 23 inches on each end. All it takes is less than a minute to reposition the wing cylinders on each side of the plow. Revolutionize the way you move snow – and your business – in the right directions.

Specifications
Model Number QP-102 QP-114 QP-126 QP-138
Blade Width (A) 102” (8’-6”) 114” (9’-6”) 126” (10’-6”) 138” (11’-6”)
Moldboard Width (B) 84” (7.0’) 96” (8.0’) 108” (9.0’) 120” (10.0’)
Overall Width at Full Angle (C) 93.9” 103.9” 113.9” 123.9”
Clearing Width at Full Angle (D) 69.8” 79.8” 89.8” 99.8”
Clearing Width at Wide Angle (E) 130” 142” 154” 166”
Blade Height 30” 30” 30” 30”
Weight (lbs.) (actual–not ship weight) 1,032 1,074 1,116 1,178
Moldboard Gauge 10 Ga. 10 Ga. 10 Ga. 10 Ga.
Trip Springs 4 Ext. 4 Ext. 4 Ext. 4 Ext.
Wear Shoes Opt. Opt. Opt. Opt.
Moldboard Cutting Edge 5/8” x 6” Reversible High Carbon Standard, Carbide Optional
Angle Rams 2" x 13" Nitro Steel UltraMAX
Vertical Ribs 6 6 6 8
Moldboard Radius 14” 14” 14” 14”
Full Down Pressure Yes Yes Yes Yes
Universal Skid Steer Compatible Standard
Crossover Relief Valve Standard
Side Plate Thickness 3/8” Grade 50
Side Plate Wear Shoes 1” High Density Urethane
Side Plate Hinge Pin 1 3/8” x 21-1/2”
Side Plate Cylinder Double Acting, Chrome Plate Rod
PowerWing Upgrade Optional





Features
Features Benefits
Smart Valve This SnowWolf exclusive hydraulic valve controls the plows wings without removing your hands from the controls. Angle right and hold for snowpusher position. Angle left and hold for wing plow or backdrag position.

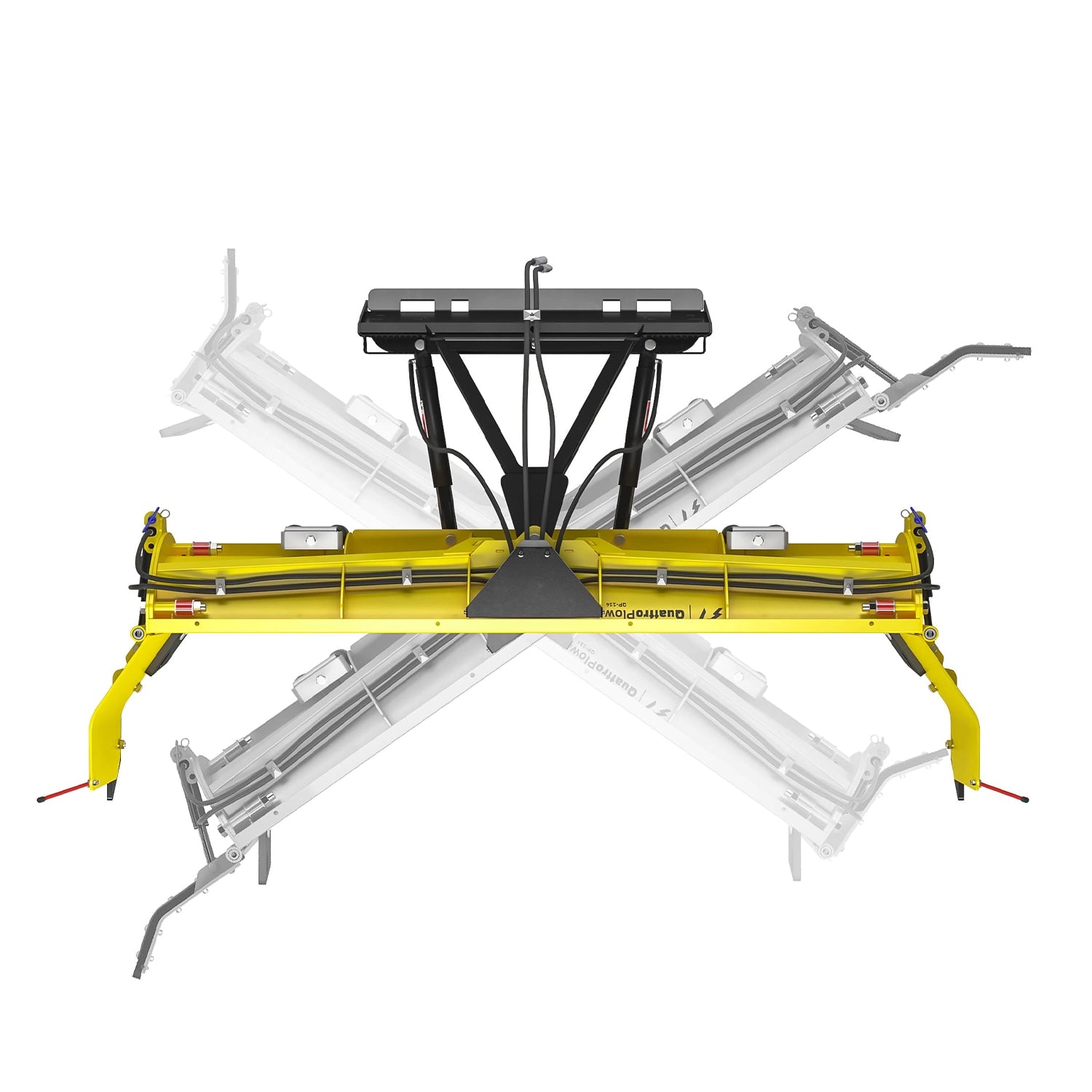

165-Degree Wing Rotation Move the wing all the way forward for pushing, to the sides for plowing, or all the way back for backdragging. Allows you to carry more snow backward for a greater distance and fewer windrows.
23-Inch Extension on Each End in Wide-Angle Position Especially efficient for operators who seldom or never need backdragging containment.
35-Degree-Angle Tips on Wings Provides greater carrying capacity while minimizing windrows regardless of the direction the machine is moving. Keeps the wings clear of the machine’s front tires.
Backdragging Down Pressure Delivers exemplary scraping ability and containment.
