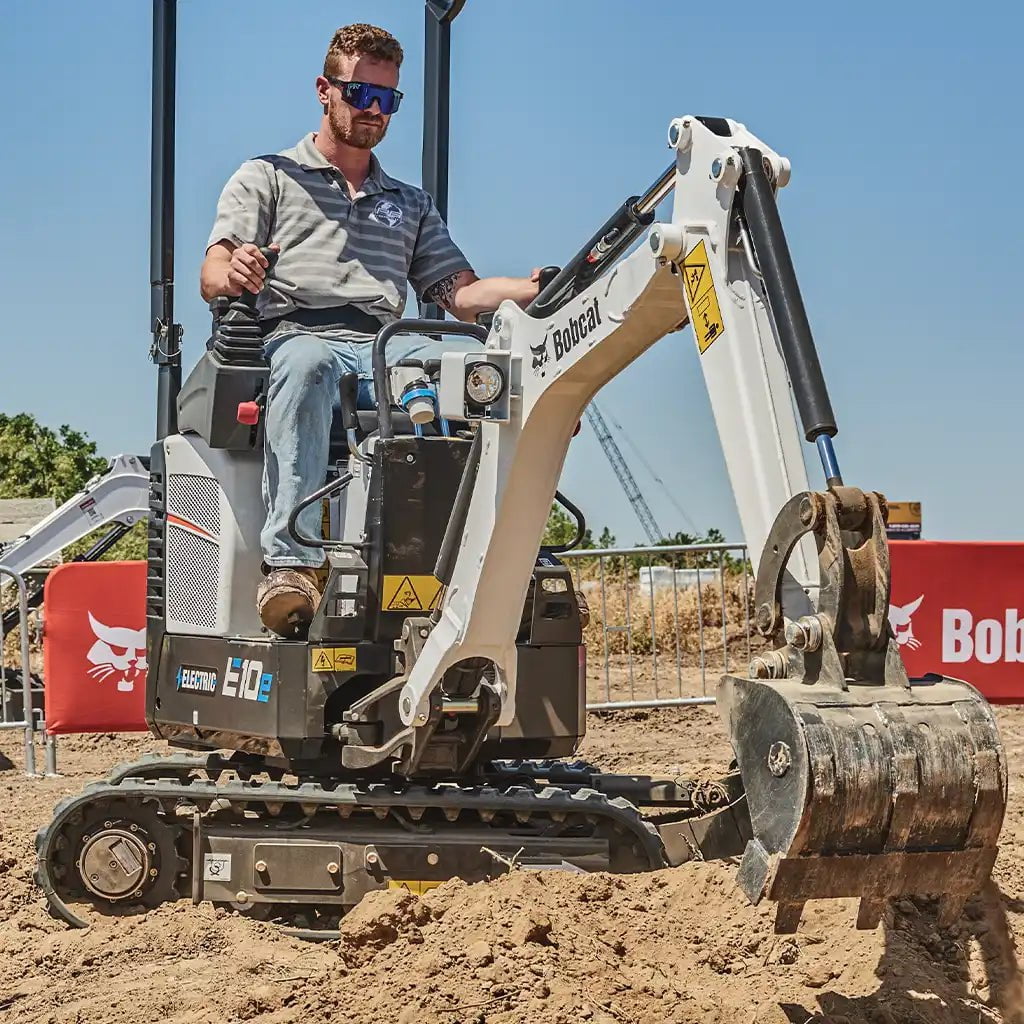

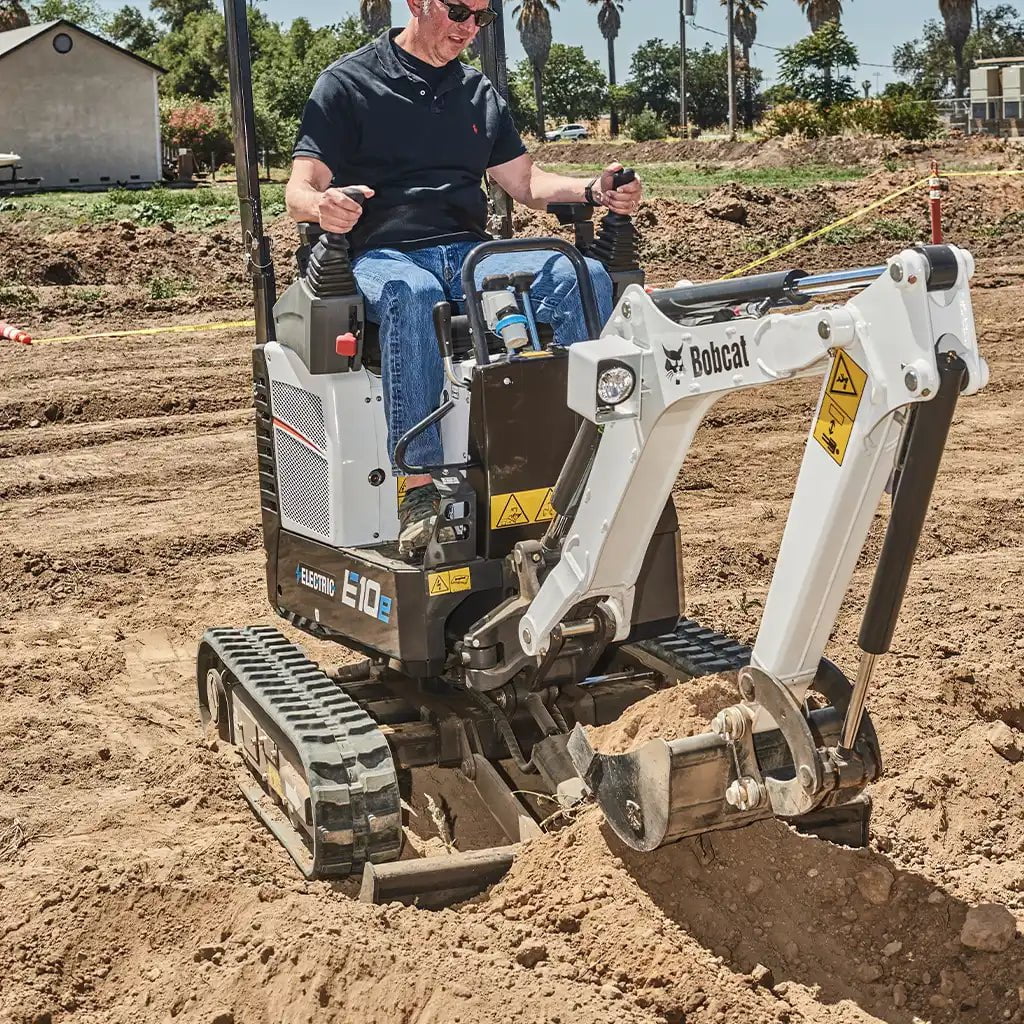

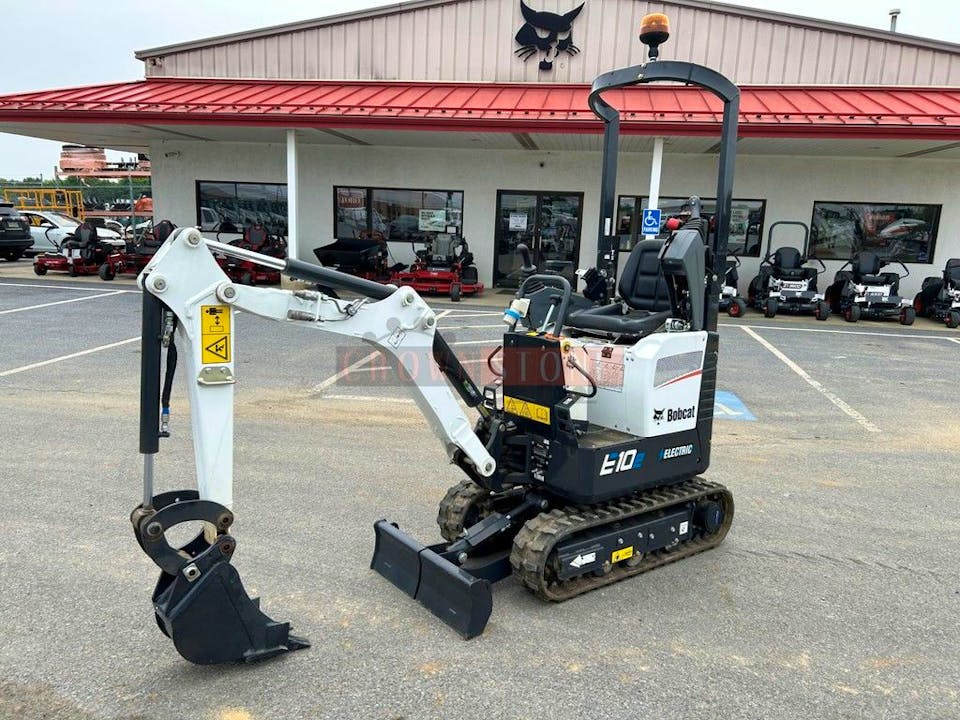

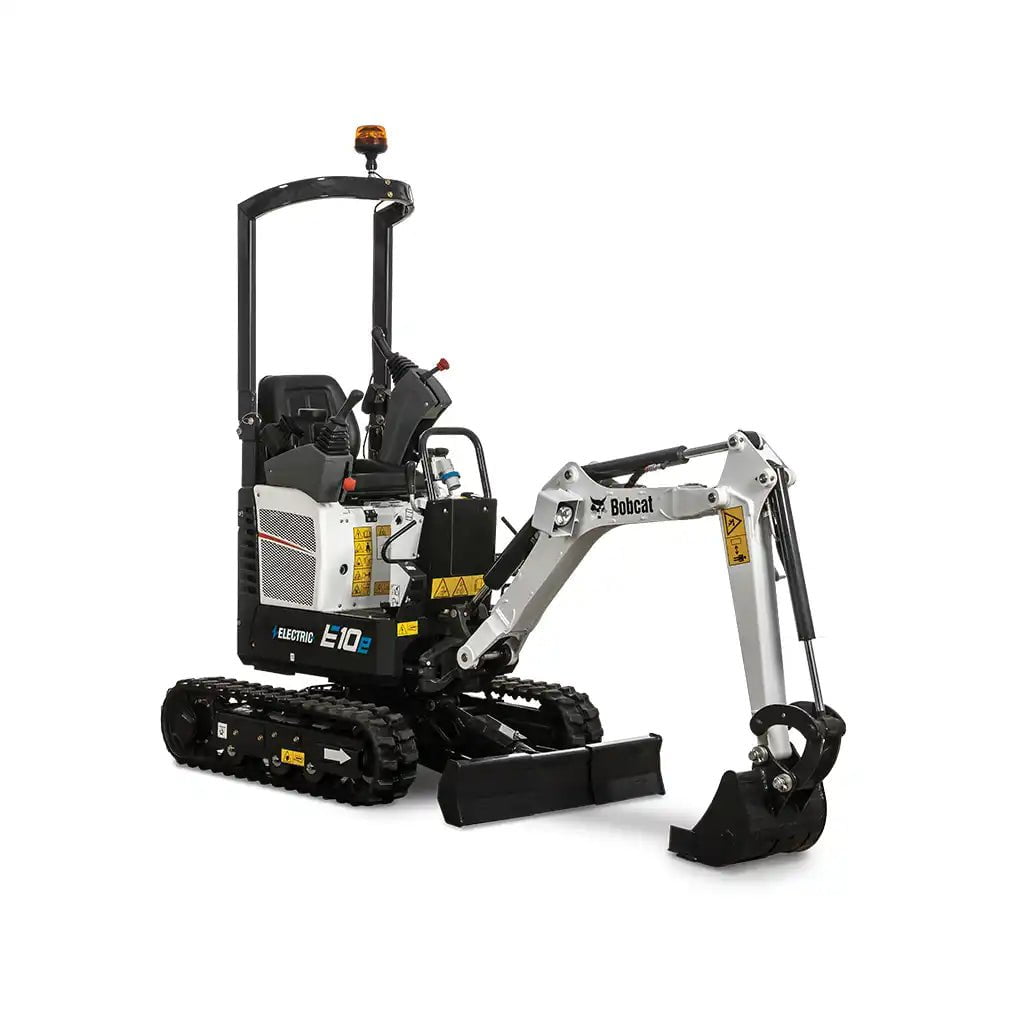

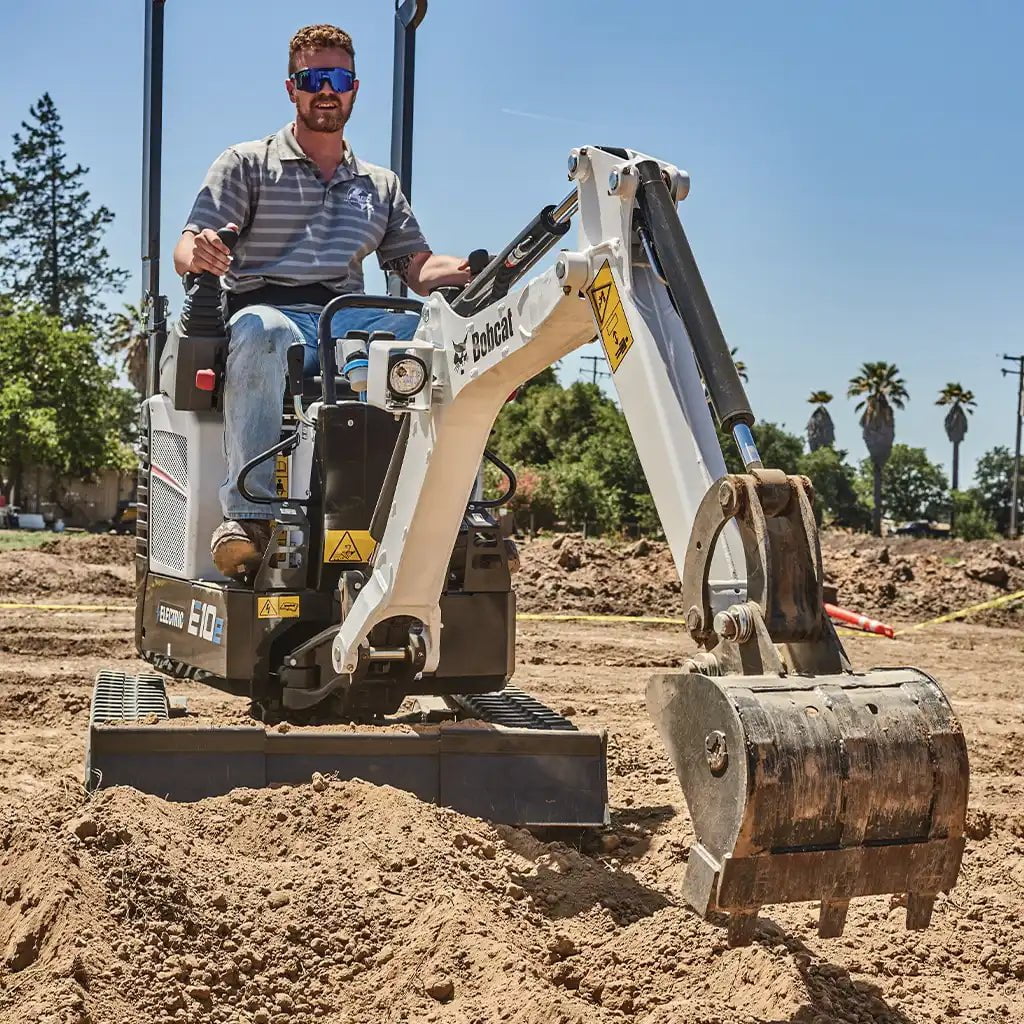

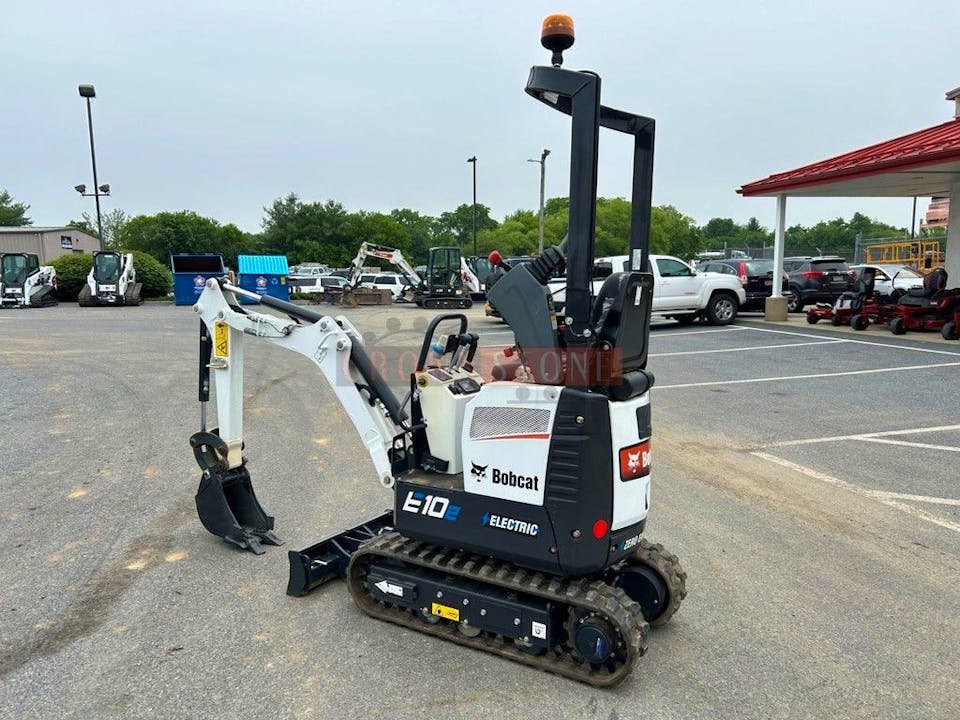

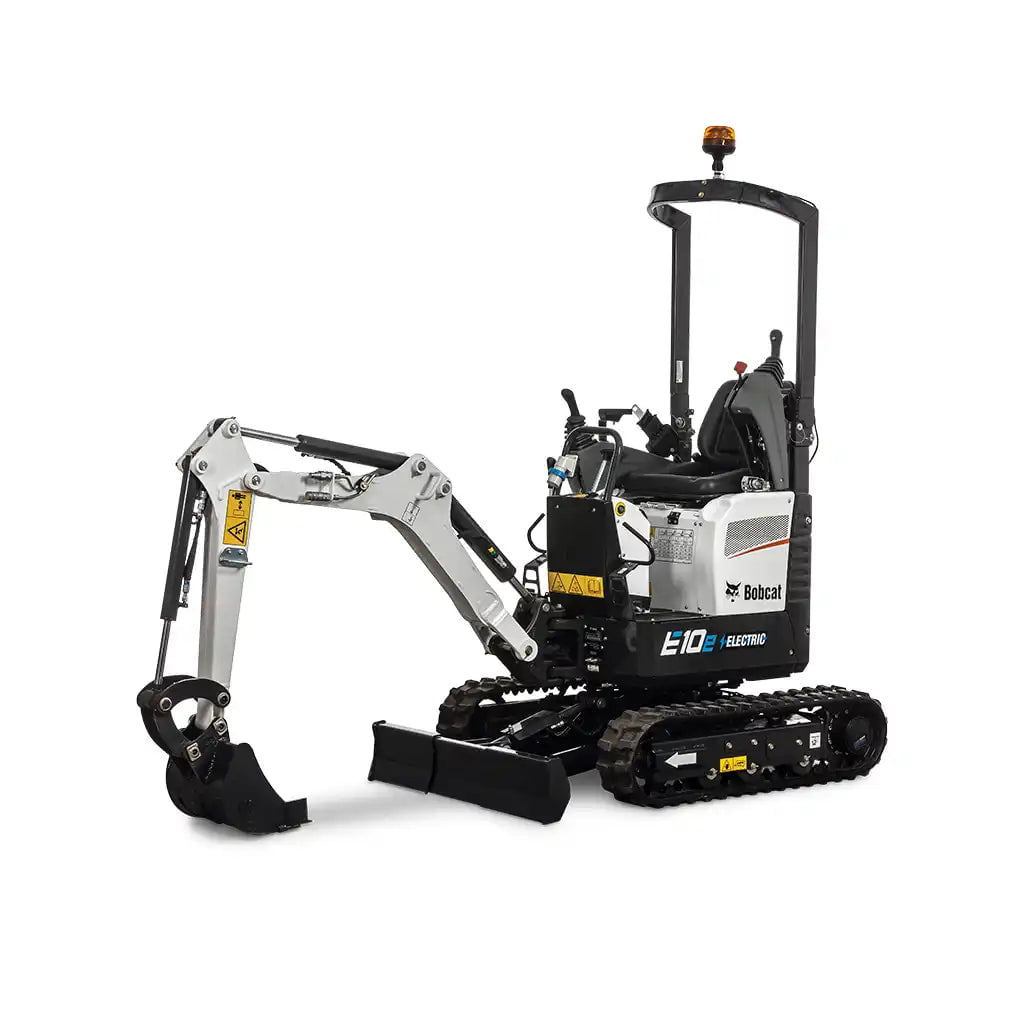

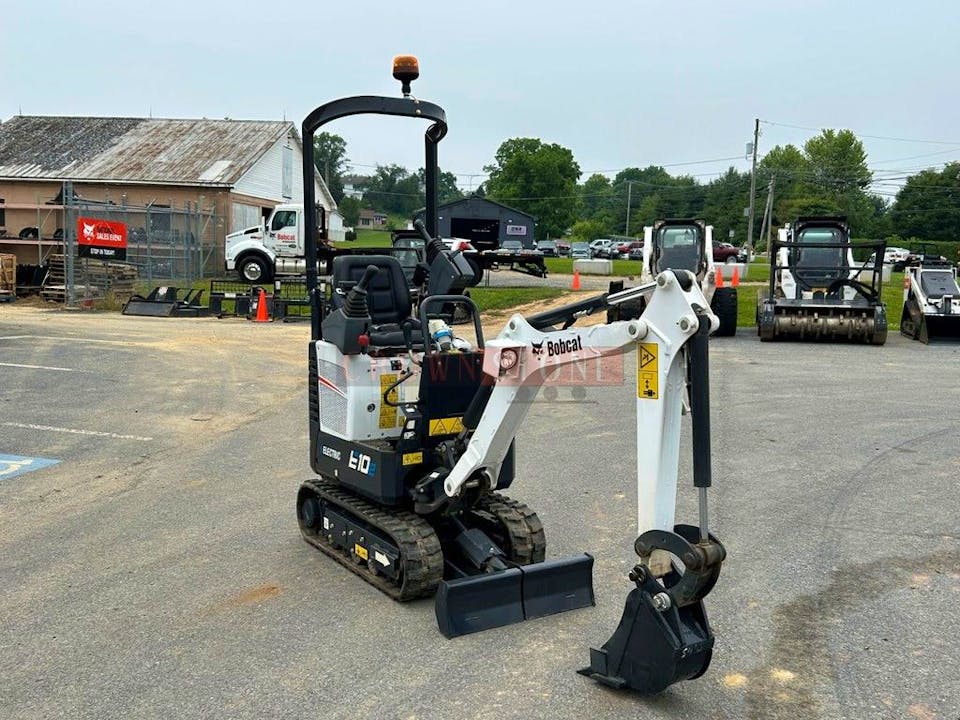

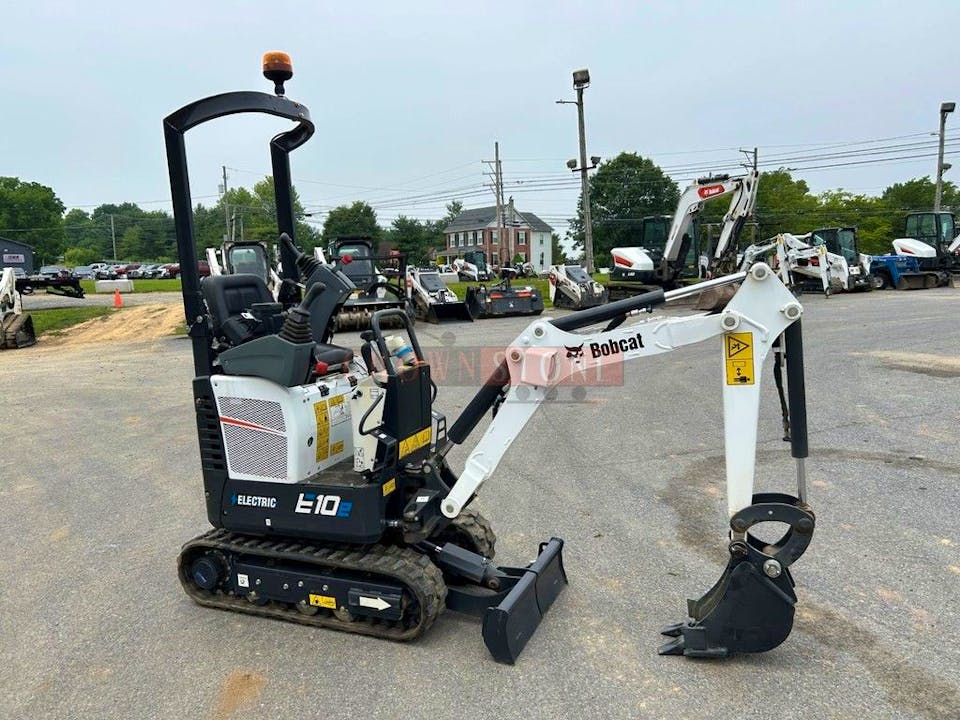

Bobcat E10e Electric Excavator
With a compact footprint and zero emissions, the E10e can tackle tough jobs in small spaces – both indoors and outdoors.
- Battery Capacity: 11.5 kWh
- Rated Power: 7.5 kW (10.05 hp) @ 3000 rpm
- CHARGE TIME 120V/15A: ~10-12 hours
- CHARGE TIME 240V/50A: ~2 hours
- Weight: 2648 lb.
- Width (Tracks Retracted): 28 in.
- Aux Flow: 5.28 gpm
The E10e has a state-of-the-art Lithium-Ion, maintenance-free battery packs with an advanced management system, designed to fit within the standard machine envelope to maintain the machine’s ZTS profile.
Following the daily working routine, the E10e can operate throughout a full 8-hour day, using operator breaks to recharge the batteries. Using an external super-charger functionality, the batteries can be recharged to 80% of battery capacity in around 1 hour. The battery can also be recharged overnight by using the on-board charger from a standard 230V grid. Plus, the new machine is easy to maintain and safe to operate – thanks to the exclusive use of low voltages, there is no need for operators to have special authorization to work with the E10e.
Key Features
Zero-emission compact excavation for the narrowest access points and sensitive jobsites.
11.5 kWh Lithium-Ion Battery System
Two lithium-ion batteries provide 11.5 kWh of capacity, near-instant torque and roughly four hours of continuous runtime without routine battery maintenance.
Zero Emissions, Low Noise
Work indoors, in dense urban areas and during noise-sensitive hours where diesel operation is restricted or impractical.
28-Inch Retractable Undercarriage
Retract to 28 inches to pass through narrow doors and gates, then extend to 43 inches for a stable working stance.
Zero Tail Swing & In-Track Swing Frame
Work close to walls and obstacles while keeping the house, swing components and cylinders protected within the track width.
Flexible Charging
Use the standard on-board 120-volt charger for overnight charging or the available 240-volt off-board charger for a full recharge in about two hours.
Smooth Electric Hydraulics
Full electric-motor torque across the rpm range delivers smooth, consistent hydraulic response for precise workgroup and attachment control.
Fold-Down TOPS & Ergonomic Controls
Access low-clearance spaces with fold-down protection, then work comfortably with adjustable joysticks, ergonomic controls and a digital display.
Lower Maintenance
Fewer fluids and components, plus maintenance-free batteries and centralized greasing, help reduce service time and operating costs.
Bobcat Electric Compact Excavators
Compare battery capacity, compact access, hydraulic flow and machine size to find the right zero-emission excavator for your work.
| E10eViewing | E19eMore reach & capacity | E32eLargest electric excavator | |
|---|---|---|---|
| Battery Type | Lithium Ion | Lithium Ion | Lithium Ion |
| Gross Battery Capacity | 11.5 kWh | 17.3 kWh | 44.5 kWh |
| Estimated Continuous Runtime | Up to 4 hr | Up to 4 hr | Up to 4 hr |
| Operating Weight | 2,648 lbs | 4,212 lbs | 7,862 lbs |
| Retracted Width | 28 in | 38.6 in | 61.8 in |
| Auxiliary Flow | 5.3 gpm | 6.4 gpm | 16.9 gpm |
| Off-Board Fast Charger | Optional | Optional | Optional |
| Zero Emissions | Yes | Yes | Yes |
Features & Benefits
Performance
Reliable Battery Power
Lithium-ion battery technology delivers diesel-equivalent power and near-instant torque, with no routine battery maintenance. Expect about four hours of continuous runtime or six to eight hours using recharge breaks.
Hydraulic Power
The electric motor provides full torque across the rpm range for smooth, consistent hydraulic control and precise workgroup operation under load.
Battery Management System
The battery management system protects battery health, extends service life and optimizes power use; it can de-rate or shut down the excavator to prevent battery damage.

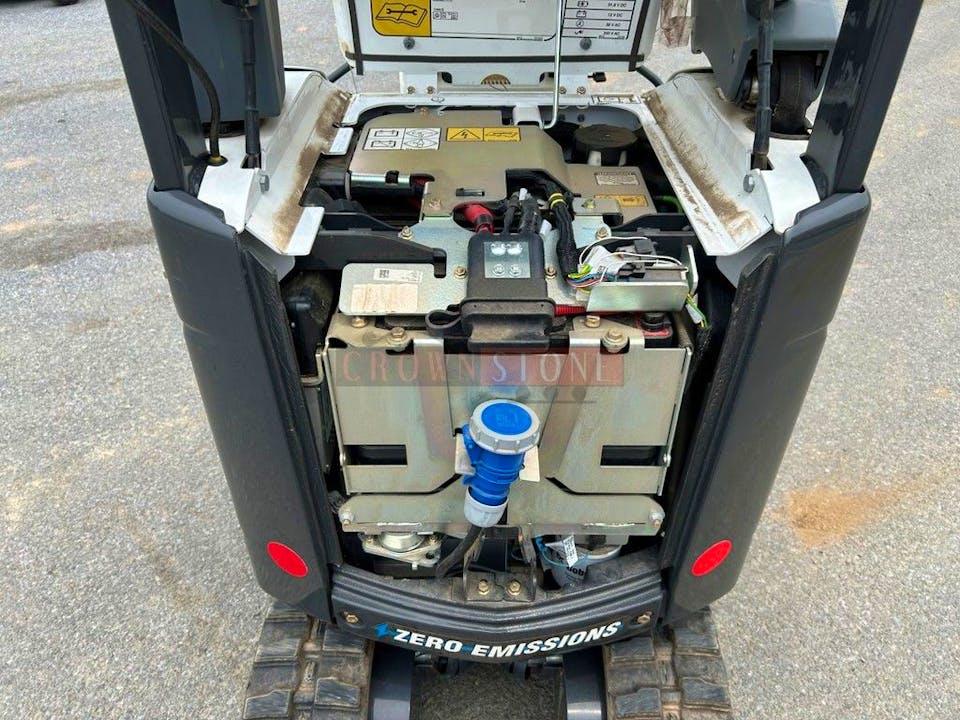

E10e Battery System
Two lithium-ion batteries provide 11.5 kWh of total capacity to power the electric motor, hydraulic pumps, workgroup, attachments and tracks.
Lower Operating Costs
Electric energy costs a fraction of diesel, while fewer parts and fluids reduce maintenance, repair costs and downtime.
Low Noise
Operate indoors or in dense urban areas with a fraction of diesel-machine noise and minimal disturbance to surrounding areas.
Zero Emissions
Zero-emission operation opens indoor and outdoor work opportunities where diesel equipment is restricted.
Motion Alarm and Beacon Light
A standard travel motion alarm and orange beacon increase jobsite awareness; the E10e also includes a horn.
Control Pattern Selector
Change between ISO excavator and standard backhoe control patterns from the console without leaving the seat.
Two-Speed Travel
Select low range for pushing and dozing or high range for faster jobsite mobility.
Integrated Rear Counterweight
The integrated counterweight lowers the center of gravity for confident digging and slewing stability.
Zero Tail Swing
The rear of the house stays within track width through rotation for flexibility around obstacles and in tight spaces.
Boom-Mounted Halogen Work Light
A bright, reliable boom work light supports work in low-light conditions.
Hydraulically Retractable Undercarriage
Retract to 28 inches for narrow access, then extend to 43 inches for a wider working footprint.
Retractable Blade
Retract the blade sides for access, then extend them for greater ground coverage.
Advanced Hydraulics
Exclusive valve systems deliver consistent flow to all functions for smooth, precise operation without sacrificing cycle times.

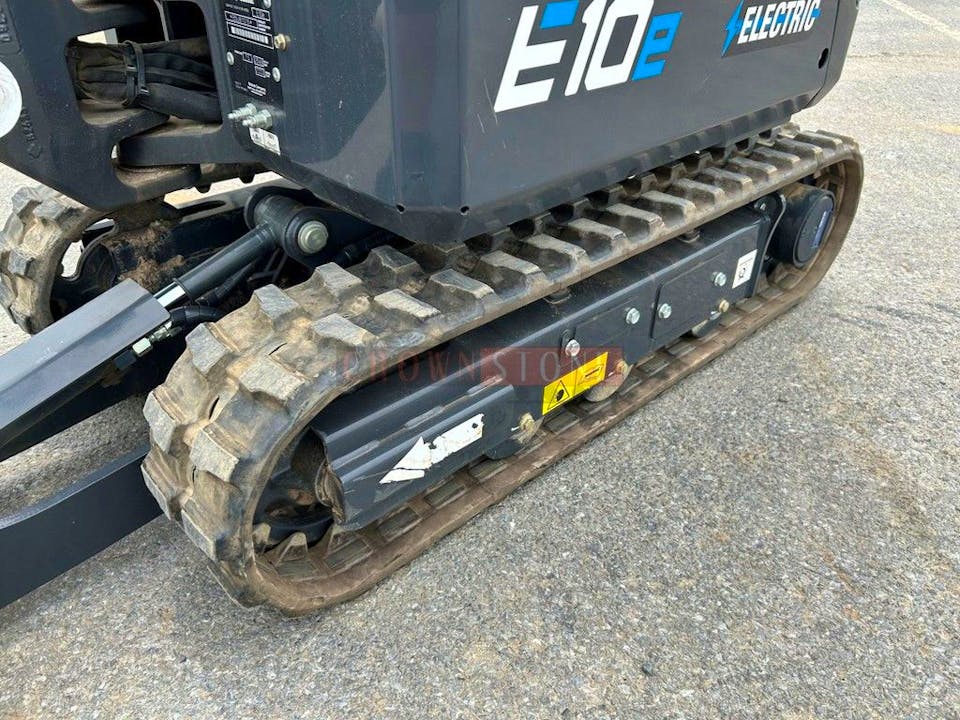

Rubber Tracks
Short-pitch, interlocking rubber tracks reduce travel vibration for a more comfortable ride.
Adjustable Hydraulic Joystick Controls
Move the console inward for narrow access or outward for operator comfort while maintaining smooth control.
Two-Way Auxiliary Hydraulics
Two-way auxiliary flow powers attachments that require bi-directional hydraulic operation.
Boom-Mounted Quick Couplers
Low-profile auxiliary couplers on the boom allow quick, protected attachment connections.
Foot Pedal Boom Swing Control
Fold-away boom-swing pedals create more floor space and simplify cleanup.
Versatility
Zero Emissions / Small Footprint
Zero emissions, a small footprint and in-track swing frame provide access to indoor and tight outdoor jobsites.
Low Noise
Work during sensitive hours with minimal disruption in dense urban and indoor environments.
Fold-Down TOPS
The tip-over protective structure folds down temporarily for doorway and low-opening clearance.
Leading Attachment Versatility
Use a broad range of Bobcat attachments, including hydraulic breakers, to do more than digging.
In-Track Swing Frame
Swing castings and cylinders remain within the tracks during offset digging to work closer to obstacles.
Hydraulically Retractable Undercarriage
Move through 28-inch access points, then extend to 43 inches for work.

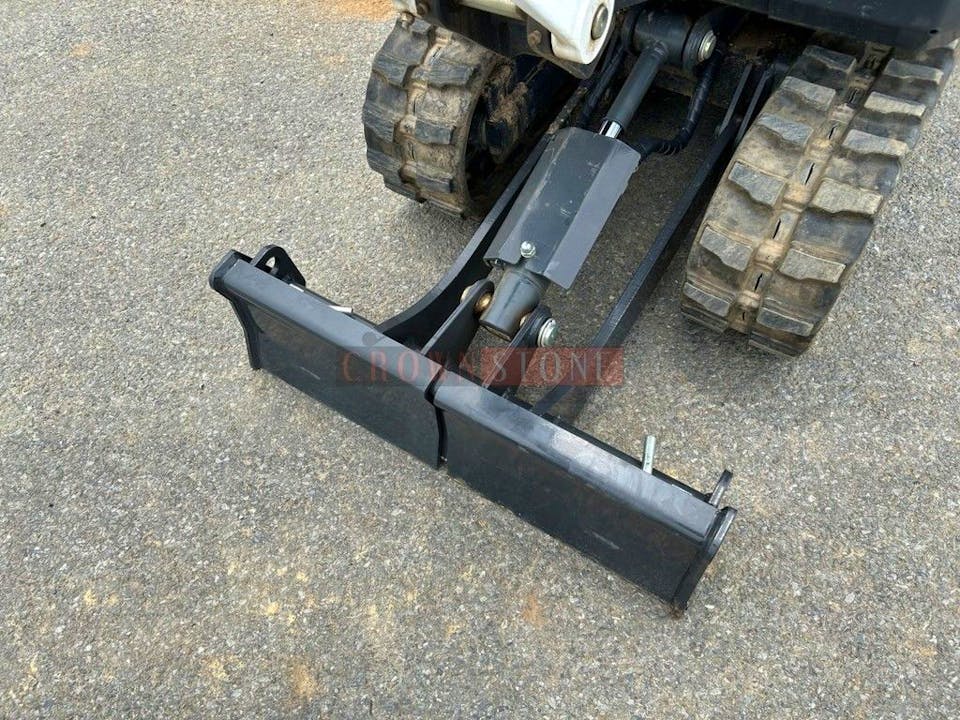

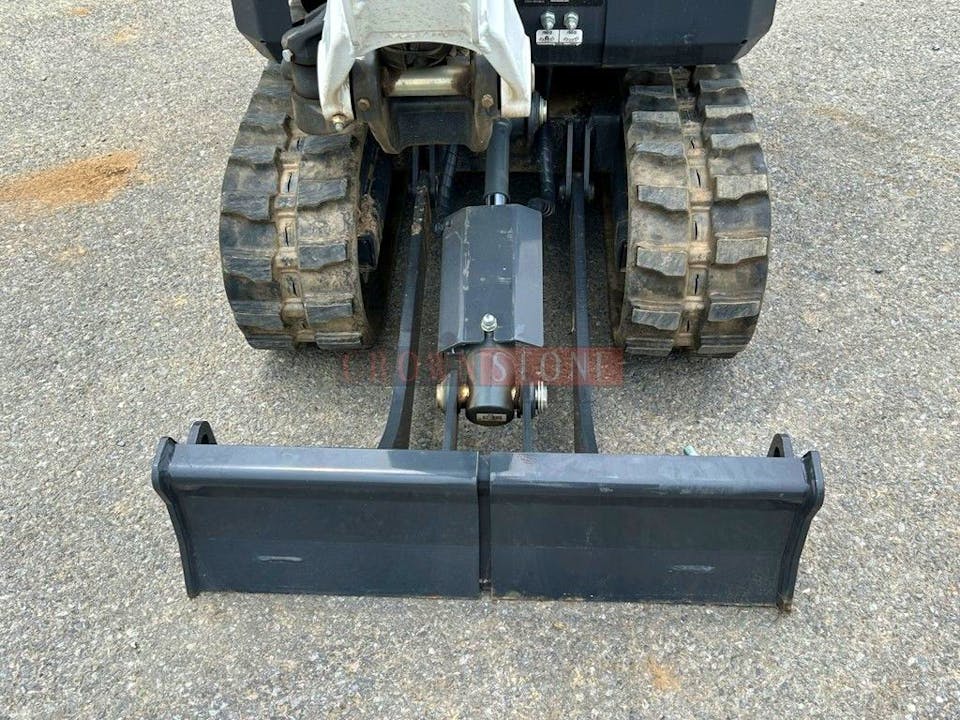

Dozer Blade with Extensions
Retract blade sides for access and return to full width for ground coverage.
Uptime Protection
Lower Overall Maintenance
Fewer components and fluids reduce routine maintenance and repair needs.
On-Board Charger
Use common 120-volt connections for overnight charging in about 12 hours.
Off-Board Charger
An available 240-volt fast-charge system can fully recharge the battery in about two hours.
Lithium-Ion Batteries
Maintenance-free batteries include built-in overcharge protection.
Battery Status Meter
An easy-to-read indicator helps operators manage battery power throughout the day.
Protected Machine Components
Protected hydraulic lines and a top-mounted boom cylinder help safeguard key components.
Simple Machine Tie-Downs
Convenient tie-down locations simplify secure transport.
Control Lockout
Raised consoles stop the motor and disengage hydraulic functions to help protect operators.
Vandalism Protection
A secure, lockable battery compartment helps deter after-hours tampering.
Comfort
Electric Powertrain
Dramatically reduced vibration and noise help operators work comfortably for longer periods.
Canopy
The operator station combines visibility, ergonomic controls, an adjustable seat and a retractable seat belt.
Adjustable Joystick Controls
Position joysticks outward for comfort or inward to accommodate narrow access.

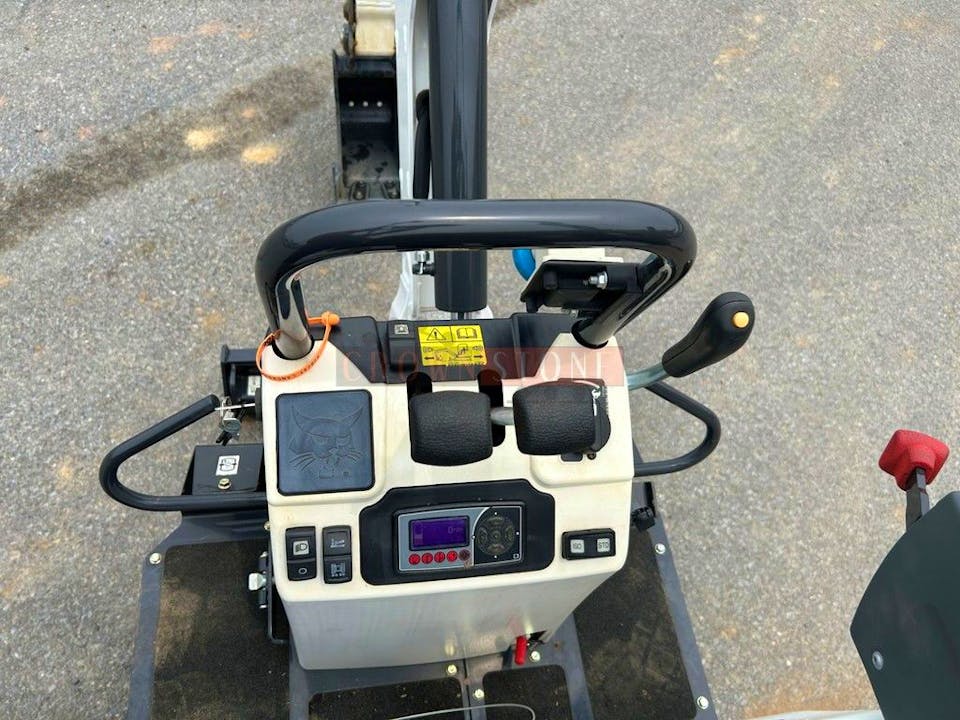

Ergonomic Controls
Operator-friendly controls, adjustable armrests and one-hand travel control reduce fatigue.
Fold-Back Foot Pedals
Fold-away pedals maximize floor space.

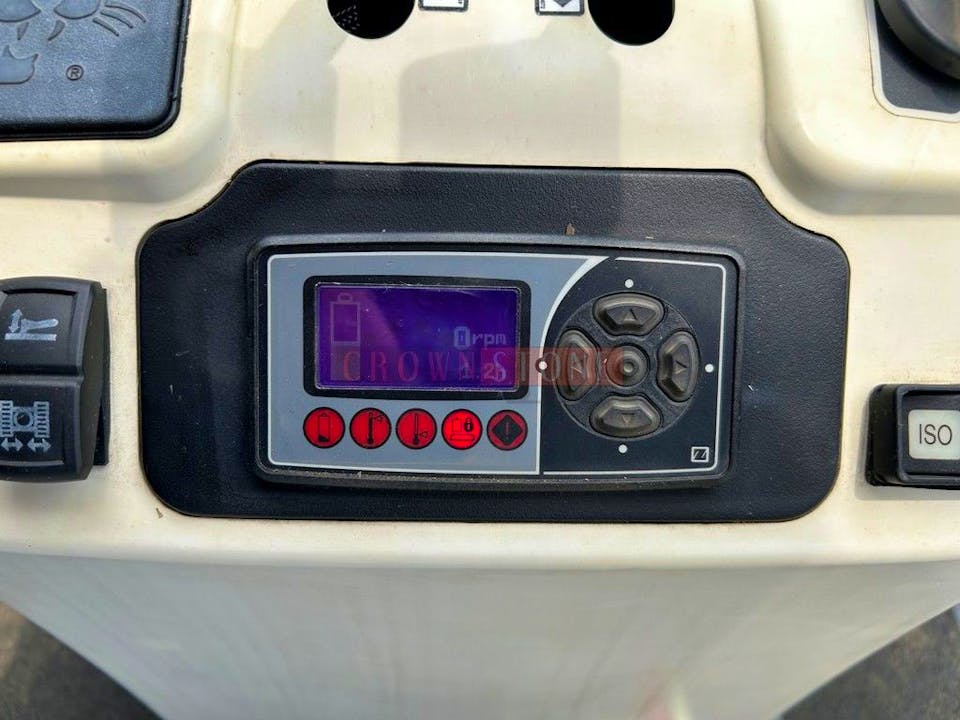

Digital Display
Monitor diagnostics, operation details, battery charge status and error conditions on-screen.
Reduced Vibration
A triple-flange roller system reduces vibration for a more comfortable ride.
Serviceability
Fewer Components and Fluids
Battery power removes diesel-engine maintenance requirements and reduces service needs.
Centralized Grease Bank
A centralized grease bank simplifies lubrication of the slew bearing and slew pinion.
Why Buyers Choose the E10e
Zero emissions and low noise for indoor, urban and environmentally sensitive work.
Ultra-compact 28-inch width for doorways, gates and restricted access.
11.5 kWh lithium-ion battery system with approximately four hours of continuous runtime.
Available fast charging restores a full charge in about two hours.
Zero tail swing, in-track swing frame and retractable undercarriage support confident tight-space work.
Fewer fluids and components reduce regular maintenance and operating costs.
Who Uses the E10e and What For
Indoor & Low-Emission Work
- Interior demolition and renovation
- Warehouses, basements and enclosed sites
- Municipal and sustainability-focused projects
Residential & Tight Access
- Gates, doorways and between-building access
- Drainage, small footings and utility trenches
- Work near landscaping, walls and fences
Landscape & Utility Crews
- Tree and shrub installation
- Shallow trenching, grading and backfill
- Low-noise work in occupied areas
Full Specifications
Performance
| Operating Weight | 2,648 lbs |
| Weight Class | 1 t |
| Travel Speed - Low | 1.1 mph |
| Travel Speed - High | 1.8 mph |
| Arm Digging Force | 1,248 lbf |
| Bucket Digging Force | 1,865 lbf |
| Rated Lift Capacity | 704 lbs |
| Lift Radius | 79 in |
| Maximum Dig Depth | 76.9 in |
| Max Dump Height | 71.6 in |
| Maximum Reach at Ground Level | 121.8 in |
Hydraulic System
| Pump Capacity | 5.3 gpm |
| Auxiliary Pressure | 2,756 psi |
| Auxiliary Standard Flow | 5.3 gpm |
Dimensions
| Length | 109.96 in |
| Overall Length in Travel Position | 110 in |
| Width | 28 in |
| Height with Operator Cab | 87 in |
| Height | 86.97 in |
Electrical System
| Estimated Run Time | 4 hr |
| External Sound Level (ISO 6395) | 85 dB |
| Interior Sound Level (ISO 6396) | 72 dB |
| Battery Type | Lithium Ion |
| System Voltage | 51.8 V |
| Gross Battery Capacity | 11.5 kWh |
| Motor Make | SCHABMULLER |
| Off-Board Charge Time | 2 hr |
Features
| NEMA 5-15 Charge Cable | Standard |
| Air Conditioning | Not Applicable |
| J1772 Charge Cable with NEMA 14-50 Plug | Not Applicable |
| Off-Board Charger | Optional |
| On-Board Charger | Standard |
| NEMA 14-50 Charge Cable | Optional |
| Cab Enclosure | Not Applicable |
| Cab Heater | Not Applicable |
| Heater Air Conditioning | Not Applicable |
| Radio | Not Applicable |
| Auxiliary Hydraulics | Standard |
| Secondary Auxiliary Hydraulics | Standard |
| Quick Tach System | Not Applicable |
| Rubber Track | Standard |
| Selectable Auxiliary Hydraulic Flow | Not Applicable |
| Angle Blade | Not Applicable |
