Description

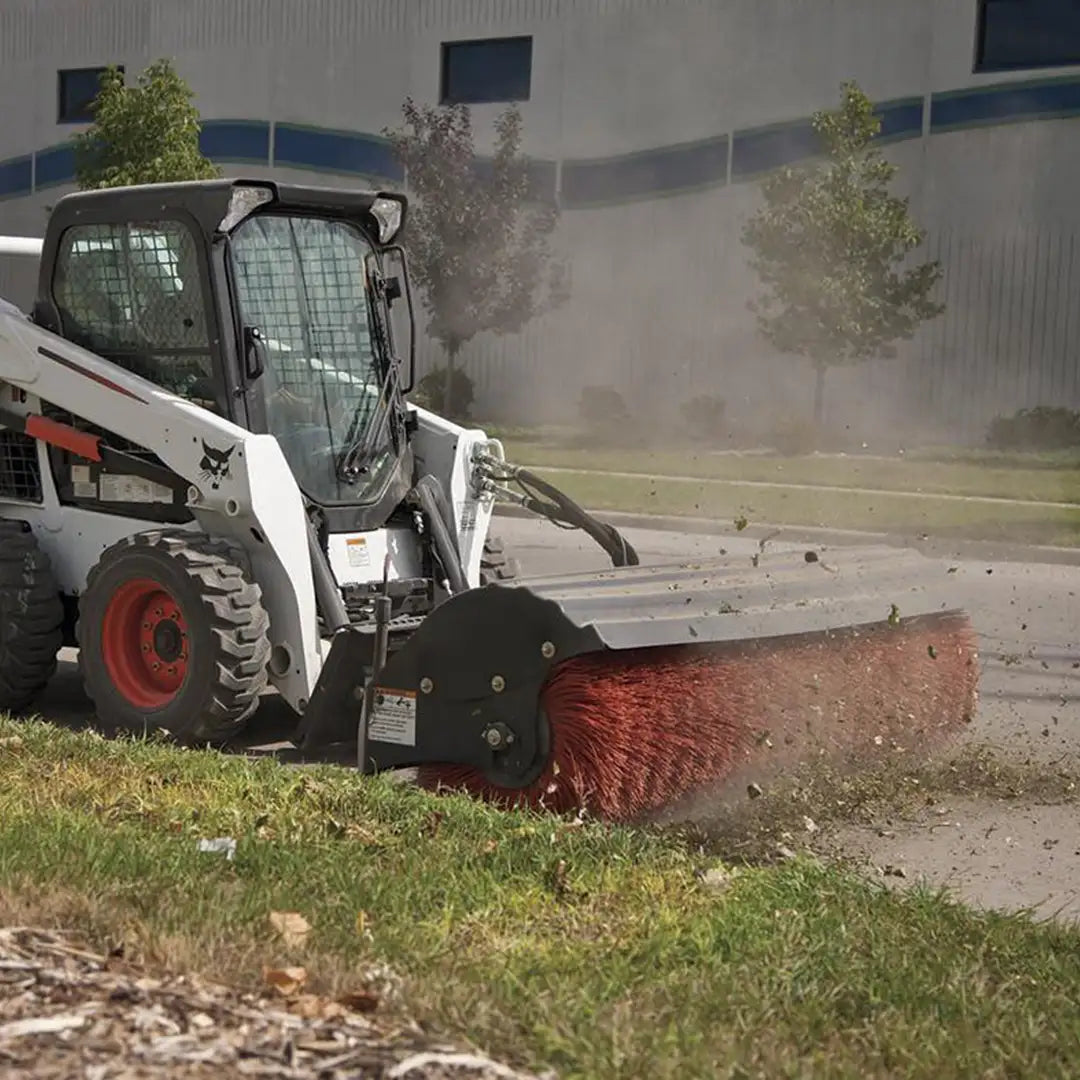

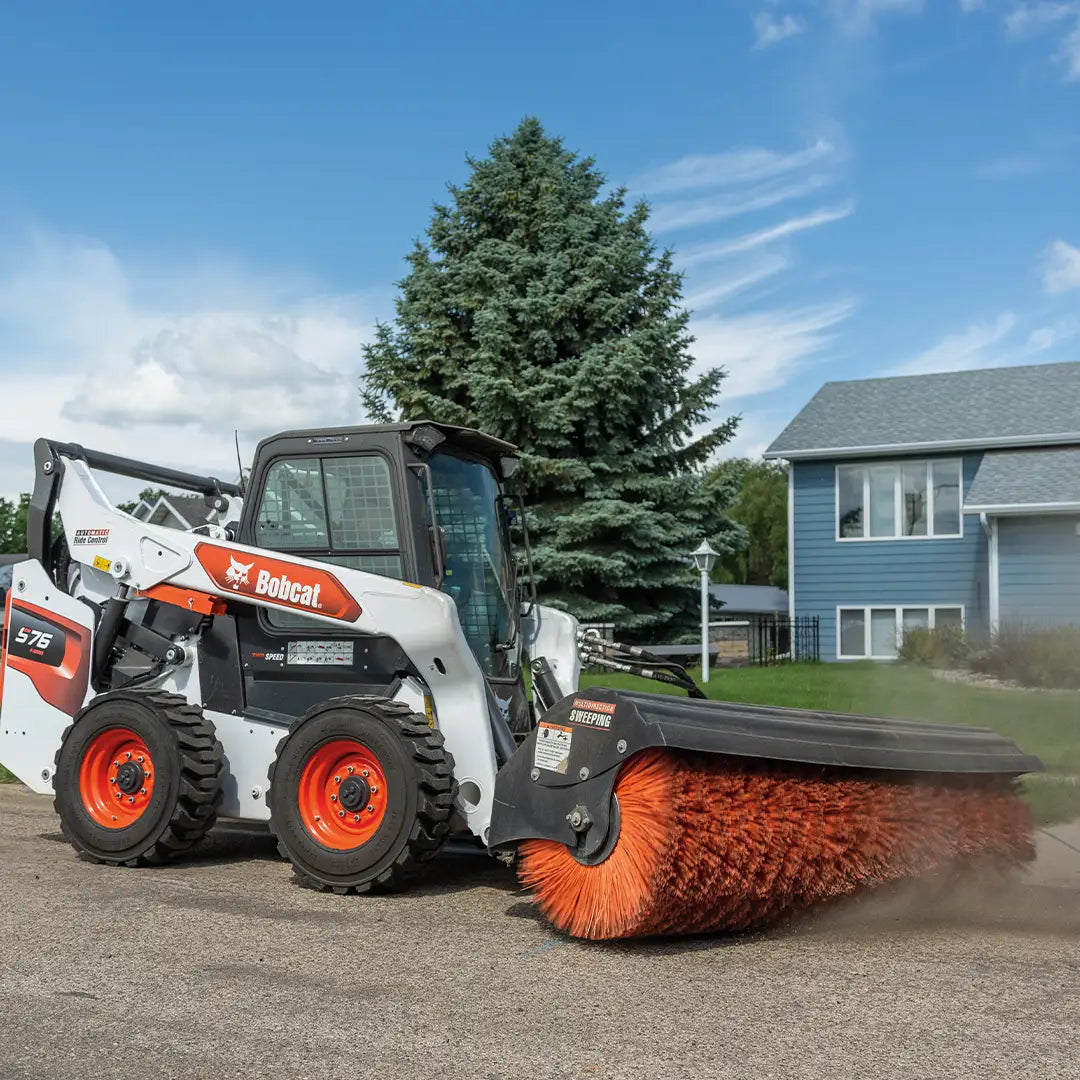

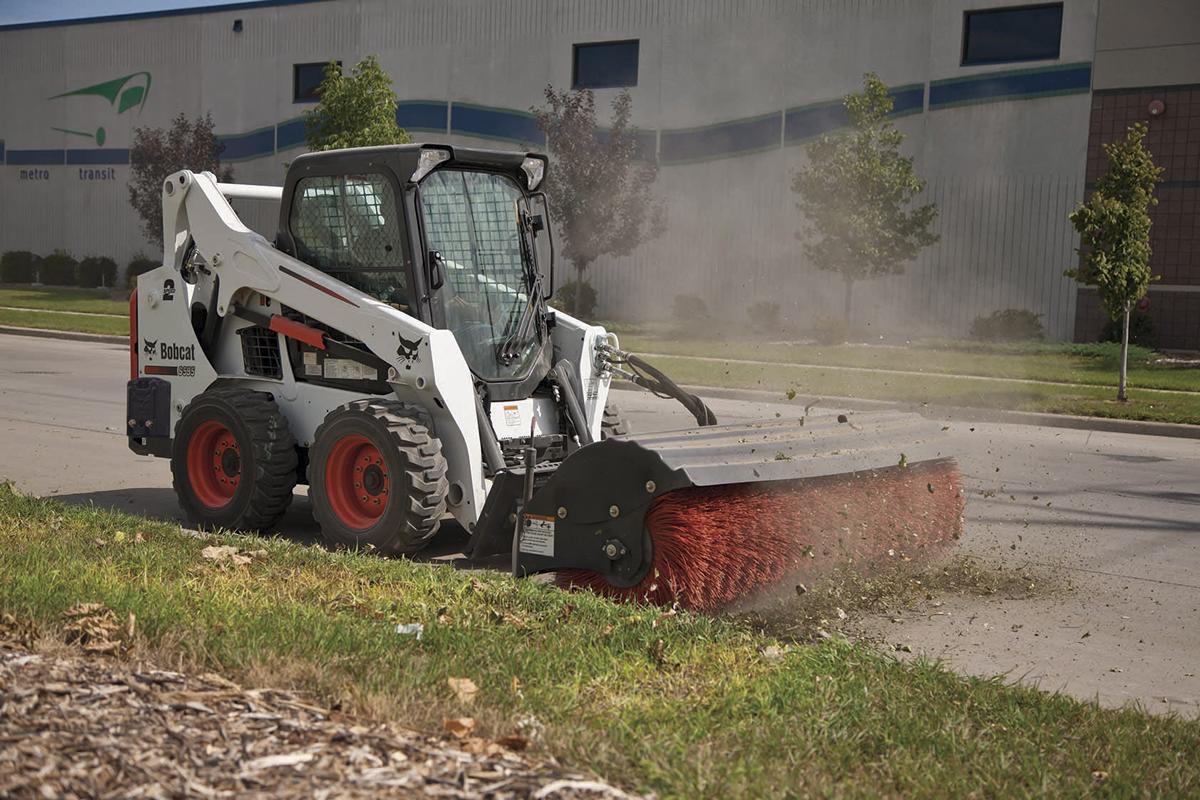

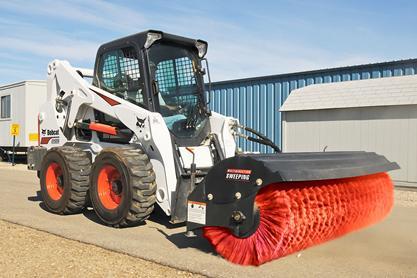

Bobcat Angle Broom
Widths: 52" - 64" - 68" - 84"
- Efficiently sweep and clean with the hydraulically driven angle broom attachment
- Heavy-duty broom bristles create a cleaner path and sweep more snow or debris in one pass
- Reverse bristle rotation available on the 68-inch and 84-inch angle brooms for enhanced cleaning along curbs, corners and around obstacles

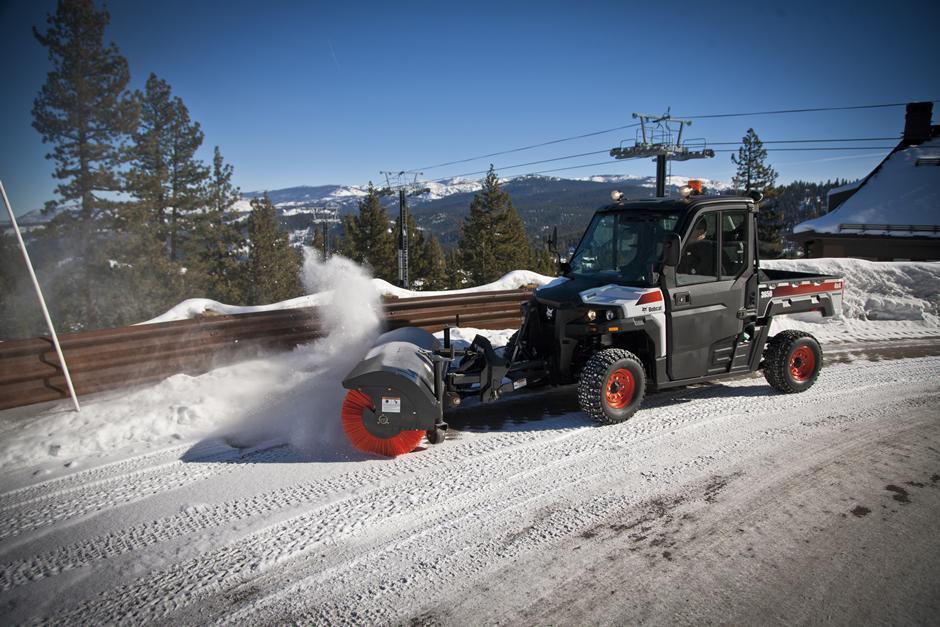

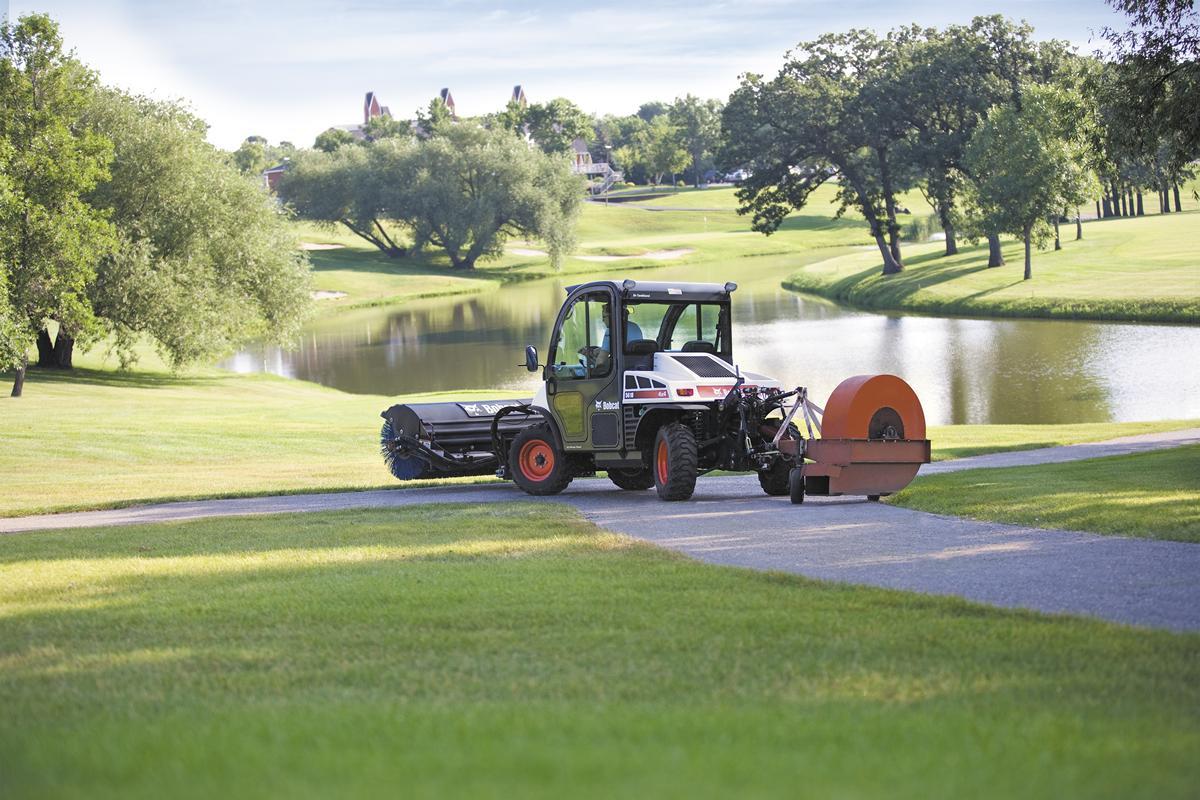

- Reversible angle broom is available for all M-Series and R-Series compact track loaders and skid-steer loaders; as well as Toolcat™ utility work machines with the 7-pin attachment control kit

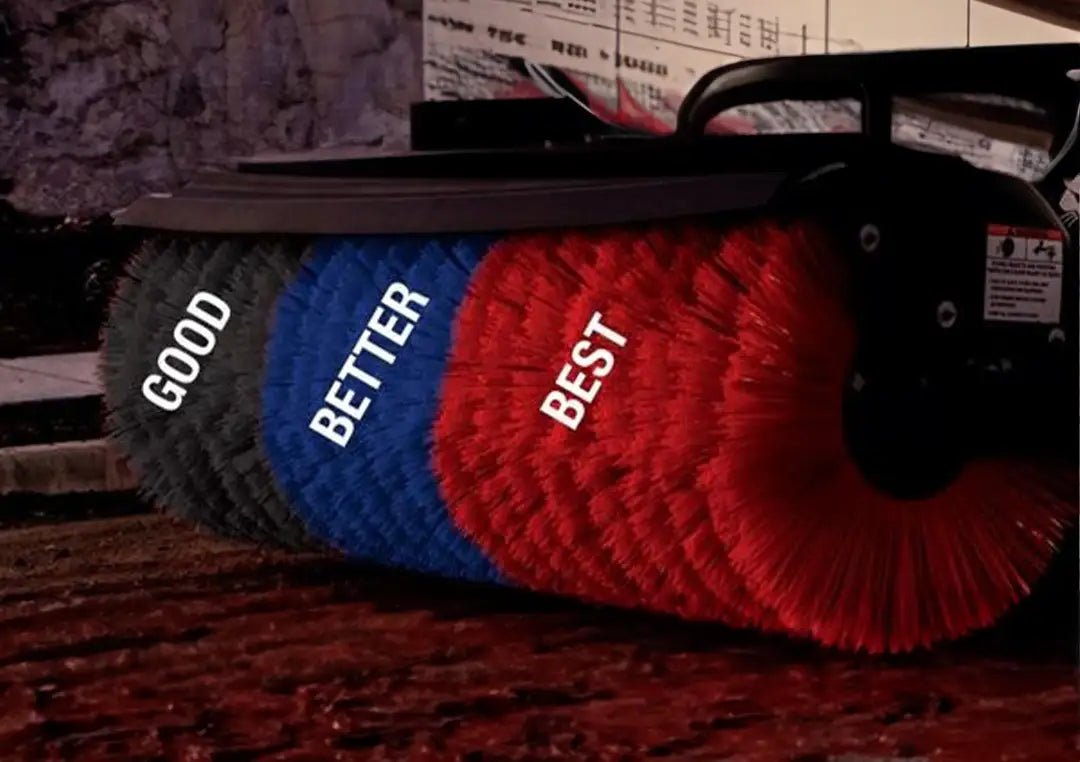

Good: Bobcat Poly Bristles (Flat & Convoluted)
These poly bristles have good rigidity for long life and deliver effective debris removal under normal sweeping conditions.
Better: Bobcat Standard Poly Bristles (Flat & Convoluted)
Bobcat standard-duty poly bristles are anything but average when it comes to effective debris removal for a variety of sweeping applications. Standard poly resin bristles provide a high level of flick action rigidity for great performance and long life. Under normal to severe sweeping conditions, these bristles provide effective debris removal. Available in flat and convoluted styles, standard poly bristles get the job done.
Best: Bobcat Heavy Duty Poly Bristles (Flat, Conical, & Convoluted)
Bobcat heavy-duty bristles are ideal for all sweeping surfaces and contain 15% more poly than standard bristles to handle more aggressive applications. Durable, long-lasting and high-quality virgin poly resin provides excellent flick action and more rigid work action to the ground under normal sweeping conditions. They are available in flat, conical and convoluted styles to cover a variety of applications.

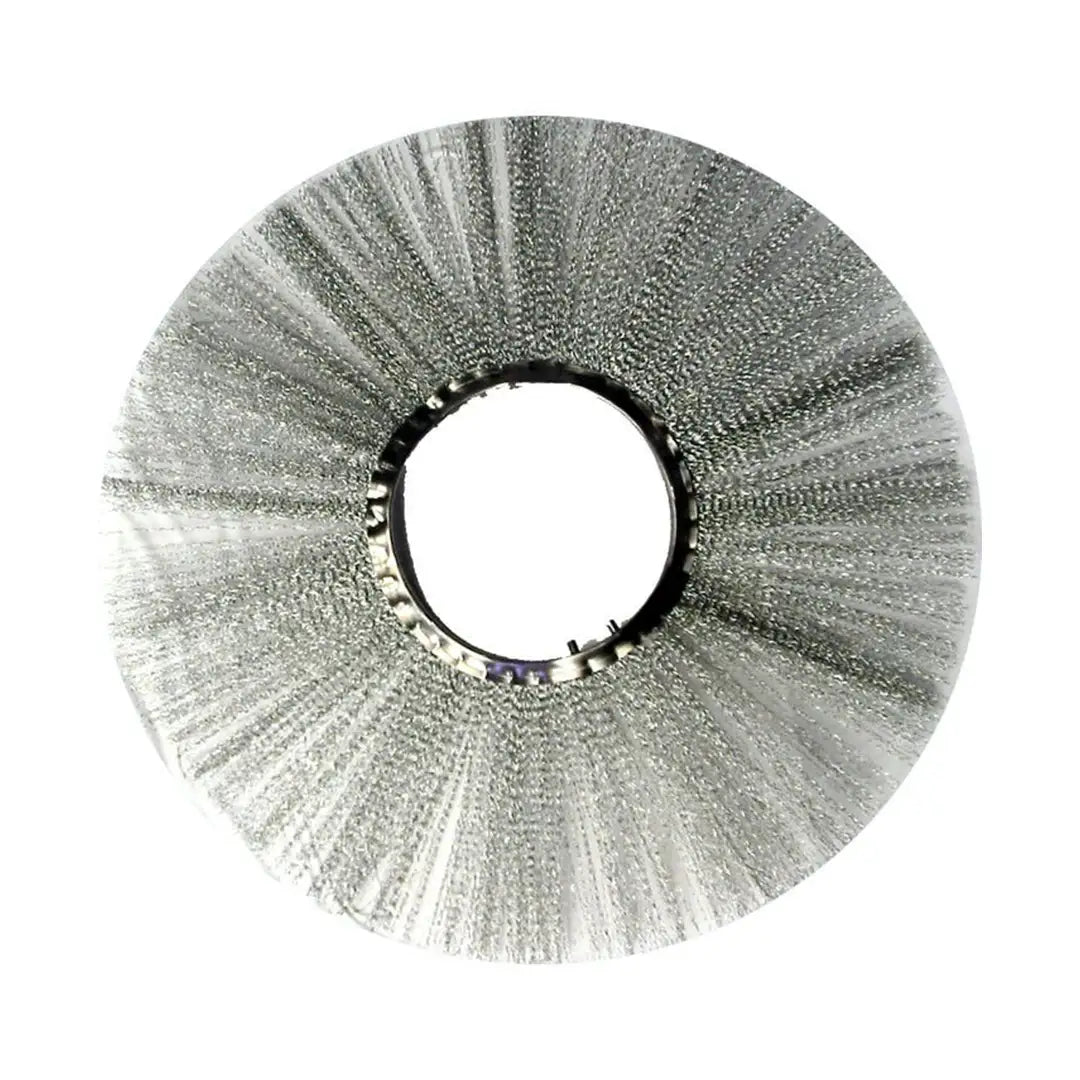

Bobcat Steel Wire Bristles (Convoluted)
Bobcat steel wire bristles sweep through the tough stuff. They are ideal when more action is needed to cut through difficult debris, like heavy millings or mud-packed roads. Corrosion- and rust-resistant flexible spring steel wire provides an aggressive and abrasive cutting action to break down debris without brittleness. Wire wafers are never used alone but in conjunction with poly bristle wafers. Available only in convoluted.

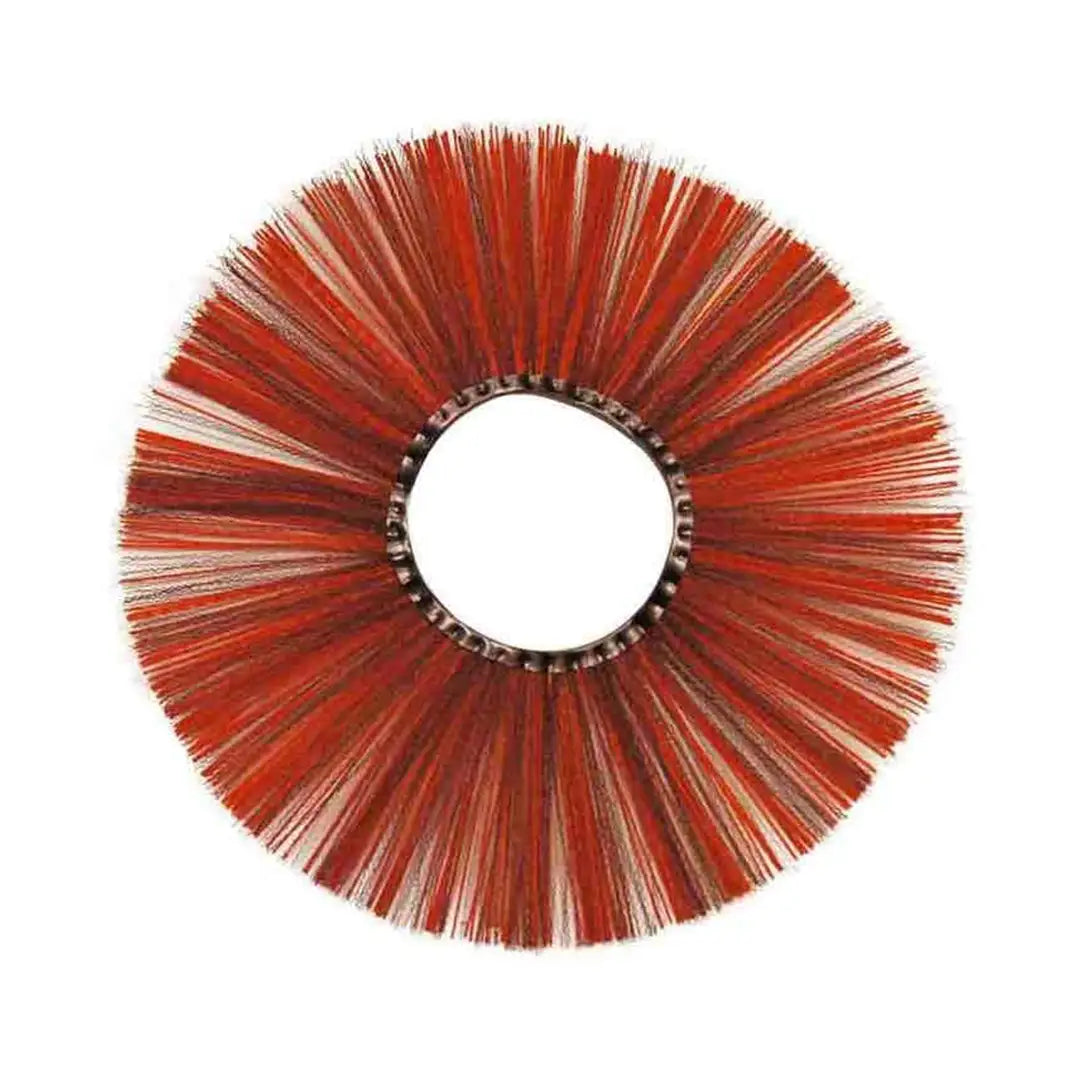

Bobcat Poly & Wire Combo Bristles (Convoluted)
These combo bristles include both poly and wire bristles on one wafer. They combine the flicking action of poly bristles with the aggressive cleaning ability of wire bristles. These bristles contain 0.028-inch (0.071 cm) thick spring steel for impactful sweeping action without brittleness. Available in convoluted only. With these bristles, you’ll be ready to take on just about anything.
What Makes the Angle Broom Different
A hydraulically driven attachment for sweeping dirt, debris and light snow across four available widths.
Hydraulically Driven Sweeping
Efficiently sweep and clean with the hydraulically driven angle broom attachment.
Heavy-Duty Bristles
Heavy-duty broom bristles create a cleaner path and sweep more snow or debris in one pass.
Reverse Bristle Rotation
Available on 68- and 84-inch brooms for enhanced cleaning along curbs, corners and obstacles.
Approved Attachment Applications
Reversible configurations work with approved M-Series and R-Series compact track loaders, skid-steer loaders and Toolcat utility work machines equipped with the 7-pin attachment control kit.
Bobcat Angle Broom Attachment
Angle Broom Features & Benefits
Features & Benefits 11
Self-Centering Hydraulic Angling
Keeps the attachment centered and helps prevent offset, supporting accurate sidewalk cleanup while reducing disturbance outside the desired cleaning area.
Compact Design
The compact, highly maneuverable angle broom attachment supports maximum efficiency.
Easy Maintenance
The quick-change rotor makes bristle replacement simple; removing two bolts releases the entire rotor.
Angle Control
Electric-over-hydraulic control adjusts the broom angle up to 25 degrees.
Fingertip Controls
Precisely control larger brooms with electric-over-hydraulic angling to finish work quickly and efficiently.
Multi-Directional Sweeping
Reverse bristle direction on 68- and 84-inch brooms to remove debris from curbs, gutters, corners and obstacles.
Flush Sweeping
Sweep closely along a curb or wall for improved cleaning.
High-Torque Motor
Provides maximum power for efficient sweeping, even when engaging heavier debris.
Storage Stand
Larger brooms include storage stands that help prevent bristle distortion. On 68- and 84-inch models, a lever swings the legs up or down and positions them closer to the bristles for easier attachment.
Patented Spring Design
Supports optimum down pressure, extended bristle life and excellent cleaning performance.
Heavy-Duty Bristles
Replaceable polypropylene wafer bristles provide excellent service life and cleaning ability.
Bristle Options 5
Poly Bristles
Good rigidity, long life and effective debris removal under normal sweeping conditions.
Standard Poly Bristles
Balanced flick action and durability for normal to severe cleanup applications.
Heavy-Duty Poly Bristles
Contain more poly for rigid work action and aggressive sweeping across varied surfaces.
Steel Wire Bristles
Flexible spring-steel wire cuts through difficult material such as heavy millings and packed mud; use with poly wafers.
Poly and Wire Combination
Combines poly flicking action with wire's aggressive cleaning ability for demanding debris.
Fast, Controlled Cleanup Across Four Widths
Hydraulically driven bristles sweep dirt, dried mud, debris and light snow
Effective on driveways, sidewalks, parking lots, loading docks and warehouses
Hydraulic angling directs material away from the cleaned path
Multiple bristle choices match everyday and aggressive cleanup
What the Angle Broom Attachment Does
Clear Debris
- Clear dirt and dried mud

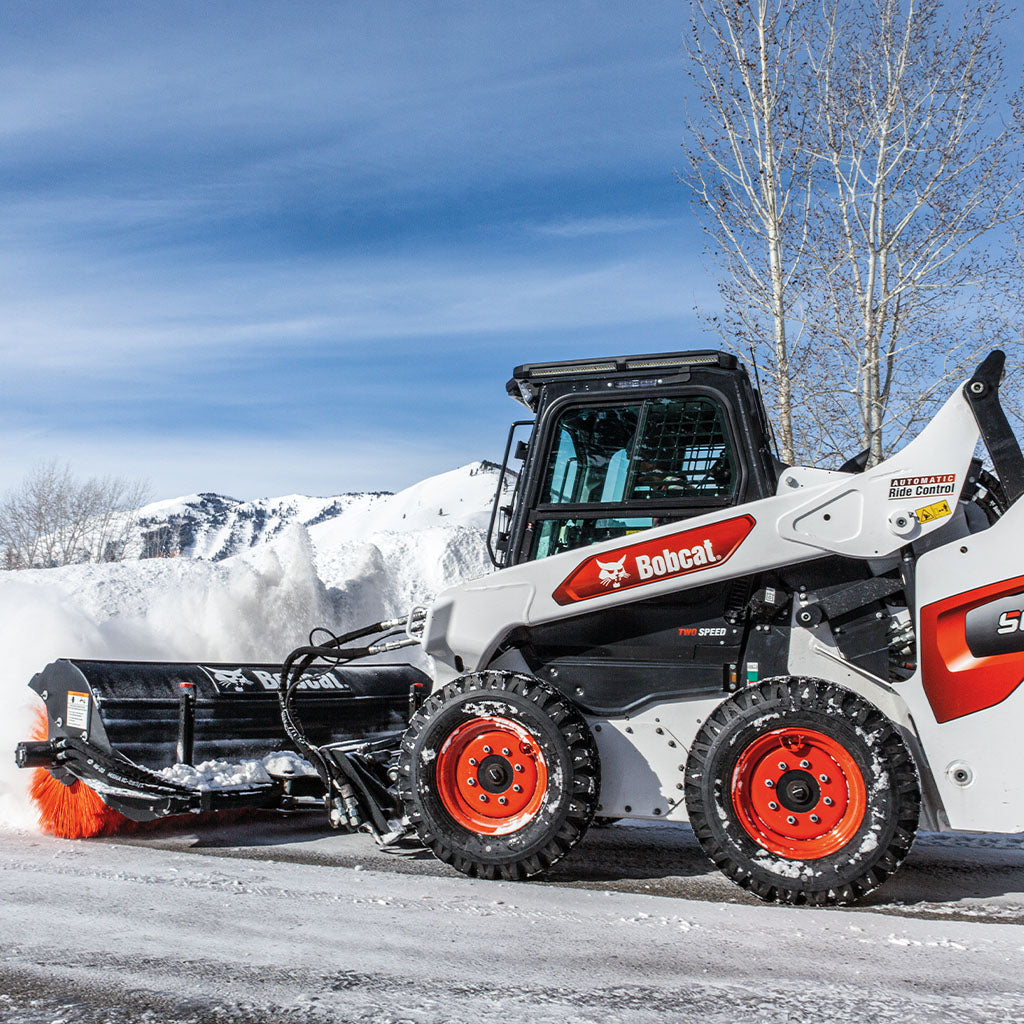

- Sweep light snow
- Remove leaves and other debris
Maintain Surfaces
- Driveways and sidewalks
- Parking lots and loading docks
- Warehouses and jobsites
How It Works
- A hydraulic motor rotates the broom continuously to sweep dirt, snow and debris away from the attachment.
- Angle the broom in either direction up to 25 degrees to move material to the side.
- Reverse broom rotation to clean difficult-to-access areas.
Required Components
- Hose extension kit for small articulated loaders
- Attachment control kit
- Components are purchased separately
Compatible Equipment
- 8 compact track loaders
- 2 compact wheel loaders
- 2 mini track loaders
- 9 skid-steer loaders
- 3 small articulated loaders
- 2 telehandlers
- 2 Toolcat utility work machines
Talk to a person about the Angle Broom
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Angle Broom Specifications
| General | Angle Broom - 52" | Angle Broom - 64" | Angle Broom - 68" | Angle Broom - 84" |
|---|---|---|---|---|
| Length | 48.26 in | 48.26 in | 61.8 in | 61.8 in |
| Model Name (Public) | Angle Broom - 52" | Angle Broom - 64" | Angle Broom - 68" | Angle Broom - 84" |
| Operating Weight | 355 lbs | 385 lbs | 860 lbs | 944 lbs |
| Width | 54.5 in | 67.5 in | 79.6 in | 96.4 in |
| Height | 28.6 in | 28.2 in | 34.6 in | 34.6 in |
Specifications apply to the angle broom attachment configurations. Confirm width, required components and compatibility with Carleton Equipment.
|
