General Info
|
|
|---|---|
| Condition: | Rental |
| Manufacturer: | Develon |
| Model: | DL380 |
| Machine Type: | Wheel Loader |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

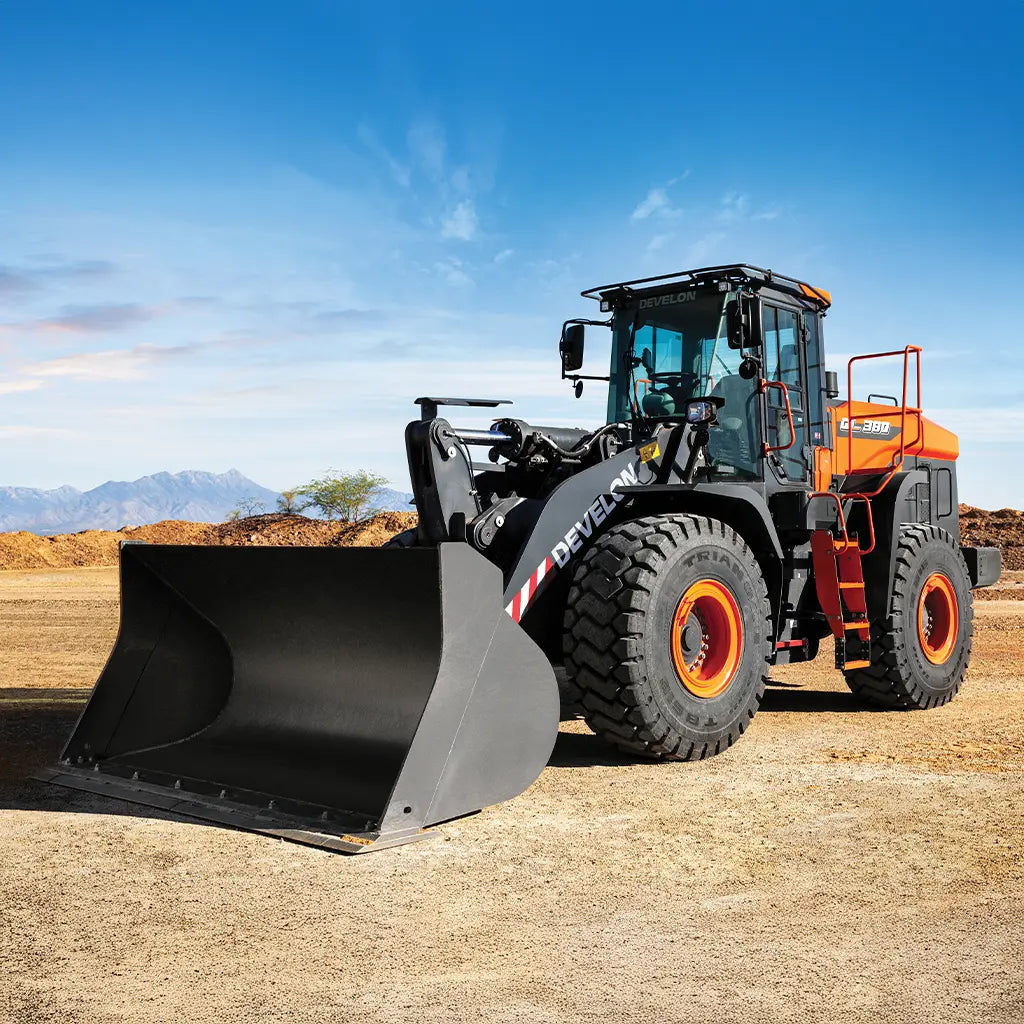

Develon DL380 Series - Rental
The Develon DL380 Series is a powerful wheel loader designed to handle demanding tasks on construction sites, quarries, and large-scale projects. Featuring a robust 5.0-yard bucket capacity, this loader enables you to move significant amounts of material quickly and efficiently. Built with a heavy operating weight of 44,919 lb. and a stable tip load of 36,198 lb., the DL380 offers outstanding stability and control. Equipped with 271 HP of horsepower and a generous lift height of 13' 8", the DL380 is both versatile and productive for a wide range of loading and hauling applications. Its manufacturer, Develon, delivers reliable performance, durability, and operator comfort.
Specs
| Bucket Capacity | 5.0 Yd |
| Weight | 44,919 lb. |
| Tip Load | 36,198 lb. |
| Horsepower | 271 HP |
| Lift Height | 13' 8" |
Develon DL380 Series Rental Pricing
| Daily | Weekly | Monthly |
| $600 |
$2,400 | Call for Pricing Plans |
Compare the Wheel Loader Family
Develon wheel loaders pair a hydrostatic transmission and Z-bar loader linkage with smart technology like the Transparent Bucket and 8" Smart Touch display. More models coming to the lineup.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| DL200-7 | DL220-7 | DL250-7 | DL280-7 | DL320-7 | DL380-7 | DL420-7 | DL480-7 | DL550-7 | DL580-7 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Specifications | ||||||||||
| Rated Power (net) | 142.1 hp @ 2,200 rpm | 159.6 hp @ 2,100 rpm | 171.6 hp @ 2,100 rpm | 189.1 hp @ 2,000 rpm | 270.9 hp @ 1,800 rpm | 270.9 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm | 394.3 hp @ 1,800 rpm |
| Operating Weight | 26,559 lb (Std) / 27,189 lb (HL) | 29,099 lb (Std) / 29,462 lb (HL) | 30,527 lb (Std) / 30,891 lb (HL) | 34,550 lb (Std) / 34,892 lb (HL) | 43,572 lb (Std) / 43,975 lb (HL) | 45,022 lb (Std) / 45,728 lb (HL) | 53,414 lb (Std) / 54,017 lb (HL) | 58,354 lb (Std) / 58,938 lb (HL) | 70,598 lb (Std) / 71,390 lb (HL) | 78,674 lb (Heavy-Duty) |
| Bucket Capacity | 2.6 yd³ (2.0 m³) | 3.0 yd³ (2.3 m³) | 3.3 yd³ (2.5 m³) | 3.7 yd³ (2.8 m³) | 4.6 yd³ (3.5 m³) | 5.1 yd³ (3.9 m³) | 5.5 yd³ (4.2 m³) | 6.3 yd³ (4.8 m³) | 6.8 yd³ (5.2 m³) | 8.4 yd³ (6.4 m³) |
| Breakout Force | 21,806 lbf | 21,544 lbf | 23,987 lbf | 32,822 lbf | 33,946 lbf | 36,342 lbf | 41,365 lbf | 51,931 lbf | 56,202 lbf | 60,249 lbf |
| Static Tipping Load (straight) | 22,315 lb | 23,210 lb | 23,973 lb | 27,064 lb | 34,454 lb | 36,074 lb | 42,718 lb | 45,322 lb | 53,273 lb | 58,555 lb |
| Transmission | Hydrostatic (HST), dual-motor | Powershift 4F/3R (torque converter) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 5F/3R lock-up (standard) |
| Features | ||||||||||
| Lift Arm Options | Standard US10 / High-Lift US20 | Std US10/11/15 · HL US20/21 | Std US10/11/15 · HL US20/21 | Std US10/11/15/30 · HL US20/21/40 | Std US10/11/50/51 · HL US20/21 | Std US10/11/50/51 · HL US20/21 | Std US10/11 · HL US20/21 | Std US10/11/50/51 · HL US20/21 | Std US11/50/51 · HL US20/21 | Heavy-Duty US30/31 |
| Ride Control | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Transparent Bucket | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Power Modes | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E |
| Emissions | Tier 4 · DOC/SCR/DPF | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) |
| Standard Warranty | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr |
Standard Arm vs High-Lift
The DL200-7 is offered with two front lift-arm configurations. The standard US10 arm maximizes lift capacity and tipping load; the optional high-lift US20 arm trades some capacity for greater reach and dump height to load taller trucks and hoppers.
| Standard ArmUS10 | High-Lift ArmUS20 | |
|---|---|---|
| Shared | ||
| Engine | Perkins 1204F · 142.1 hp @ 2,200 rpm | |
| Bucket Capacity | 2.6 yd³ (2.0 m³) | |
| Transmission | Hydrostatic (HST), dual-motor | |
| Tire Size | 20.5R25 L3 radial | |
| Reach & Lift | ||
| Max. Hinge Pin Height | 12' 3.0" | 13' 10.0" |
| Dump Height (45°) | 9' 0.0" | 10' 8.0" |
| Dump Reach (45°) | 3' 3.6" | 3' 3.2" |
| Digging Depth | 2.3" | 7.9" |
| Overall Length | 23' 6.5" | 25' 0.0" |
| Capacity | ||
| Static Tipping Load (straight) | 22,315 lb | 18,373 lb |
| Static Tipping Load (full turn) | 19,705 lb | 16,224 lb |
| Breakout Force | 21,806 lbf | 22,031 lbf |
| Operating Weight | 26,559 lb | 27,189 lb |
Specifications from the official DEVELON DL200-7 spec sheet; subject to change. Contact Carleton Equipment to confirm the right configuration.
|
