Rated Power
189.1 hpDevelon DL06 · at 2,000 rpm
A VGT-equipped DL06 engine supplies power for loading and material handling.
Rebates & Special Offers
View Full OfferGet as low as 0% for 36 months* or Up to $19,500 cash back* in lieu of financing.
- Bucket capacity
- 3.7 yd³
- Static tipping load (straight)
- 27,064 lb standard
22,180 lb high lift
More specifications
|
General Info
|
|
|---|---|
| Condition: | New |
| Manufacturer: | Develon |
| Model: | DL280-7 |
| Machine Type: | Wheel Loader |
| Year: | 2025 |
| Hours: | 47.1 |
| Stock Number: | 73690 |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description
The 2025 Develon DL280-7 is a high-performance 4-wheel drive loader engineered to tackle the most demanding material handling and loading applications. This brand-new unit features the US20 configuration and is equipped with a high-lift arrangement, providing the extended reach and dump height necessary for loading high-sided trucks and managing large stockpiles with ease and precision.
Designed for contractors who prioritize reliability and efficiency, this machine delivers the power and stability required for heavy-duty site work. As a new, unused piece of equipment located in Byron Center, MI, the DL280-7 represents the latest in Develon’s commitment to operator comfort, advanced hydraulics, and rugged durability. It is an ideal solution for operations seeking a versatile, top-tier loader ready to perform on day one.
Loan
0%
for up to 36 months*
Financing Available
Lease
Flexible
Aggressive lease payments available. Custom or seasonal payment structures also available.
Lease Options
Cash in Lieu
Up to $19,500
cash back in lieu of financing
Customer Rebate
Warranty
3 Year / 3,000-Hour Full Coverage
Full machine coverage
Standard Included
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $19,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
DL280-7 Key Features
What Makes the DL280-7 Different
189.1 hp Develon DL06 with VGT Turbo
A 5.9 L, 6-cylinder Develon DL06 with a variable-geometry turbo (VGT) delivers 189.1 hp and 665 lb·ft of torque for strong, responsive low-rpm power, and meets Tier 4 Final emissions with DOC + SCR/DEF and no DPF.
High-Flow 65 gpm Hydraulics
A larger 65-gallon-per-minute variable axial-piston pump drives fast boom and bucket cycle times and strong multifunction performance — moving more material per hour on demanding production work.
Z-Bar Loader, 3.7 yd³
A high-performance Z-bar linkage carries a 3.7 yd³ bucket with up to 32,822 lbf of breakout force and a 27,064 lb static tipping load; optional high-lift (US20/US21/US40) arms reach a 10' 9.1" dump height for loading the tallest trucks.
Torque-Converter Powershift
A full-automatic 4F/3R torque-converter powershift delivers strong rimpull for digging and pushing, with an optional 5-speed (US15 package) for higher road speeds up to 24.9 mph.
Next-Generation Cooling
Radiator fin spacing is 40% wider than the previous generation, and a standard variable-speed reversible fan responds to engine-compartment temperatures — purging debris and sustaining cooling in hot, dirty conditions.
Transparent Bucket & 8" Smart Touch
A multi-camera Transparent Bucket system shows a see-through view of the ground past the bucket, and a height- and angle-adjustable 8-inch DEVELON Smart Touch screen centralizes settings, smart guidance and fuel data.
Comfortable, Quiet Cab
A sound-suppressed ROPS/FOPS cab (just 71 dB(A) inside) with an air-suspension seat, adjustable control stands and fully automatic HVAC keeps operators productive and comfortable through long shifts.
Preinstalled MY DEVELON Telematics
MY DEVELON telematics is preinstalled for greater control over machine maintenance and operator productivity — tracking location, hours, fuel use and machine health remotely.
DEVELON Wheel Loaders
Compare the Wheel Loader Family
Compare DEVELON wheel loaders by capacity, power and configuration, including models with hydrostatic or powershift transmissions.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|

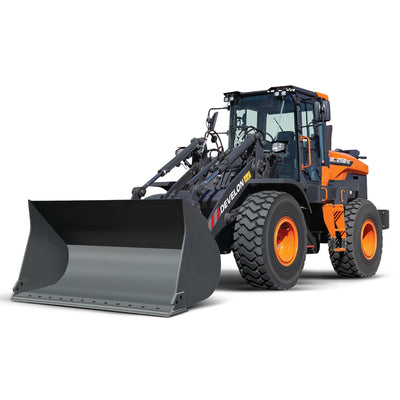

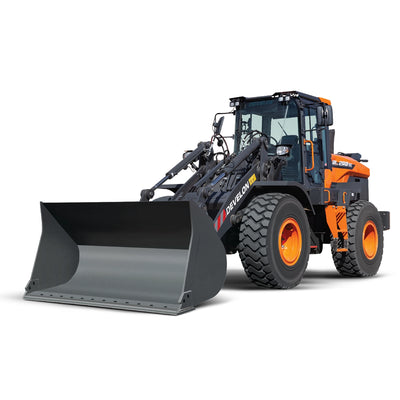

| DL200-7 | DL200TC-7 | DL220-7P | DL250-7P | DL250TC-7 | DL280-7Viewing | DL320-7 | DL380-7 | DL420-7 | DL480-7 | DL550-7 | DL580-7 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Power (net) | 142.1 hp @ 2,200 rpm | 142.1 hp @ 2,000 rpm | 159.6 hp @ 2,100 rpm | 171.6 hp @ 2,100 rpm | 171.6 hp @ 2,100 rpm | 189.1 hp @ 2,000 rpm | 270.9 hp @ 1,800 rpm | 270.9 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm | 394.3 hp @ 1,800 rpm |
| Operating Weight | 26,559 lb (Std) / 27,189 lb (HL) | 26,867 lb | 29,099 lb (Std) / 29,462 lb (HL) | 30,527 lb (Std) / 30,891 lb (HL) | 31,605 lb | 34,550 lb (Std) / 34,892 lb (HL) | 43,572 lb (Std) / 43,975 lb (HL) | 45,022 lb (Std) / 45,728 lb (HL) | 53,413 lb (Std) / 54,017 lb (HL) | 58,354 lb (Std) / 58,938 lb (HL) | 70,598 lb (Std) / 71,390 lb (HL) | 78,673 lb (Heavy-Duty) |
| Bucket Capacity | 2.6 yd³ (2.0 m³) | 2.6 yd³ (2.0 m³) | 3.0 yd³ (2.3 m³) | 3.3 yd³ (2.5 m³) | 3.3 yd³ (2.5 m³) | 3.7 yd³ (2.8 m³) | 4.6 yd³ (3.5 m³) | 5.1 yd³ (3.9 m³) | 5.5 yd³ (4.2 m³) | 6.3 yd³ (4.8 m³) | 6.8 yd³ (5.2 m³) | 8.4 yd³ (6.4 m³) |
| Breakout Force | 21,806 lbf | 21,806 lbf | 21,544 lbf | 23,987 lbf | 25,943 lbf | 32,822 lbf | 33,946 lbf | 36,342 lbf | 41,365 lbf | 51,931 lbf | 56,202 lbf | 60,249 lbf |
| Static Tipping Load (straight) | 22,315 lb | 20,172 lb | 23,210 lb | 23,973 lb | 20,324 lb | 27,064 lb | 34,453 lb | 36,074 lb | 42,719 lb | 45,322 lb | 53,272 lb | 60,549 lb |
| Transmission | Hydrostatic (HST), dual-motor | Hydrostatic (HST) | Powershift 4F/3R (torque converter) | Powershift 4F/3R (opt 5-speed lock-up) | — | Powershift 4F/3R (opt 5-speed) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 5F/3R lock-up (standard) |
| Lift Arm Options | Standard US10 / High-Lift US20 | Parallel-lift (tool carrier) | Std US10/11/15 · HL US20/21 | Std US10/11/15 · HL US20/21 | Parallel-lift (tool carrier) | Std US10/11/15/30 · HL US20/21/40 | Std US10/11/50/51 · HL US20/21 | Std US10/11/50/51 · HL US20/21 | Std US10/11 · HL US20/21 | Std US10/11/50/51 · HL US20/21 | Std US11/50/51 · HL US20/21 | Heavy-Duty US30/31 |
| Ride Control | Standard | — | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Transparent Bucket | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Power Modes | P / S / E | — | P / S / E | P / S / E | — | P / N / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | Normal / Power / SAT |
| Emissions | Tier 4 · DOC/SCR/DPF | Tier 4 | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) |
| Standard Warranty | 3 yr / 3,000 hr | — | 3 yr / 3,000 hr | 3 yr / 3,000 hr | — | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr |
DEVELON DL280-7 Wheel Loader
Standard Arm vs High-Lift
The DL280-7 is offered with two front lift-arm configurations. The standard US10 / US11 / US15 / US30 arm maximizes lift capacity and tipping load; the optional high-lift US20 / US21 / US40 arm trades some capacity for greater reach and dump height to load taller trucks and hoppers.
| Standard ArmUS10 / US11 / US15 / US30 | High-Lift ArmUS20 / US21 / US40 | |
|---|---|---|
| Shared | ||
| Engine | Develon DL06 (VGT) · 189.1 hp @ 2,000 rpm | |
| Bucket Capacity | 3.7 yd³ (2.8 m³) | |
| Transmission | Powershift 4F/3R (opt 5-speed) | |
| Tire Size | 20.5R25 L3 radial | |
| Reach & Lift | ||
| Max. Hinge Pin Height | 12' 11.6" | 14' 5.0" |
| Dump Height (45°) | 9' 3.0" | 10' 9.1" |
| Dump Reach (45°) | 3' 9.7" | 3' 8.3" |
| Digging Depth | 4.5" | 8.0" |
| Overall Length | 25' 1.3" | 26' 5.9" |
| Capacity | ||
| Static Tipping Load (straight) | 27,064 lb | 22,180 lb |
| Static Tipping Load (full turn) | 23,857 lb | 19,553 lb |
| Breakout Force | 32,822 lbf | 28,776 lbf |
| Operating Weight | 34,550 lb | 34,892 lb |
Specifications from the official DEVELON DL280-7 spec sheet; subject to change. Contact Carleton Equipment to confirm the right configuration.
DL280-7
DL280-7 Features & Benefits
Performance & Powertrain 7
189.1 hp Develon DL06 with VGT Turbo
The DL280-7 runs a 5.9 L, 6-cylinder Develon DL06 with a variable-geometry turbo (VGT), producing 189.1 hp at 2,000 rpm and 665 lb·ft of torque at 1,400 rpm for strong, responsive low-rpm power.
High-Flow 65 gpm Hydraulics
A larger 65-gallon-per-minute variable-displacement axial-piston pump (vs 40.9 gpm on the smaller models) drives faster boom and bucket cycles and stronger multifunction performance for high-production loading.
Torque-Converter Powershift
A full-automatic 4F/3R torque-converter powershift multiplies torque for strong rimpull and quick cycles, with an optional 5-speed (US15 package) for higher road speeds to 24.9 mph.
Tier 4 Final — No DPF
Meets EPA Tier 4 Final emissions with HPCR fuel, a variable-geometry turbo, cooled EGR and a DOC + SCR/DEF aftertreatment package — and no diesel particulate filter (DPF) to regenerate.
High Breakout & Tipping Capacity
The Z-bar loader linkage generates up to 32,822 lbf of breakout force with a 27,064 lb static tipping load (straight) and a 3.7 yd³ bucket.
Heavy-Duty Planetary Axles & Diff Options
Outboard planetary axles are standard, with differential configurations available to suit traction needs.
Power Modes & Idle Management
Choose Power, Normal or Economy mode for the work at hand. Automatic transmission modes manage shifts, while auto-idle reduces engine speed and auto-shutdown stops the engine after a set idle period.
Loader & Hydraulics 7
Z-Bar Loader Linkage & Arm Options
A high-performance Z-bar lift arm maximizes breakout force and dump clearance, with a wide range of standard (US10/11/15/30) and optional high-lift (US20/21/40) arm configurations to match your loading height and capacity needs.
Ride Control
Standard ride control cushions the loader arms over rough terrain, reducing material spillage and operator fatigue while allowing faster load-and-carry travel.
Auto Kick-Out & Return-to-Dig
Adjustable boom kick-out and return-to-dig help repeat loading cycles. In-cab adjustment of return-to-dig is available with optional electro-hydraulic controls.
Closed-Center Piston Hydraulics
A variable-displacement axial-piston pump feeds a closed-center, pilot-operated system at 3,844 psi — responsive, efficient power for fast cycle times even under heavy multifunction loads.
Auxiliary Hydraulics (3rd Valve)
A standard 3rd-valve auxiliary circuit and boom float expand attachment versatility — run grapples, snow blowers, brooms and more beyond the standard bucket.
Optional Electro-Hydraulic Controls
Optional electro-hydraulic controls (EMVC) provide load-sensing hydraulics for precise control and reduced fuel consumption.
Optional Quick Coupler
Change compatible non-hydraulic attachments from the cab with the optional quick coupler.
Comfort & Technology 5
8" DEVELON Smart Touch Display
The 8-inch DEVELON Smart Touch screen displays machine settings and the rearview camera. Smart Guidance provides operating tips, and the Smart Key enables push-button starting.
Transparent Bucket
The standard Transparent Bucket uses cameras to provide a supplemental view of the ground past the bucket on the in-cab display.
Rearview Camera & AVM
A standard rearview camera improves visibility; an optional around-view monitor (AVM) stitches a 360° bird's-eye view for confident operation in tight or busy jobsites.
Quiet Air-Suspension Cab
A pressurized, sound-suppressed ROPS/FOPS cab (71 dB(A) inside) with an air-suspension seat, adjustable control stands and fully automatic HVAC keeps operators comfortable all shift.
Preinstalled MY DEVELON Telematics
MY DEVELON telematics is preinstalled — tracking machine location, hours, fuel use and health remotely to help manage maintenance, security and fleet utilization. An optional integrated smart scale weighs loads on the go.
Durability & Serviceability 5
Rugged Box Frame
The box frame and articulating design support load distribution and structural rigidity. A standard additional counterweight supports lifting; a deeper front fender and optional rear full fender provide wheel coverage.
40% Wider Radiator Fin Spacing
Radiator fin spacing is 40% wider than the previous generation to enhance cooling-system performance and resist plugging — important for sustained productivity in hot, dirty conditions.
Variable-Speed Reversible Fan
A standard variable-speed reversible cooling fan responds to engine-compartment temperatures, purging the cooling cores of dust and debris automatically and running only as needed to save fuel.
Centralized Lubrication & Easy Service
Standard centralized lubrication, handrails (including roof-mounted), skid-resistant steps and platforms, remote drains and a laptop service port make daily checks and maintenance quick and safe.
Spring-Applied Hydraulic-Release Brakes
Sealed, self-adjusting outboard wet brakes with spring-applied hydraulic release deliver fade-free stopping and long service life in demanding duty cycles.
Develon DL280-7 Wheel Loader
Why Buyers Choose the DL280-7
189.1 hp and a 3.7 yd³ bucket for material handling and loading
Develon DL06 with a variable-geometry turbo (VGT) for strong, responsive low-rpm power
High-flow 65-gpm hydraulics for fast cycle times and strong multifunction performance
32,822 lbf breakout force and 27,064 lb static tipping load
Tier 4 Final without a DPF (DOC + SCR/DEF only) — no regeneration to manage
Wide range of standard and high-lift arm options (US10–US40) to suit different loading heights
Quiet 71 dB(A) cab with 8" Smart Touch, Transparent Bucket and preinstalled MY DEVELON
Standard 3-year / 3,000-hour full-machine warranty and local Develon service
Customers & Applications
Who Uses the DL280-7 and What For
The Develon DL280-7 is a medium wheel loader with a 3.7 yd³ bucket, VGT power and high-flow hydraulics for aggregate, construction and load-and-carry work.
Aggregate & Quarry
- High-production truck and hopper loading
- Pit, quarry and recycling yards
- Sustained digging with VGT power
- Optional integrated smart scale for load weighing
Heavy Construction
- Bulk material handling and load-and-carry
- Stockpiling and rehandling
- High-lift arms for tall truck loading
- Backfilling and site work
Agriculture & Bulk
- Large-volume feed, grain and silage handling
- Compost, mulch and bulk material yards
- Loading spreaders and trucks fast
- Bale and pallet handling with forks
Snow & Municipal
- Large-scale snow pushing and stacking
- Snow blower and pusher attachments
- Bulk salt and sand loading
- Year-round municipal operations
The DL280-7 by the Numbers
Bucket
3.7 yd³Z-bar linkage
Published heaped bucket capacity for production loading and load-and-carry work.
Breakout Force
32,822 lbfStandard arm
Standard-arm straight static tipping load is 27,064 lb; high-lift configuration figures differ.
Main Pump
65.0 gal/minMaximum flow rate · each
Published maximum flow for each main pump supporting loader functions and compatible attachments.
Transmission
PowershiftStandard 4F/3R
An optional 5-speed transmission is available with the US15 package for travel speeds up to 24.9 mph.
Emissions
Tier 4 FinalDOC + SCR/DEF · no DPF
HPCR fuel delivery, cooled EGR and DOC + SCR/DEF aftertreatment meet Tier 4 emissions without a diesel particulate filter to regenerate.
Talk to a person about the DL280-7
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Engine
| Engine Model | Develon DL06 (VGT turbo) |
| Engine Make | Develon |
| Rated Power (gross = net) | 189.1 hp (141.0 kW) @ 2,000 rpm |
| Max. Torque | 665.4 lb·ft @ 1,400 rpm |
| Displacement | 360.0 cu in (5.9 L), 6-cyl |
| Emissions | EPA Tier 4 Final — HPCR, VGT, cooled EGR, DOC, SCR/DEF (no DPF) |
| Fuel Tank | 62.1 gal (235 L) |
| DEF Tank | 7.9 gal (30 L) |
Bucket & Loader
| Bucket Capacity | 3.7 yd³ (2.8 m³) heaped ISO/SAE |
| Bucket Width | 8' 11.9" (2,740 mm) |
| Lift Arm | Z-bar lift arm — Standard US10/US11/US15/US30 · High-Lift US20/US21/US40 |
| Breakout Force | 32,822 lbf (Standard) / 28,776 lbf (High-Lift) |
| Max. Hinge Pin Height | 12' 11.6" (Standard) / 14' 5.0" (High-Lift) |
| Dump Height | 9' 3.0" (Standard) / 10' 9.1" (High-Lift) — at 45°, fully raised |
| Dump Reach | 3' 9.7" (Standard) / 3' 8.3" (High-Lift) |
| Digging Depth | 4.5 in (Standard) / 8.0 in (High-Lift) |
Performance
| Static Tipping Load (straight) | 27,064 lb (Standard) / 22,180 lb (High-Lift) |
| Static Tipping Load (full turn) | 23,857 lb (Standard) / 19,553 lb (High-Lift) — at 40° full turn |
| Transmission | Powershift 4F / 3R, torque converter (optional 5-speed, US15) |
| Travel Speed — Forward | 3.9 / 7.7 / 14.4 / 22.1 mph (4-speed; optional 5-speed w/ US15) |
| Travel Speed — Reverse | 4.1 / 8.1 / 15.0 mph |
| Max. Grade | 58% (30°) |
Hydraulics
| Main Pump | Variable-displacement axial piston — 65.0 gpm (246 L/min) |
| System Pressure | 3,844 psi (work) / 2,828 psi (steer) |
| Features | Closed-center, pilot main control valves; ride control; auto boom kick-out; auto return-to-dig; boom float; aux (3rd valve) |
Dimensions & Weight
| Overall Length | 25' 1.3" (Standard) / 26' 5.9" (High-Lift) |
| Overall Height | 11' 0.3" (3,360 mm) — ROPS cab |
| Wheelbase | 10' 0.0" (3,050 mm) |
| Tread Width | 6' 8.3" (2,040 mm) |
| Ground Clearance | 15.7 in (400 mm) |
| Steering Angle | ±40° articulation |
| Turning Radius | 20' 1.9" (Standard bucket edge) / 20' 8.0" (High-Lift bucket edge) / 18' 1.0" (outside tire) |
| Tire Size | 20.5R25 L3 radial |
| Operating Weight | 34,550 lb (Standard) / 34,892 lb (High-Lift) |
Standard Equipment
| Z-Bar Lift Arm | High breakout-force Z-bar loader linkage; high-lift (US20/US21/US40) arm optional |
| Powershift Transmission | Full-automatic 4F/3R torque-converter powershift; optional 5-speed (US15) for higher road speed |
| Variable-Geometry Turbo (VGT) | The DL06 engine adds a variable-geometry turbo for strong, responsive low-rpm power and efficiency |
| High-Flow Hydraulics (65 gpm) | A larger 65-gpm variable axial-piston pump delivers fast cycle times and strong multifunction performance |
| Ride Control | Standard ride control smooths travel and reduces material spillage |
| Auto Kick-Out & Return-to-Dig | In-cab adjustable boom kick-out; adjustable return-to-dig (in-cab adjustment with optional electric controls) |
| Boom Float & Aux Hydraulics | Boom float plus a 3rd-valve auxiliary hydraulic circuit for attachments |
| Power Modes (P / N / E) | Power, Normal and Economy modes plus manual / auto transmission modes |
| 8" Smart Touch Display | Height/angle-adjustable 8-inch DEVELON Smart Touch screen with smart guidance and fuel data |
| Transparent Bucket | Multi-camera system with in-cab display for a see-through view past the bucket |
| Rearview Camera | Standard rearview camera; around-view monitor (AVM) optional |
| Integrated Smart Scale | Optional integrated payload scale system for on-the-go weighing |
| ROPS/FOPS Air-Suspension Cab | Sound-suppressed steel cab (71 dB(A)), ROPS/FOPS, automatic HVAC, AM/FM/CD audio |
| Heavy-Duty Planetary Axles | Outboard planetary axles; differential configurations vary — contact dealer to confirm |
| Reversible Cooling Fan & Centralized Lube | Variable-speed auto-reversible fan and centralized lubrication for uptime |
| Preinstalled MY DEVELON Telematics | MY DEVELON telematics for machine maintenance and productivity insight |
| 3-Year / 3,000-Hour Warranty | Standard full-machine coverage on qualifying new Develon wheel loaders |
Specifications are based on the official Develon DL280-7 data and are subject to change. Some items are optional or vary by lift-arm configuration (Standard US10 / High-Lift US20) — contact Carleton Equipment to confirm exact specifications and availability.
Rebates & Special Offers
View Full OfferGet as low as 0% for 36 months* or Up to $19,500 cash back* in lieu of financing.
|
General Info
|
|
|---|---|
| Condition: | New |
| Manufacturer: | Develon |
| Model: | DL280-7 |
| Machine Type: | Wheel Loader |
| Year: | 2025 |
| Hours: | 47.1 |
| Stock Number: | 73690 |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
