Description

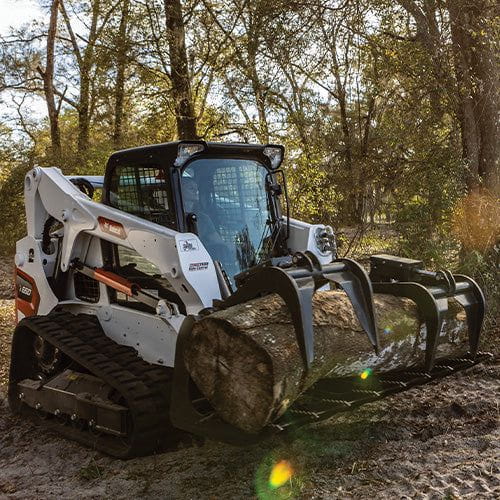

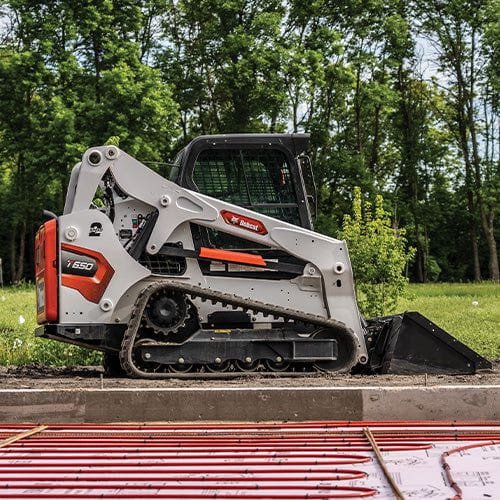

Bobcat T650 Series - Rental
The Bobcat T650 Series - Rental is an exceptional compact track loader designed to help you tackle tough jobs with maximum efficiency. Powered by a robust 74 HP diesel engine, it offers a rated operating capacity of 2,570 lb and a tipping load of 7,343 lb. With a vertical lift arm path and a 124-inch bucket hinge pin, you'll enjoy impressive reach and height for demanding tasks. Its 12.6-inch tracks enhance stability and reduce ground disturbance, while the convenient Bob-Tach coupler system provides secure and rapid attachment changes. The T650 handles speeds up to 8.7 mph for swift operation, bringing power and productivity to your jobsite.
Description
The Bobcat® T650 strikes an impressive balance, providing excellent lift capabilities, fast cycle times and powerful breakout forces that Bobcat is known for, but with simplified options and configurations.
Specs
Engine
Emissions Tier (EPA) | Tier 4 |
Engine Cooling | Liquid |
Engine Fuel | Diesel |
Horsepower | 74 |
Turbocharged Engine |
Yes |
Performance
Rated Operating Capacity (ISO) | 2,570 lb |
Operating Capacity (50% of Tip) | 3,670 lb |
Tipping Load | 7,343 lb |
Operating Weight | 9,113 lb |
Travel Speed | 6.2 mph |
Travel Speed (2 - Speed Option) | 8.7 mph |
Ground Pressure (Rubber) | 5.7 psi |
Capacities
Fuel Tank | 43.9 gal |
Hydraulic System
System Relief @ Quick Couplers | 3,500 psi |
Auxiliary Std Flow | 23 gal/min |
Auxiliary High Flow | n/a |
Dimension
Length | 136.8 in |
Length Without Attachment | 108.4 in |
Length With Standard Bucket | 72.9 in |
Width | 72.9 in |
Width (With Bucket) | 74 in |
Height | 81.3 in |
Height With Operator Cab | 81.3 in |
Height to Bucket Hinge Pin | 124 in |
Reach @ Maximum Height | 36 in |
Length of Track on Ground |
57.7 in |
Track Width |
12.6 in |
