BX2380 | Kubota


Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Kubota
Model: BX2380
Machine Type: Sub-Compact Tractor
Engine
Engine: Kubota D722
Engine Make: Kubota
PTO Horsepower: 17.7
Performance
Operating Weight: 1336 lb
Travel Speed: 0-7.8 MPH
Hydraulics
Total Hydraulic Flow: 6.2 GPM
Dimensions
Wheelbase: 55.1 in.
Turning Radius: 7.5 ft.
Fuel Tank: 6.6 gal.
Wheelbase: 55.1 in.

Description

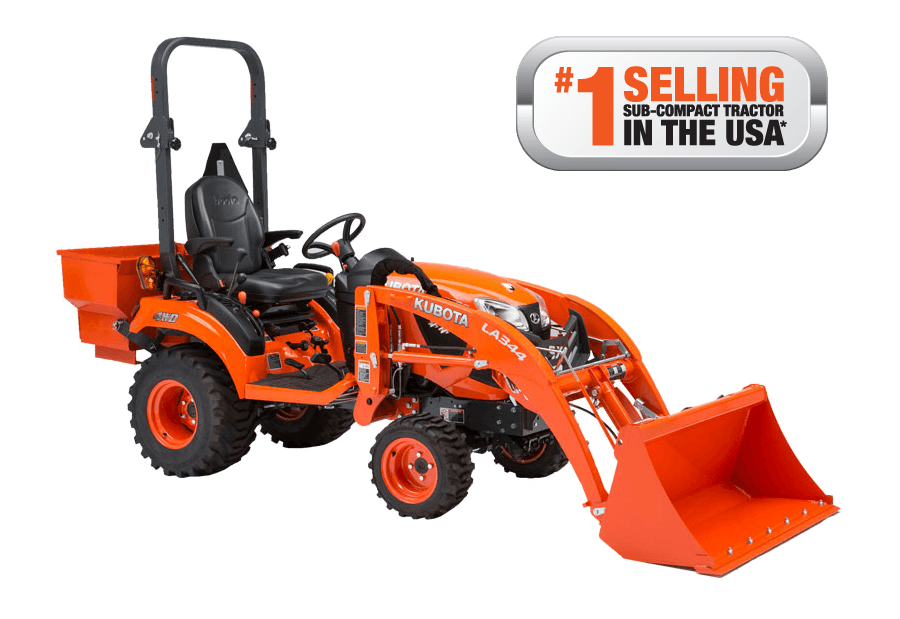

BX2380 Sub-Compact Tractor by Kubota

Meticulous engineering leads to legendary reliability and excellent value – hallmarks of a Kubota tractor. At Kubota, we listen to our customers to make improvements for real world applications. Quality, innovation and easy-to-use design – that’s a Kubota. Scroll down to see some of the top BX80 features, designed with you in mind. To see it in action, visit your local Kubota dealer.



Features

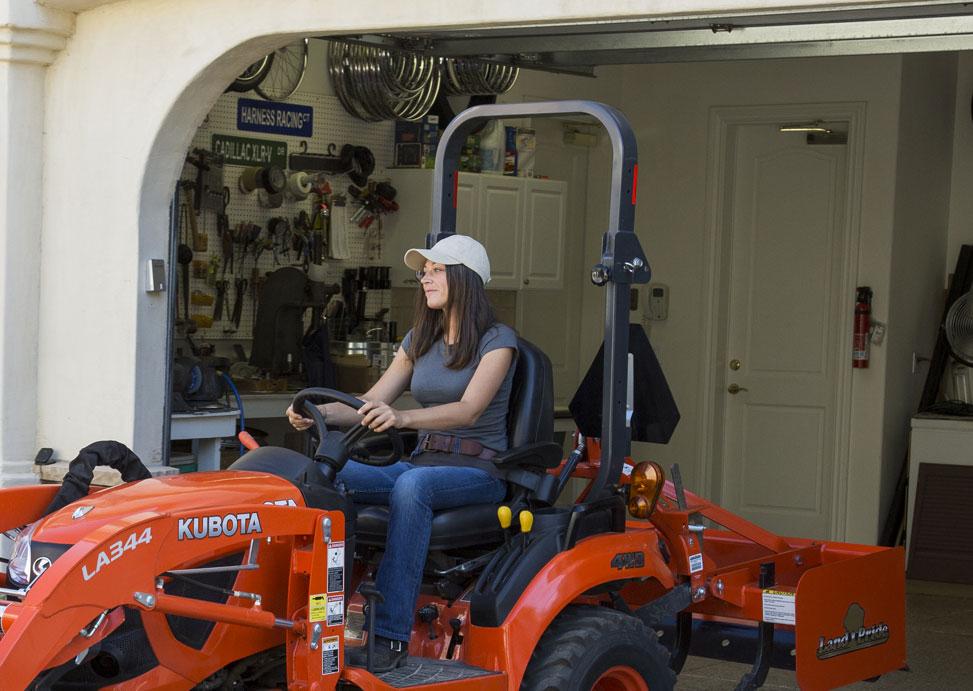

Low Clearance ROPS for Easy Storage

Easily fit through a standard garage door without having to fold the ROPS. The BX80 Series’ Rollover Protective Structure (ROPS) quickly folds without tools, letting the BX80 easily pass under low obstructions. The BX1880, BX2380, and the BX2680 all have a ROPS height of less than 84”, which makes storage in a garage or shed a snap. (Note: Kubota recommends that the ROPS be in the up position during most operations).

Kubota Reputation for Quality

Kubota is known for its quality, reliability and longevity – you can’t fake a good reputation, it can only be awarded to you by your satisfied customers.

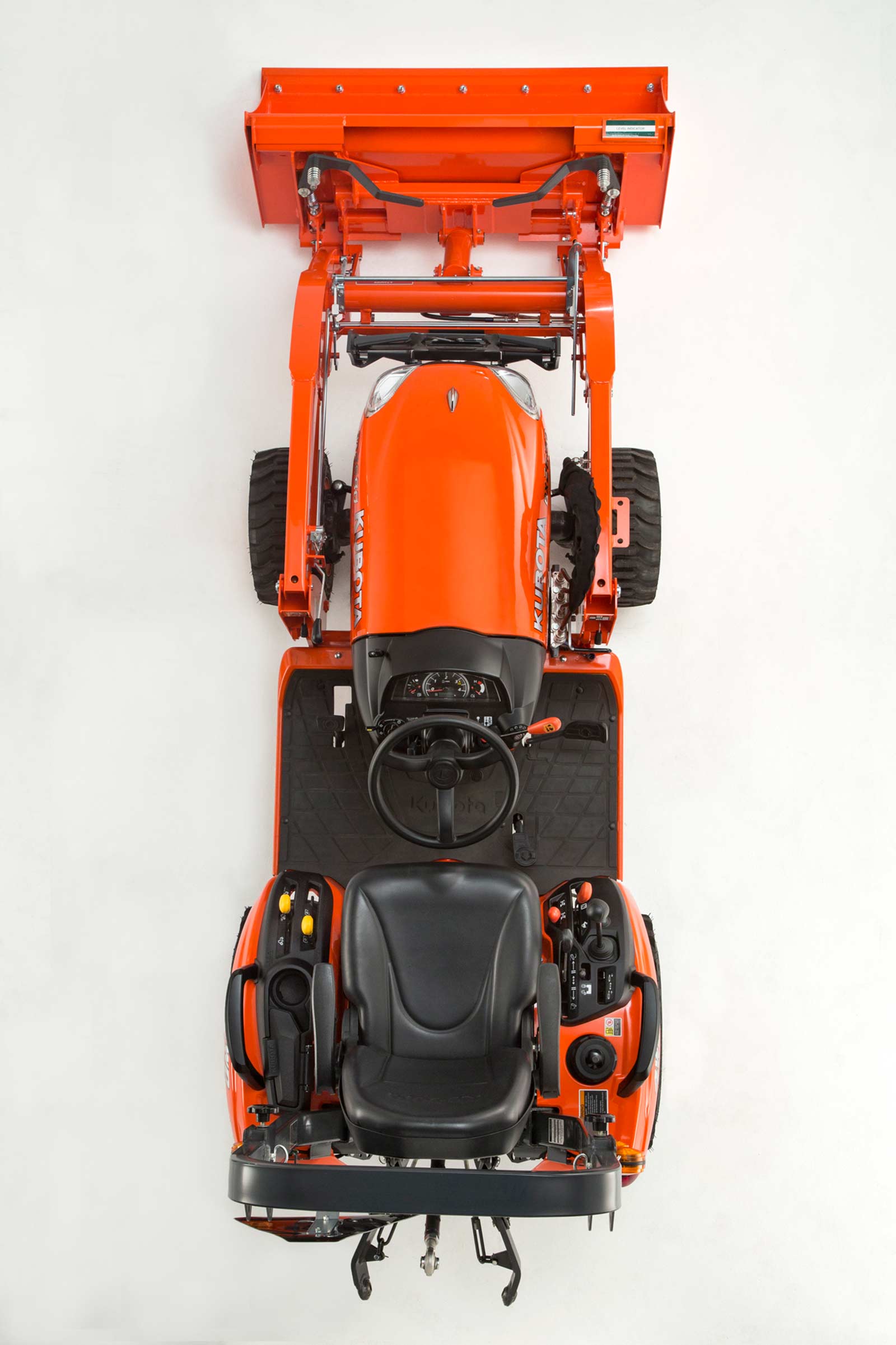

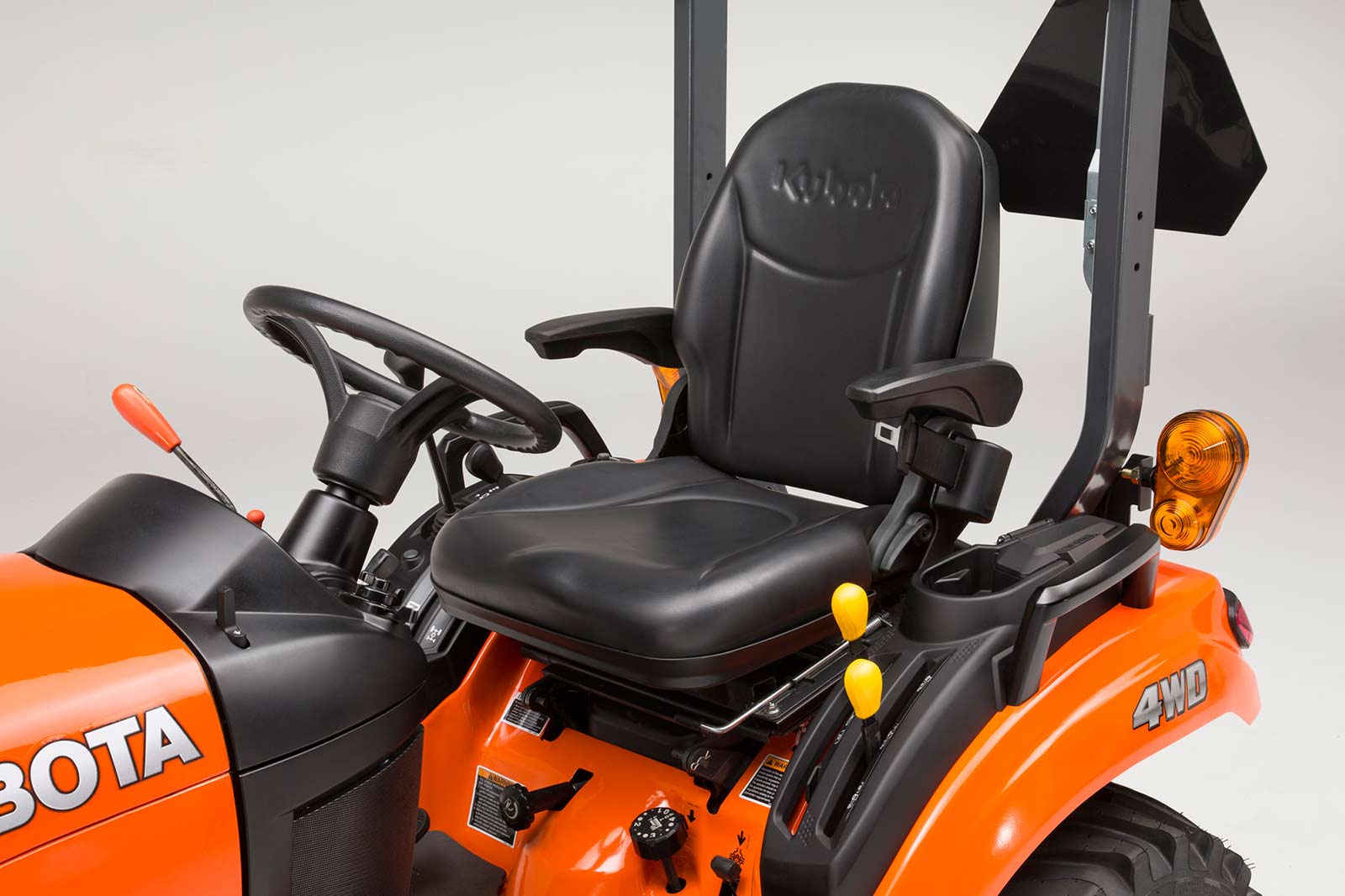

Big Comfort on a Small Tractor

With a flat operating station, tilt steering and a deluxe seat with armrest, the BX2380 and BX2680 offer comfort that is second to none in this class of tractor. Add to that the ergonomic placement of levers and the modern instrument panel and you have one of the finest operators stations ever offered on a sub-compact tractor.

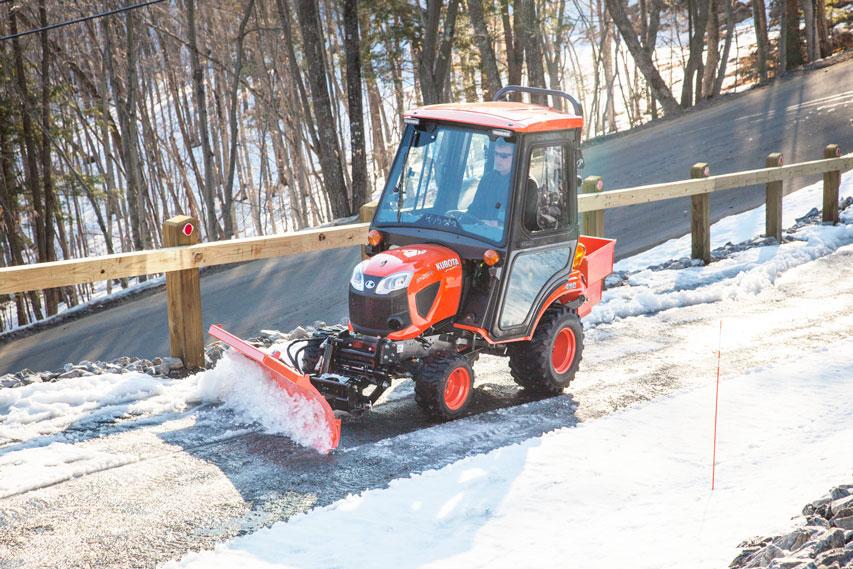

Now Available with a Heated Cab

Specs

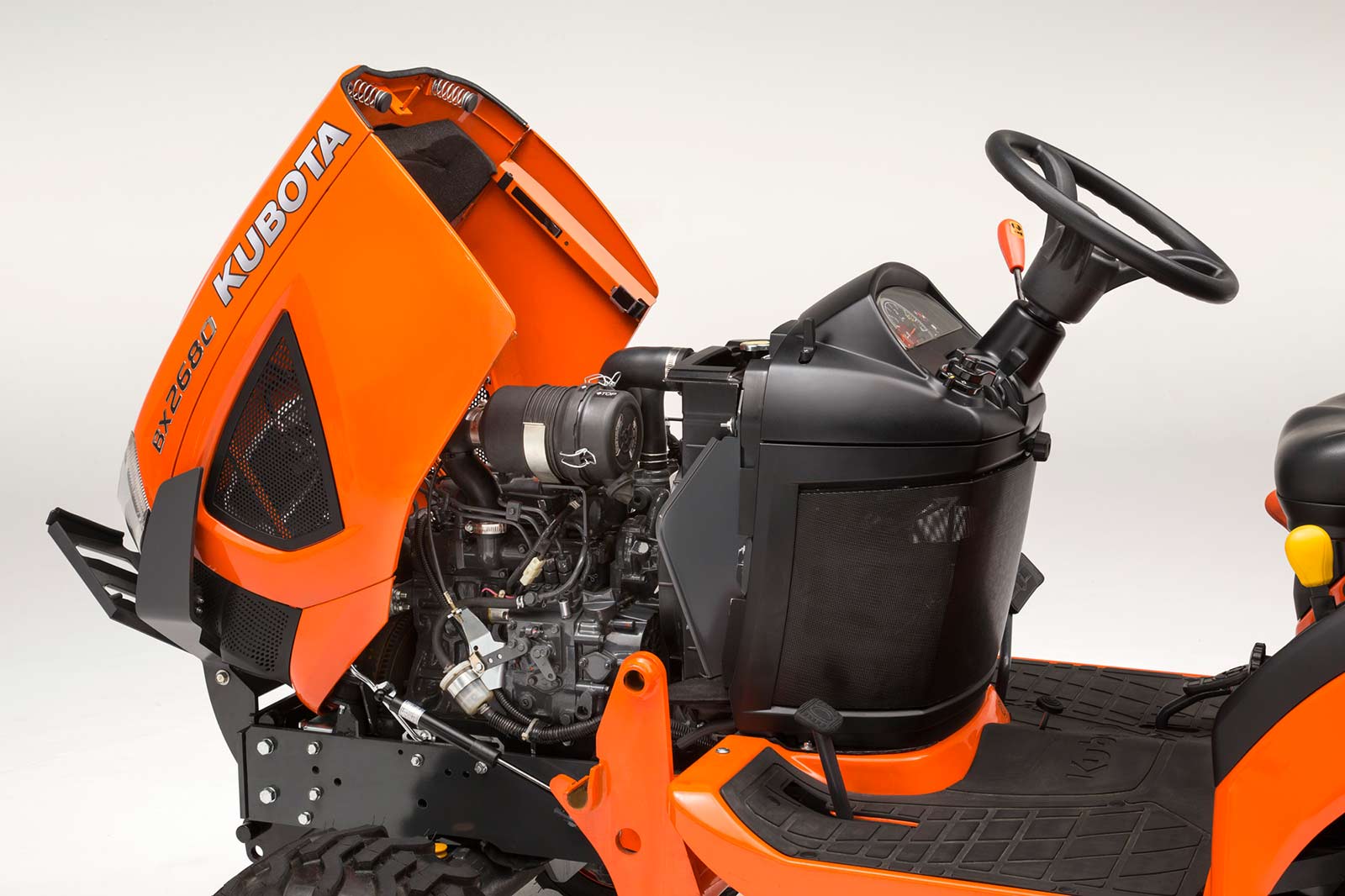

Engine

Type Liquid-cooled, 3-Cylinder Diesel
Model Kubota D902
Engine Gross HP at 3200 rpm*1 21.6 HP
PTO Horsepower at 3200 rpm 17.7 HP
Displacement 54.8 cu.in.
Fuel Tank Capacity 6.6 Gal



Drive Train

Transmission  HST, High-Low Gear Shift (2 Forward / Reverse)
Drive Method 4WD
Brakes Wet Disc
PTO Live Independent PTO (with Hydraulic Clutch)
Rear STD (540 rpm)
Mid STD (2500 rpm)



Hydraulics

Pump Output 6.2 gpm
3-Point Hitch SAE Category I
Lift Capacity @ 24" Behind Pin  lbs 680 lbs
Steering Hydrostatic Power Steering



Tire Size

Front      Turf/Bar/Industrial 18 x 8.5-10 / 18 x 8.5-10 / 18 x 8.5-10
Rear       Turf/Bar/Industrial 26 x 12-12 / 26 x 12-12 / 26 x 12-12



Traveling Speeds at Rated Engine rpm (Turf)

Forward 0-8.4 mph
Reverse 0-6.5 mph



Dimensions

Length with 3-point Hitch 95.5 in
Width 45.1 in
Height with ROPS 83.1 in
Wheelbase 55.1 in
Ground Clearence 8.4 in
Tread     Front / Rear 36.6 / 32.2 in
Turning Radius (w/o Brake) 7.5 ft
Tractor Weight (w/ ROPS) 1443 lbs
