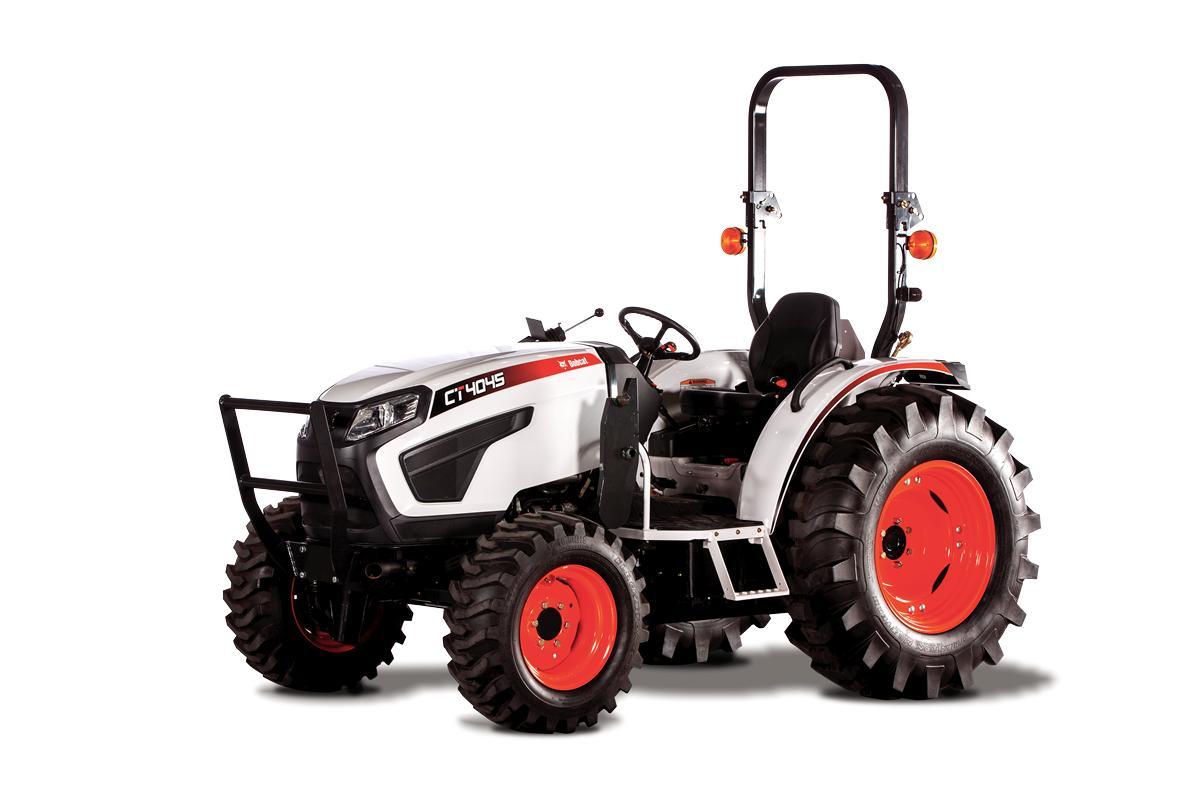

Bobcat® CT4045 Compact Tractor
Description
One of four models in the 4000 Platform, this 45-hp, turbo-charged compact tractor is an affordable option that delivers heavy-duty power and work efficiency. Ideal for mowing, clearing overgrown fields, and grading driveways or private roads. This compact tractor features an open cab, four-wheel drive, Category 1 3-point hitch, power and tilt steering, and your choice of a manual synchro shuttle transmission for shift-on-the-fly functionality or hydrostatic transmission.
Quick Specs:
- 44.9 hp 3 cyl Tier 4 Diesel Engine
- 29.4 PTO hp with hydraulic position control system
- 4WD
- Power Steering
- 3 Range Hydrostatic Transmission
- Standard Category #1 540 rear PTO
- Independent PTO (2,716 lb. lift capacity 24" behind)
- Implement Hydraulic Flow - 9.6 GPM
- 12.7 gal. Fuel Tank
- Forward & Reverse Foot Pedals
- 18.5 mph Forward / 12.9 mph Reverse
Front End Loader - FL9-5
- 5' 6" Bucket
- Lift Capacity - 1,795 lb.
- Lift Height - 8' 8"
- Loader Control Valve & Joystick
- Quick Attach
Specs
| Model | Bobcat CT4045 HST |
Engine
| Emissions Tier (EPA) | Tier 4 |
| Horsepower | 44.9 hp |
| Displacement | 111 in³ |
| Number of Cylinders | 3 |
| Gross HP | 44.9 hp |
| Engine Model | 3FT-TL4 |
| RPM | 2600 |
Performance
| Operating Weight | 3,373 lb |
| Travel Speed | 17.3 mph |
| Travel Speed - Reverse | 16.9 mph |
| 3-Point Hitch | Category 1 |
| 3-pt Lift Control Type | Hydraulic Position Control System |
| Lift Capacity at 24" behind Lift Point | 2,716 lb |
| Rear PTO System | Live |
| Rear PTO - RPM | 540 |
| PTO HP | 41.6 hp |
| Mid PTO - RPM | 2000 |
Capacities
| Fuel Tank | 11.9 gal |
Hydraulic System
| Implement Hydraulic Flow | 9.62 gal/min |
| Total Hydraulic Flow | 14.5 gal/min |
| Steering Hydraulic Flow | 4.94 gal/min |
Drive System
| Brake Type | Wet Multi Disc |
| Transmission Type | Manual 8x8 |
Dimension
| Length | 124.3 in |
| Width | 63 in |
| Height | 96.8 in |
| Ground Clearance | 14.5 in |
| Turning Radius | 8' 7" |
| Wheelbase | 5' 11" |
| Front Tire Size | Forward 8-16 |
| Rear Tire Size | Reverse 13.6-24 |
Loader Attachment
| Loader Lift Height | 8' 8" |
| Lift Capacity @ 500mm ahead of bkt pivot | 2,033 lb |
| Bucket Width | 5' 6" |
Features
- Operator-Friendly Controls
- Work Lights
- Premium Comfort
- 2-Range HST
- Independent PTO
- PTO
- Leading Drawbar Towing
- 3-Point Hitch
- Three Tire Options
- Maximum Maneuverability
- Roll Over Protective Structure
- Leading Lift Capacity
