Description

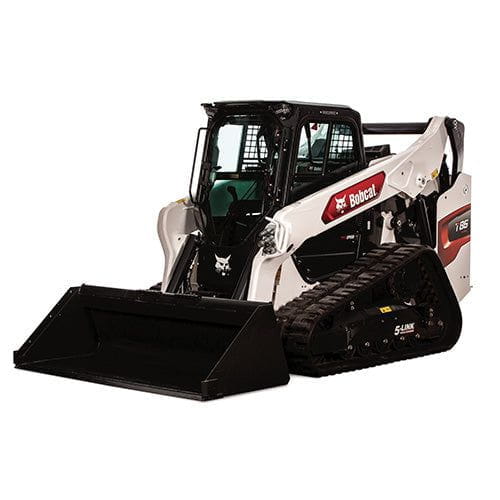

Bobcat T86 Compact Track Loader
Location:
4704 South 29th Street
Kalamazoo, MI 49048
Features:
- Super Flow

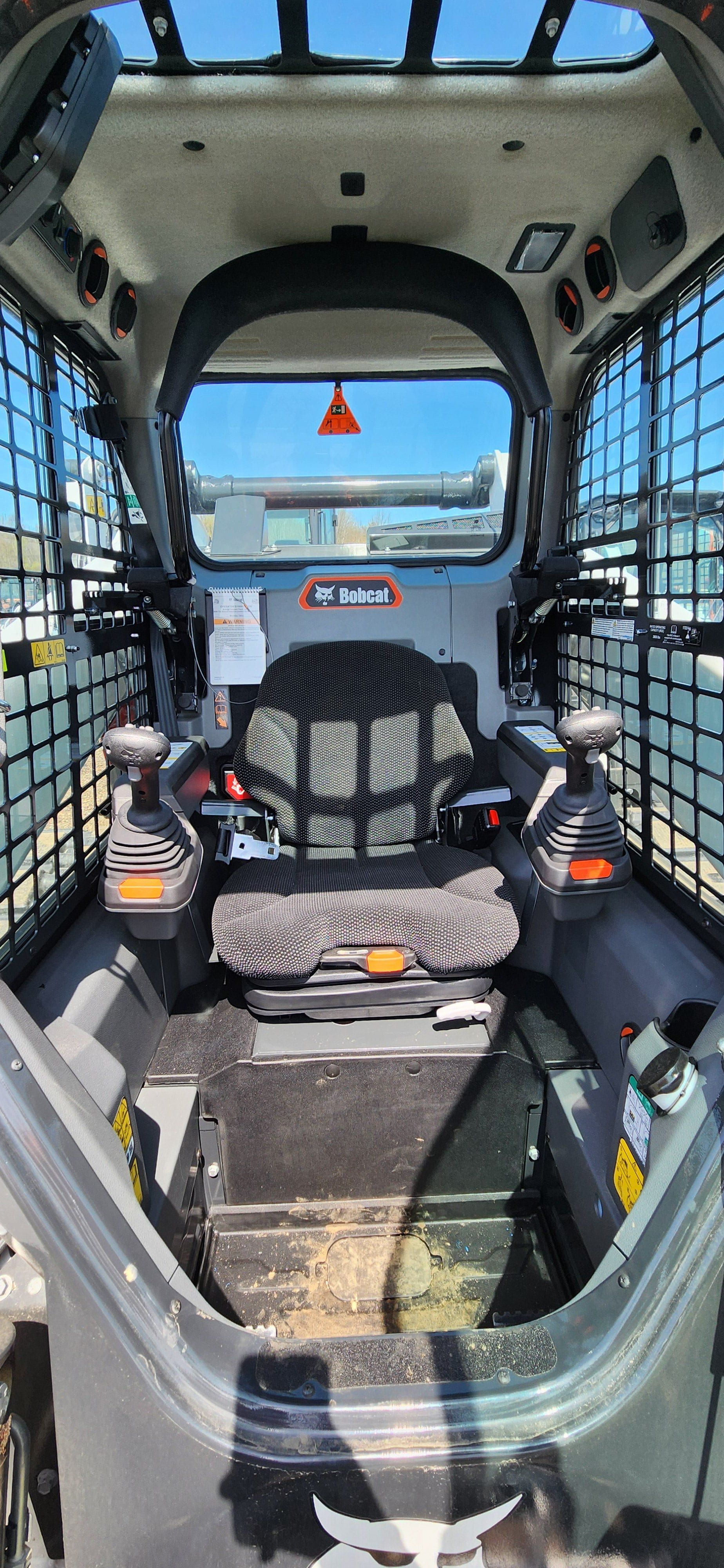

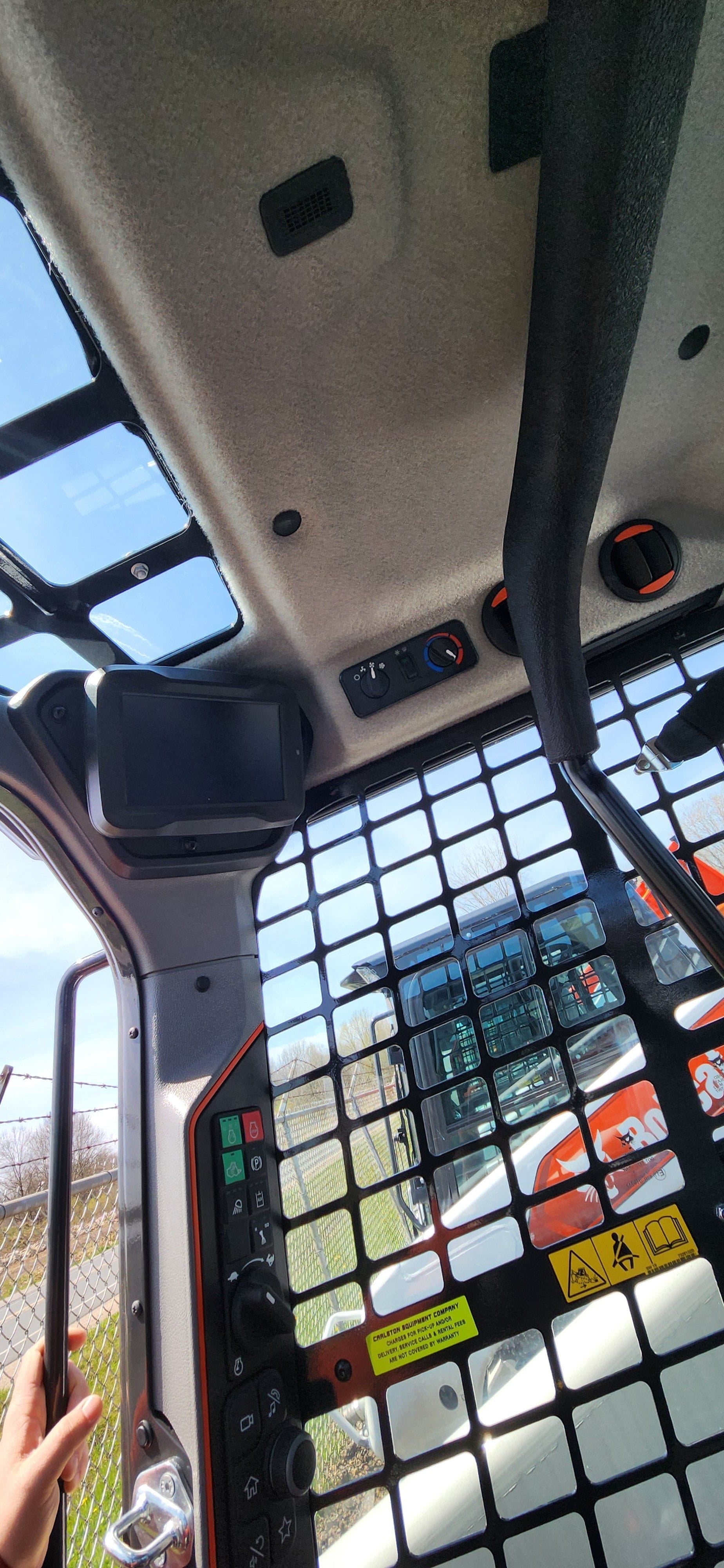

- 7" Touch Panel Display
The Bobcat T86 is one of the most powerful compact loaders Bobcat has ever built. Delivering more usable engine & hydraulic horsepower than ever before! Greater lifting capabilities, impressive breakout forces, & leading maneuverability for fast cycle times are just a few of the improvements.
- Optional high-flow and super-flow hydraulics
- 105-hp, Tier 4 engine
- Leading attachment versatility
- Premium Power Performance system for greater productivity
- Premium comfort
Hydraulic Flows
The Bobcat T86 delivers three hydraulic flow options giving you the versatility you need for any job!
- Standard Flow | 23 GPM / 3,500 PSI
- High Flow | 36.6 GPM / 3,500 PSI
- Super Flow | 42 GPM / 4,061 PSI
Specs
| Rated Operating Capacity | 3,800 lb |
|---|---|
| Operating Weight | 12,393 in |
| Ground Pressure - Rubber Track | 4.8 psi |
| Auxiliary Standard Flow | 23.6 gal/min |
| Auxiliary High Flow | 36.6 gal/min |
| Emissions Tier | Tier 4 |
|---|---|
| Engine Fuel | Diesel |
| Horsepower | 105 hp |
| Turbocharged Engine | Yes |
| Rated Operating Capacity | 3,800 lb |
|---|---|
| Rated Operating Capacity - 200 lb Counterweight | 3,950 lb |
| Rated Operating Capacity - 300 lb Counterweight | 4,025 lb |
| Rated Operating Capacity - 400 lb Counterweight | 4,100 lb |
| Operating Capacity - 50% of Tip | 5,429 lb |
| Tipping Load | 10,857 lb |
| Operating Weight | 12,393 lb |
| Travel Speed | 5.5 mph |
| Travel Speed - 2 Speed Option | 10.7 mph |
| Ground Pressure | 4.8 psi |
| Auxiliary Standard Flow | 23.6 GPM |
|---|---|
| Auxiliary High Flow | 36.6 GPM |
| Auxiliary Super Flow | 42 GPM |

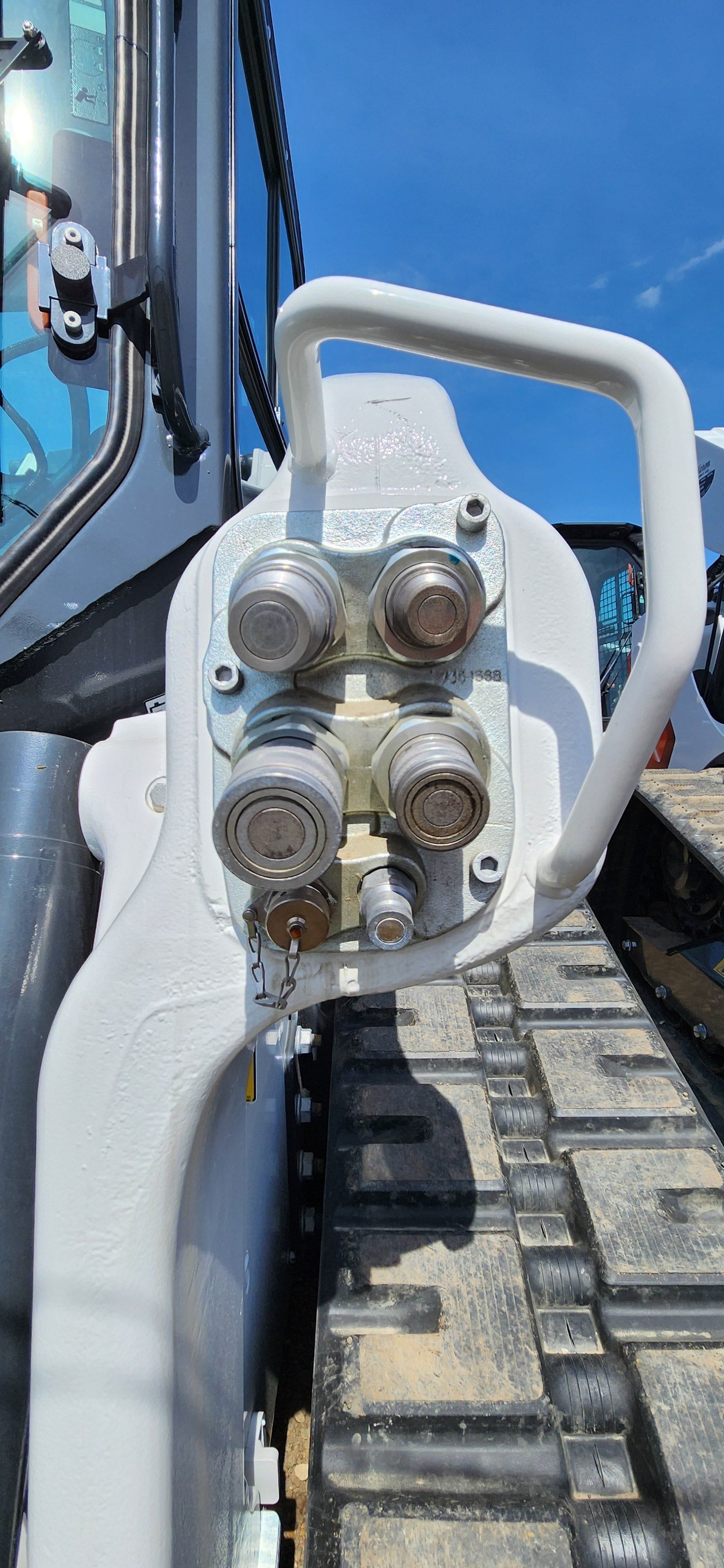

| System Relief @ Quick Couplers | 3,450 PSI |
| Length | 120.4 in |
|---|---|
| Width | 78 in |
| Width with Bucket | 80 in |
| Height | 83.1 in |
| Height to Bucket Hinge Pin | 132 in |
| Reach @ Maximum Height | 38.4 in |
| Length of Track on Ground | 66.3 in |
| Track Width | 17.7 in |
Features
If you frequently place pallets of blocks or sod, or dump into high-sided trucks, a vertical lift path may be the best choice. On vertical-lift-path loaders, the load is raised straight up, closer to the machine. You can safely lift more than an identical radius-lift-path machine. Since you have more reach at full lift height, you dump into the center of the truck — or keep the loader farther away, depending on your needs.
The Bobcat® T86 compact track loader and S86 skid-steer loader are the only compact loaders to offer standard-flow, high-flow and super-flow auxiliary hydraulics in one machine. Learn more about the optional super-flow advantage and how these compact loaders set a new industry benchmark in attachment versatility and performance.
