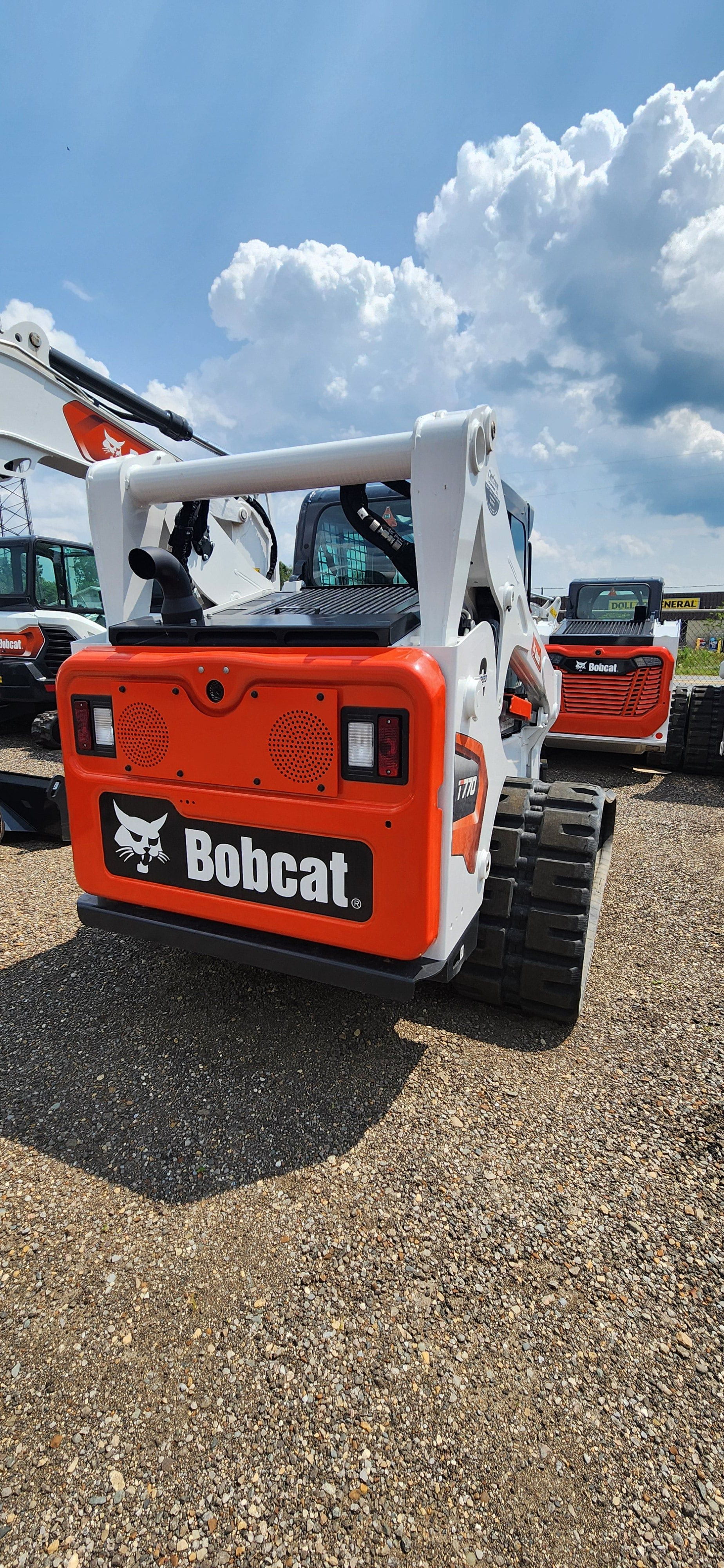

T770 - 68941

Experience superior lifting capacity and reliable performance with the Bobcat® T770 Compact Track Loader. Designed with an impressive vertical lift path, it effortlessly handles demanding jobs such as loading trucks, hoppers, and grinders. Its powerful diesel engine produces 92 horsepower, while the standard 23 GPM auxiliary flow accommodates a wide variety of attachments. Inside the enclosed HVAC cab, the adjustable suspension seat and intuitive controls keep operators comfortable and efficient. The T770’s industry-leading lift height of approximately 131.4 inches and a rated operating capacity of 3,475 pounds help maximize productivity on any jobsite, making this Tier 4 model a durable and versatile choice.

Features:

Comfort Package:

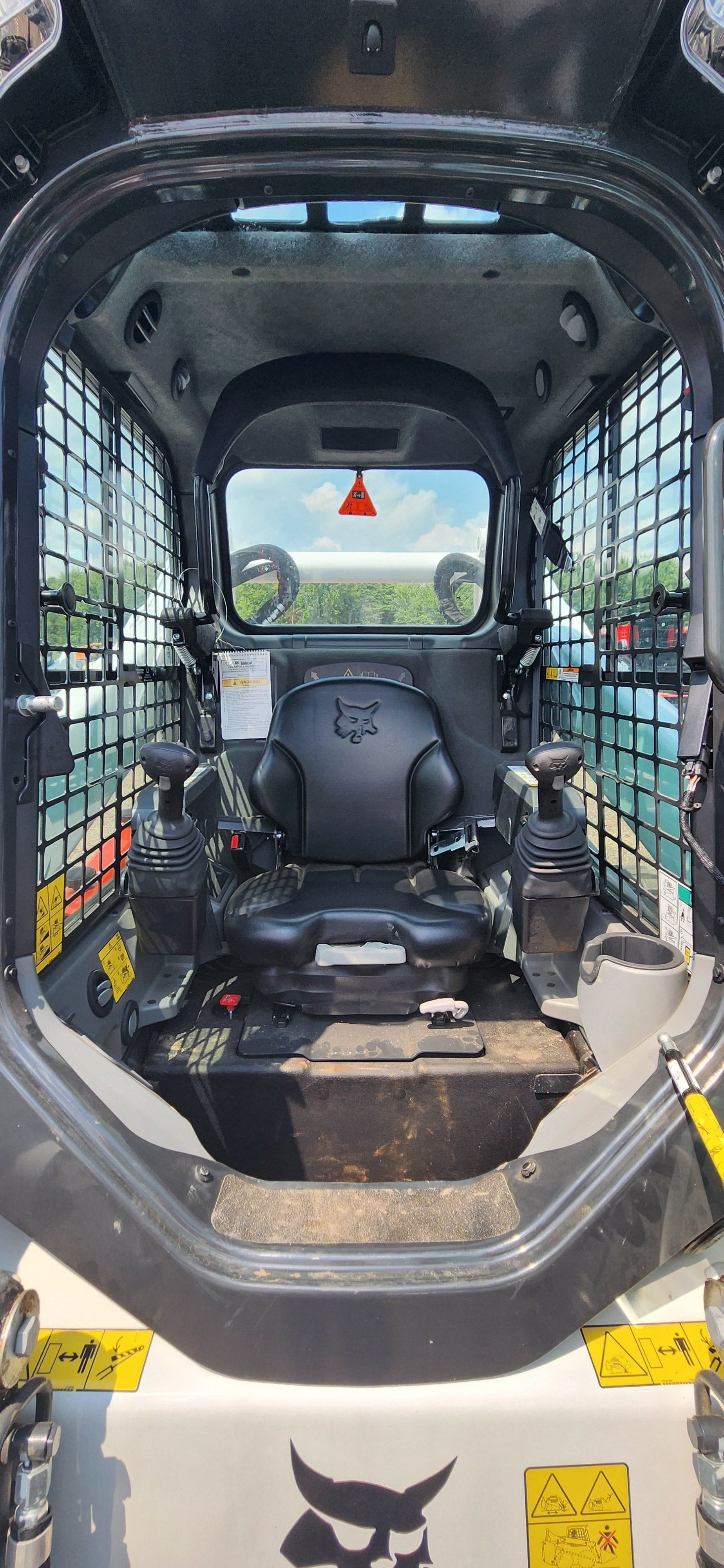

• Enclosed HVAC Cab
• Adjustable Vinyl Suspension Seat
• Power Bob-Tach
• Keyless ignition
• Deluxe Display
• Standard Lights
• Attachment Control
• Single Direction Bucket Positioning
• Two Speed Travel
• Telematics - Machine IQ with 2 Year Standard Subscription

Description

With 11 ft. of vertical lift, the Bobcat® T770 compact track loader is primed for loading trucks, grinders and hoppers as well as many other jobs. The vertical lift path allows you to easily place cargo and tackle demanding tasks. The T770 is a Tier 4 model.

Specs

Configuration

Engine



Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	92 hp
Turbocharged Engine	Optional

Performance

Rated Operating Capacity (ISO)	3,475 lb
Operating Capacity (50% of Tip)	4,960 lb
Tipping Load	9,929 lb
Operating Weight	10,515 lb
Travel Speed	6 mph
Travel Speed (2 - Speed Option)	9.3 mph
Ground Pressure (Rubber)	4.2 psi

Capacities

Fuel Tank

44.4 gal

Hydraulic System

System Relief @ Quick Couplers	3,500 psi
Auxiliary Std Flow	23 gal/min
Auxiliary High Flow	36.6 gal.min

Dimension

Length	141.6 in
Length Without Attachment	114.3 in
Length With Standard Bucket	141.6 in
Width	78 in
Width (With Bucket)	80 in
Height	81.3 in
Height With Operator Cab	81.3 in
Height to Bucket Hinge Pin	132 in
Reach @ Maximum Height	33.6 in
Turning Radius	88 in
Length of Track on Ground	63.7 in
Track Width	17.7 in
