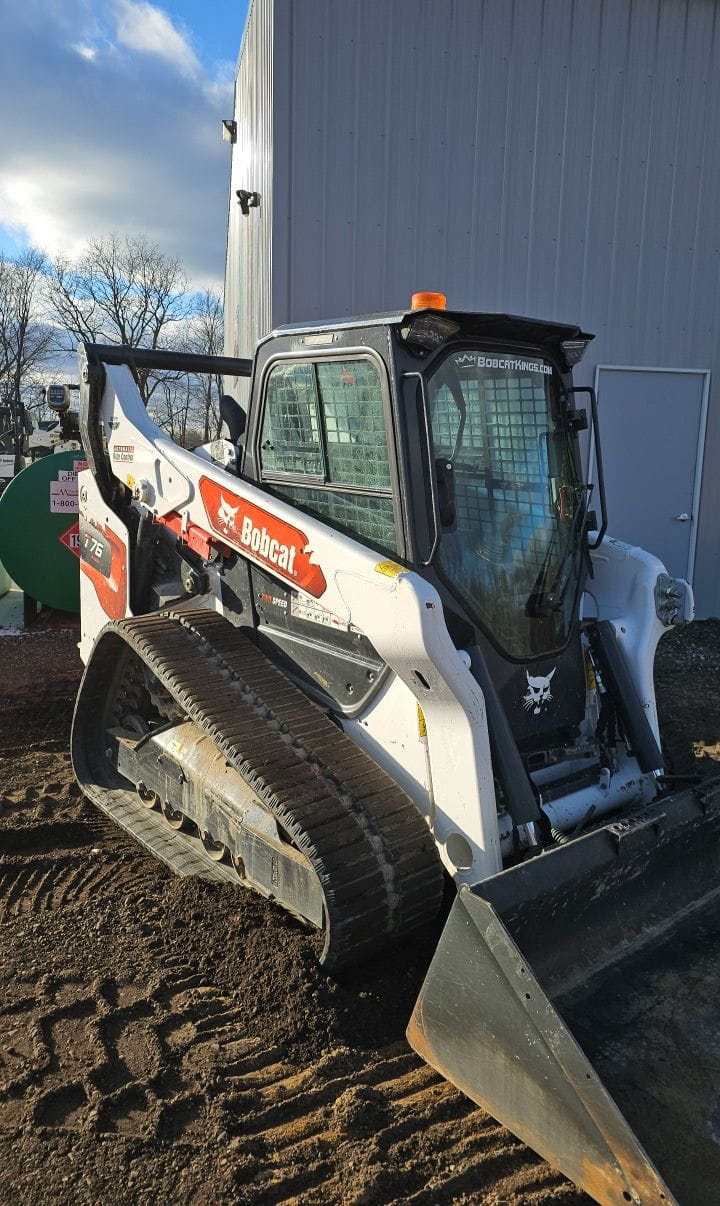

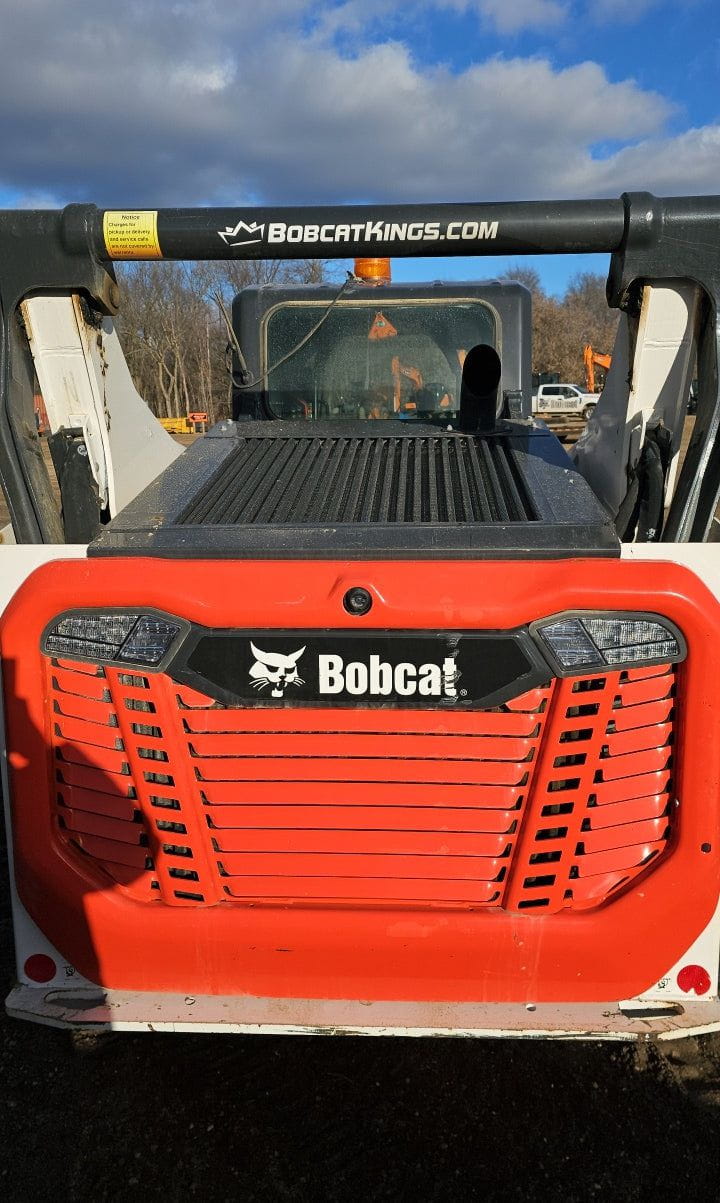

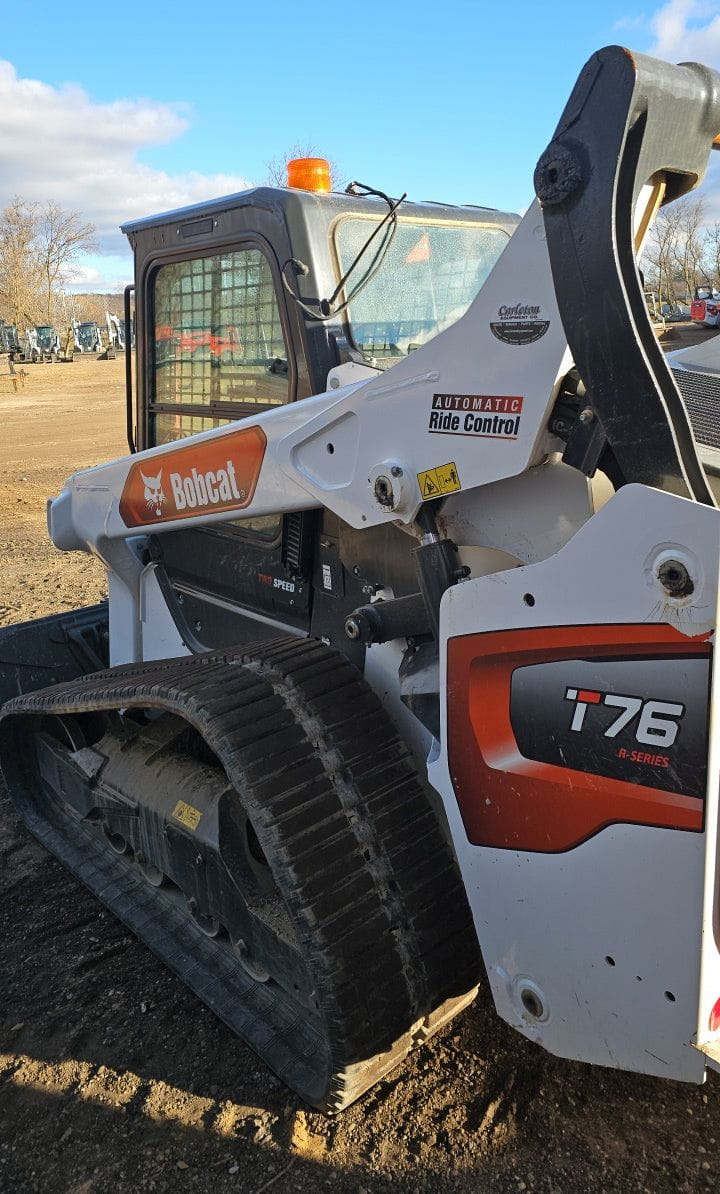

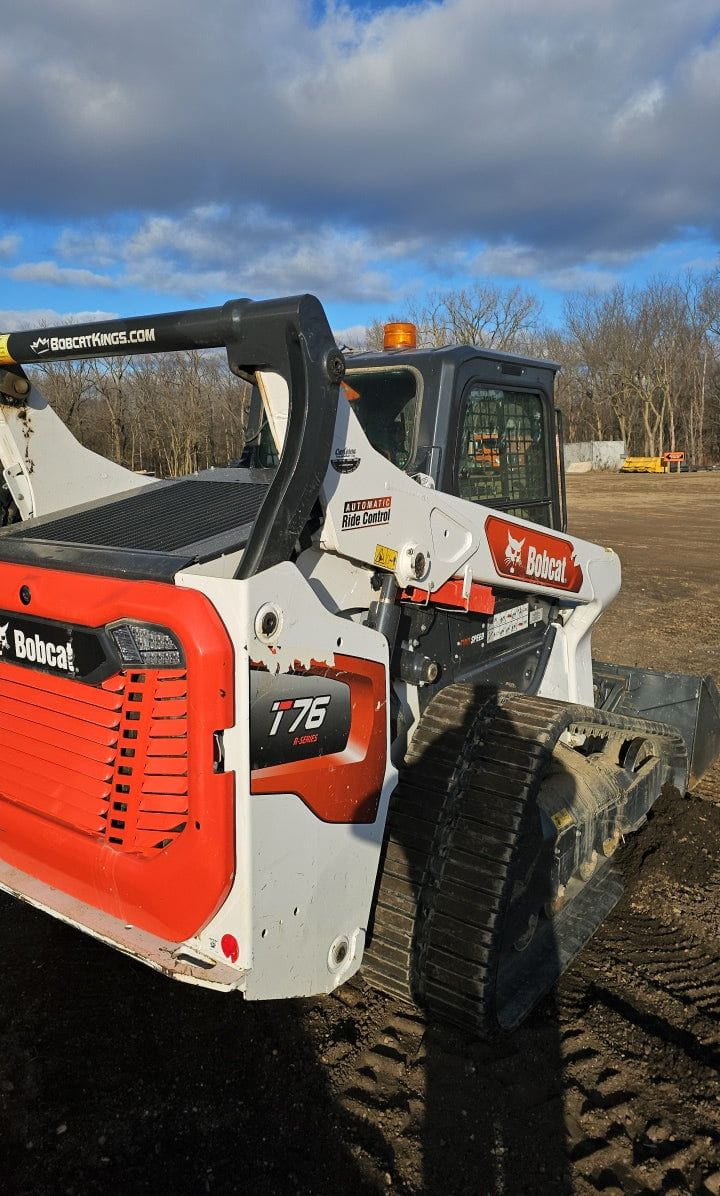

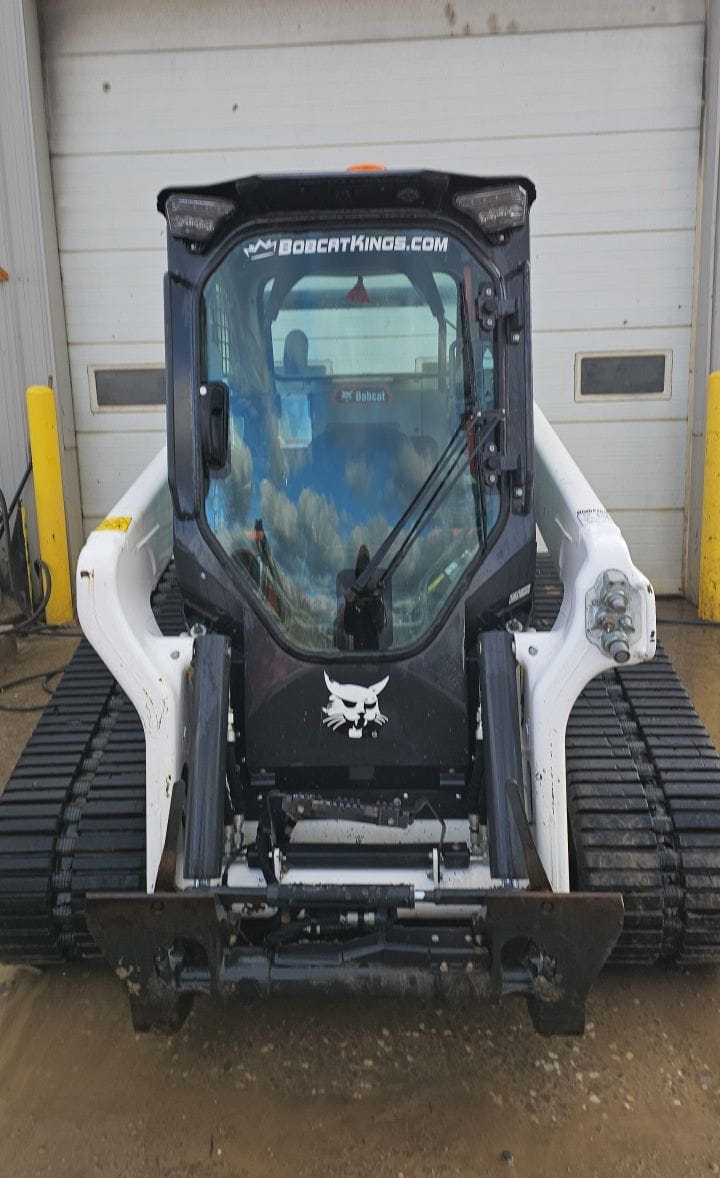

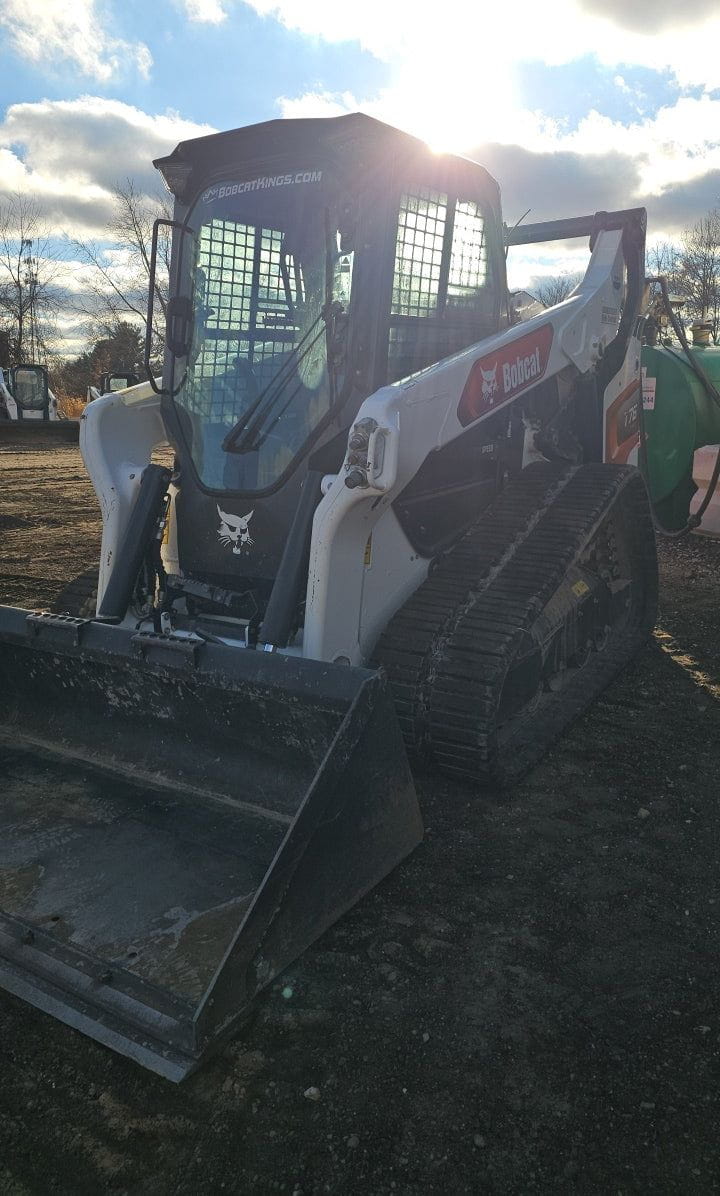

Bobcat® T76 Compact Track Loader

408 Hours

C68 Package:

• Enclosed Cab with HVAC
• Sound Reduction
• Touch Display with Radio & Bluetooth
• Heated Cloth Air Ride Suspension Seat
• Premium LED Lights
• Rear View Camera
• SJC Controls

Features on Demand:

Warranty ends 10/17/2023

Description

The vertical lift path T76 R-Series compact track loader is designed to take performance to new heights. The 74-hp loader boasts cast-steel lift arms and optimized lift arm linkage to increase lifting capabilities – including lift height and capacity. You’ll notice powerful hydraulics and breakout forces, fast cycle times and an emphasis on operator comfort with optional automatic heat and air conditioning, ergonomic controls and a roomy cab. The advanced 5-link torsion suspension undercarriage – another option on R-Series loaders – provides a more comfortable ride you can feel through the entire machine. The low ground pressure track system allows you to push through even in soft, sandy, wet or muddy conditions.



Highlights of the Bobcat T76 compact track loader include:

• One-piece, sealed and pressurized cab
• Dual-direction bucket positioning
• Automatic heat and air conditioning
• Easy-pull, easy-secure side window
• Protected battery with remote jumpstart

Specs

Engine

Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	74 hp
Turbocharged Engine	Optional

Performance

Rated Operating Capacity (ISO)	2,900 lb
Operating Capacity (50% of Tip)	4,120 lb
Tipping Load	8,240 lb
Operating Weight	10,250 lb
Travel Speed	6.8 mph
Travel Speed (2 - Speed Option)	9.2 mph
Ground Pressure (Rubber)	6.2 psi

Capacities

Fuel Tank

31.7 gal

Hydraulic System

System Relief @ Quick Couplers	3,450 psi
Auxiliary Std Flow	23.3 gal/min
Auxiliary High Flow	30.3 gal.min

Dimension

Length	147.1 in
Length Without Attachment	113.9 in
Length With Standard Bucket	147.1 in
Width	72.9 in
Width (With Bucket)	74 in
Height	81.7 in
Height With Operator Cab	81.7 in
Height to Bucket Hinge Pin	127.9 in
Reach @ Maximum Height	39.9 in
Turning Radius	89.3 in
Length of Track on Ground	59.2 in
Track Width	12.6 in
Track Width - Optional	17.7 in

Features

Standard Features:

• Joystick Control
• Backup Alarm
• BICS System (Interlock)
• Operating Lights
• Suspension Seat
• Auxillary Hydraulics
• Bob-Tach Attachment System
• Horn

Optional Features:

• Air Conditioning
• Cab Heater
• Two Speed Travel
• Deluxe Instrumentation
• Hydraulic Bucket Positioning
• High Flow Option
• Power Bob-Tach
• Ride Control
