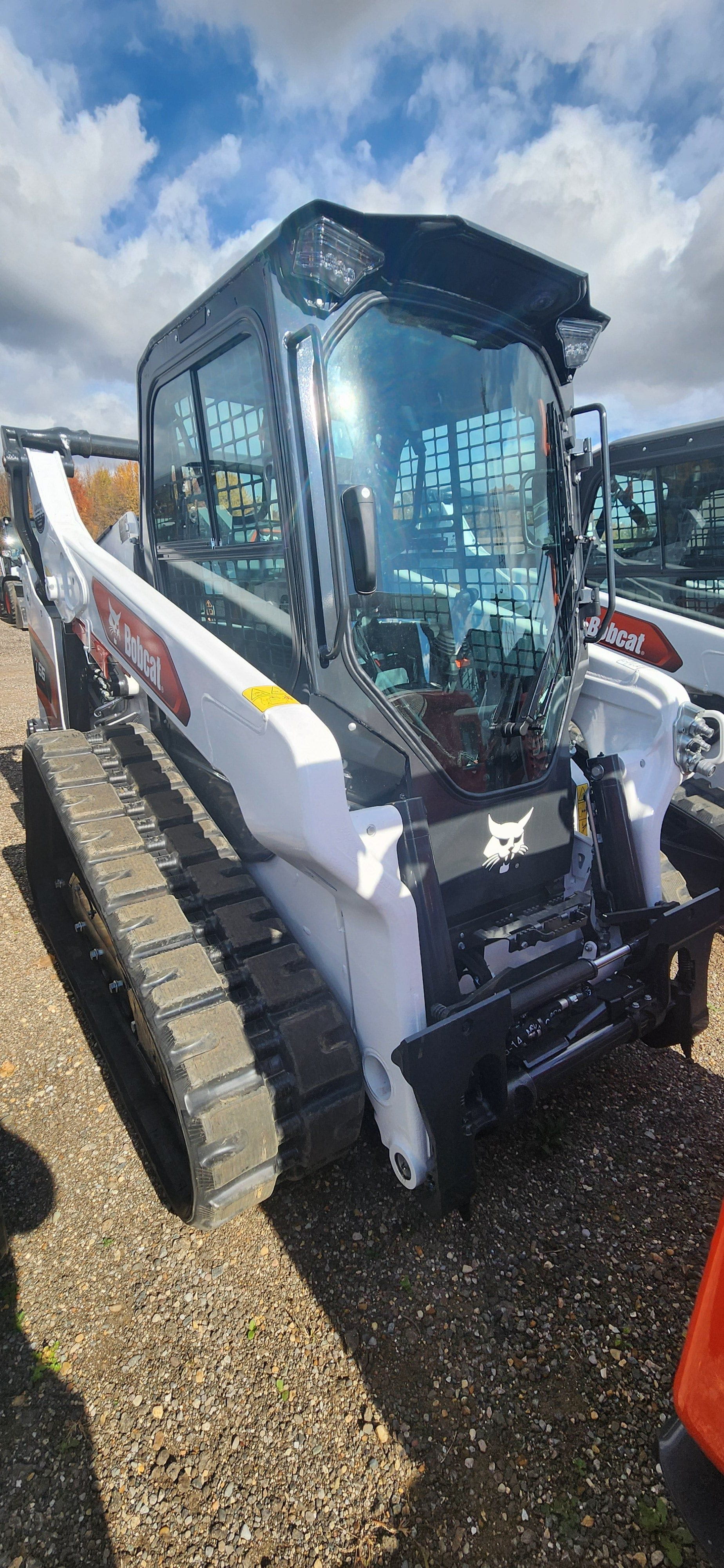

Bobcat T66 Compact Track Loader

Features:

Comfort Package:

• Enclosed HVAC Cab
• Air Ride Cloth Heated Seat
• Power Bob-Tach
• Keyless ignition
• 5" Deluxe Display
• Standard Lights
• Attachment Control

• Two Speed Travel

• SJC
• Rearview Camera
• Telematics - Machine IQ with 2 Year Standard Subscription

No matter how extreme your working conditions, the vertical-lift-path Bobcat® T66 compact track loader pushes through to do more in all kinds of applications and keeps working where other equipment can’t. Also referred to as a skid-steer with tracks, the T66 includes a redesigned Bobcat inline engine and direct-drive system, lift arms with cast-steel construction and improved cooling performance. This 74-hp loader offers a Rated Operating Capacity of 2450 lbs, and delivers powerful hydraulics and breakout forces, fast cycle times and increased lifting capabilities. Its roomier cab design offers a sealed and pressurized environment complete with available heated air-ride seat, clear-side enclosure, automatic heat and air conditioning, and an innovative display with machine information and performance data. Combine that with a superior 5-Link torsion suspension undercarriage for an unmatched operator experience to elevate productivity during long working hours.



Specs

Engine

Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	74 hp
Turbocharged Engine	Optional

Performance

Rated Operating Capacity (ISO)	2,450 lb
Operating Capacity (50% of Tip)	3,500 lb
Tipping Load	7,000 lb
Operating Weight	8,927 lb
Travel Speed	7.2 mph
Travel Speed (2 - Speed Option)	10.2 mph
Ground Pressure (Rubber)	5.9 psi

Capacities

Fuel Tank

28.3 gal

Hydraulic System

System Relief @ Quick Couplers	3,500 psi
Auxiliary Std Flow	17.6 gal/min
Auxiliary High Flow	26.9 gal.min

Dimension

Length	134.9 in
Length Without Attachment	107 in
Length With Standard Bucket	134.9 in
Width	67 in
Width (With Bucket)	68 in
Height	80.5 in
Height With Operator Cab	80.5 in
Height to Bucket Hinge Pin	120 in
Reach @ Maximum Height	36.7 in
Turning Radius	81.5 in
Length of Track on Ground	54.3 in
Track Width	12.6 in
Track Width - Optional	15.7 in
