FTX200 Mulching Tractor by Fecon

Fecon introduces the Tier-4 Stage-5 compliant FTX200 Mulching Tractor which includes the Fecon Power Management System for unrivaled power and performance in the 200HP class.

FTX200 MULCHING TRACTOR OVERVIEW

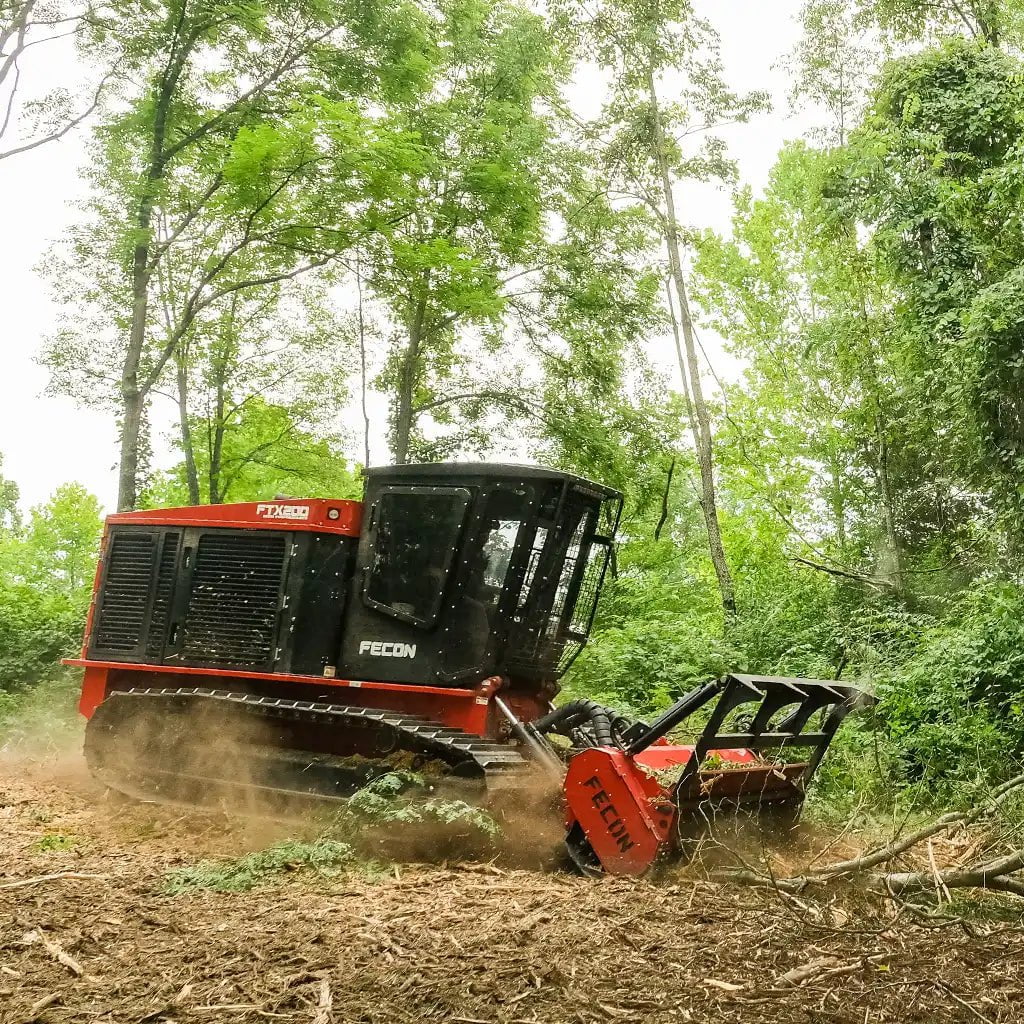

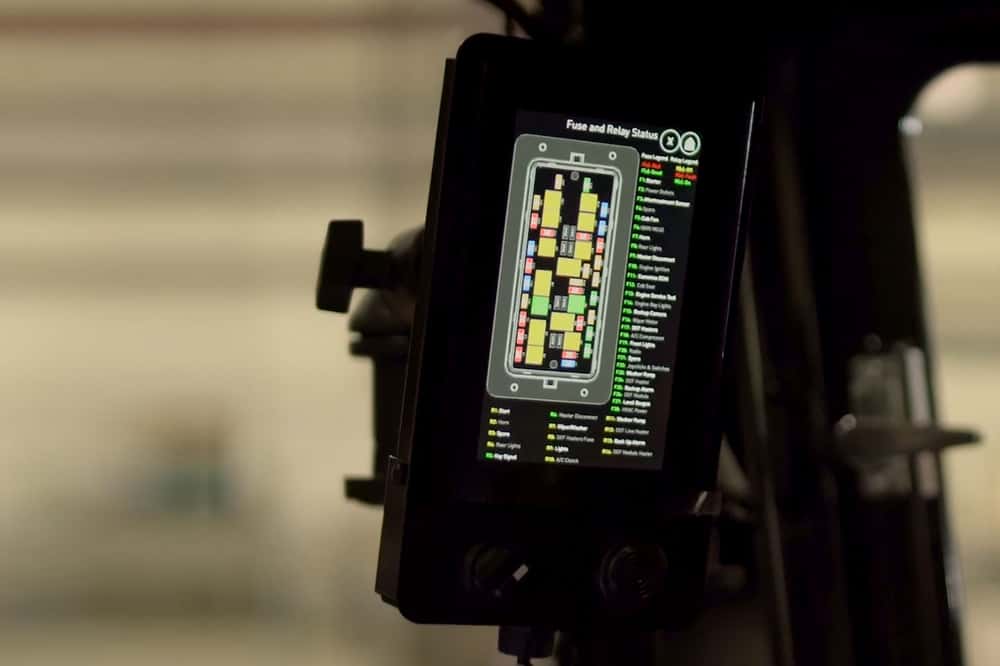

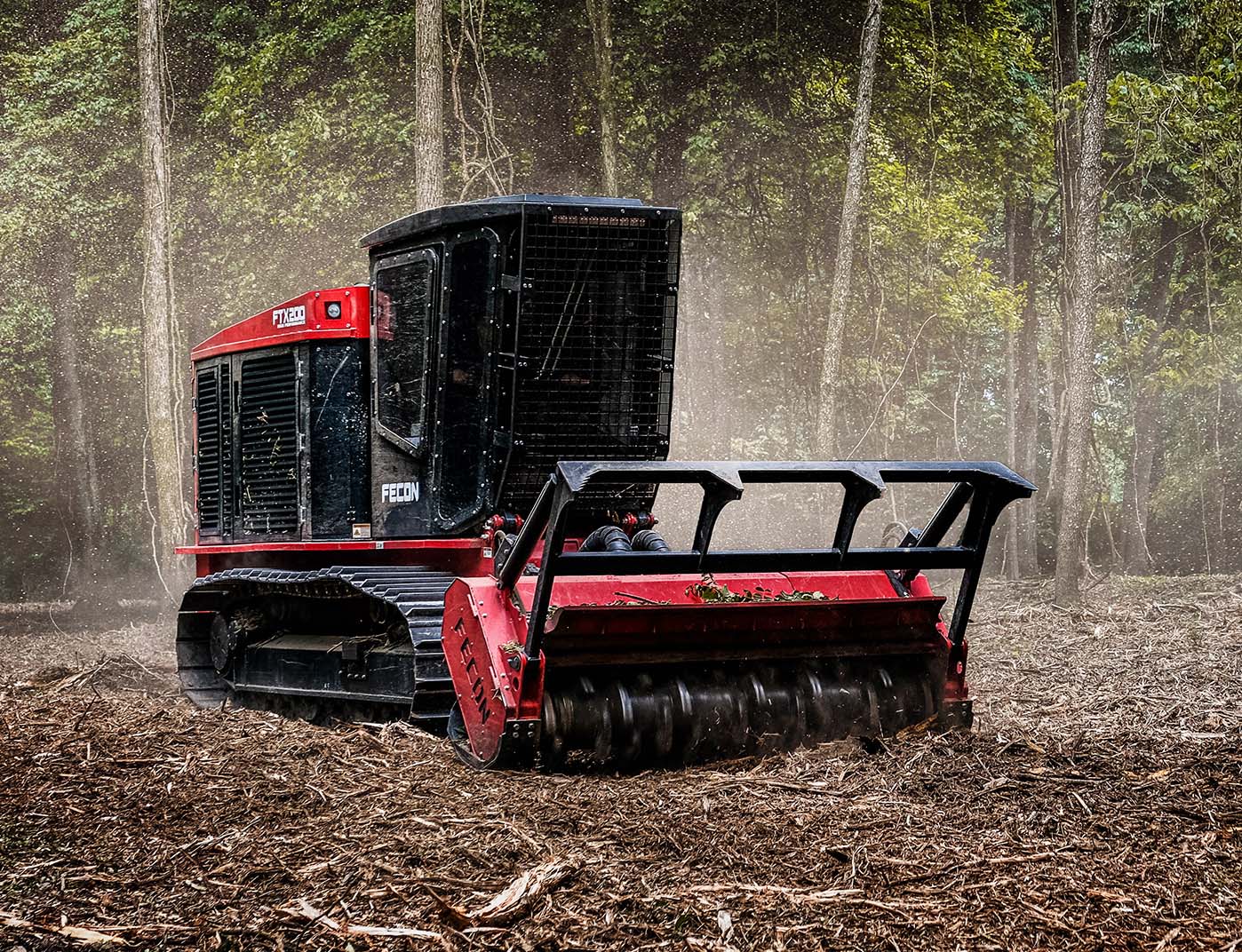

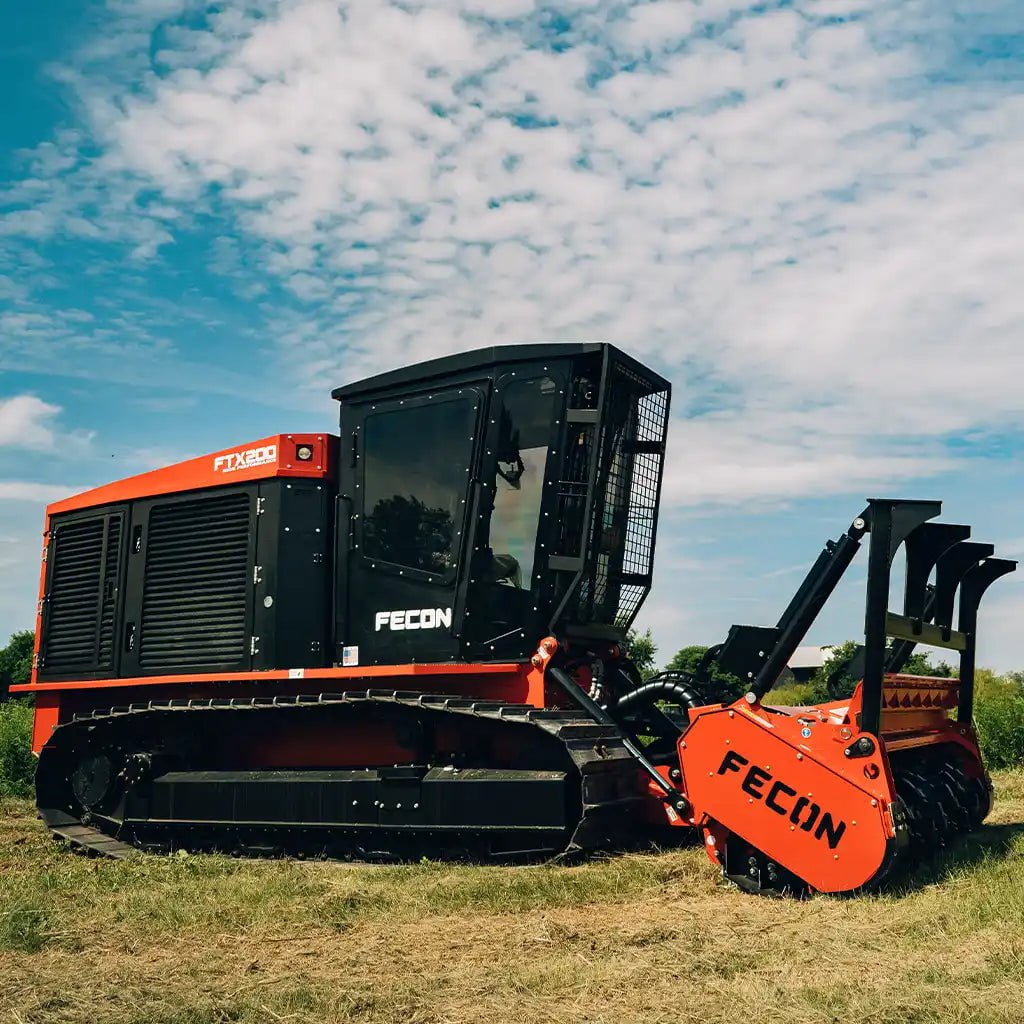

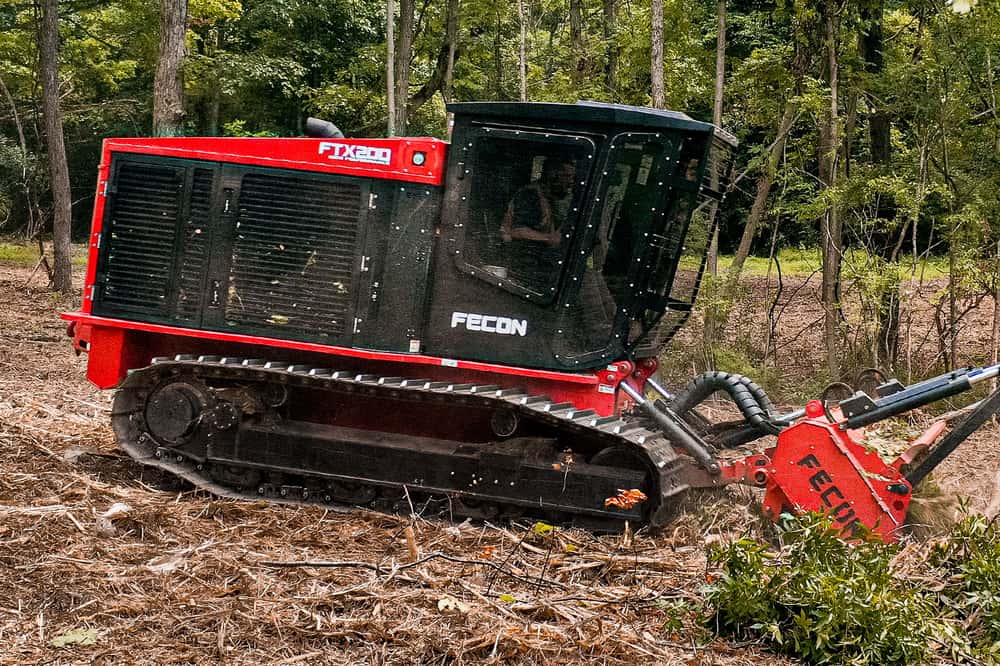

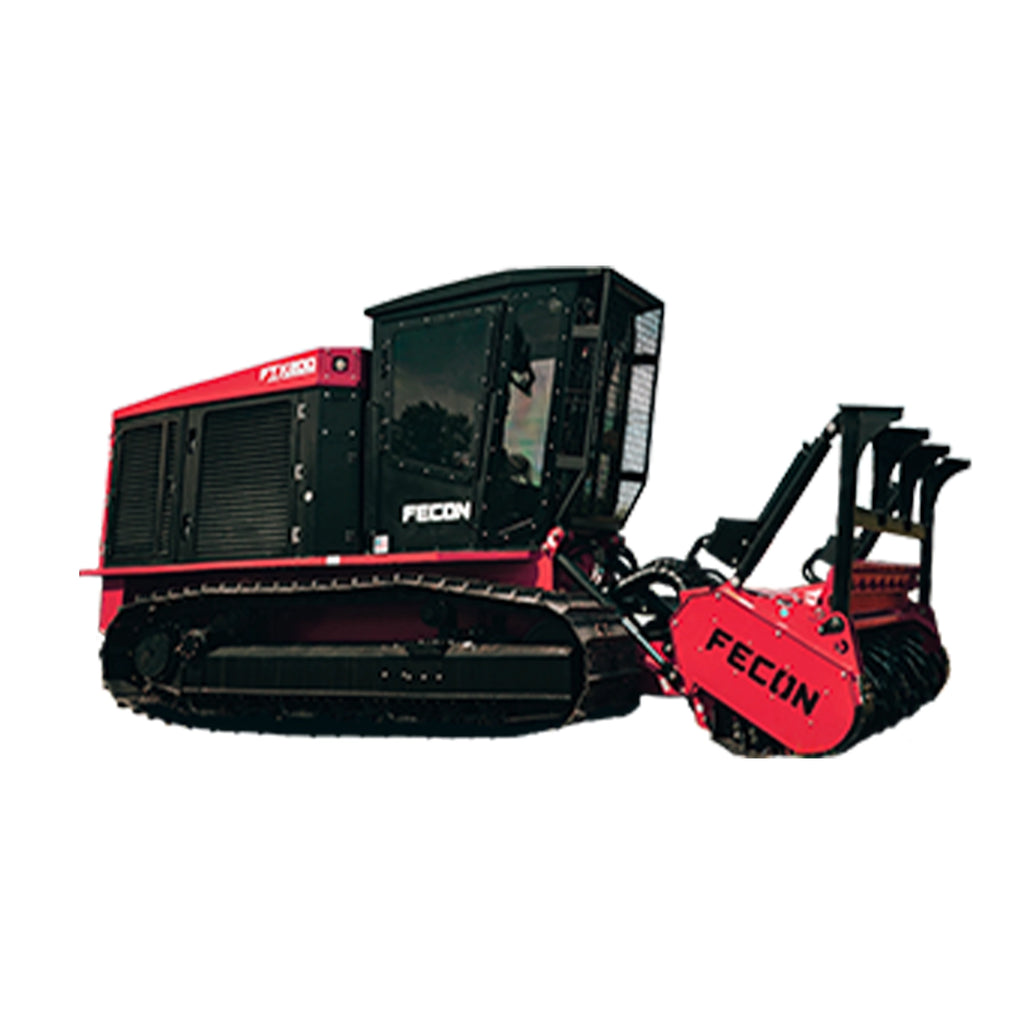

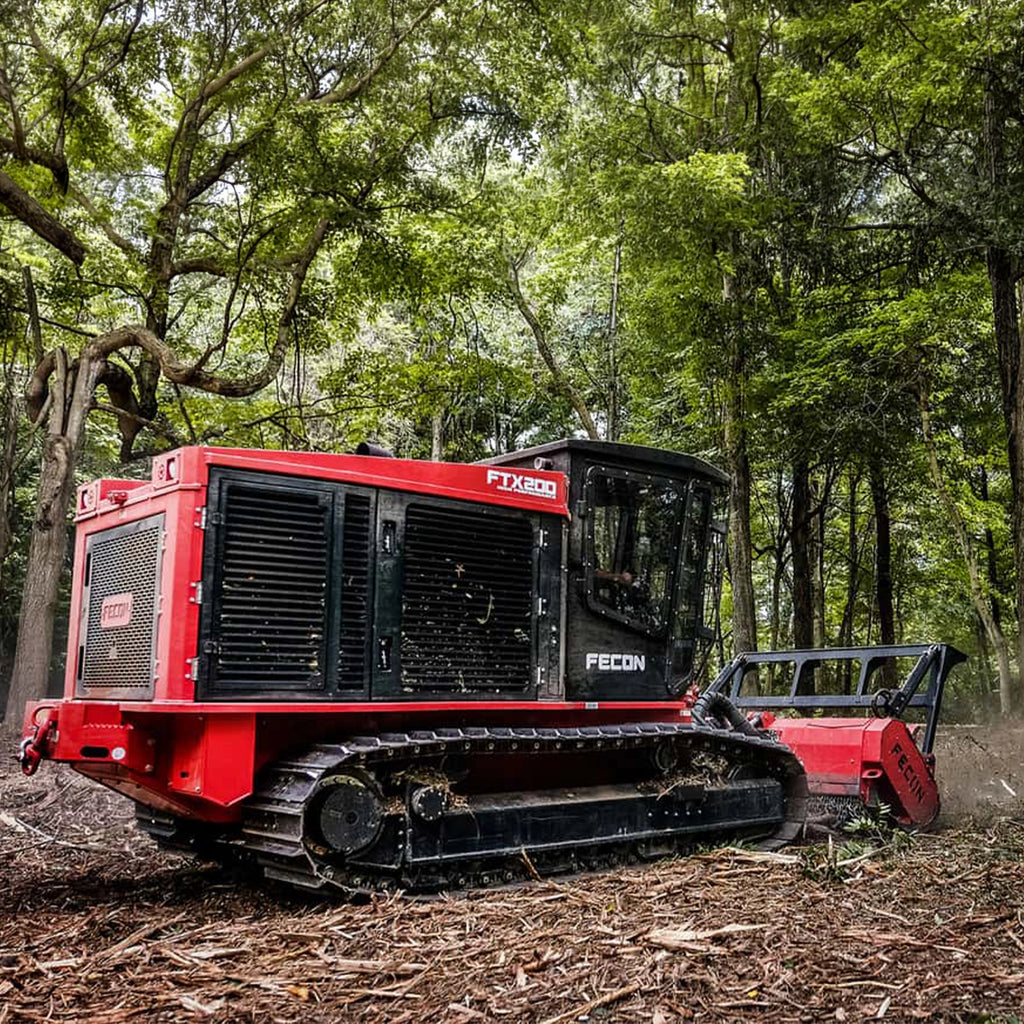

Fecon introduces the Tier-4 Stage-5 compliant FTX200 Mulching Tractor which includes the Fecon Power Management System for unrivaled power and performance in the 200HP class.  The newest addition to our family of Forestry Mulchers is designed from the ground up, with design influence from the very popular FTX600, giving it big tractor features in a more compact package.  This low-ground pressure (4.2 psi) tractor features an oscillating undercarriage with 20” track shoes, providing balanced traction and impressive handling on all ground conditions.  A spacious cab features a panoramic view, air suspension and a heated seat for operator comfort.  A larger touchscreen IQAN display, a large rear-view camera display mounted in line-of-sight on the front grid window, and keyless ignition with security, are provided for performance and control.  With a unique combination of power, durability, size and production capability, the Fecon FTX200 is ideal for projects in R.O. W., urban interface, and land improvement or development.

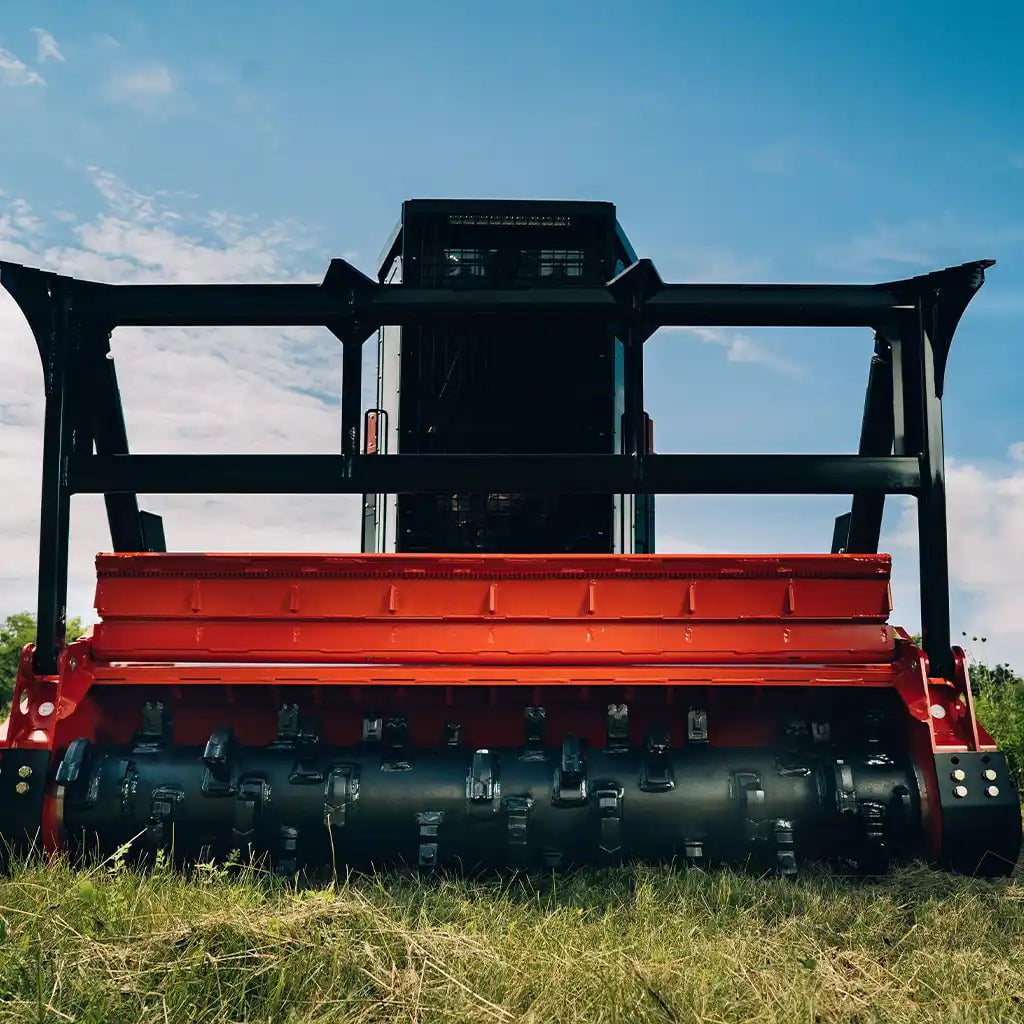

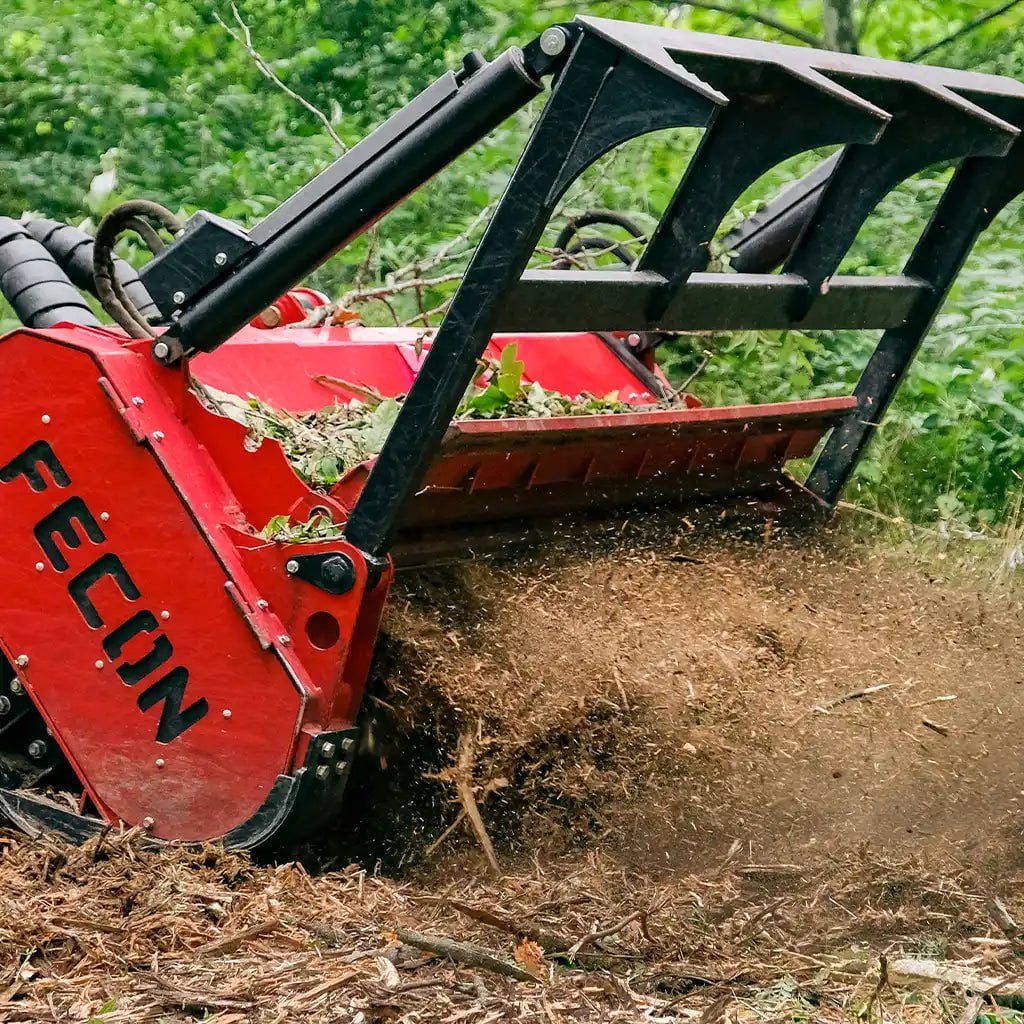

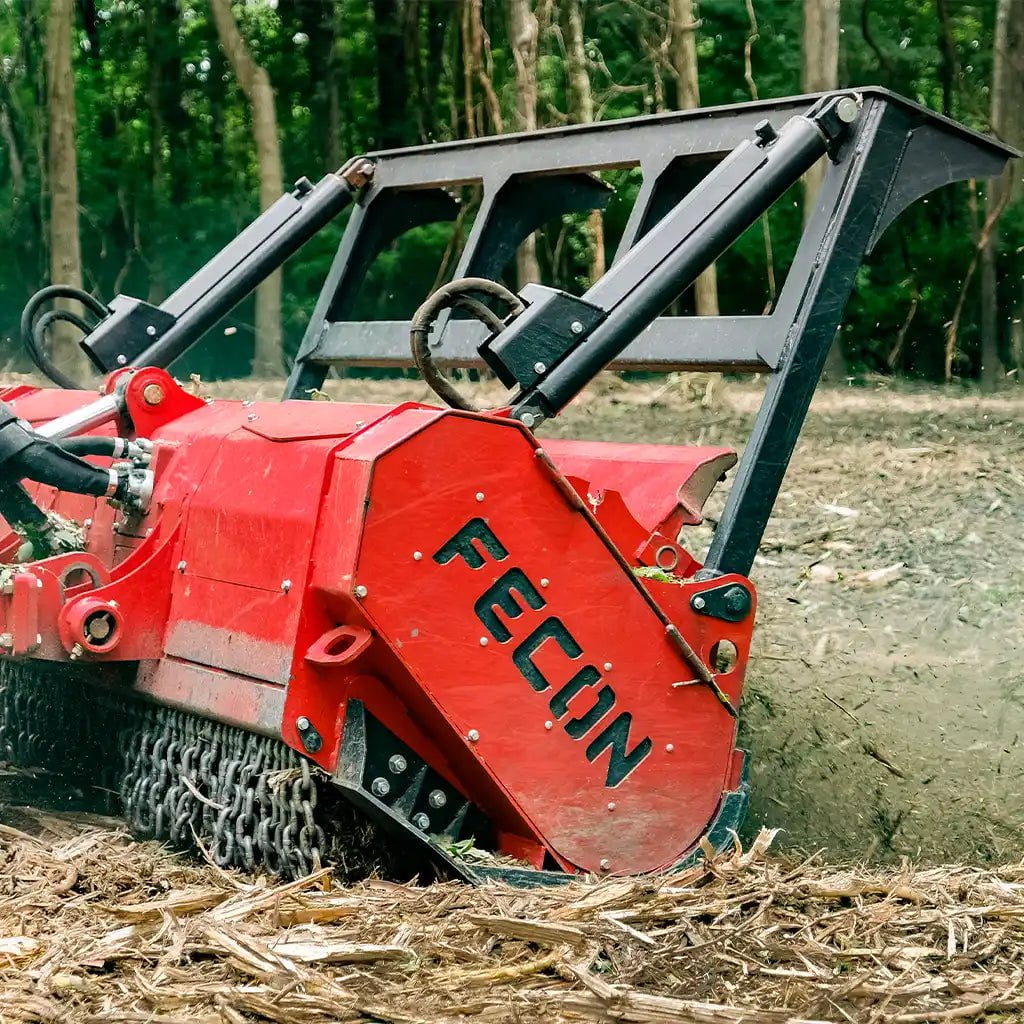

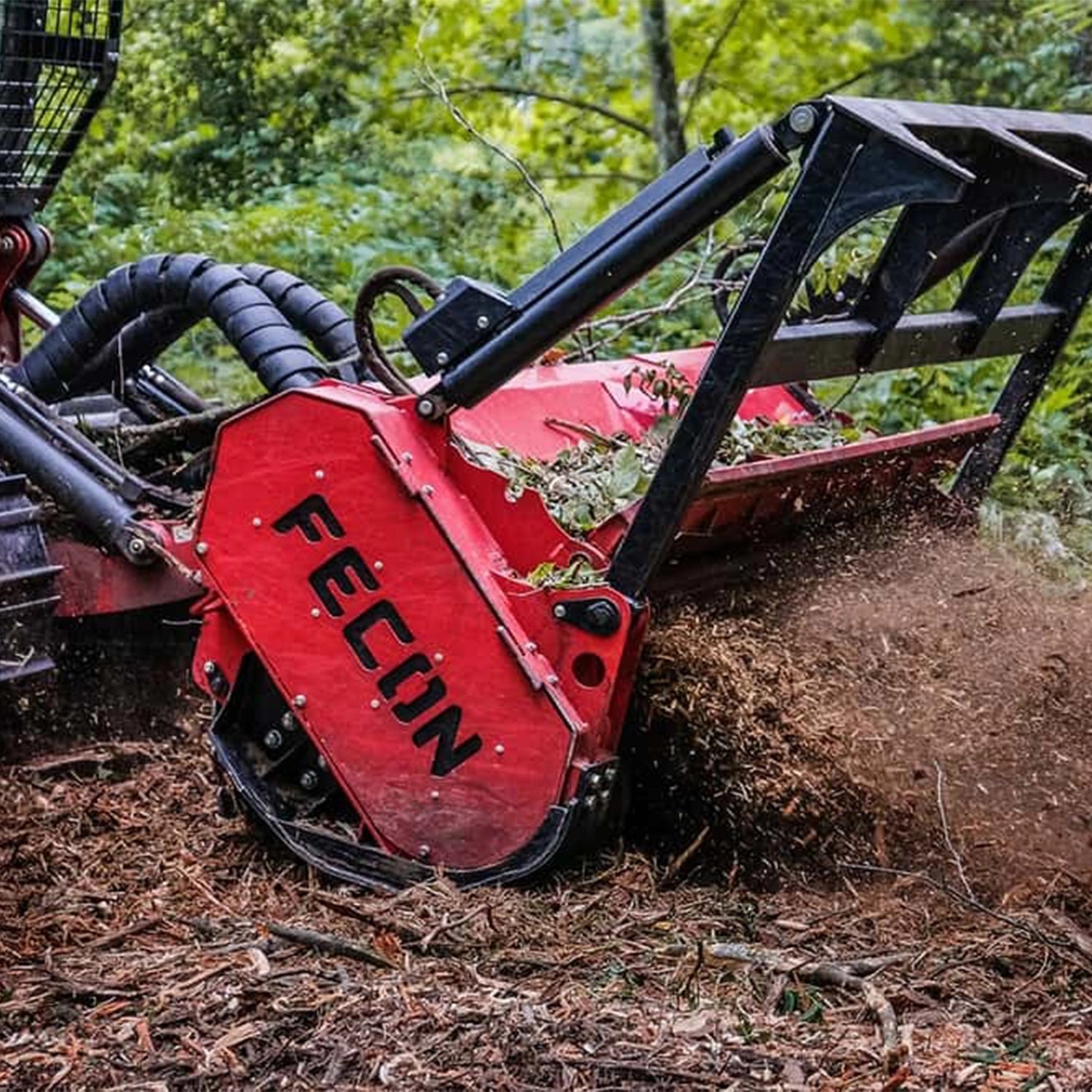

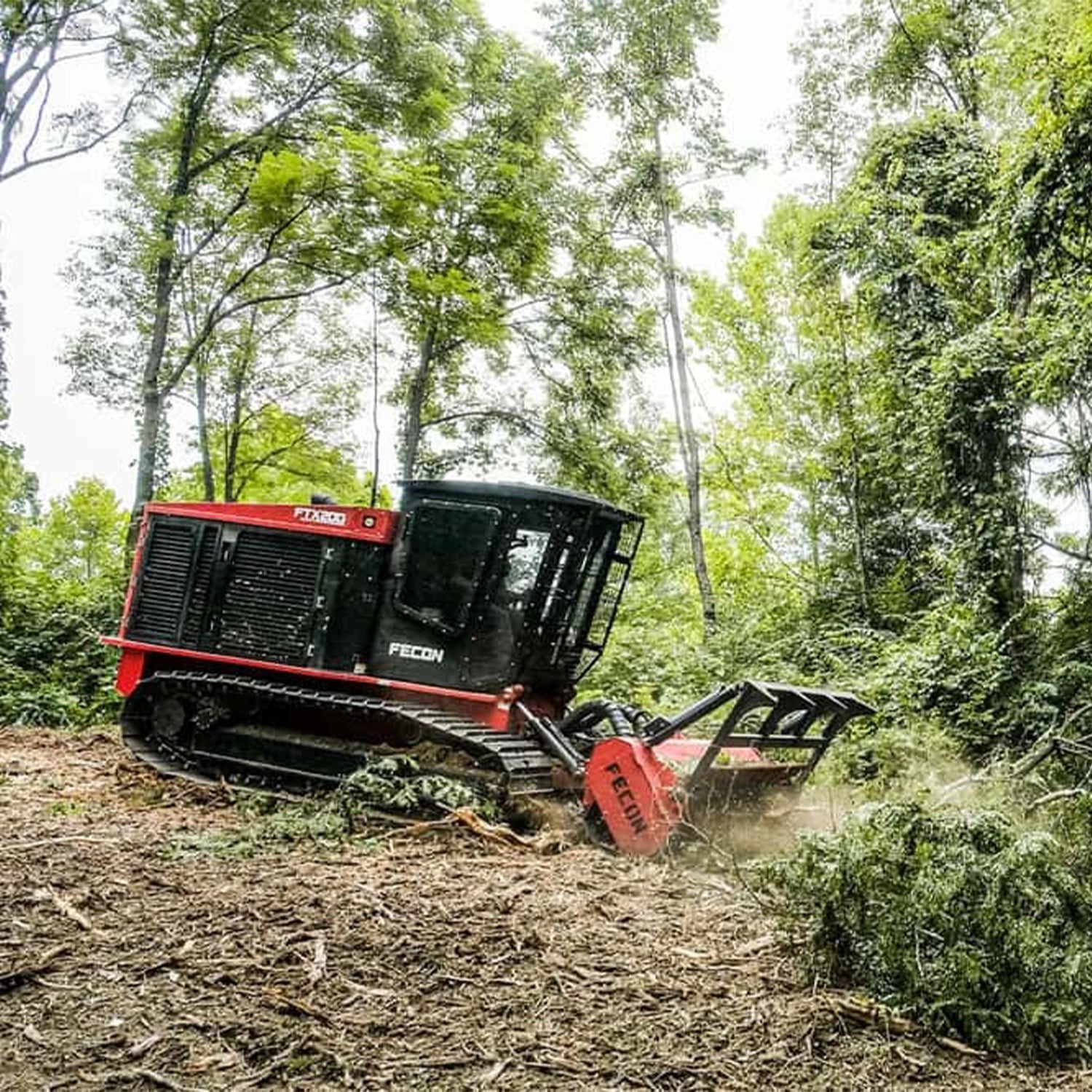

Designed for work in the woods, the latest addition of the Fecon family features a newly designed Bull Hog® Mulching head, constructed of stronger, lighter steel, and available with an FGT or DCR style rotor to enhance the cutting performance and productivity.  DCR rotors feature reversible Viking knives for fast cutting in all materials and the most efficient use of horsepower.  The cutting, slicing, and splitting action of the Viking knife as it chips is far more productive than straight edge tools or saw teeth.   This productivity is further enhanced by depth control rings which provides fast cutting durability.

Front mount lift height under cutting tools is 49”, ideal for processing larger diameter material and fast handling of multiple stem vegetation and precut slash material.  Lift arm design and lift/tilt geometry also provide 31” of below grade reach, ideal for reaching into embankments.  Range of motion and hydraulic push bar design allow the push bar tines to reach the ground, ideal for working down slash piles or positioning material for processing by the mulching head.

  • Cummins 4.5 Stage 5 Engine
  • Fecon Power Management™
  • Oscillating Undercarriage

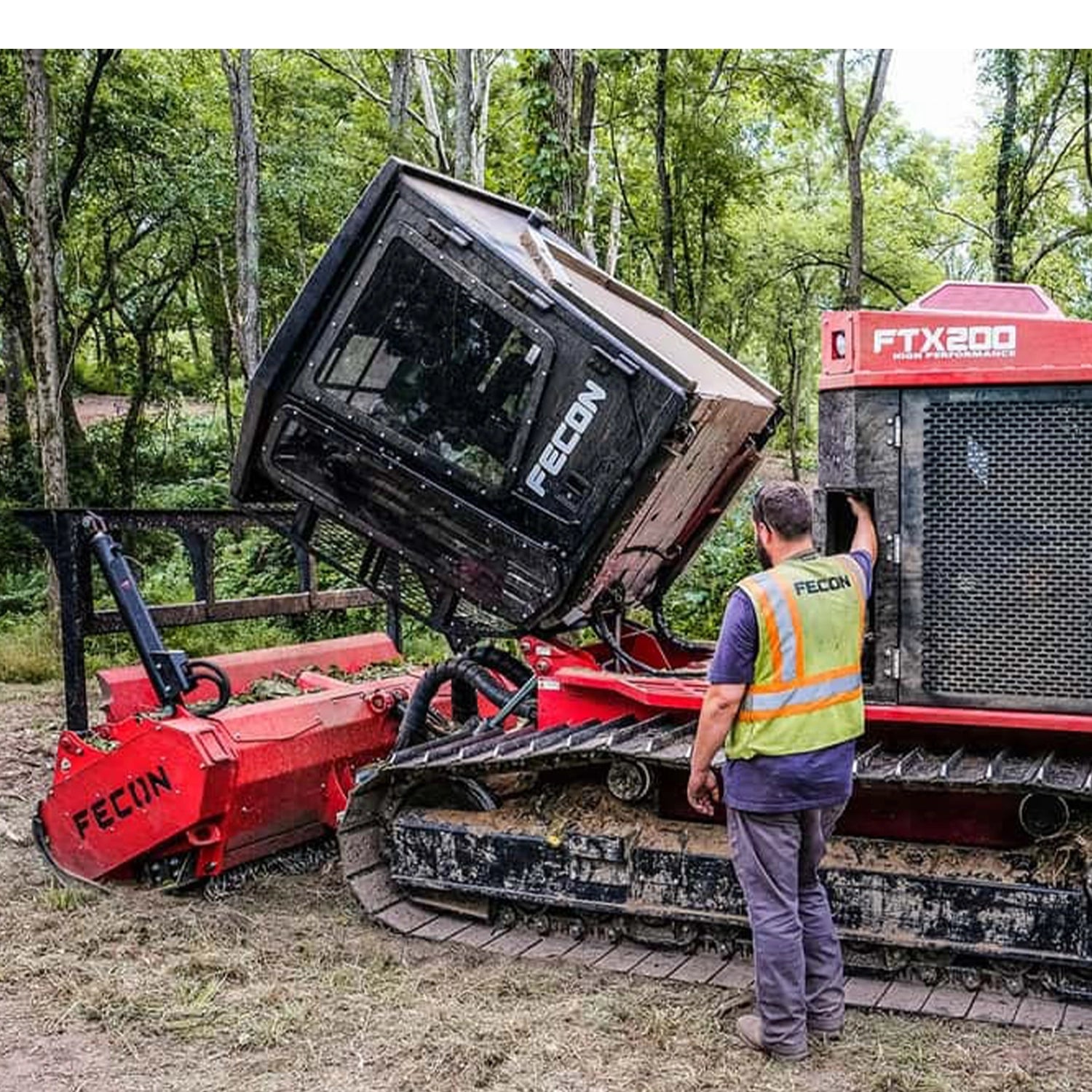

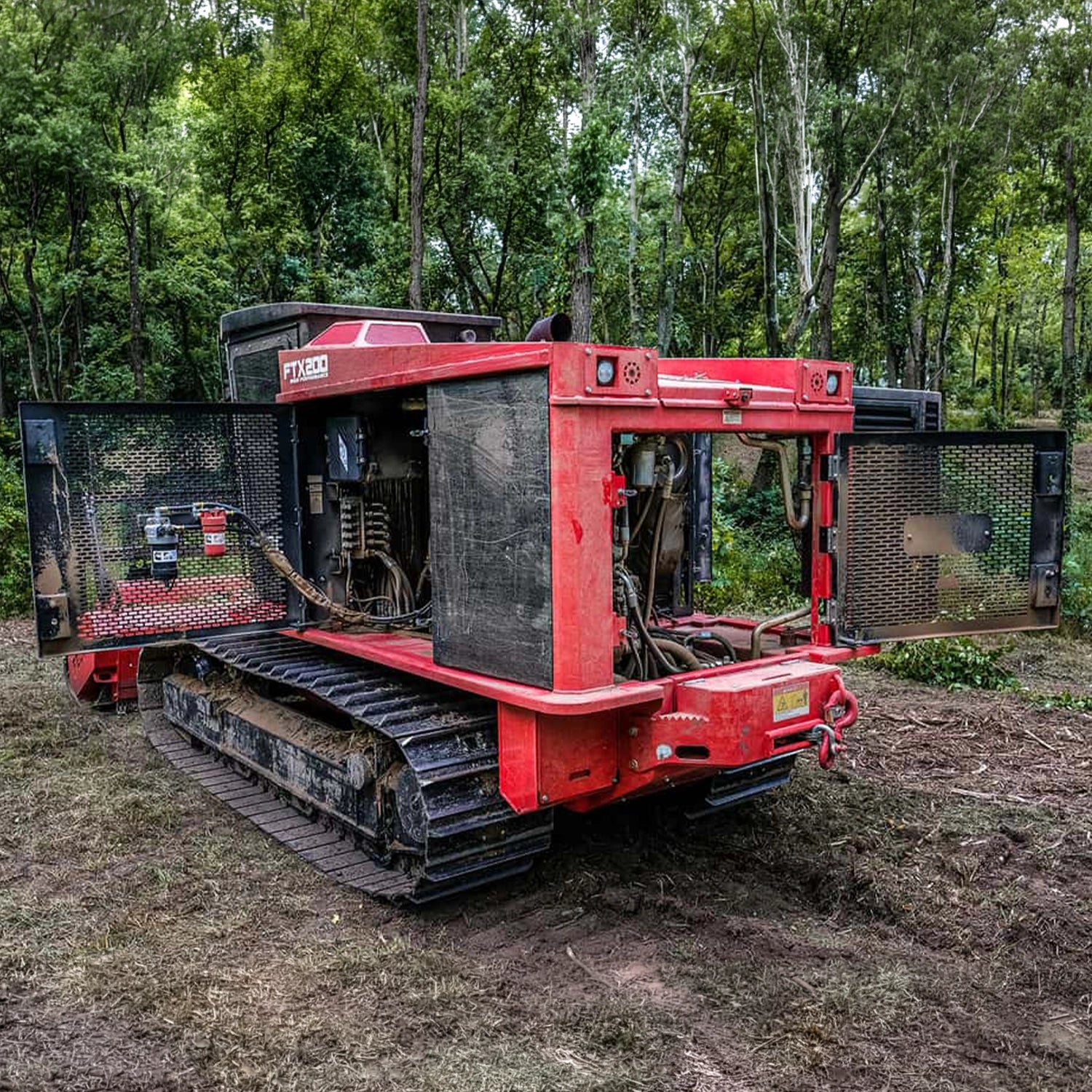

  • Large Service Access Doors
Standard Bull Hog® RK8620
Overall Height 115" / 2921 mm
Length - Tractor w/ Bull Hog® & Winch 238" / 6054 mm
Weight - Tractor w/ Standard Bull Hog® 26714 lb / 12117 kg
Width - Tractor w/ Standard Bull Hog® 101" / 2565 mm
Air Cleaner Dual with Pre-Cleaner
Cooling Water Cooled
Fuel Consumption 6-7 gph / 28-30 Iph .5 gal DEF
Fuel Tank 78 gal / 295 Ltr
Horsepower 200 hp / 149 kw
Engine Make / Model Cummins B4.5 Stage 5
Maximum Rated Torque @ RPM 575 ft lb @ 1500 rpm
Maximum RPM 2400
Number of Cylinders 4
Hi-Flow Circuit PSI / GPM 5000 psi / 80 gpm
Low Flow Circuit PSI / GPM 3000 psi / 26 gpm
Hydraulic Cooling Fan Reversing Std
Hydraulic Reservoir 60 gal / 227 ltr
Ground Pressure (per SAE J1309) 4.2 psi / 28.9 kpa
Rollers Top / Bottom 2 top / 9 bottom
Track Width  24" / 610 mm
Travel Speed 5 mph / 8 kmh
Ground Clearacne 18" / 457 mm
Cab Pressurized Yes
ROPS, FOPS & OPS Yes
