- Horsepower
- 277.6 hp
- Max dig depth
- 27' 5"
- Operating weight
- 74,978 lb
- Bucket digging force
- 8,678 lbf
More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DX300LC-9 |
| Machine Type: | Excavator |
|
Engine
|
|
|---|---|
| Engine: | DX08 |
| Engine Make: | Perkins |
| Horsepower: | 277.6 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Bucket Digging Force: | 8,678 lbf. |
| Arm Digging Force: | 6,542 lbf. |
| Max Digging Reach (Ground): | 42' 5" |
| Max Digging Depth: | 27' 5" |
| Operating Weight: | 74978 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 129.4 gal. |
Description

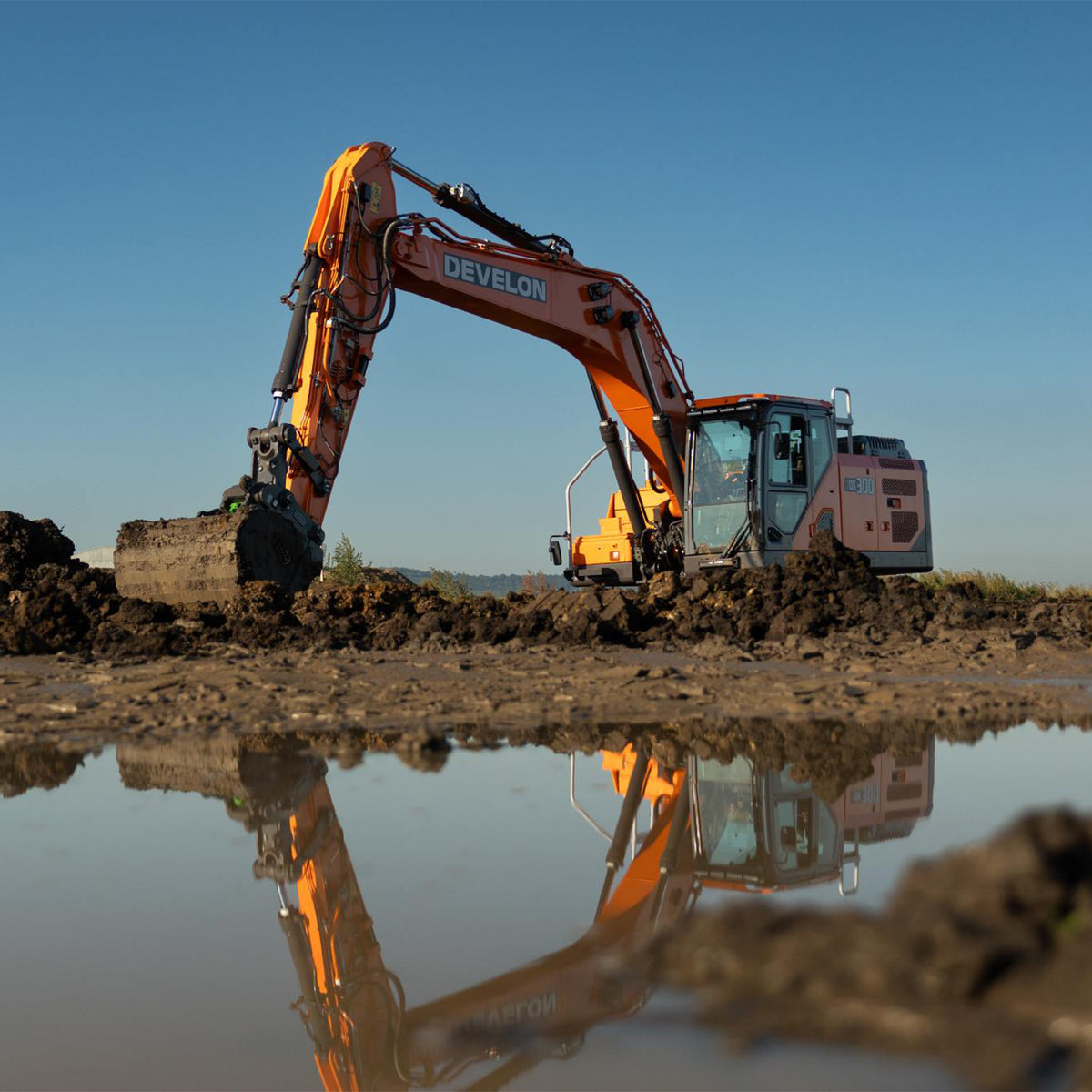

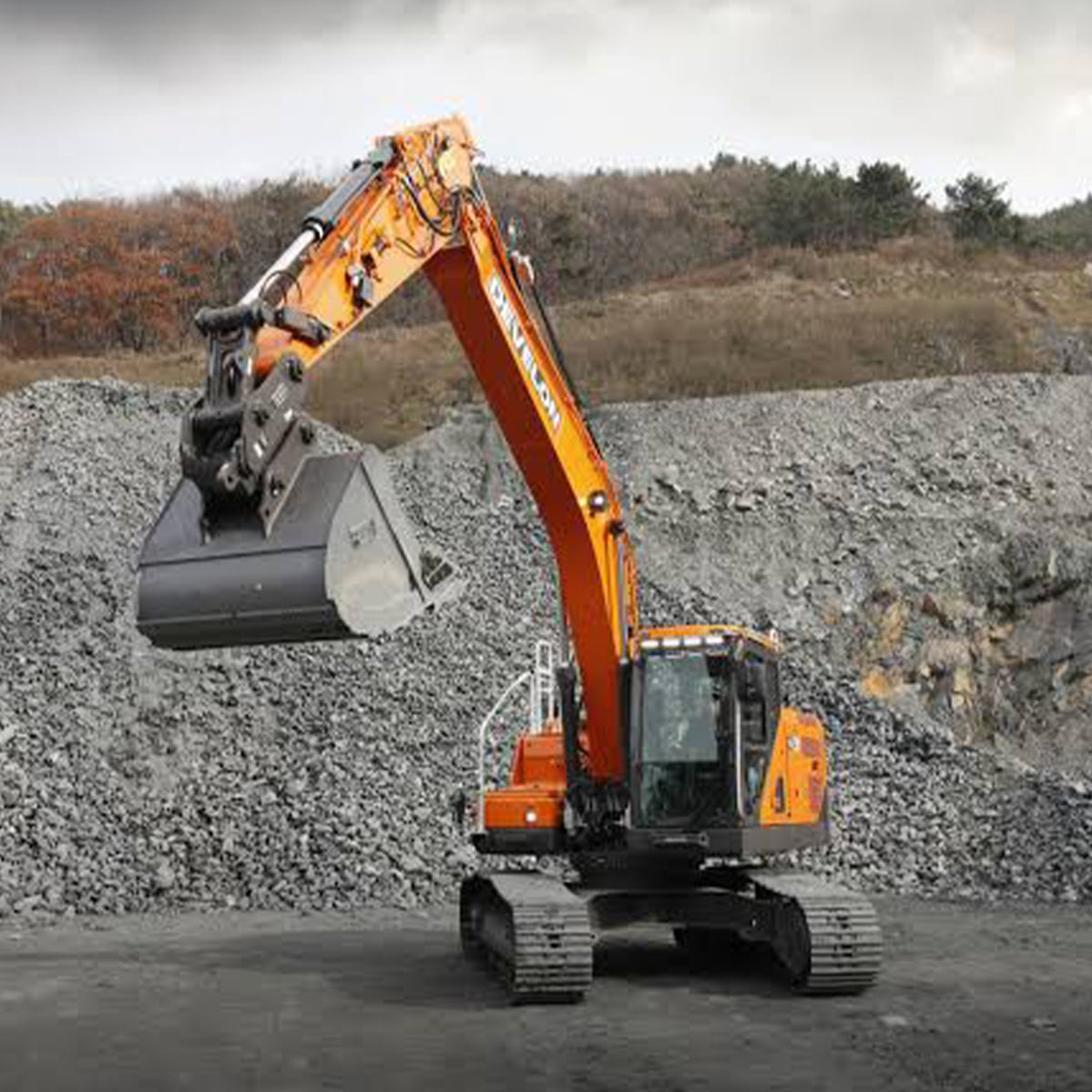

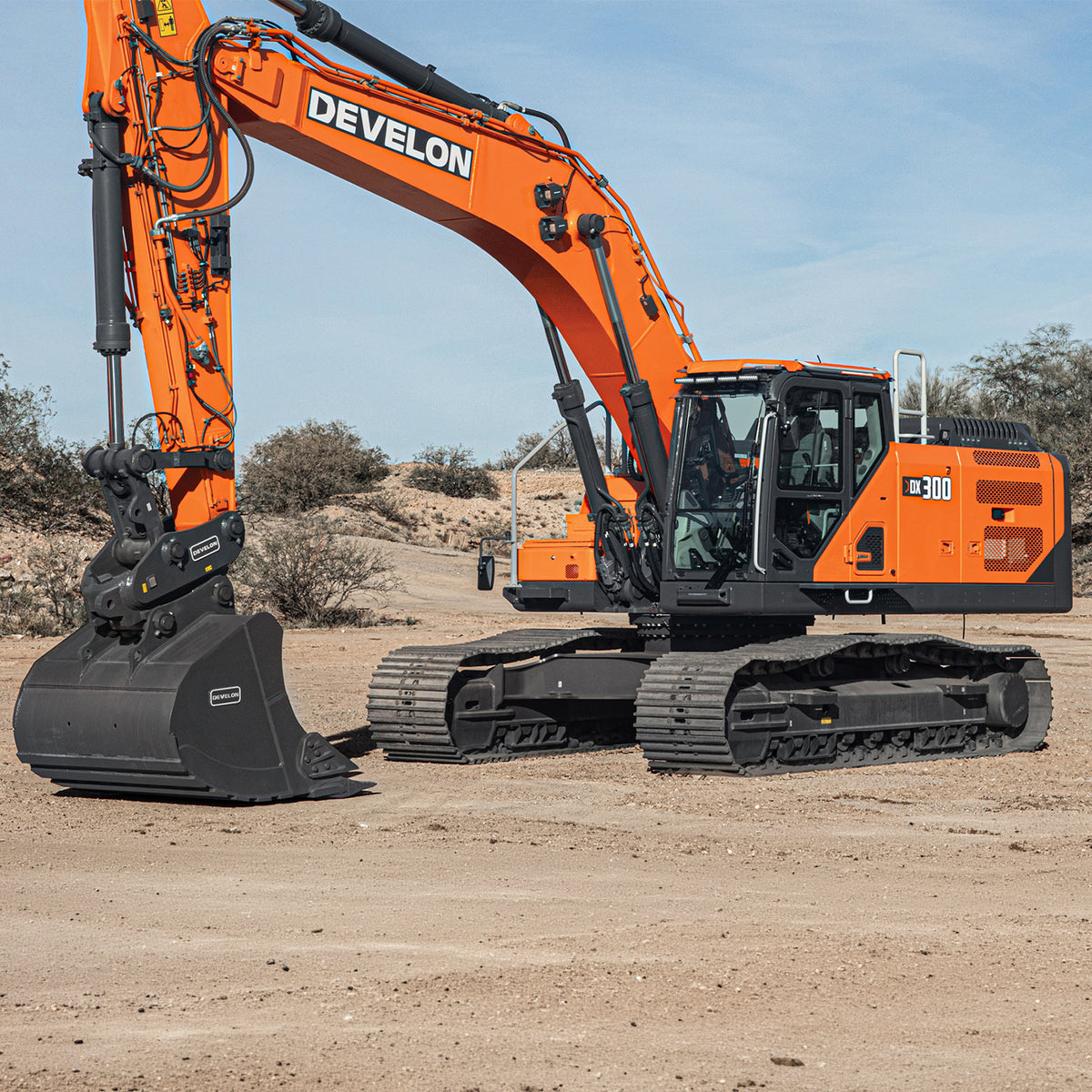

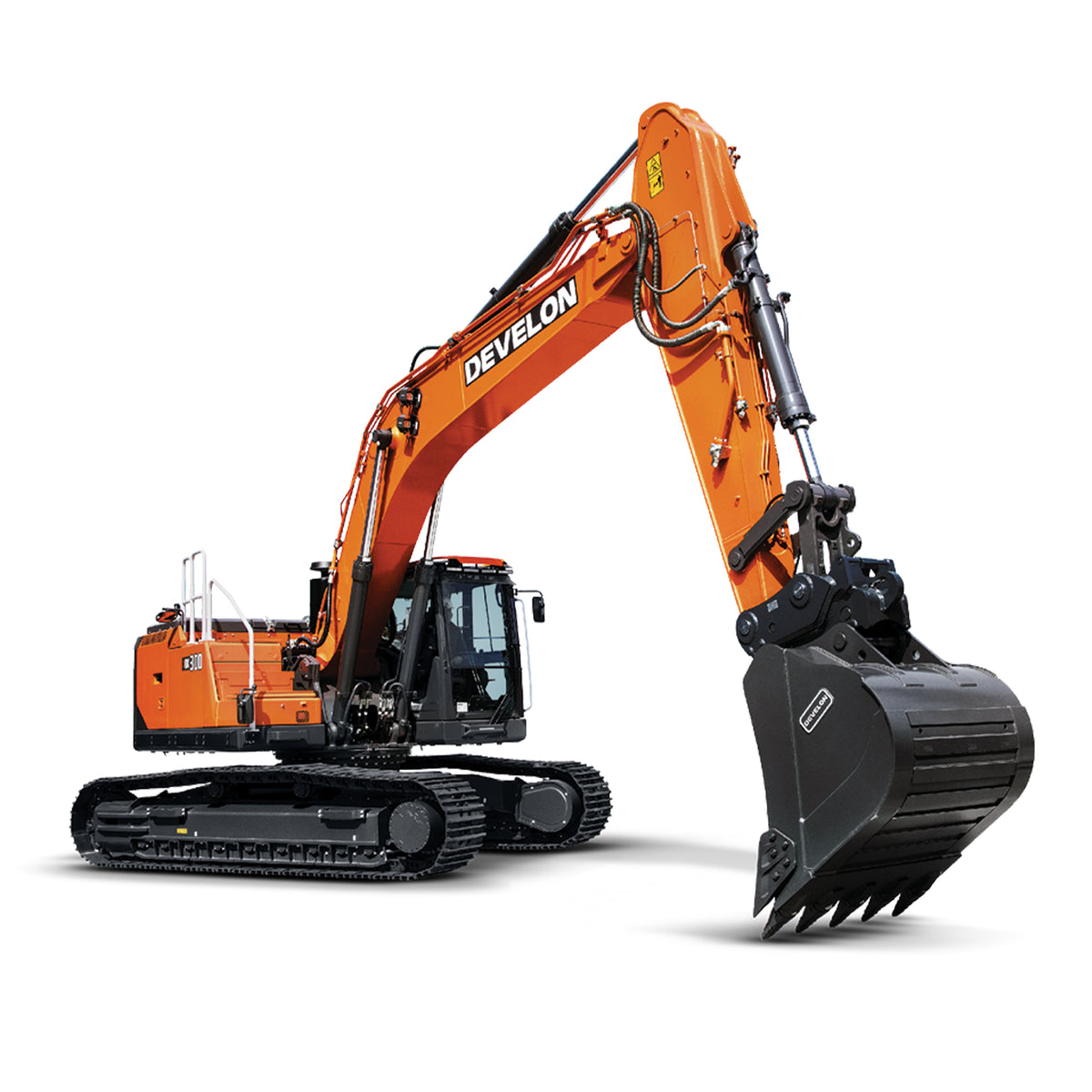

DX300LC-9 | Develon
Smarter Solutions for Safer Job Sites
The DEVELON DX300LC-9 crawler excavator enhances jobsite safety with Virtual Walls (e-fencing) that limit machine movement within operator-defined boundaries. Optional Smart Around View Monitor (SAVM) and Human Detection System (HDS) technologies use six cameras, radar sensors, and AI for 360-degree visibility. Collision Avoidance Assist automatically slows the machine when a person is detected within 13 feet and stops it completely within 6.5 feet.
Advanced Technology for Greater Productivity
The DEVELON DX300LC-9 boosts productivity with advanced technology, including an onboard weighing system for optimized truck loading, Lift Assist and optional Advanced Lift Assist for safer lifting, and Breaker Assist to reduce wear and improve operator comfort. Factory-equipped 2D machine guidance and control systems enhance digging accuracy and efficiency.
Redesigned Cab for Operator Comfort
The DEVELON DX300LC-9 features a redesigned cab with customizable joystick controls, stick steer and thumbwheel steer options, and a 12-inch high-resolution display for easy machine management. Automotive-style heating and air conditioning, improved defrosting, and convenient touchscreen controls enhance operator comfort. The available digital key allows operators to unlock the cab, start the engine, and adjust climate settings through the MY DEVELON app.
Built to Maximize Uptime
The DEVELON DX300LC-9 maximizes uptime with four selectable power modes and D-ECOPOWER™ technology for improved fuel efficiency and productivity. Ground-level filter access simplifies routine maintenance, while advanced Prognostics and Health Management (PHM) monitors critical components to anticipate service needs, reduce downtime, and lower maintenance costs.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 60 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $43,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DX300LC-9 Different
Virtual Walls
Built-in e-fencing lets operators set movement boundaries for the front, swing and height to work more confidently near structures and obstacles.
AI Collision Avoidance
With the optional SAVM and human-detection package, Collision Avoidance Assist slows the machine when a person is within 13 feet and stops it within 6.5 feet.
Factory 2D Guidance and Control
Integrated guidance and grade-control capability helps operators work more accurately and efficiently.
Fully Electro-Hydraulic Controls
Electronic pumps, valves and customizable joysticks provide precise response, stick steer and thumbwheel steer.
12-Inch Smart Touch Display
The high-resolution, split-screen interface keeps machine information, cameras and grade functions easy to see and manage.
46,311 lbf Bucket Force
ISO power-boost digging force supports difficult breakout work, while the twin main pumps provide a published maximum flow rate of 76 gpm each.
Compare Next-Generation Excavators
 |  |  |  |  | |

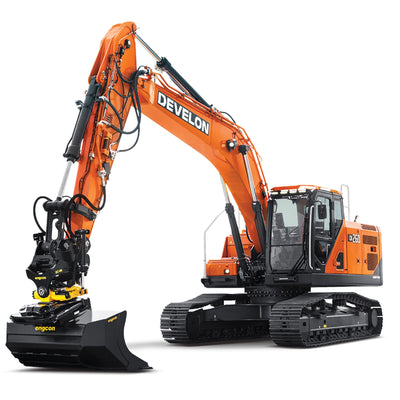

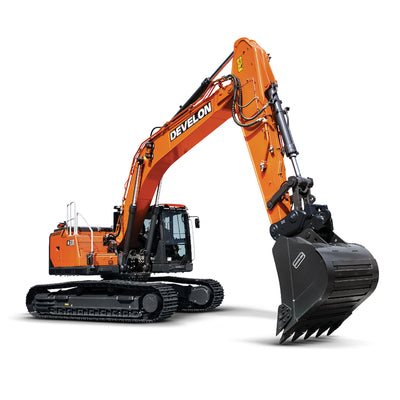

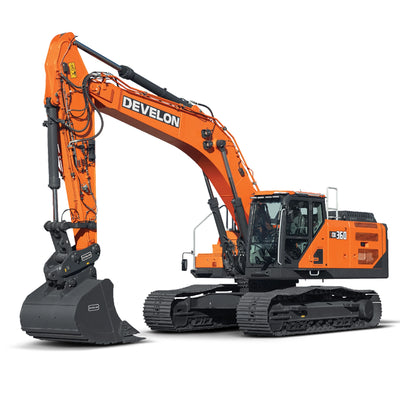

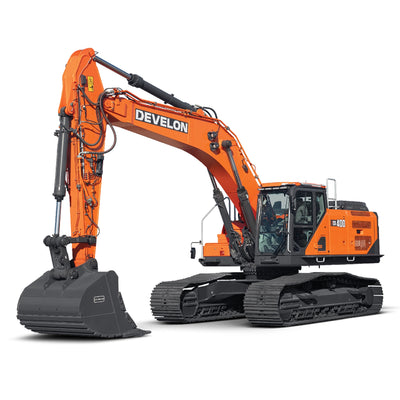

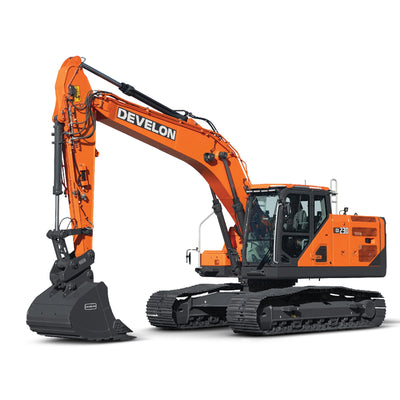

| DX230LC-9 | DX260LC-9 | DX300LC-9 Viewing | DX360LC-9 | DX400LC-9 | |
|---|---|---|---|---|---|
| Rated Power (net) | 180.5 hp @ 1,700 rpm | 220.9 hp @ 1,900 rpm | 277.6 hp @ 1,800 rpm | 300.4 hp @ 1,800 rpm | 336.6 hp @ 1,800 rpm |
| Operating Weight | 53,351 lb | 60,406 lb | 74,978 lb | 85,799 lb | 97,024 lb |
| Maximum Dig Depth | 21 ft 8 in | 22 ft 4 in | 23 ft 10 in | 24 ft 7 in | 24 ft 3 in |
| Series | -9 | -9 | -9 | -9 | -9 |
Published North American headline specifications. Specifications vary by configuration; contact Carleton Equipment to confirm details.
DX300LC-9 Features & Benefits
Smart Safety & Awareness 6
Virtual Walls
Operator-defined e-fencing limits machine movement for tighter urban sites and work near obstacles.
Smart Around View Monitor
The optional SAVM system combines six cameras, radar sensors and AI-powered detection for a 360-degree view.
Human Detection System
AI distinguishes people in the work zone to improve awareness around the excavator.
Collision Avoidance Assist
The machine automatically slows when a person is detected within 13 feet and stops when someone is within 6.5 feet.
Lift Assist
Lift Assist and available Advanced Lift Assist display lifting capacity and warn of potential tipping hazards.
Rearview Visibility
The redesigned cab and camera systems improve awareness on busy jobsites.
Precision & Productivity 6
Factory 2D Machine Guidance
Factory-integrated guidance helps operators reach grade with fewer checks.
Machine Control
Grade-control functions support more accurate excavation and reduce rework.
Weighing System
Onboard weighing helps manage volumes and load trucks to their target capacity.
Breaker Assist
Blank-fire prevention reduces unnecessary impact and wear during breaker operation.
Straight Travel
Single-pedal straight travel supports trenching and jobsite transport.
Power Boost
One-touch hydraulic power boost supports difficult digging and breakout work.
Efficiency & Uptime 6
Fully Electro-Hydraulic System
Electronic pumps and control valves precisely meter hydraulic oil for the task.
D-ECOPOWER
The system can provide up to 8% greater fuel efficiency and up to 20% increased engine output.
Four Power Modes
Operators can balance fuel consumption and power for changing conditions.
Ground-Level Filters
Regular inspection points are grouped for convenient ground-level access.
Prognostics and Health Management
PHM monitors critical fluids and pumps to predict maintenance needs and reduce downtime.
MY DEVELON
Fleet management provides remote access to machine health, location, utilization and maintenance information.
Operator Experience 6
12-Inch Smart Touch Display
The large high-resolution screen provides a customizable interface for cameras, grade systems and machine settings.
Programmable Joysticks
Operators can personalize sensitivity, response and button functions.
Stick and Thumbwheel Steer
Alternative steering options complement traditional travel levers and pedals.
Digital Key
The MY DEVELON app can start or stop the engine, lock or unlock the cab, control lamps and precondition the cabin.
Automotive Climate Control
High-capacity vents and improved defrosting help maintain comfort and visibility.
Heated and Cooled Seat
An optional deluxe air-suspension seat supports year-round comfort.
Why Buyers Choose the DX300LC-9
277.6 net hp in a versatile 74,978 lb, 33-metric-ton-class excavator
Virtual Walls help control front, height and swing movement near obstacles
Optional AI human detection, 360-degree SAVM and automatic collision avoidance
Factory 2D guidance and machine control for faster, more accurate grade work
46,311 lbf power-boost bucket force and 76 gpm maximum flow from each main pump
Fully electro-hydraulic controls with customizable joysticks and alternative steering
12-inch Smart Touch display, Digital Key and redesigned climate-controlled cab
89,600 lbf-ft swing torque and 75,491 lbf maximum traction force
Who Uses the DX300LC-9 and What For
The DX300LC-9 combines 33-metric-ton-class digging performance with integrated safety, grade and fleet technology for production-heavy earthmoving, civil and commercial jobsites.
Urban Construction
- Excavation near buildings
- Utility installation
- Restricted-height work
- Busy jobsites with personnel
Civil & Infrastructure
- Road and drainage projects
- Trenching and backfilling
- Bridge and site preparation
- Factory-guided grading
Commercial Site Work
- Foundations and footings
- Truck loading with onboard weighing
- Bulk excavation
- Finish grading
Demolition & Attachments
- Breaker work with blank-fire protection
- Material sorting and handling
- Heavy-duty bucket work
- Quick-coupler applications
The DX300LC-9 by the Numbers
Rated at 1,800 rpm.
A versatile 33-metric-ton-class machine.
North American headline specification.
Maximum published flow rate per main pump.
ISO digging force with power boost.
Maximum published swing torque.
Talk to a person about the DX300LC-9
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Download Spec SheetGeneral
| Machine Type | Crawler excavator |
| Class | 33 metric tons |
| Operating Weight | 74,978 lbs |
| Standard Bucket Capacity | 2.09 yd³ |
Engine
| Make / Model | DEVELON DX08 |
| Cylinders | 6 |
| Gross Power | 278.9 hp @ 1,800 rpm |
| Net Power | 277.6 hp @ 1,800 rpm |
| Displacement | 7.5 L |
| Maximum Torque | 907.2 lb-ft @ 1,300 rpm |
| Power Modes | 4 |
Performance
| Maximum Dig Depth, Standard Arm | 23 ft 10 in |
| Maximum Dig Depth, Long Arm | 26 ft 0.2 in |
| Maximum Digging Reach, Standard Arm | 35 ft 0.1 in |
| Bucket Digging Force, Power Boost | 46,311 lbf |
| Arm Digging Force, Standard Arm | 31,698 lbf |
| Travel Speed, Low / High | 2.1 / 3.7 mph |
| Maximum Swing Speed | 10 rpm |
| Maximum Swing Torque | 89,600 lbf·ft |
| Maximum Traction Force | 75,491 lbf |
| Maximum Grade | 70% (35°) |
Capacities
| Fuel Tank | 129.4 gal |
| DEF Tank | 19 gal |
| Cooling System | 10.6 gal |
| Engine Oil with Filter | 9.2 gal |
| Hydraulic System | 79 gal |
| Hydraulic Tank | 43.3 gal |
Hydraulics
| Main Pumps | 2 |
| Maximum Flow Rate, Each Main Pump | 76 gpm |
| Pilot Pump | 7.1 gpm |
| Workgroup Pressure, Normal | 4,978 psi |
| Workgroup Pressure, Power Boost | 5,405 psi |
| Control System | Fully electro-hydraulic |
| Efficiency System | D-ECOPOWER |
Dimensions
| Boom Length | 20 ft 5.9 in |
| Standard Arm Length | 10 ft 2 in |
| Tail Swing Radius | 10 ft 7.2 in |
| Shipping Length, Standard Arm | 34 ft 9.4 in |
| Shipping Width without Catwalks | 11 ft 1.9 in |
| Cab Height | 10 ft 4.6 in |
| Overall Track Length | 16 ft 2.7 in |
| Ground Clearance | 1 ft 6.6 in |
Serviceability
| Filter Access | Ground level |
| Machine Health | Prognostics and Health Management |
| Fleet Management | MY DEVELON |
| Standard Warranty | 3 years / 3,000 hours |
Features
| Grade Technology | Factory 2D machine guidance and control |
| Virtual Walls | Standard e-fencing |
| Lift Assist | Standard; Advanced Lift Assist optional |
| Smart Around View Monitor / HDS | Optional |
| Display | 12-inch high-resolution Smart Touch |
| Digital Key | Standard |
| Breaker Assist | Blank-fire prevention |
| Weighing System | Standard |
Values and feature availability are from the current DEVELON North America DX300LC-9 product page and -9 Series page. Unpublished specification rows are intentionally omitted. Contact Carleton Equipment to confirm configuration and option availability.
