Develon
Option: Standard Arm
Stock:
In stock

Download Spec Sheet

Get detailed specifications, dimensions, and performance data for this DL420-7 | Develon.

Download Spec Sheet →
General Info
Condition: Showroom
Manufacturer: Develon
Model: DL420-7
Machine Type: Wheel Loader
Engine
Horsepower: 345.0
Performance
Operating Weight: 51553 lb
Hydraulics
Dimensions
Height: 12'
Length: 29'
Width: 10' 6"
Fuel Tank: 84 gal.

Description

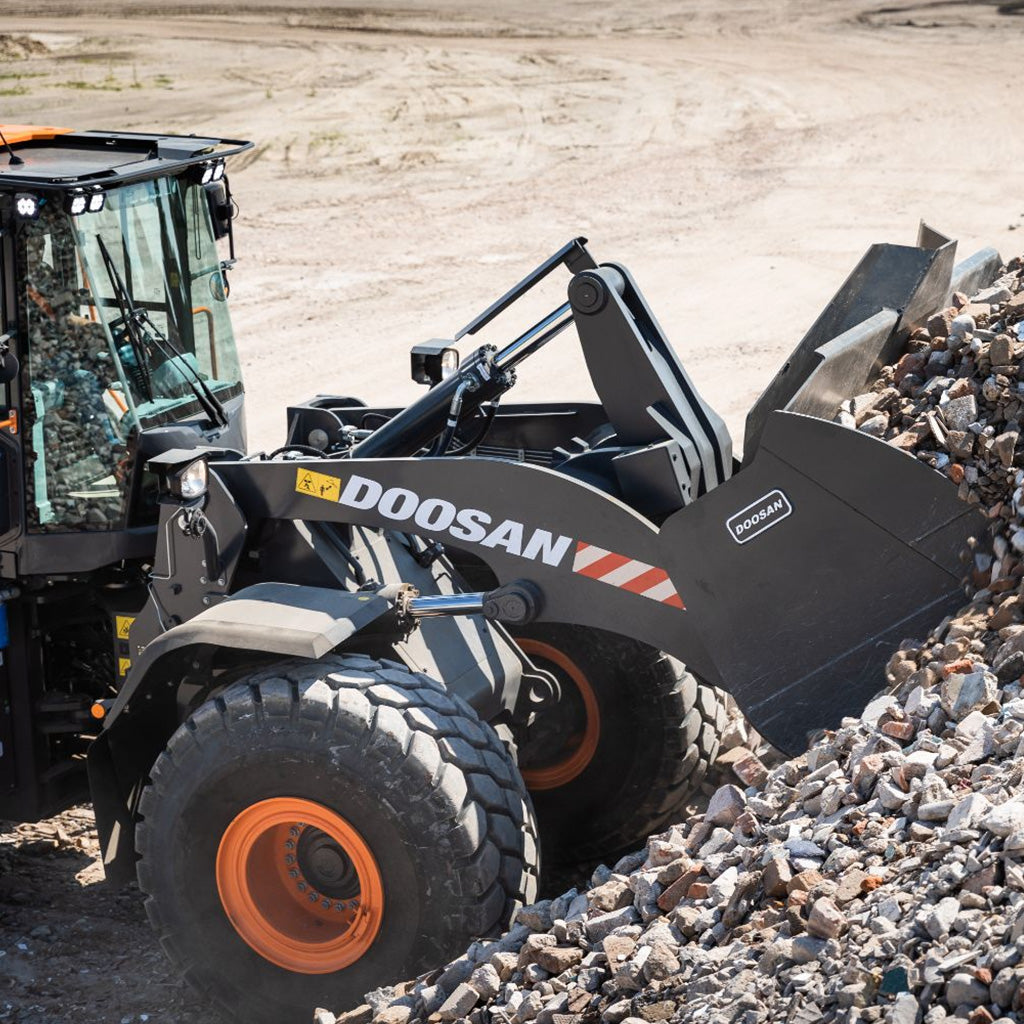

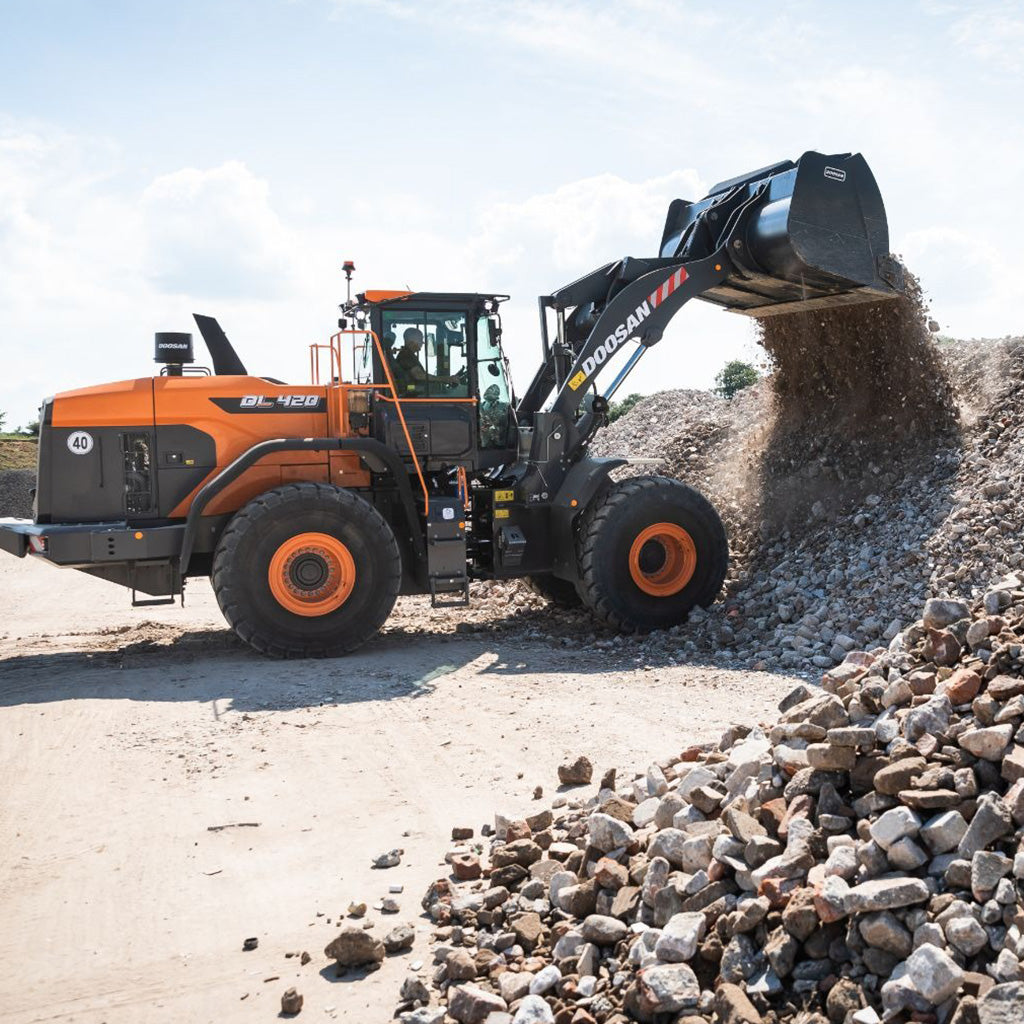

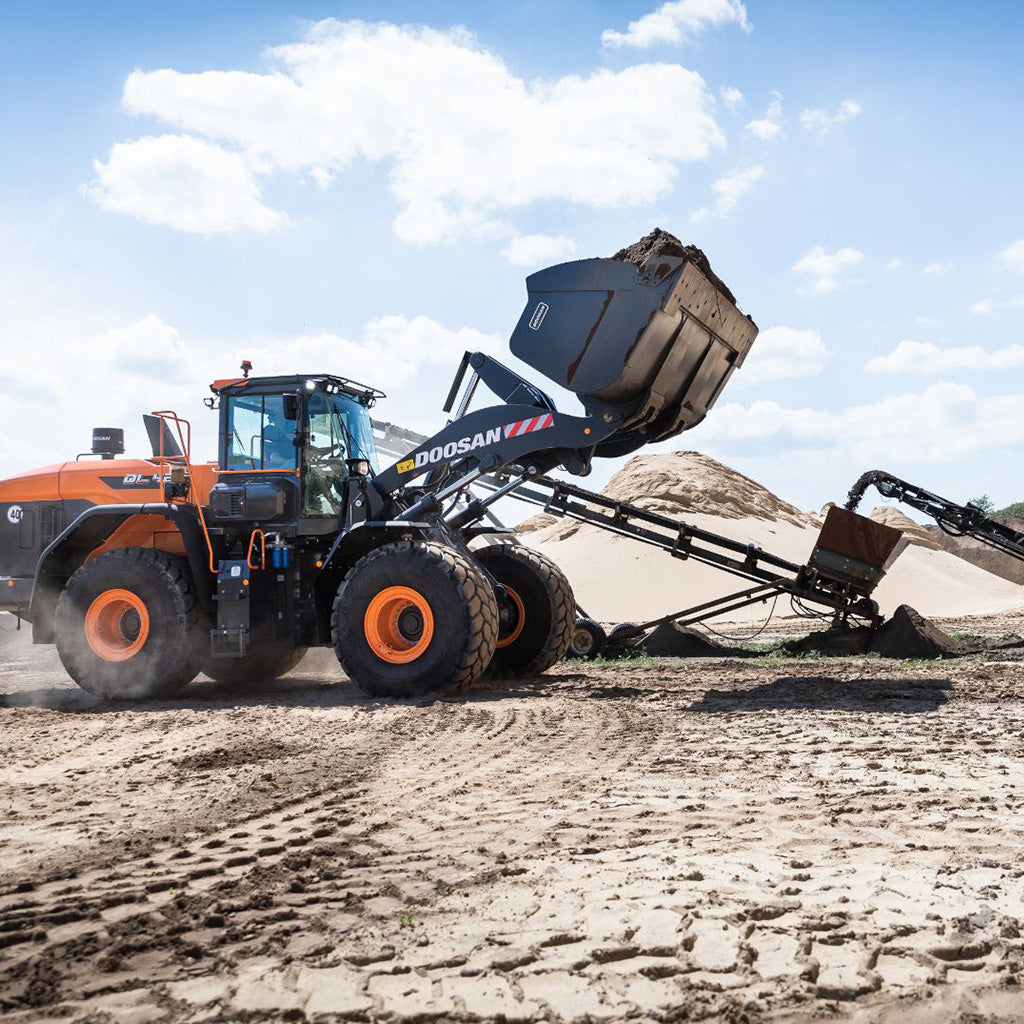

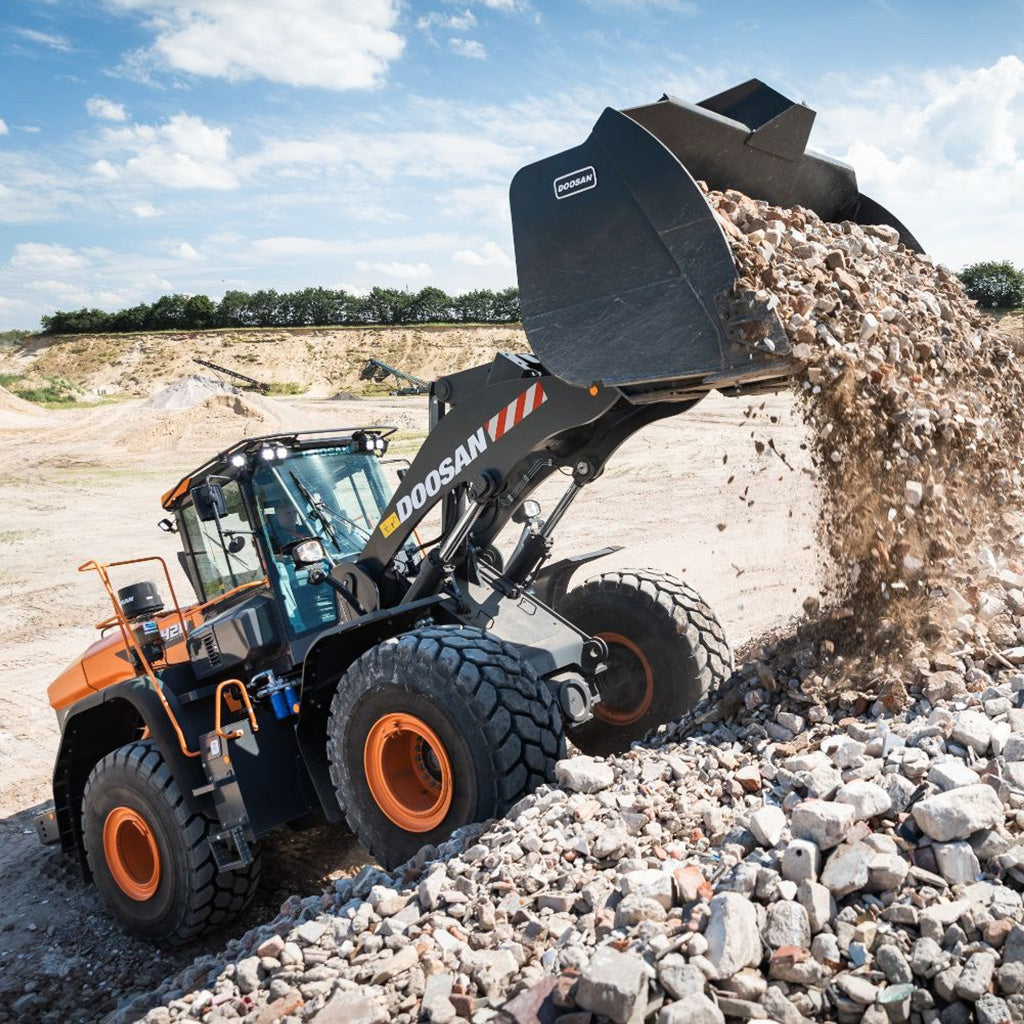

Develon DL420-7 Wheel Loader

Description

With impressive digging and high tractive power, the DEVELON DL420-7 wheel loader excels in tough applications. It's designed to take on a wide range of material handling tasks, from loading and transporting granular material (such as sand and gravel) to large general construction applications.

Powered by a powerful Tier 4 diesel engine, it can penetrate tough materials, tilt and lift with ease, and carry more in every cycle. Performance features include a powershift transmission with optimized hydraulic pumps, multiple power modes, Z-bar lift arm, return to dig, and limited slip differentials on both front and rear axles.

Configuration US10 US11 US20 US21 US50 US51
Model DC13
Rate Flywheel Power (Gross) 345 hp @ 1,800 rpm
Rated Horse Power (Net) 345 hp @ 1,800 rpm
Max Torque (Net) 1,180 lbf @ 1,300 rpm
Engine Emissions Tier (EPA) Tier 4
Engine After Treatment CEGR+DOC+SCR with DEF
Engine Make Doosan
Number of Cylinders 6
Engine Displacement 775 in³
Configuration US10 US11 US20 US21 US50 US51
MAIN PUMP: DISPLACEMENT 8.54 in³/rev
SYSTEM PRESSURE: WORK 4641 psi
MAIN PUMP: MAX. FLOW RATE (EACH) 70 gal/min
MAIN PUMP: QUANTITY 1
MAIN PUMP: MAIN RELIEF PRESSURE 4641 psi
Configuration US10 US11 US20 US21 US50 US51
TIRE SIZE 26.5R25
TREAD WIDTH 7' 7"
Configuration US10 US11 US20 US21 US50 US51
TRAVEL PERFORMANCE: GRADEABILITY 27 ° @ 51 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT 49,384 lb
Configuration US10 US11 US20 US21 US50 US51
OPERATING WEIGHT 51,553 lb. 51,553 lb. 52,159 lb. 52,159 lb. 51,553 lb. 51,553 lb.
Configuration US10 US11 US20 US21 US50 US51
BUCKET CAPACITY 5.5 yd³
BUCKET WIDTH 10' 8"
HINGE PIN HEIGHT 13' 11" 13' 11" 15' 6" 15' 6" 13' 11" 13' 11"
DUMP REACH AT 45° (FULLY RAISED) 4' 1" 4' 1" 4' 3" 4' 3" 4' 1" 4' 1"
DUMP HEIGHT AT 45° (FULLY RAISED) 10' 0" 10' 0" 11' 7" 11' 7" 10' 0" 10' 0"
OVERALL HEIGHT 12' 0"
OVERALL LENGTH 29' 11"
WHEEL BASE 11' 6"
GROUND CLEARANCE 1' 7"
EXTERNAL TURNING RADIUS AT BUCKET EDGE 22' 11" 22' 11" 22' 11" 22' 11" 22' 11" 22' 11"
STATIC TIPPING LOAD (STRAIGHT) 42,719 lb. 42,719 lb. 34,099 lb. 34,099 lb. 42,719 lb. 42,719 lb.
STATIC TIPPING LOAD (FULL TURN) 37,686 lb. 37,686 lb. 30,080 lb. 30,080 lb. 37,686 lb. 37,686 lb.
BREAKOUT FORCE 41,365 lb. 41,365 lb. 39,791 lb. 39,791 lb. 41,365 lb. 41,365 lb.
REAR AXLE OSCILLATION 24°
DIGGING DEPTH 3.0" 3.0" 4.0" 4.0" 3.0" 3.0"
Configuration US10 US11 US20 US21 US50 US51
FUEL TANK 84.01 gal.
COOLING SYSTEM 14.48 gal.
HYRDAULIC SYSTEM 58.91 gal.
HYDRAULIC TANK 33..02 gal.
DEF/AD BLUE TANK 15.85 gal.

Full Specifications

Download Spec Sheet
General
ConditionShowroom
Machine TypeWheel Loader
Engine
Horsepower345.0
Performance
Hydraulics
Dimensions & Weight
Height12'
Length29'
Width10' 6"
Operating Weight51553 lb
Fuel Tank84 gal.

Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
