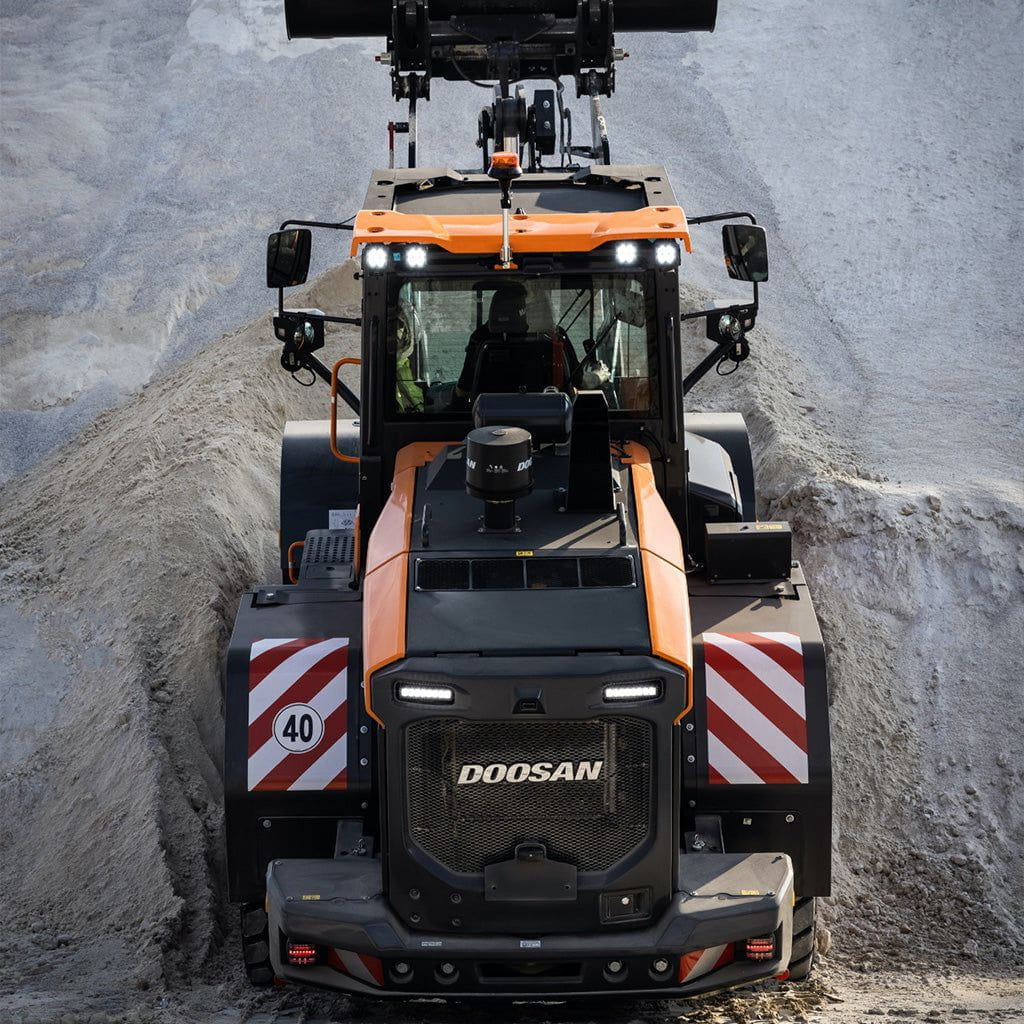

Develon DL250-7 Wheel Loader
Features:
US10: Standard Lift
.3 Ton Counterweight
Hydra Load
The 3.3-cubic-foot DL250-7 articulating wheel loader offers exceptional lift heights and generous bucket capacities to help you power through the heaviest loads. A standard Z-bar lift arm delivers excellent breakout force for digging in tough materials. Add the high-lift option for maximum dumping height. Ideal for heavy lifting in loading construction and ag applications, it offers rapid bucket movement and proper angle positioning for precision performance.
The optional Load Isolation System improves stability while moving to reduce material loss.
Full Specifications:
Engine
Configuration
US10
US11
US15
US20
US21
Model
DL06
Rate Flywheel Power (Gross)
171.1 hp @ 2,100 rpm
Rated Horse Power (Net)
171.1 hp @ 2,100 rpm
Max Torque (Net)
593 lbf @ 1,400 rpm
Engine Emissions Tier (EPA)
Tier 4
Engine After Treatment
CEGR+DOC+SCR with DEF
Engine Make
Doosan
Number of Cylinders
6
Engine Displacement
359 in³
Hydraulic System
Configuration
US10
US11
US15
US20
US21
MAIN PUMP: DISPLACEMENT
4.52 in³/rev
SYSTEM PRESSURE: WORK
3844 psi
MAIN PUMP: MAX. FLOW RATE (EACH)
40.95 gal/min
MAIN PUMP: QUANTITY
1
MAIN PUMP: MAIN RELIEF PRESSURE
3843 psi
TOTAL CYCLE TIME
11.4 s (±0.3 s)
Undercarriage
Configuration
US10
US11
US15
US20
US21
TIRE SIZE
20.5R25, L3
TREAD WIDTH
6' 8"
Travel System/Drive Mechanism
Configuration
US10
US11
US15
US20
US21
TRAVEL PERFORMANCE: GRADEABILITY
30 ° @ 58 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT
29,101 lb
Weights
Configuration
US10
US11
US15
US20
US21
OPERATING WEIGHT
30,527 lb.
30,527 lb.
30,527 lb.
30,891 lb.
30,891 lb.
Dimensions
Configuration
US10
US11
US15
US20
US21
BUCKET CAPACITY
3.27 yd³
BUCKET WIDTH
8' 11"
HINGE PIN HEIGHT
12' 7"
12' 7"
12' 7"
14' 1"
14' 1"
DUMP REACH AT 45° (FULLY RAISED)
3' 6"
3' 6"
3' 6"
3' 4"
3' 4"
DUMP HEIGHT AT 45° (FULLY RAISED)
9' 2"
9' 2"
9' 2"
10' 7"
10' 7"
OVERALL HEIGHT
10' 10"
OVERALL LENGTH
24' 6"
24' 6"
24' 6"
25' 9"
25' 9"
WHEEL BASE
10'
GROUND CLEARANCE
1' 5"
EXTERNAL TURNING RADIUS AT BUCKET EDGE
19' 10"
19' 10"
19' 10"
20' 6"
20' 6"
STATIC TIPPING LOAD (STRAIGHT)
23,973 lb.
23,973 lb.
23,973 lb.
20,111 lb.
20,111 lb.
STATIC TIPPING LOAD (FULL TURN)
21,134 lb.
21,134 lb.
21,134 lb.
17,727 lb.
17,727 lb.
BREAKOUT FORCE
23,987 lb.
23,987 lb.
23,987 lb.
24,100 lb.
24,100 lb.
REAR AXLE OSCILLATION
22°
DIGGING DEPTH
2.0"
2.0"
2.0"
5.0"
5.0"
Refill Capacities
Configuration
US10
US11
US15
US20
US21
FUEL TANK
62.08 gal.
COOLING SYSTEM
8.98 gal.
HYRDAULIC SYSTEM
31.7 gal.
HYDRAULIC TANK
22.45 gal.
DEF/AD BLUE TANK
7.93 gal.
