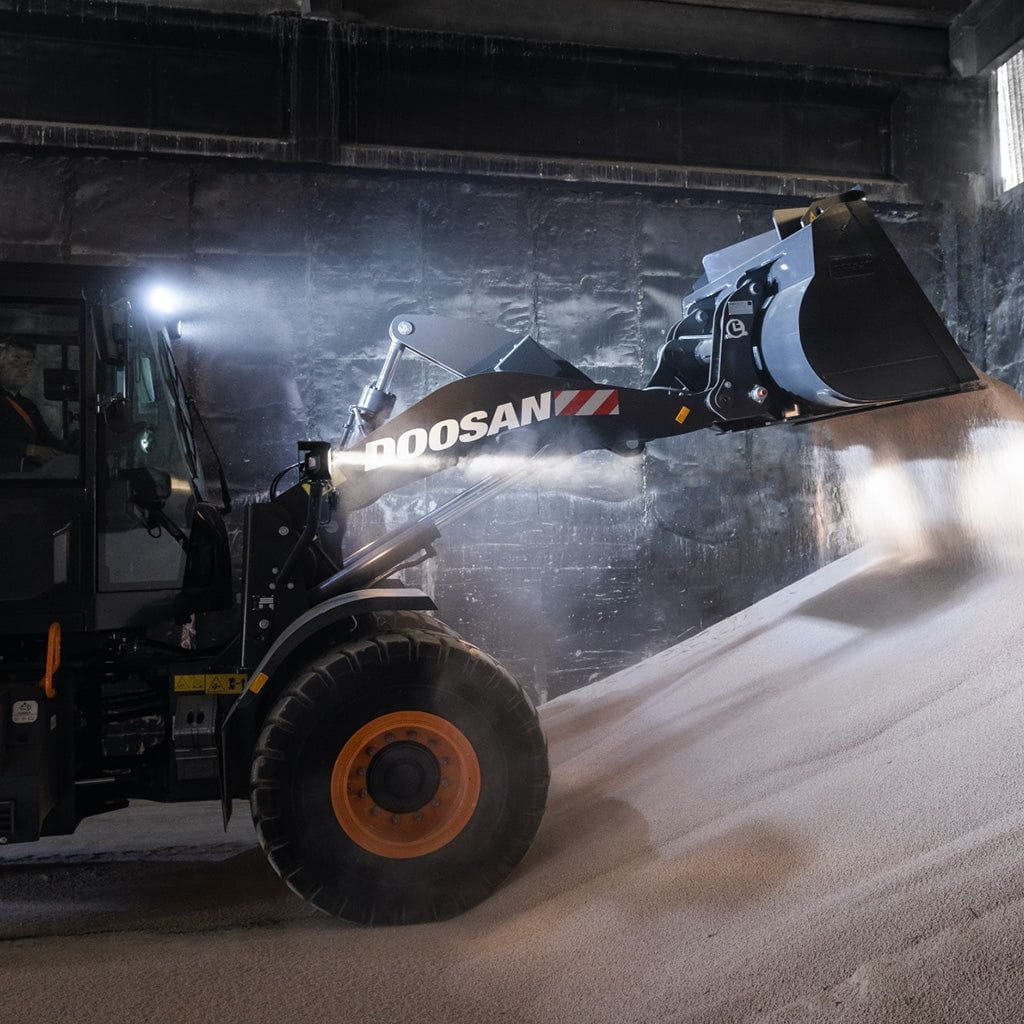

Develon DL220-7 Wheel Loader
Features:
US20: High Lift
.3 Ton Counterweight
Hydra Load
Roof Cover
Transparent Bucket
The DEVELON DL220-7 wheel loader offers the durability and maneuverability needed for carrying and loading materials on rugged ag and construction worksites. The heavy-duty axles offer impressive lift capacities, and an optional larger counterweight further enhances performance. The box frame boasts added strength, while an articulating design ensures excellent load distribution and rigidity. To reduce clogging, wider radiator fin spacing and the standard reversible fan clear dirt, dust and other large debris. A deeper front fender offers additional wheel coverage, and an optional rear full fender also improves machine reliability.
Full Specifications:
Engine
Configuration
US10
US11
US15
US20
US21
Model
DL06
Rate Flywheel Power (Gross)
159.6 hp @ 2,100 rpm
Rated Horse Power (Net)
159.6 hp @ 2,100 rpm
Max Torque (Net)
543 lbf @ 1,400 rpm
Engine Emissions Tier (EPA)
Tier 4
Engine After Treatment
CEGR+DOC+SCR with DEF
Engine Make
Doosan
Number of Cylinders
6
Engine Displacement
359 in³
Hydraulic System
Configuration
US10
US11
US15
US20
US21
MAIN PUMP: DISPLACEMENT
4.52 in³/rev
SYSTEM PRESSURE: WORK
3626 psi
MAIN PUMP: MAX. FLOW RATE (EACH)
40.95 gal/min
MAIN PUMP: QUANTITY
1
MAIN PUMP: MAIN RELIEF PRESSURE
3626 psi
TOTAL CYCLE TIME
11.4 s (±0.3 s)
Undercarriage
Configuration
US10
US11
US15
US20
US21
TIRE SIZE
20.5R25, L3
TREAD WIDTH
6' 3"
Travel System/Drive Mechanism
Configuration
US10
US11
US15
US20
US21
TRAVEL PERFORMANCE: GRADEABILITY
30 ° @ 58 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT
24,912 lb
Weights
Configuration
US10
US11
US15
US20
US21
OPERATING WEIGHT
28,922 lb.
28,922 lb.
28,922 lb.
29,463 lb.
29,463 lb.
Dimensions
Configuration
US10
US11
US15
US20
US21
BUCKET CAPACITY
3.01 yd³
BUCKET WIDTH
8' 4"
HINGE PIN HEIGHT
12' 7"
12' 7"
12' 7"
14' 1"
14' 1"
DUMP REACH AT 45° (FULLY RAISED)
3' 6"
3' 6"
3' 6"
3' 4"
3' 4"
DUMP HEIGHT AT 45° (FULLY RAISED)
9' 2"
9' 2"
9' 2"
10' 8"
10' 8"
OVERALL HEIGHT
10' 10"
OVERALL LENGTH
24' 5"
24' 5"
24' 5"
25' 8"
25' 8"
WHEEL BASE
10'
GROUND CLEARANCE
1' 5"
EXTERNAL TURNING RADIUS AT BUCKET EDGE
19' 7"
19' 7"
19' 7"
20' 2"
20' 2"
STATIC TIPPING LOAD (STRAIGHT)
23,210 lb.
23,210 lb.
23,210 lb.
19,520 lb.
19,520 lb.
STATIC TIPPING LOAD (FULL TURN)
20,461 lb.
20,461 lb.
20,461 lb.
17,207 lb.
17,207 lb.
BREAKOUT FORCE
21,537 lb.
21,537 lb.
21,537 lb.
21,649 lb.
21,649 lb.
REAR AXLE OSCILLATION
22°
DIGGING DEPTH
2.0"
2.0"
2.0"
5.0"
5.0"
Refill Capacities
Configuration
US10
US11
US15
US20
US21
FUEL TANK
62.08 gal.
COOLING SYSTEM
8.98 gal.
HYRDAULIC SYSTEM
31.7 gal.
HYDRAULIC TANK
22.45 gal.
DEF/AD BLUE TANK
7.93 gal.
