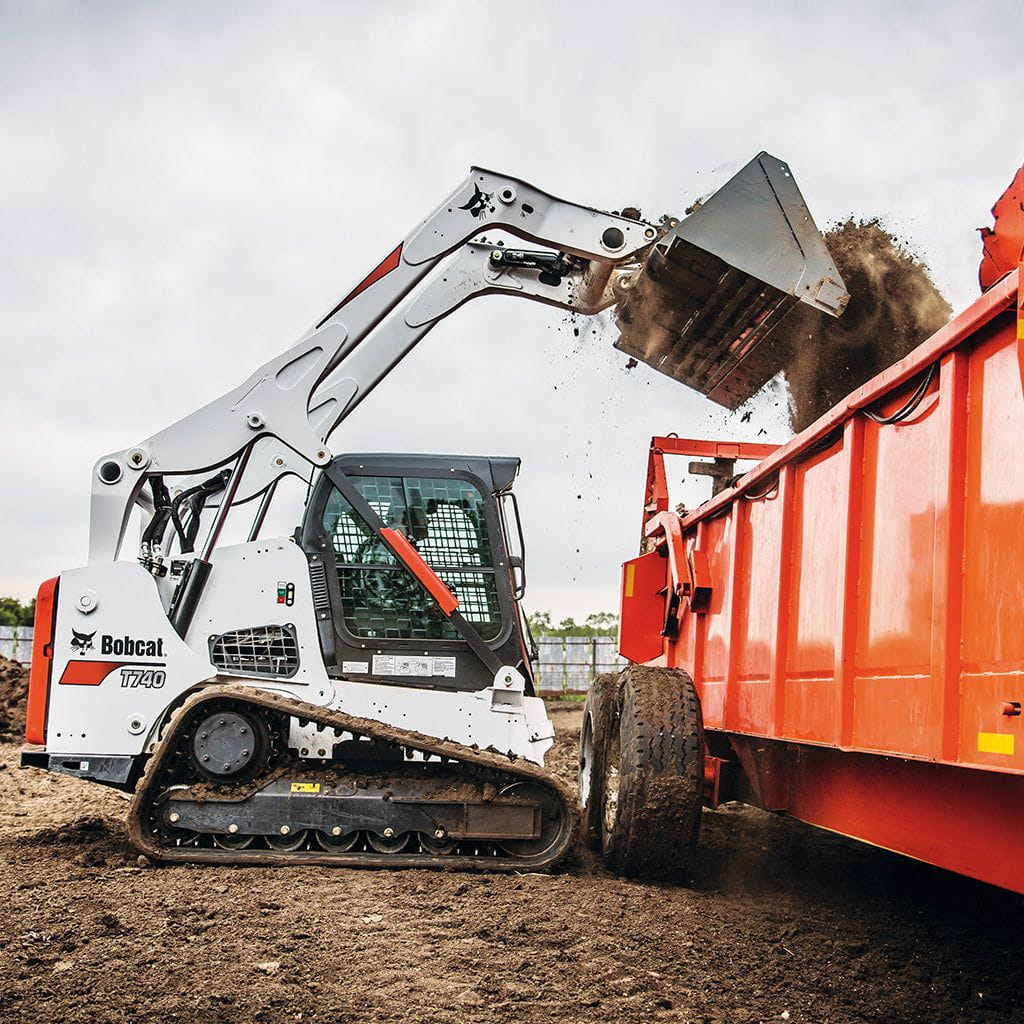

Bobcat T740 Series - Rental

Take on a wide variety of demanding tasks with the Bobcat T740 Series. Whether you're moving heavy materials, tackling demolition, or completing farm chores, this compact track loader provides the power, maneuverability, and uptime you need. Built with a Tier 4 diesel engine delivering 74 horsepower, the T740 offers dependable performance and an impressive tipping load of 9,143 lb. Its vertical-lift-arm path helps you lift large loads, while the comfortable cab ensures operator productivity. Fuel up with a 43.8-gallon tank and make the most of every workday as you push, dig, and haul your way to success.

Description

Whether your next job requires demolition, material hauling or chores around the farm, maximize your efficiency and get more done with the nimble and powerful Bobcat® T740 compact track loader.

Specs

Engine

Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	74
Turbocharged Engine	Yes

Performance

Rated Operating Capacity (ISO)	3,200 lb
Operating Capacity (50% of Tip)	4,571 lb
Tipping Load	9,143 lb
Operating Weight	10,127 lb
Travel Speed	6 mph
Travel Speed (2 - Speed Option)	8.3 mph
Ground Pressure (Rubber)	4.1 psi

Capacities

Fuel Tank

43.8 gal

Hydraulic System

System Relief @ Quick Couplers	3,500 psi
Auxiliary Std Flow	23 gal/min
Auxiliary High Flow	30.5 gal/min

Dimension

Length	114.3 in
Length Without Attachment	114.3 in
Length With Standard Bucket	141.6 in
Width	78 in
Width (With Bucket)	80 in
Height	81.3 in
Height With Operator Cab	81.3 in
Height to Bucket Hinge Pin	131 in
Reach @ Maximum Height	35.2 in
Turning Radius	88 in
Length of Track on Ground	63.7 in
Track Width	17.7 in
