Rated Operating Capacity	2,200 lb
Operating Weight	8,022 in
Ground Pressure - Rubber Track	5.1 psi
Auxiliary Standard Flow	17.1 gal/min

Emissions Tier	Tier 4
Engine Fuel	Diesel
Horsepower	70 hp
Turbocharged Engine	Yes

Rated Operating Capacity	2,200 lb
Operating Capacity - 50% of Tip	3,142 lb
Tipping Load	6,517 lb
Operating Weight	8,022 lb
Travel Speed	7.1 mph
Ground Pressure	5.1 psi

Auxiliary Standard Flow	17.1 GPM
System Relief @ Quick Couplers	3,550 PSI

Length	133 in
Length without Attachment	104.5 in
Length with Standard Bucket	133 in
Width	67 in
Width with Bucket	68 in
Height	77.8 in
Height to Bucket Hinge Pin	119 in
Reach @ Maximum Height	23.5 in
Turning Radius	80 in
Length of Track on Ground	54.1 in
Track Width	15.7 in

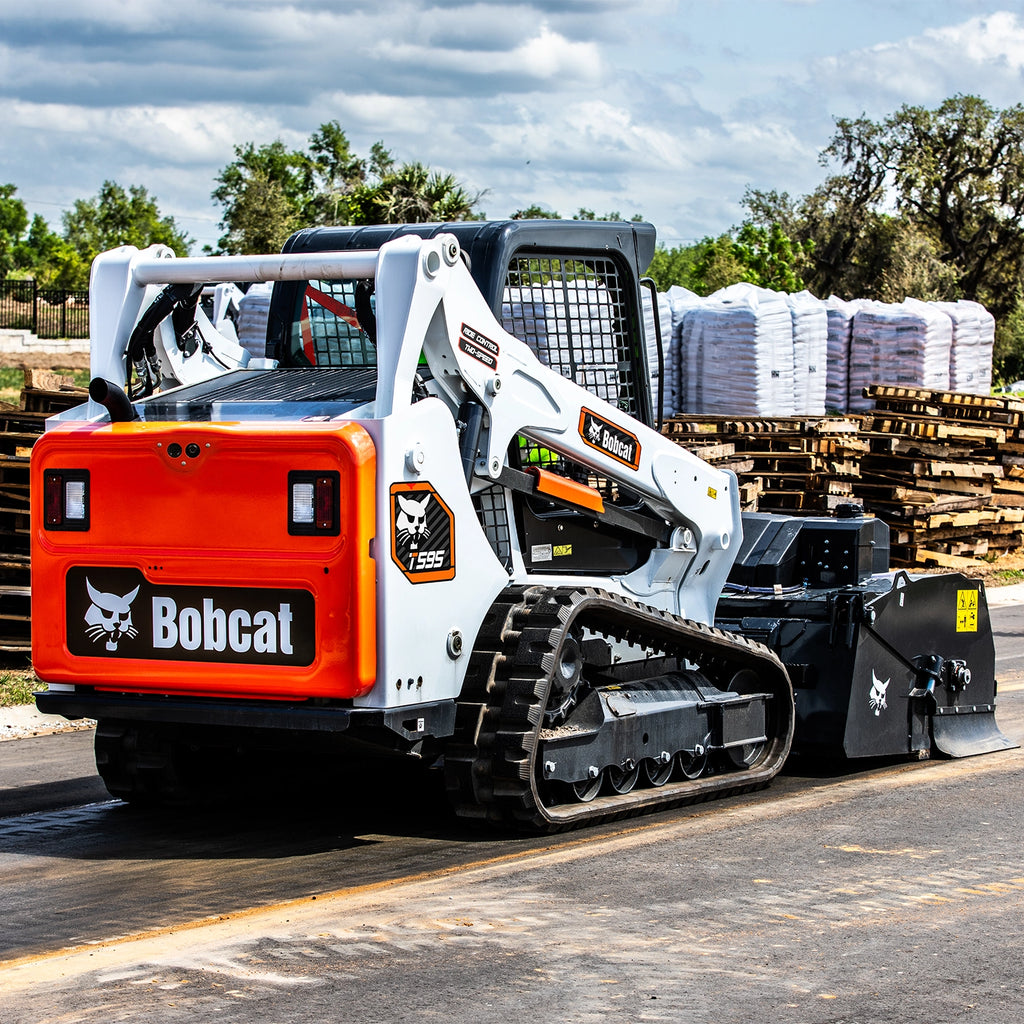

If you frequently place pallets of blocks or sod, or dump into high-sided trucks, a vertical lift path may be the best choice. On vertical-lift-path loaders, the load is raised straight up, closer to the machine. You can safely lift more than an identical radius-lift-path machine. Since you have more reach at full lift height, you dump into the center of the truck — or keep the loader farther away, depending on your needs.

Bobcat engines meet Tier 4 regulations without a diesel particulate filter (DPF). This reduces downtime that occurs with DPF regeneration and minimizes long-term DPF maintenance costs. M3-Series loaders are designed to deliver more usable horsepower, so you can work quicker, lift more and outperform the competition.

The Bobcat cooling system senses engine temperatures and only turns the fan as fast as needed, reducing sound levels and providing excellent protection from overheating. A patented dual-path cooling system draws cool, clean air from above, and forces hot air out two side vents, directing it away from the operator.

DRIVE RESPONSE MODE

Drive response mode allows you to choose how the drive responds to joystick movement. Whether you like a more gradual response, quicker response or something in between, three different settings put you in control.

SPEED MANAGEMENT

Simply “dial in” your required travel speed in small increments to match speed to your operation requirements and maximize attachment performance. Speed management gives you a full range of joystick motion with maximum driveline torque and full hydraulic power at slower machine speed.

STEERING DRIFT COMPENSATION

Steering drift compensation keeps you on a straight path by helping you make minor adjustments to the steering. It’s beneficial when you side-shift certain attachments, such as planers or trenchers, as this will tend to pull the machine to one side. You can also use it while driving on surfaces that cause the loader to gradually drift left or right, such as crowned roads. Make fine steering adjustments to either side and stay on target.

HORSEPOWER MANAGEMENT

Bobcat horsepower management automatically adjusts the loader drive system to maximize pushing and digging power while minimizing your chance of stalling. Unlike other anti-stall systems, Bobcat horsepower management lets the operator obtain maximum engine and drive torque to match the toughest digging conditions. If you prefer to work without it, simply disengage with the push of a button.

Use your iPhone® to control your machine remotely. Bobcat MaxControl remote operation is an iOS app that makes operating your machines easier and more convenient than ever before. It acts like an extra set of hands when help is limited. Two-person jobs can now be handled by one worker, and you can say goodbye to unnecessary trips in and out of the cab.
