Bobcat® T870 Compact Track Loader
Description

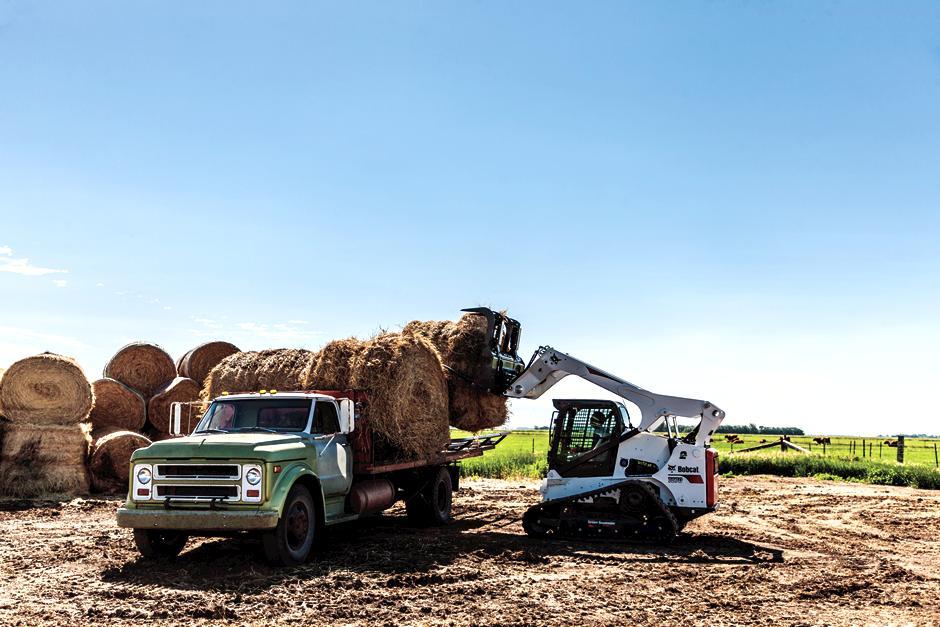

As the highest-lifting loader on the market, the T870 can handle heavier loads than ever before, giving you access to bigger jobs and increased productivity with every lift cycle. It features the industry-leading 5-Link torsion suspension undercarriage. Load over hay wagons, mortar mixers or tandem axle trucks with side boards. Easily stack brick, blocks and other palletized materials.Specs
Configuration | Standard |
Engine
Emissions Tier (EPA) | Tier 4 |
Engine Cooling | Liquid |
Engine Fuel | Diesel |
Horsepower | 100 hp |
Turbocharged Engine |
Optional |
Performance
Rated Operating Capacity (ISO) | 3,650 lb |
Operating Capacity (50% of Tip) | 5,215 lb |
Tipping Load | 10,430 lb |
Operating Weight | 12,925 lb |
Travel Speed | 5.5 mph |
Travel Speed (2 - Speed Option) | 9.3 mph |
Ground Pressure (Rubber) | 4.8 psi |
Capacities
Fuel Tank | 32.6 gal |
Hydraulic System
System Relief @ Quick Couplers | 3,500 psi |
Auxiliary Std Flow | 23 gal/min |
Auxiliary High Flow | 36.6 gal.min |
Dimension
Length | 153.9 in |
Length Without Attachment | 119.3 in |
Length With Standard Bucket | 153.9 in |
Width | 82.8 in |
Width (With Bucket) | 84.8 in |
Height | 83.6 in |
Height With Operator Cab | 83.6 in |
Height to Bucket Hinge Pin | 144 in |
Reach @ Maximum Height | 36.5 in |
Turning Radius | 99 in |
Length of Track on Ground |
70.2 in |
Track Width |
17.7 in |
