Bobcat® Spreader

Need to spread sand and salt for winter maintenance? Or seed and fertilizer for lawn care? Whatever the job, the spreader attachment gets it done right and provides the versatility for all types of spreading jobs. The corrosion-free, all-poly hopper stands up to tough sand and salt combinations.

SP12 Spreader: For Your Toolcat 5600
Equip your utility work machine to spread sand and salt with the SP12 spreader attachment. With a 13.5 cubic foot hopper, the all-poly unit mounts in the cargo box and can hold more material for larger spreading jobs. A dash-mounted spreader control allows the operator to adjust the auger and spinner speed to spread material from 5 to 40 feet from inside the cab. Because the spreader mounts in the rear of the utility work machine, use a front mounted attachment such as a blade, blower or broom to clear snow before spreading.

  • Dash-Mounted Control: Use the two variable-speed dials for independent adjustment of the auger and spinner control directly from the operator's seat.
  • Mesh Screen: Large chunks of sand and salt are filtered through this screen at the top of the hopper for even, consistent flow.
  • Three-Stage Baffle: Covers the auger and allows an operator to adjust the material flow required due to material granularity.
  • Vibrator Kit: Standard on the SP12, this kit reduces bridging of material for a constant and even flow.

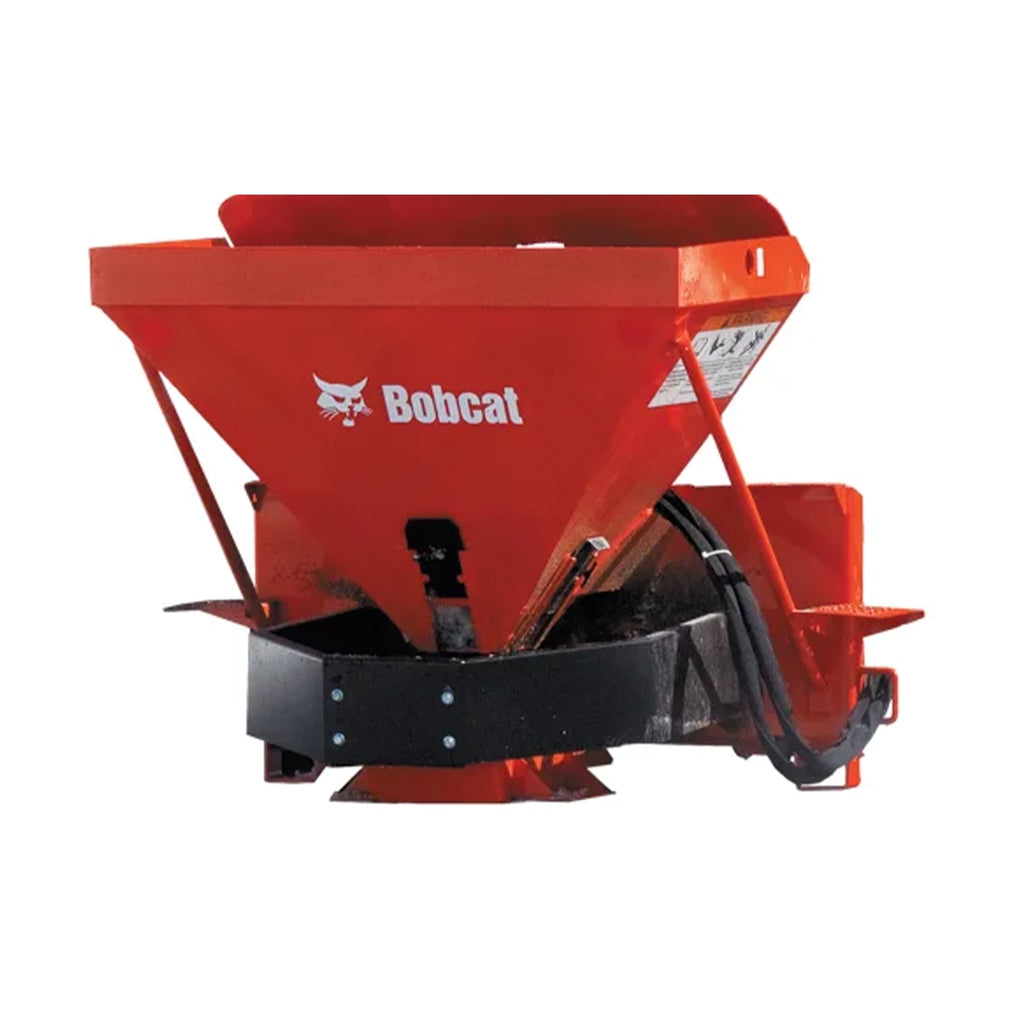

HS8 Spreader: Hydraulic Control and Convenience
The Hydraulic Spreader (HS8) attachment is Bobcat's first hydraulic spreader. The self-loading hopper on the HS8 has an open top and can be used as a bucket, allowing an operator to efficiently fill the spreader from a pile rather than pour material into the top. With an 8 cubic foot hopper, the spread pattern is controlled by a hydraulic motor and three material flow gates that spread from 18 to 28 feet. The three individual gates, located on the hopper, maintain the rate of material spread.

  • Hopper Grate: Filters unwanted debris from spread material.
  • Hydraulic System: Spread pattern controlled by hydraulic motor that gives spread pattern of 18 to 28 feet.
  • Self-Loading Hopper: Allows the operator to use the hopper as a bucket, filling the spreader from a pile. Quickly and efficiently reload the spreading material into the hopper for big parking lot or road coverage jobs.
  • Sidewalk Kit (optional): Keeps spreading material from being cast out of the bounds of the sidewalk; compresses spread pattern to 29-38 in.



Top Tasks

  • Maintain parking lots, sidewalks, driveways and alleys
Spreader Types Sand and Salt Spreader HS8 Spreader

General

Operating Weight 325 lb 387 lb
Length 78.5 in 32.1 in
Width 48.5 in 54.4 in
Height 44.7 in 40.9 in
Hopper Capacity 13.5 ft³ 9.6 ft³
Spreading Pattern Min 5 ft 18 ft
Spreading Patter Max 40 ft 28 ft
Speed Control Variable Speed Control Dial Variable, Hydraulic
Motor 12-Volt DC Direct Drive Hydraulic
Spinner Wheel 12" Diameter 18" Diameter



Compatible Carriers

Skid-Steer Loaders
Bobcat A770



Bobcat S450



Bobcat S550



Bobcat S570



Bobcat S590



Bobcat S595



Bobcat S630



Bobcat S650



Bobcat S740



Bobcat S770



Bobcat S850



Compact Track Loaders
Bobcat T450



Bobcat T550



Bobcat T590



Bobcat T595



Bobcat T630



Bobcat T650



Bobcat T740



Bobcat T770



Bobcat T870



Toolcat™ Work Machine
Bobcat 5600





Bobcat 5610
