Bobcat® E55 Compact Excavator

Description

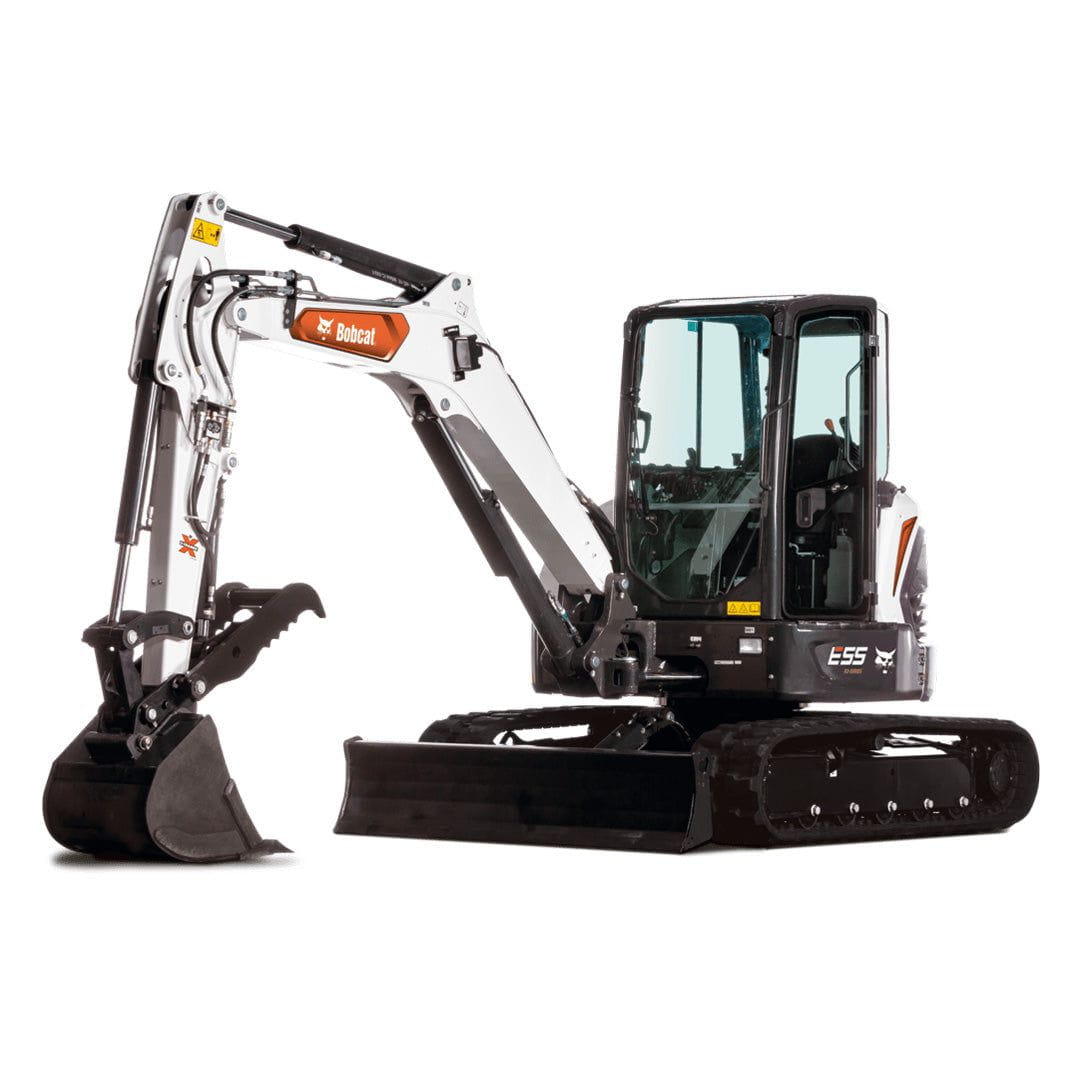

The Bobcat® E55 compact excavator (mini excavator) is a conventional tail swing model with exceptional performance, dig depth and dump height. The conventional tail swing makes it easier to move your machine through tight spaces such as doors, gates, and onto trailers. The Tier 4-compliant E55 is available with clamp-ready extendable-arm configuration that provides additional length when fully extended. Gain ultimate reach without having to upsize the machine. An angle blade option is also available.

Specs

Configuration

Bobcat E55

Engine



Emissions Tier (EPA)	Tier 4
Engine Fuel	Diesel
Maximum Governed RPM	2,200 rpm
Horsepower	49.8 hp
Turbocharged Engine	Optional
Optional Horsepower	N/A

Performance

Operating Weight	12,004 lb
Weight Class	5.6 t
Travel Speed - High	3.1 mph
Travel Speed - Low	1.9 mph
Arm Digging Force	5,751 lbf
Bucket Digging Force	8,977 lbf
Rated Lift Capacity	4,999lb
Lift Radius	118 in
Boom Swing - Left	75°
Boom Swing - Right	55°
Maximum Dig Depth	12.9 ft
Max Dump Height	13.6 ft
Maximum Reach at Ground Level	20 ft

Capacities

Fuel Tank

21.1 gal

Hydraulic System

Auxiliary Std Flow	20 gal/min
Auxiliary Pressure	3,045 psi

Dimension

Length	206.4 in
Overall Length in Travel Position	206.4 in
Width	77.2 in
Height	100 in
Height with Operator Cab	100 in

Attachments

Features may include:

• Powerful Hydraulics

• Hydraulic X-Change System

• Extendable Arm

• Selectable Auxiliary Hydraulic Flow

• Angle Blade

• Selectable Control Pattern

• Auto Idle

• Auto Shift

• Fingertip Boom Swing Control

• 2-Speed Travel

• Conventional Tail Swing

• Depth Check

• Blade Float

• Engine Monitoring

• In-Track Swing Frame

• Instrumentation

• Protected Components

• Machine Protection

• Keyless Start

• Separable Cooling Cores

• Steel Tracks

• Integrated Slew Brakes

• Reversible Cutting Edge

• Fuel Fill Alert
