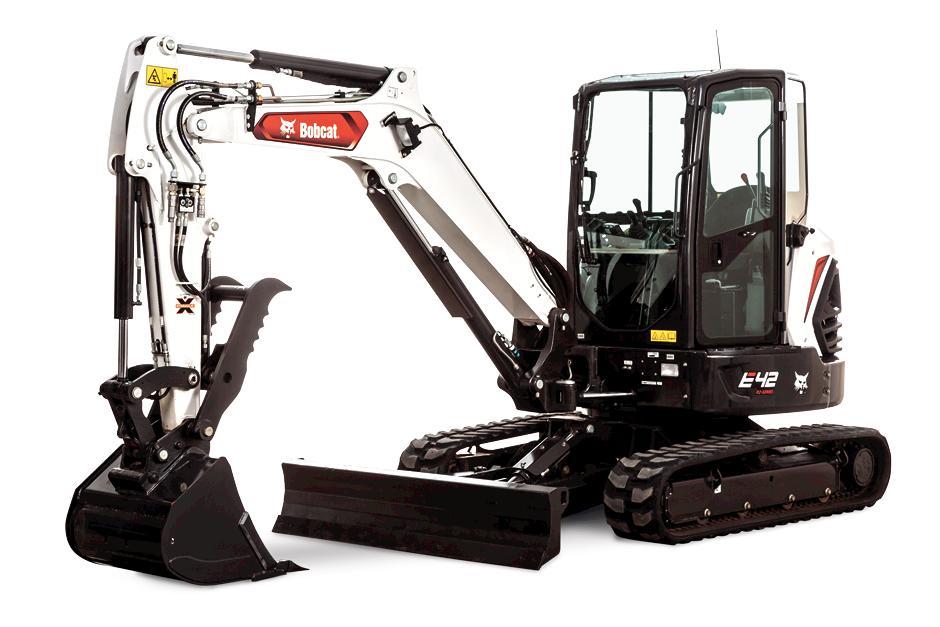

Bobcat® E42 Compact Excavator

Description

The E42 compact (mini) excavator offers enhanced hydraulic performance, improved efficiency and more precise control so you can push the limits and take on more complex work. The E42 is an R2-Series excavator and features a redesigned Bobcat® engine that improves performance, simplifies maintenance and maximizes uptime. Configure it with the optional long arm or extendable arm to increase your dig depth and reduce the frequency of repositioning the machine. Standard features include low-effort joysticks that respond easily to operator input, an improved cooling system to control engine compartment temperature and a larger slew bearing with improved durability. An optimized hydraulic control valve gives operators improved metering, finite movement and controllability for level grading. Plus, the conventional tail swing is well-balanced for better lift capacity and increased operator confidence. Additional options include a state-of-the-art touch display, angle blade and a rear camera for maximum visibility and productivity.

Specs

Configuration

Standard

Long Arm

Extendable Arm

Engine



Emissions Tier (EPA)	Tier 4
Engine Fuel	Diesel
Maximum Governed RPM	2,200 rpm
Horsepower	42.7 hp
Turbocharged Engine	Optional
Optional Horsepower	N/A

Performance

Operating Weight	9,246 lb	9,722 lb	9,976 lb
Weight Class	4.2 t	4.4 t	4.5 t
Travel Speed - High	2.9 mph	2.9 mph	2.9 mph
Travel Speed - Low	1.6 mph	1.6 mph	1.6 mph
Arm Digging Force	5,762 lbf	4,953 lbf	5,672 lbf
Bucket Digging Force	9,183 lbf	9,183 lbf	9,183 lbf
Rated Lift Capacity	4603 lb	4435 lb	4180 lb
Lift Radius	118 in	118 in	118 in
Boom Swing - Left	75°	75°	75°
Boom Swing - Right	55°	55°	55°
Maximum Dig Depth	10.5 ft	11.5 ft	12.5 ft
Max Dump Height	12.2 ft	12.8 ft	13.3 ft
Maximum Reach at Ground Level	17.3 ft	18.2 ft	19.1 ft

Capacities

Fuel Tank

21.1 gal

Hydraulic System

Auxiliary Std Flow	20 gal/min
Auxiliary Pressure	3,045 psi

Dimension

Length	200 in	201.6 in	200 in
Overall Length in Travel Position	200 in	201.6 in	200 in
Width	68.9 in	68.9 in	68.9 in
Height	98.7 in	98.7 in	98.7 in
Height with Operator Cab	98.7 in	98.7 in	98.7 in

Attachments

Features may include:

• Arm Configurations

• Hydraulic X-Change System

• Extendable Arm

• Selectable Auxiliary Hydraulic Flow

• Angle Blade

• Selectable Control Pattern

• Auto Idle

• Auto Shift

• Fingertip Boom Swing Control

• 2-Speed Travel

• Conventional Tail Swing

• Depth Check

• Blade Float

• Engine Monitoring

• In-Track Swing Frame

• Protected Components

• Machine Protection

• Separable Cooling Cores

• Integrated Slew Brakes

• Steel Tracks

• Reversible Cutting Edge

• Fuel Fill Alert

• Simple Machine Tie-Down

• X-Frame Undercarriage
