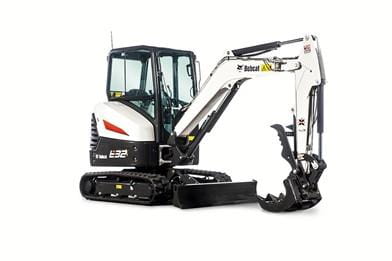

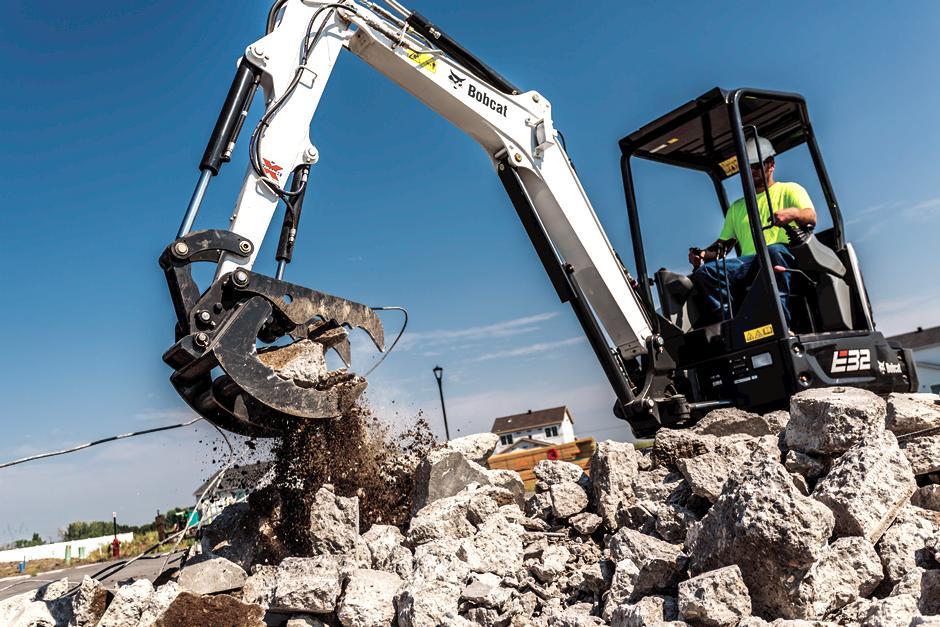

Bobcat® E32 Compact Excavator

Description

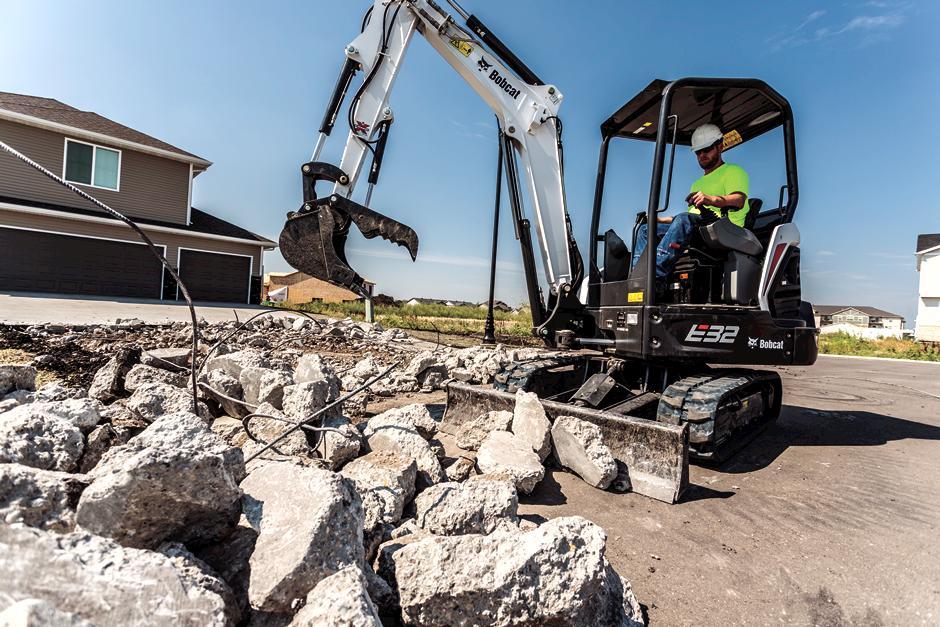

Part of the R-Series, the Bobcat® E32 compact (mini) excavator packs powerful performance and maneuverability into a conventional tail swing design. Narrower than the E35, this machine is ideal if you frequently work around width restrictions such as doors or gates. Boost your digging performance with the long arm option or a clamp-ready extendable arm option.

Specs

Configuration

E32R Std Arm

E32R (EA)

E32R (LA)

Engine



Emissions Tier (EPA)	Tier 4
Engine Fuel	Diesel
Maximum Governed RPM	2,200 rpm
Horsepower	24.8 hp
Turbocharged Engine	N/A
Optional Horsepower	N/A

Performance

Operating Weight	7,340 lb	8,434 lb	8,203 lb
Weight Class	3.3 t	3.8 t	3.7 t
Travel Speed - High	2.9 mph	2.9 mph	2.9 mph
Travel Speed - Low	1.6 mph	1.6 mph	1.6 mph
Arm Digging Force	4,589 lbf	4,478 lbf	3,986 lbf
Bucket Digging Force	6,969 lbf	6,968 lbf	6,968 lbf
Rated Lift Capacity	2969 lb	2564 lb	2702 lb
Lift Radius	118 in	118 in	118 in
Boom Swing - Left	75°	75°	75°
Boom Swing - Right	55°	55°	55°
Maximum Dig Depth	10.2 ft	12.9 ft	11.2 ft
Max Dump Height	11 ft	12.5 ft	11.5 ft
Maximum Reach at Ground Level	16.3 ft	18.9 ft	17.4 ft

Capacities

Fuel Tank

13.7 gal

Hydraulic System

Auxiliary Std Flow	16.9 gal/min
Auxiliary Pressure	2,987 psi

Dimension

Length	183.5 in	187.7 in	187.5 in
Overall Length in Travel Position	183.5 in	187.7 in	187.5 in
Width	61 in	61 in	61 in
Height	96.2 in	96.2 in	96.2 in
Height with Operator Cab	96.2 in	96.2 in	96.2 in

Attachments

Features may include:

• Advanced Hydraulics

• Predictable Control

• Dual Flange Roller System

• Fingertip Boom Swing Control

• Deluxe Instrumentation

• Depth Check System

• Multiple Arm Configurations

• Extendable Arm

• Integrated Rear Counterweight

• 2-Speed Travel

• Auto Shift Travel

• Blade Float
