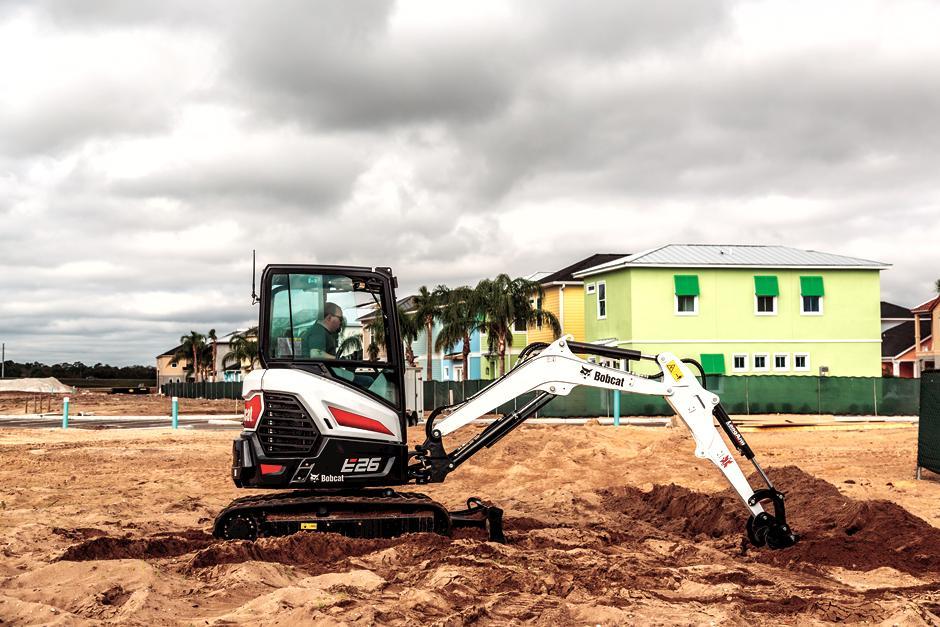

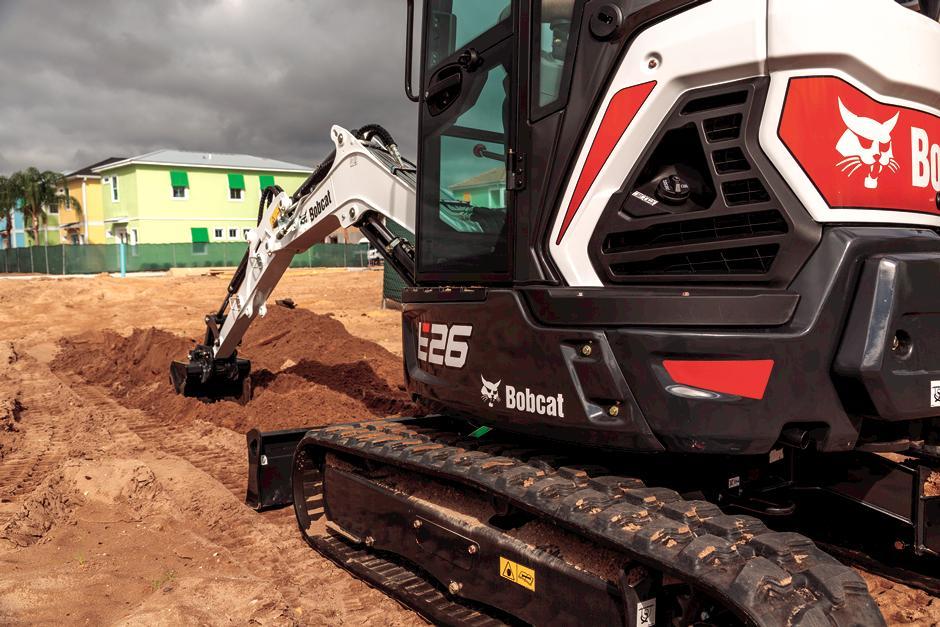

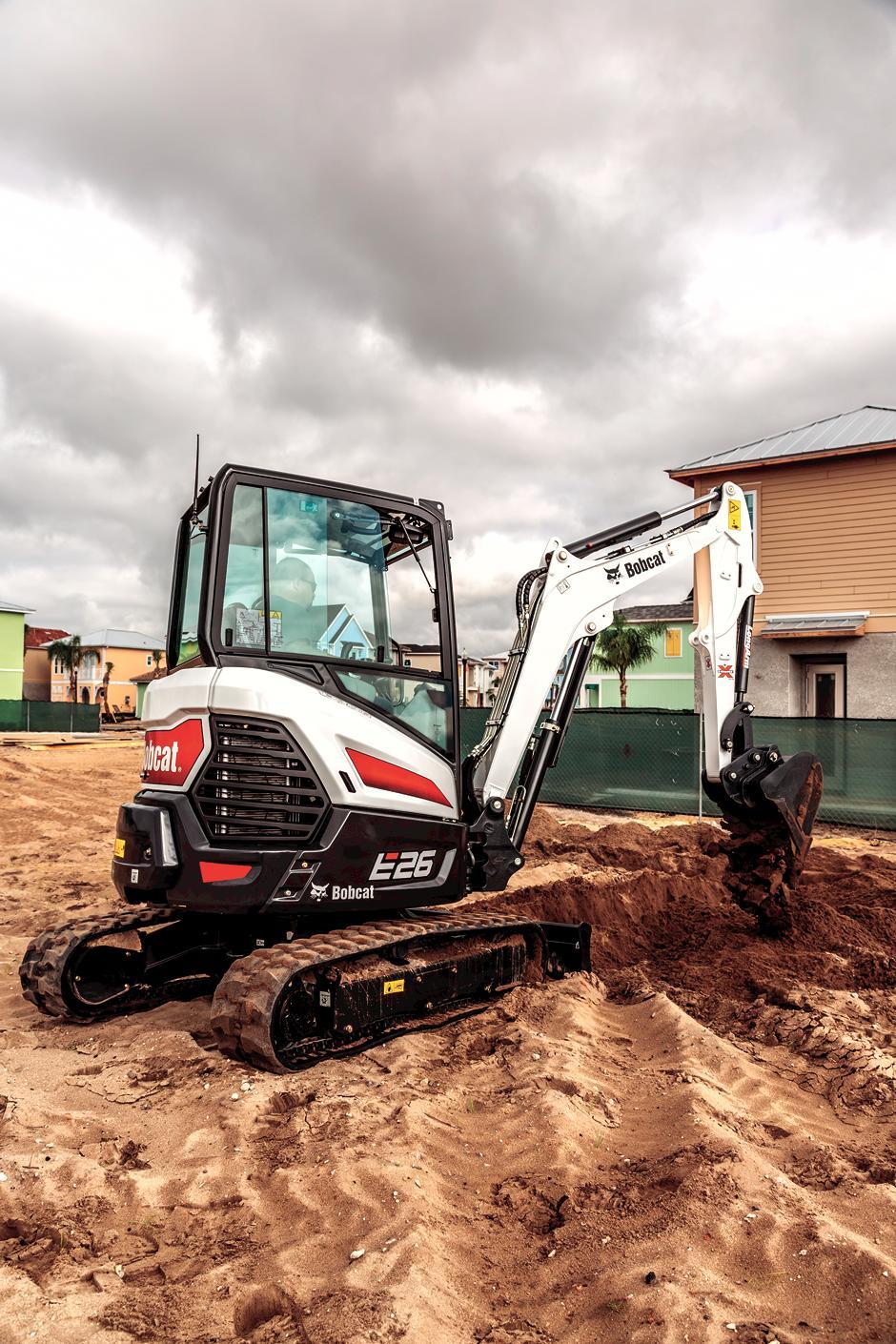

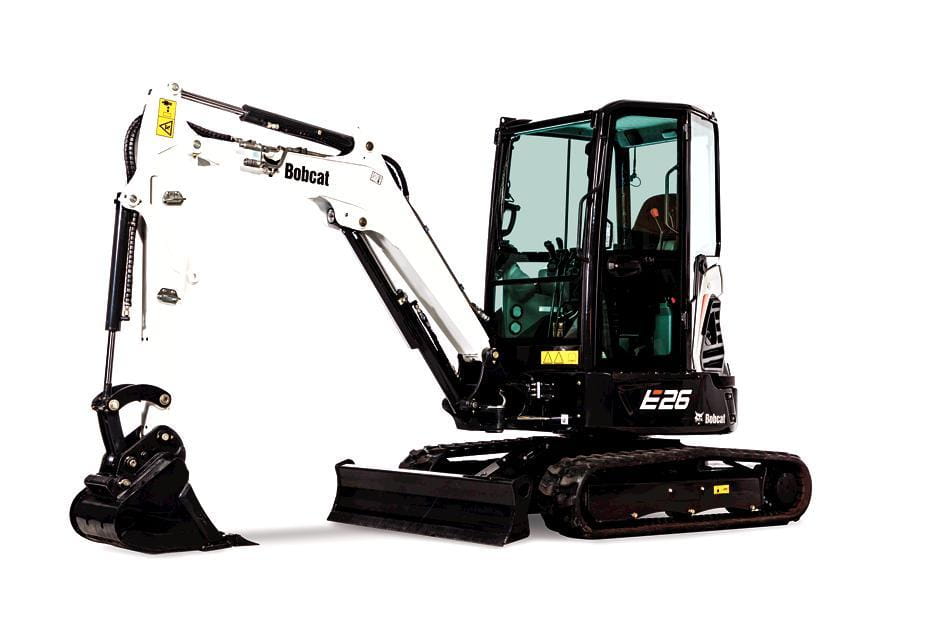

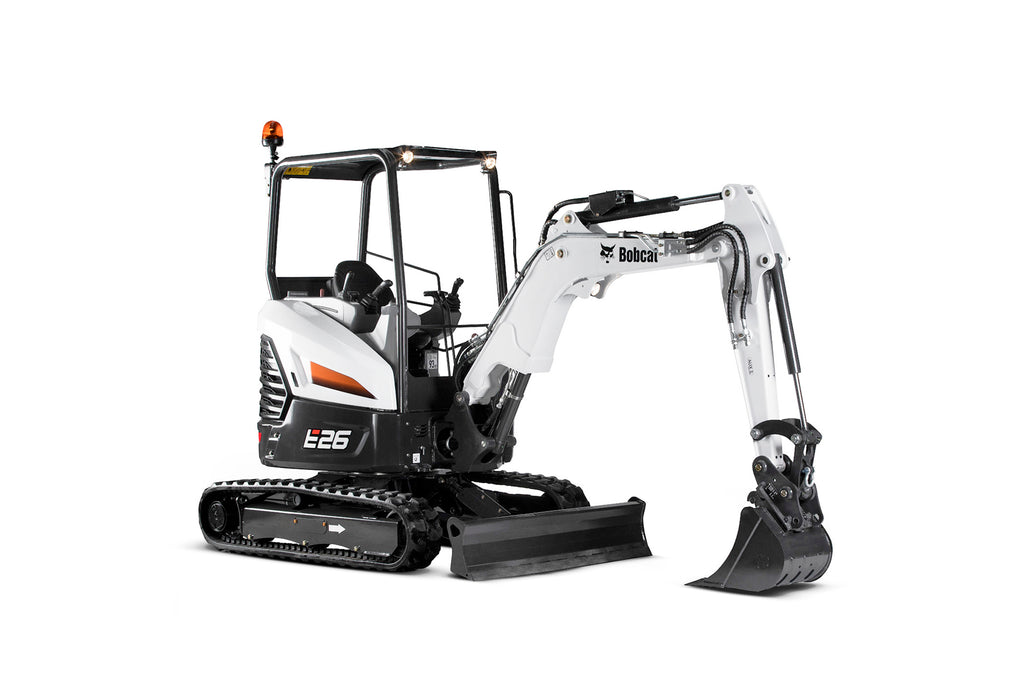

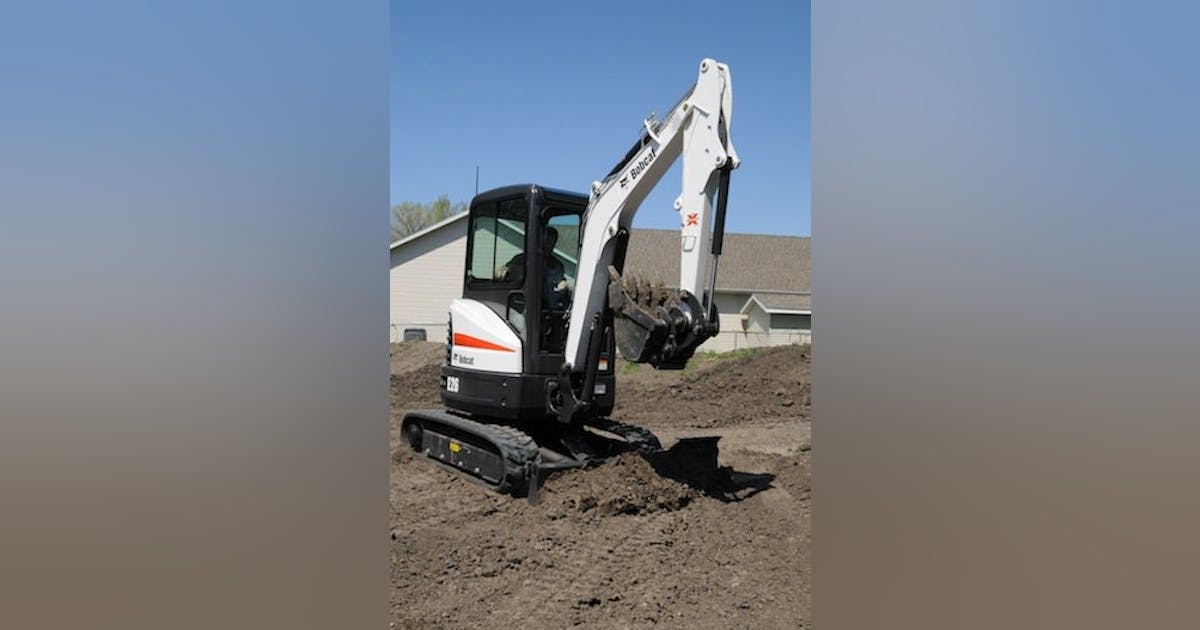

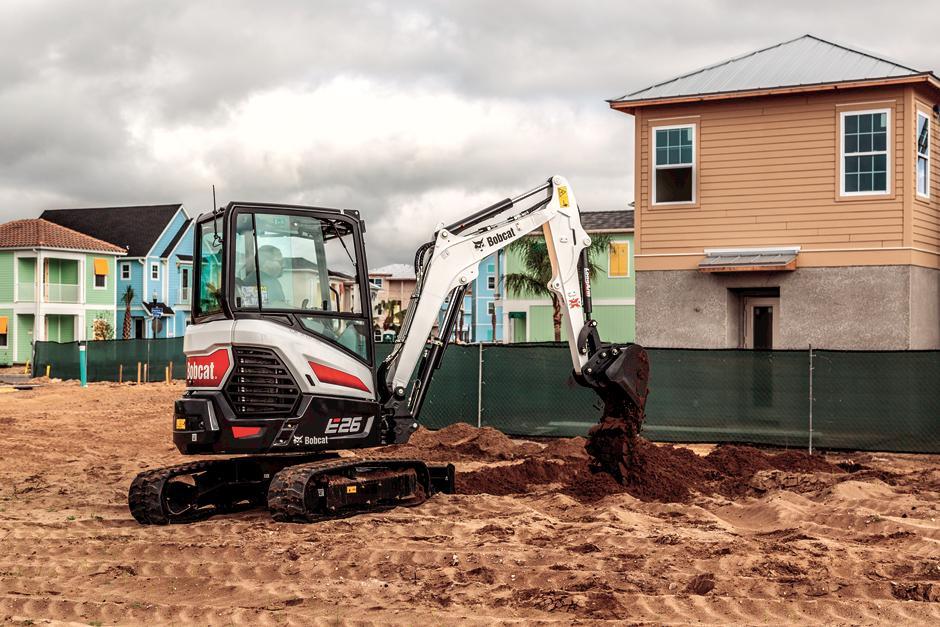

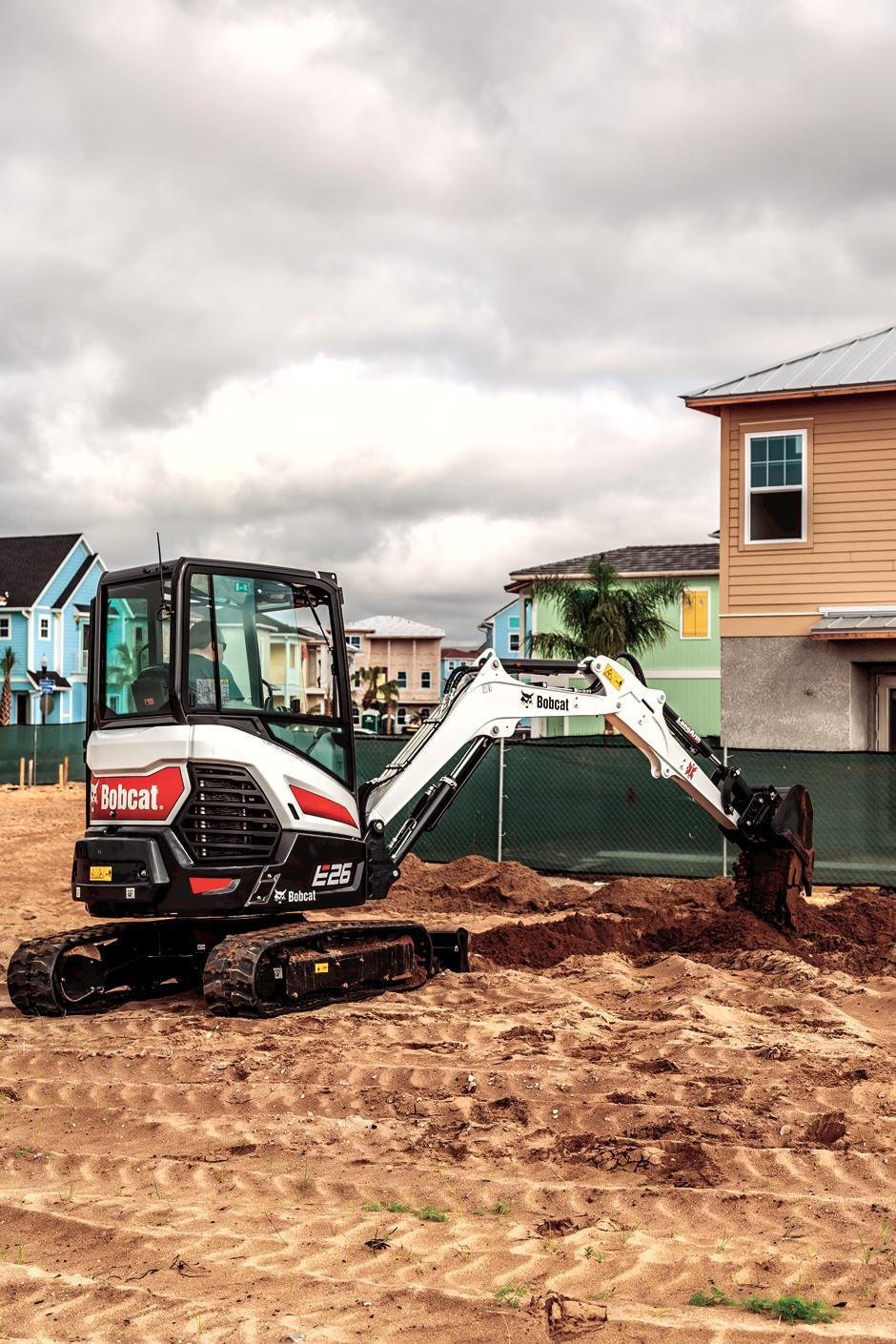

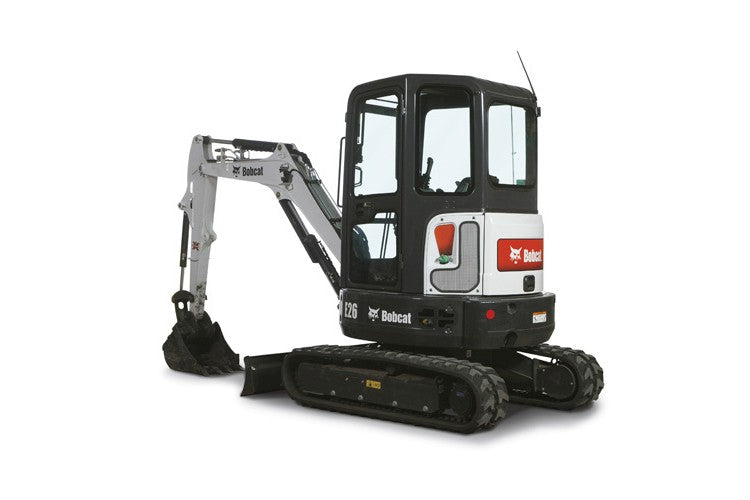

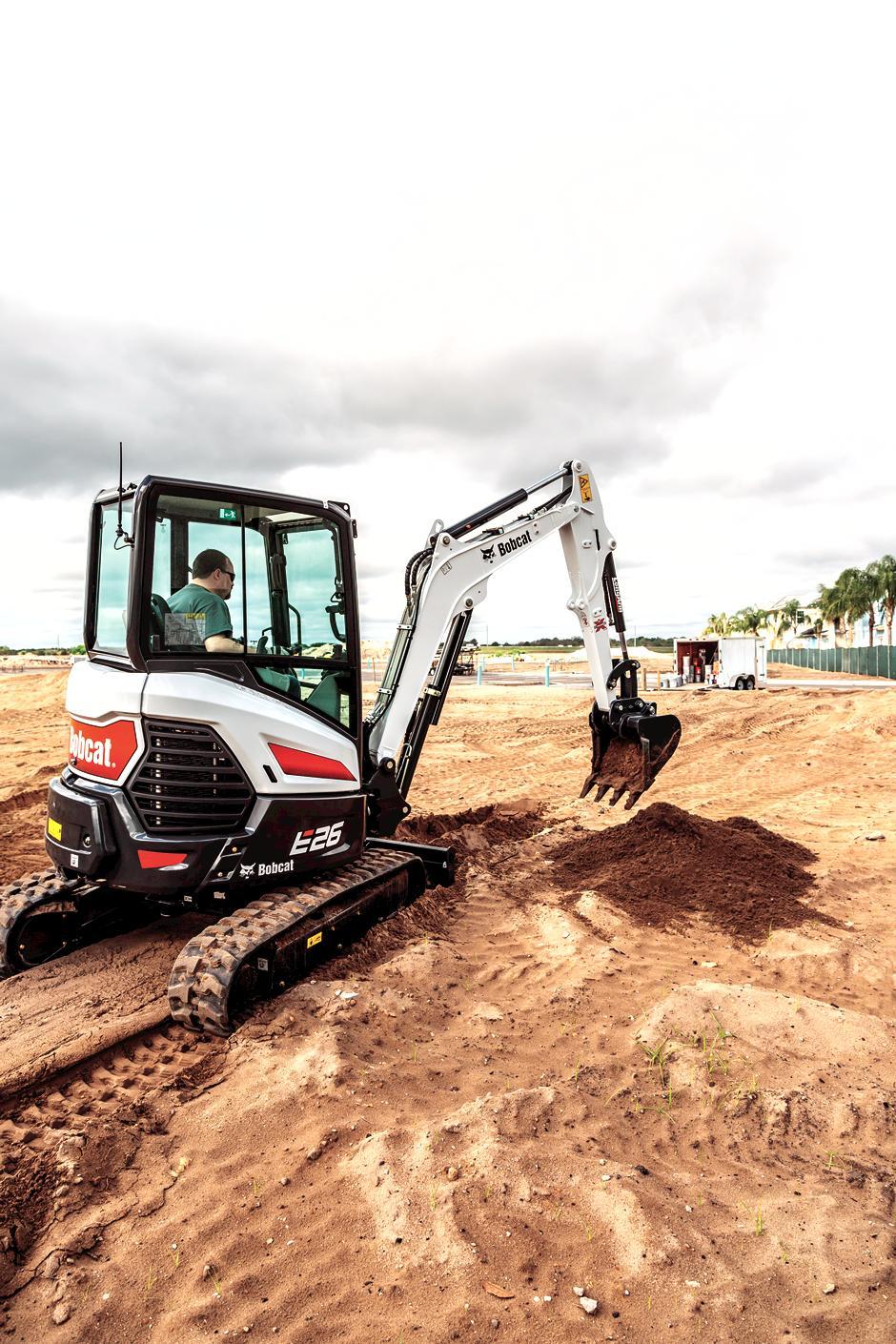

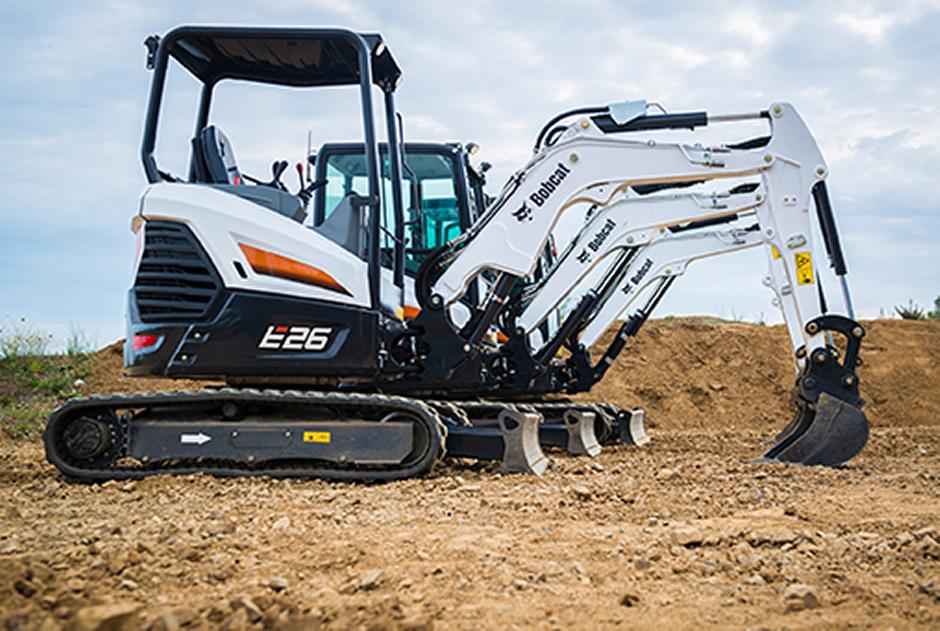

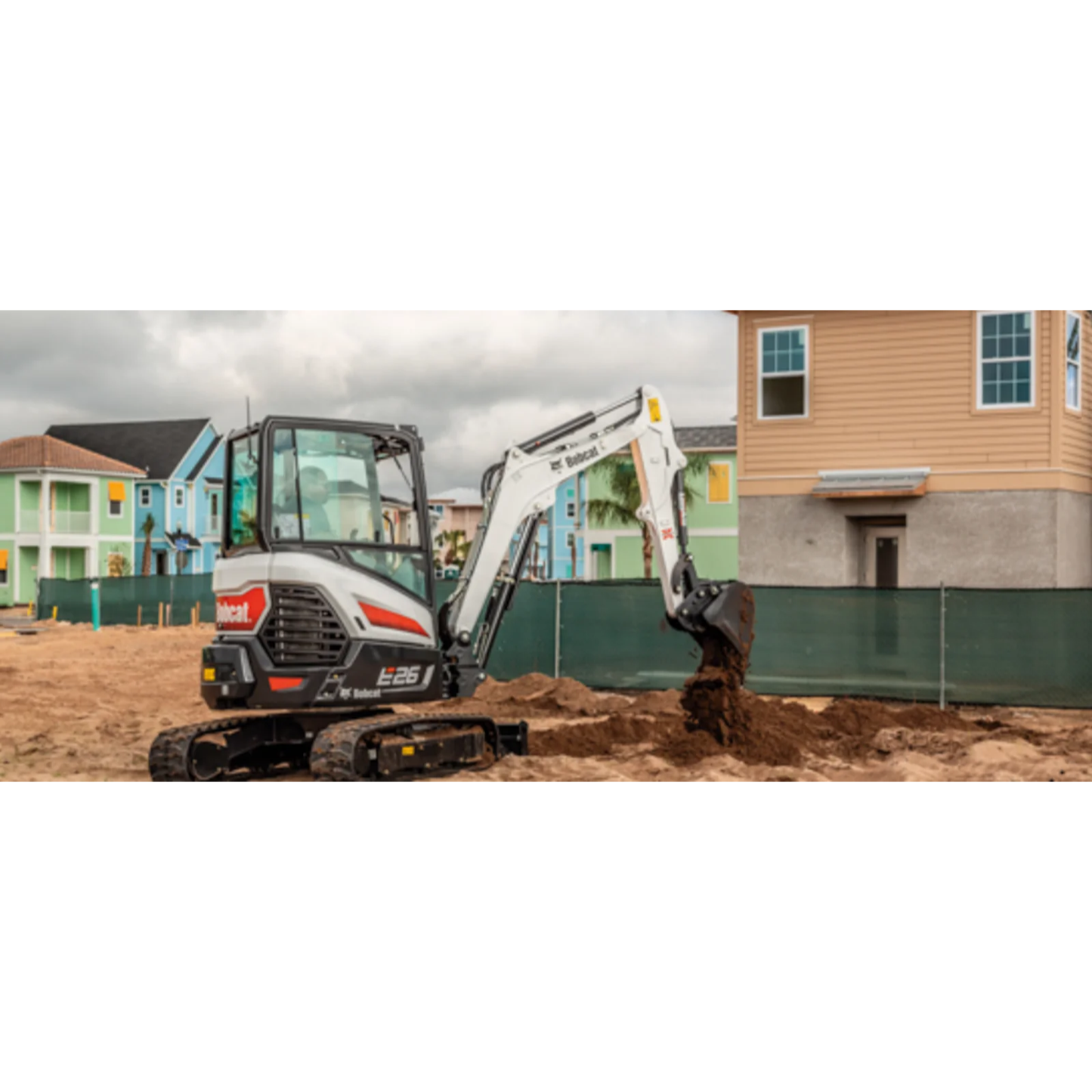

Bobcat® E26 Compact Excavator

Description

The Bobcat® E26 compact excavator (mini excavator) features minimal tail swing to reduce the risk of damage to your machine and surrounding objects. With its compact size and excellent flotation, the Tier 4-compliant E26 easily maneuvers established lawns, crowded jobsites and sensitive surfaces. The E26 is also available in a long arm model.

Specs

Configuration

E26 T4 (NA)

E26 T4 LA (NA)

Engine



Emissions Tier (EPA)	Tier 4	Tier 4
Engine Fuel	Diesel	Diesel
Maximum Governed RPM	2,500 rpm	2,500 rpm
Horsepower	24.8 hp	24.8 hp
Turbocharged Engine	N/A	N/A
Optional Horsepower	N/A	N/A

Performance

Operating Weight	5,763 lb	6,190 lb
Weight Class	2.6 t	2.8 t
Travel Speed - High	2.8 mph	2.8 mph
Travel Speed - Low	1.5 mph	1.5 mph
Arm Digging Force	3,586 lbf	3,041 lbf
Bucket Digging Force	4,991 lbf	4,991 lbf
Rated Lift Capacity	1,902 lb	1,792 lb
Lift Radius	118 in	118 in
Boom Swing - Left	60°	60°
Boom Swing - Right	60°	60°
Maximum Dig Depth	8.8 ft	9.8 ft
Max Dump Height	9.5 ft	10.1 ft
Maximum Reach at Ground Level	15.3 ft	16.3 ft

Capacities

Fuel Tank

9.1 gal

Hydraulic System

Auxiliary Std Flow	12.5 gal/min
Auxiliary Pressure	2,610 psi

Dimension

Length	170.4 in
Overall Length in Travel Position	170.4 in
Width	61 in
Height	94.9 in
Height with Operator Cab	94.9 in

Attachments

Features may include:

• Arm Configurations

• Selectable Control Pattern

• Auto Idle

• Auto Shift

• Fingertip Boom Swing Control

• 2-Speed Travel

• Dual Direction Detent

• Blade Float

• Engine Monitoring

• In-Track Swing Frame

• Instrumentation

• Protected Components

• Machine Protection

• Minimal and Zero Tail Swing

• Keyless Start

• Separable Cooling Cores

• Integrated Slew Brakes

• Fuel Fill Alert

• Simple Machine Tie-Down

• X-Frame Undercarriage

• Cab Comfort

• Ergonomic Controls

• In-Cab Pattern Selector

• Hydraulic Joystick Control
