2018 Bobcat® E10

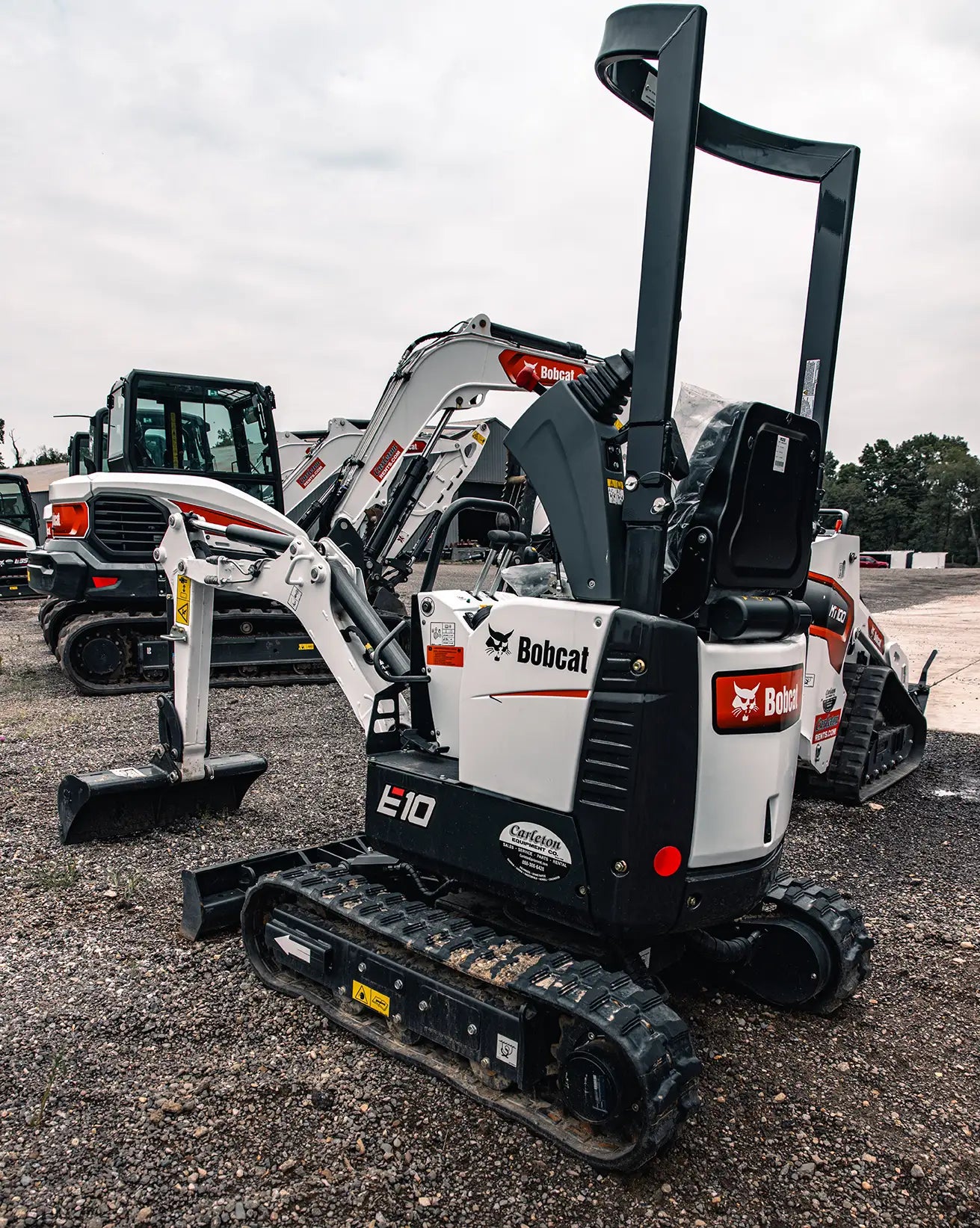

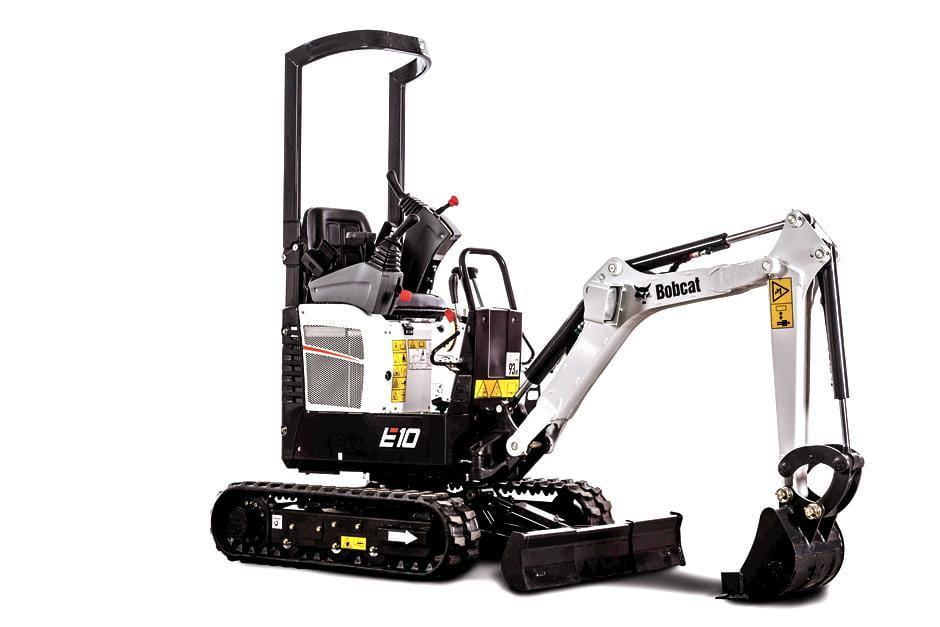

Bobcat E10 Compact Excavator

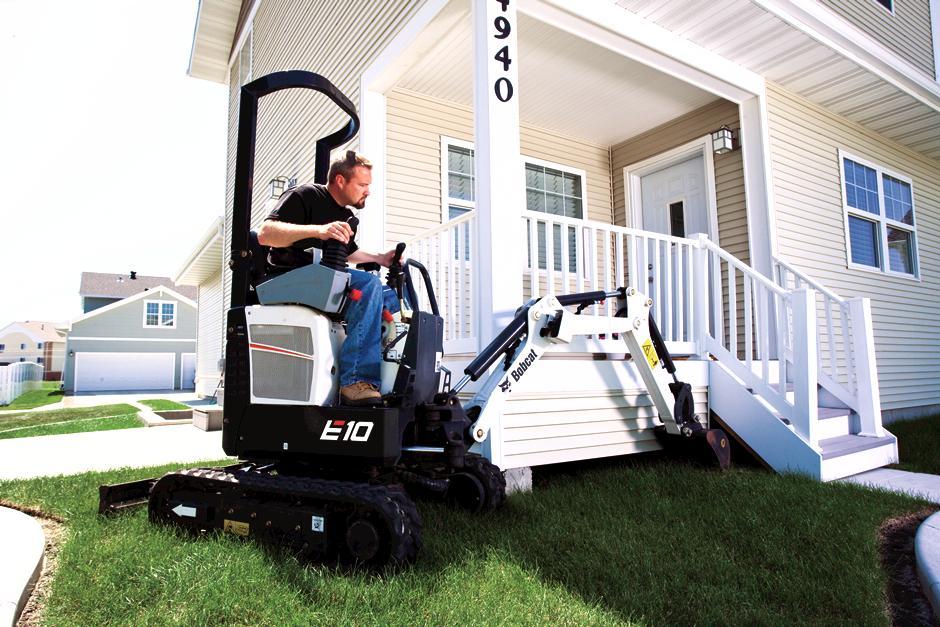

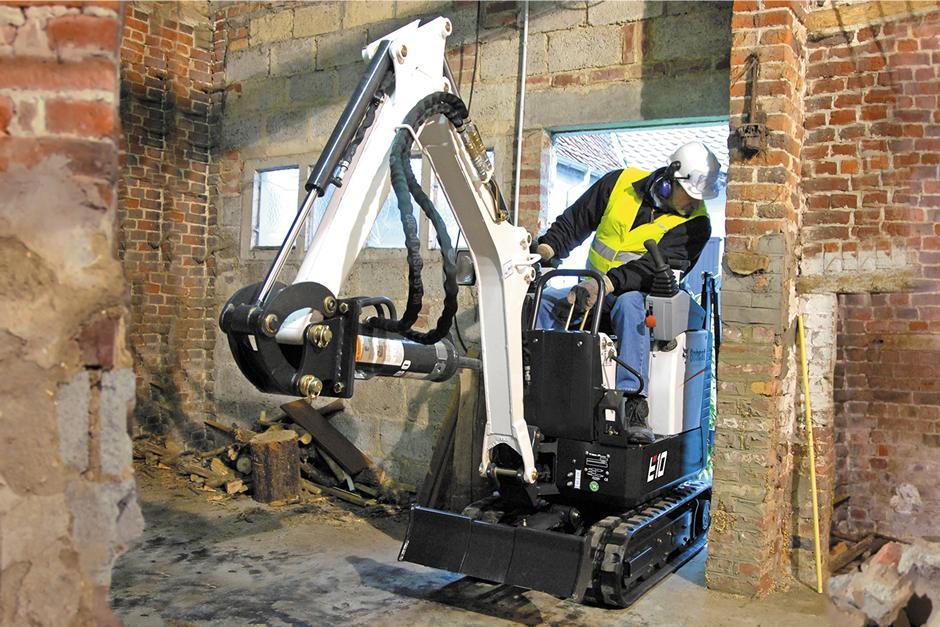

With a retracted track width of 28 in., the ultra-compact Bobcat® E10 compact (mini) excavator accesses jobsites where exhausting hand labor is your only other option. You can easily navigate through narrower openings and operate in tighter conditions. Zero Tail Swing offers the greatest flexibility to slew and deposit spoil while offering the most protection against jobsite obstacles.

 Configuration Standard

Engine



Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,370 rpm
Horsepower 10.2 hp
Turbocharged Engine

N/A

Optional Horsepower

N/A

Performance

Operating Weight 2,593 lb
Weight Class 1 t
Travel Speed - High 1.7 mph
Travel Speed - Low 1.3 mph
Arm Digging Force 1,248 lbf
Bucket Digging Force 1,855 lbf
Rated Lift Capacity 527 lb
Lift Radius 118 in
Boom Swing - Left 67°
Boom Swing - Right 64°
Maximum Dig Depth 6 ft
Max Dump Height 6 ft
Maximum Reach at Ground Level 10.2 ft

Capacities

 Fuel Tank 4.2 gal

Hydraulic System

Auxiliary Std Flow 5.3 gal/min
Auxiliary Pressure 2,756 psi

Dimension

 Length 110 in
Overall Length in Travel Position 110 in
Width 28 in
Height 87 in
Height with Operator Cab 87 in
Features may include:
  • Selectable Control Pattern
  • 2-Speed Travel
  • Fold-Down Tip Over Protective Structure (TOPS
  • Retractable Blade & Undercarriage
  • In-Track Swing Frame
  • Protected Components
  • Minimal and Zero Tail Swing
  • Simple Machine Tie-Down
  • Top Mounted Boom Cylinder
  • Ergonomic Controls
  • In-Cab Pattern Selector
  • Adjustable Joystick Controls
  • Hydraulic Joystick Control
  • Soft Grip Joysticks
  • Centralized Grease Bank
  • Training Resources
