Bobcat® CT1025 Compact Tractor
IN Stock Package
Bobcat CT1025 Hydrostatic Transmission
4WD
Power Steering
2 Range Hydrostatic Transmission
Standard Category #1 540 Rear PTO
Independent PTO - 700 lb. lift capacity 24" behind
Standard Mid PTO - 2,200 RPM
7.1 gal. Fuel Tank
Industrial Tires
FL6 Front End Loader
4 ft. Bucket
Lift Capacity - 702 lbs.
Lift Height - 6'
Loader Control Valve & Joystick
Quick Attach
Powertrain Warranty
6 Year Overall or 2,000 hour Warranty
Description

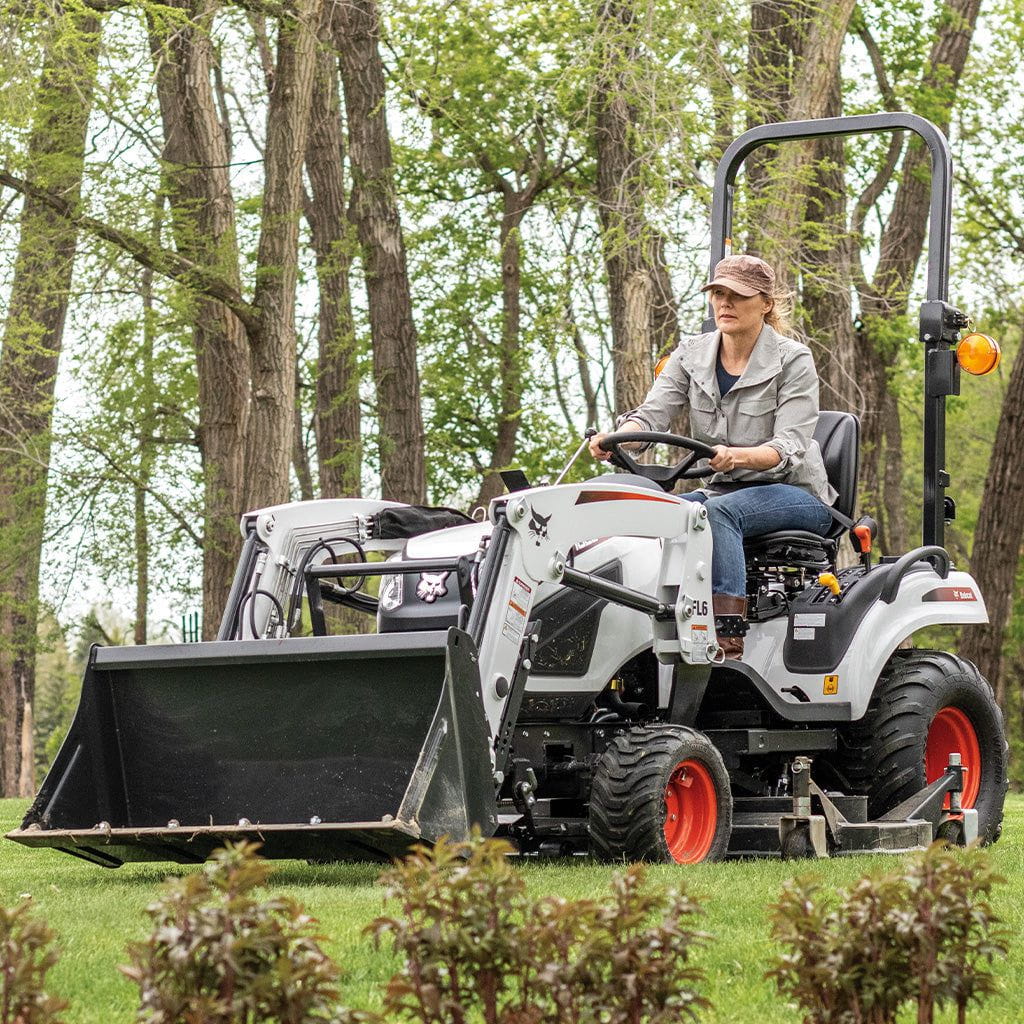

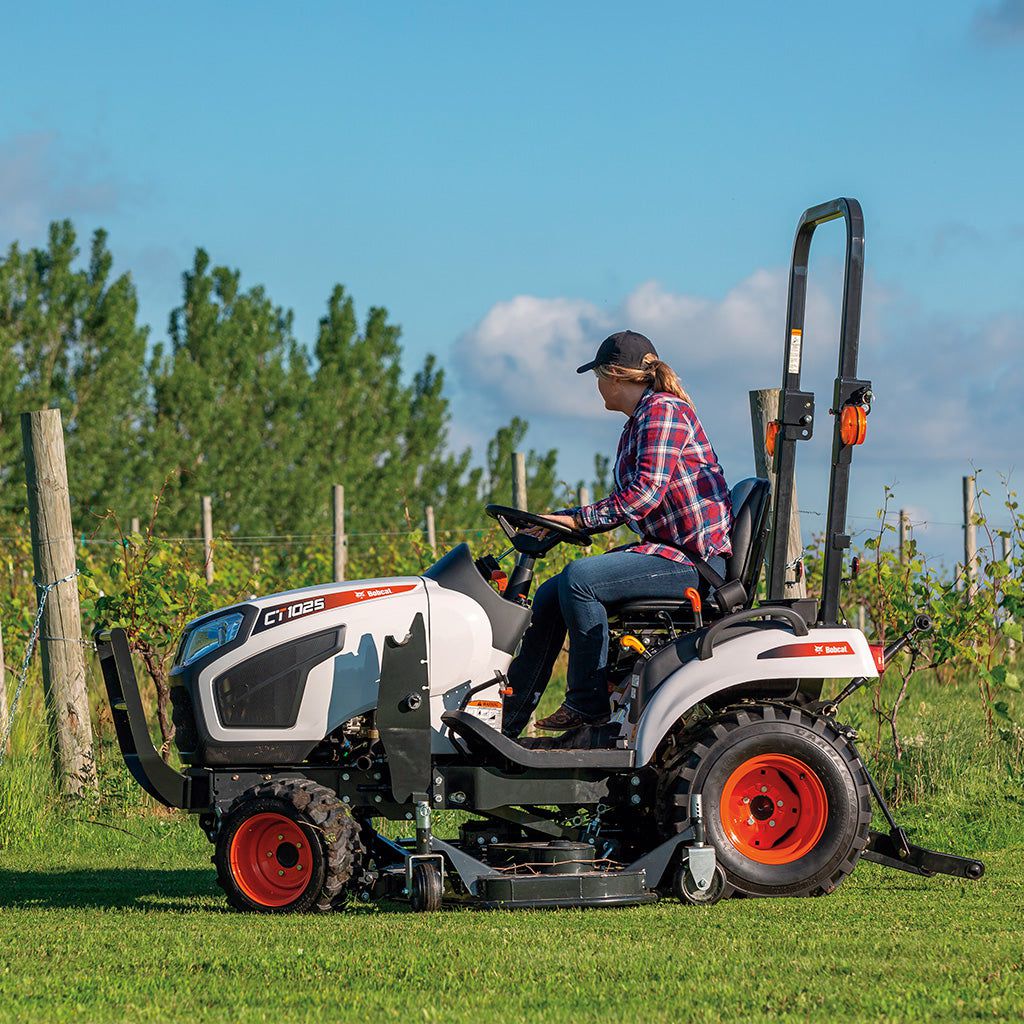

The Bobcat® CT1025 packs a lot of power into a small frame size to efficiently mow and maintain your small acreage. This sub-compact, 25-hp diesel tractor is larger than lawn and garden tractors and includes a hydrostatic transmission, four-wheel drive and a Category 1 3-point hitch. It’s easy to operate and the perfect solution for light-duty projects around your property.
Quick Specs:
24.5 hp 3 cyl Tier 4 Diesel Engine
19.4 PTO hp with hydraulic position control system
4WD
Power Steering
2 Range Hydrostatic Transmission
Standard Category #1 540 rear PTO
Independent PTO (700 lb. lift capacity 24" behind)
Standard Mid PTO 2,200 RPM
7.1 gal. Fuel Tank
Forward & Reverse Foot Pedals
10.1 mph Forward / 6.8 mph Reverse

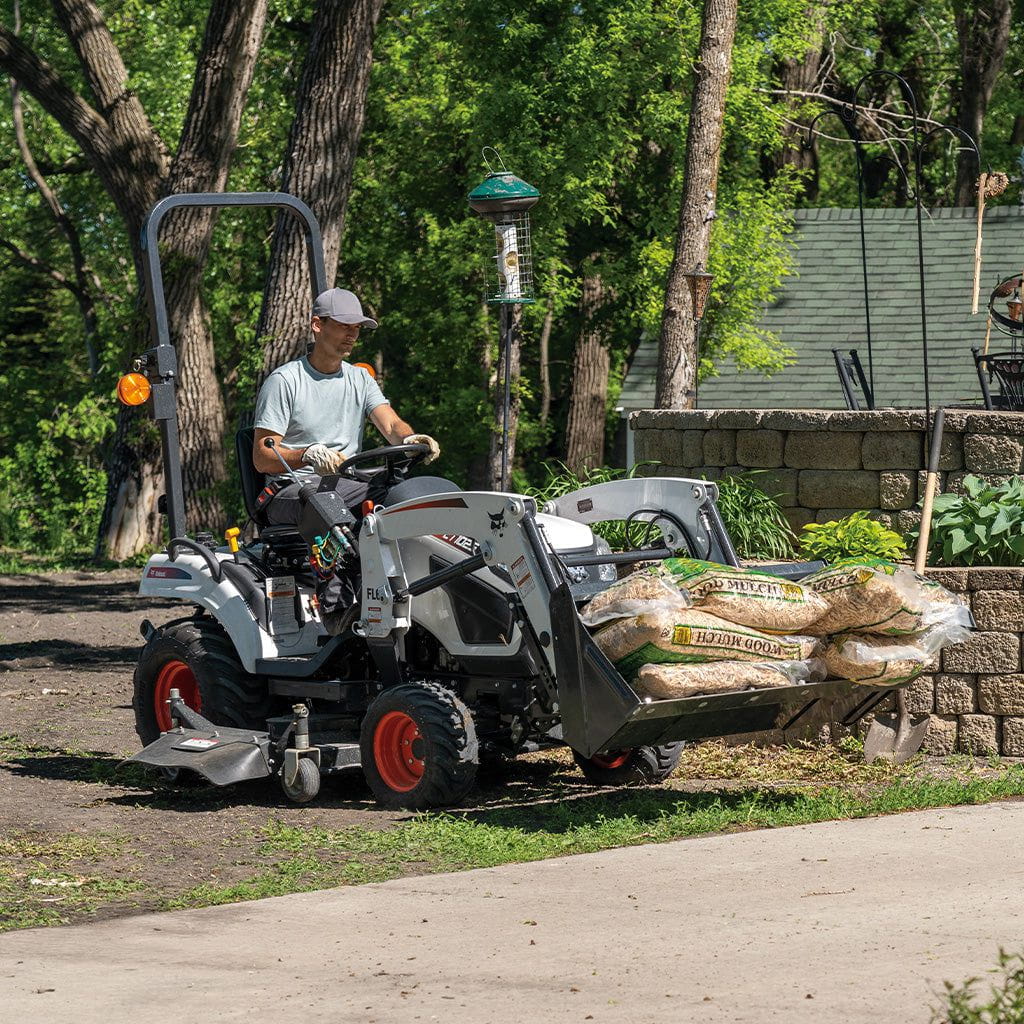

Front End Loader - FL6
4 ft. Bucket
Lift Capacity - 702 lb.
Lift Height - 6 Ft.
Loader Control Valve & Joystick
Quick Attach
Specs
Engine
Emissions Tier (EPA) Tier 4
Horsepower
24.5 hp
Displacement
69 in³
Number of Cylinders
3
Gross HP
24.5 hp
Engine Model
S773L-F21
RPM
3000
Performance
Operating Weight
1,488 lb
Travel Speed
10.1 mph
Travel Speed - Reverse
6.7 mph
3-Point Hitch
Category 1
3-pt Lift Control Type
Position
Lift Capacity at 24" behind Lift Point
700 lb
Rear PTO System
Independent
Rear PTO - RPM
540
PTO HP
19.4 hp
Mid PTO - RPM
2200
Capacities
Hydraulic System
Total Hydraulic Flow
6.5 gal/min
Drive System
Brake Type
Wet Multi Disc
Transmission Type
Infinite, 2 Range Hydrostatic
Dimension
Length
99.3 in
Width
46 in
Height
87.6 in
Ground Clearance
6.3 in
Turning Radius
8' 3"
Wheelbase
4' 7"
Front Tire Size
Front AG (TURF, INDUSTRIAL) 18X8.5-10(18X8.5-10)
Rear Tire Size
Rear AG (TURF, INDUSTRIAL) 26X12-12(26X12-12)
Loader Attachment
Loader Lift Height
6'0"
Lift Capacity @ 500mm ahead of bkt pivot
826 lb
Bucket Width
4' 0"
Features
Operator-Friendly Controls
Work Lights
Premium Comfort
2-Range HST
Independent PTO
PTO
Leading Drawbar Towing
3-Point Hitch
Three Tire Options
Maximum Maneuverability
Roll Over Protective Structure
Leading Lift Capacity
