BobcatSKU: BC_CT_1021

Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: CT1021
Machine Type: Sub-Compact Tractor
Engine
Engine: 3C100LWH-U2
Horsepower: 21.0
PTO Horsepower: 16.3
Emissions: Tier 4
Performance
Operating Weight: 1521 lb
Travel Speed: 11 MPH
Loader Lift Height: 6' 0"
Lift Capacity @ 500mm ahead of bkt pivot: 702 lbs.
Hydraulics
Implement Hydraulic Flow: 4.6 GPM
Total Hydraulic Flow: 6.4 GPM
Dimensions
Height: 87.6 IN.
Length: 99.3 IN.
Width: 46 IN.
Wheelbase: 4' 7"
Turning Radius: 8' 3"
Fuel Tank: 6.7 gal.
Turning Radius: 8' 3"
Wheelbase: 4' 7"

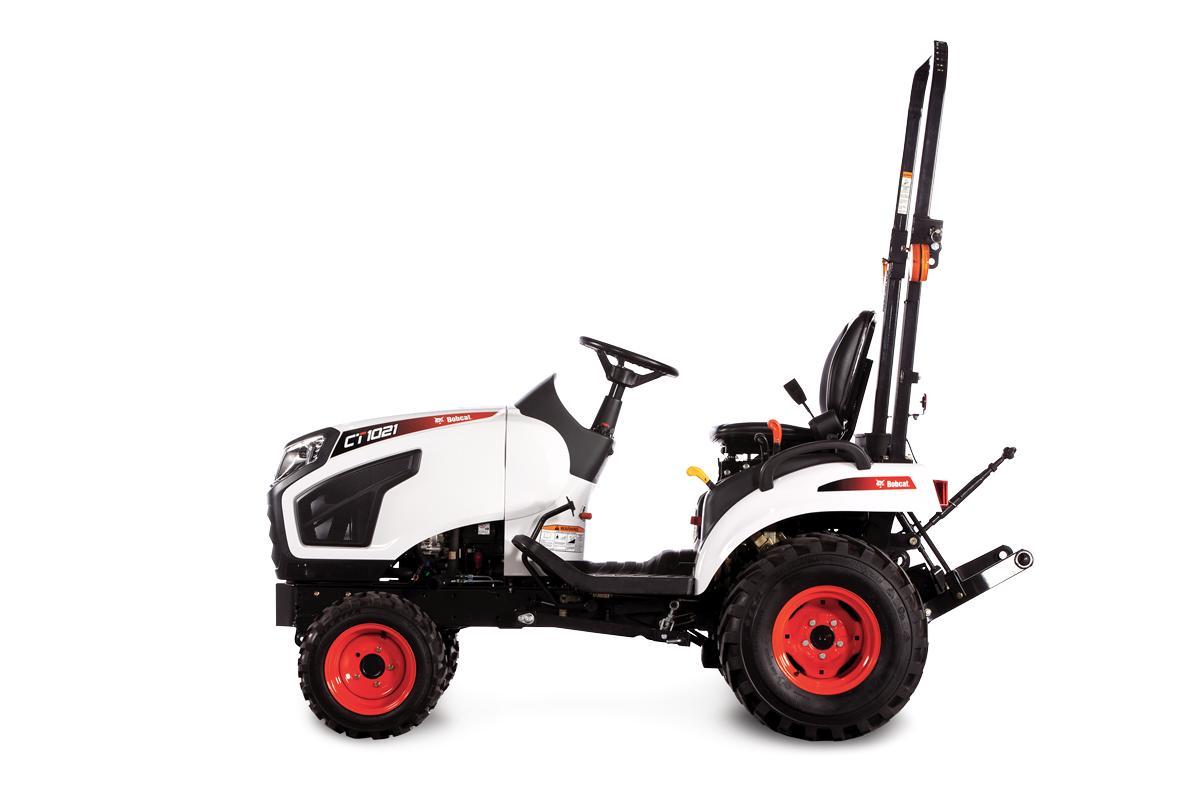

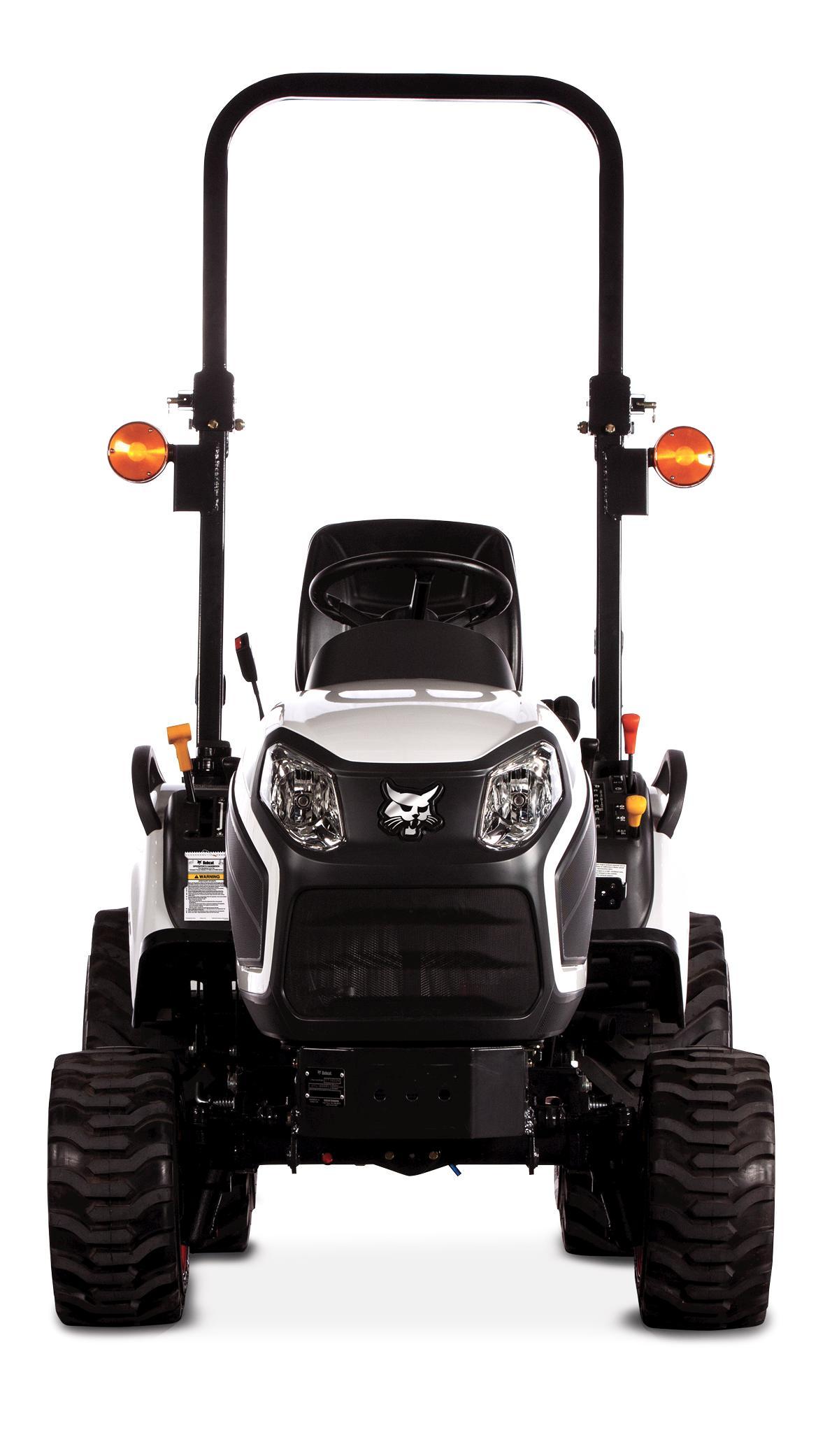

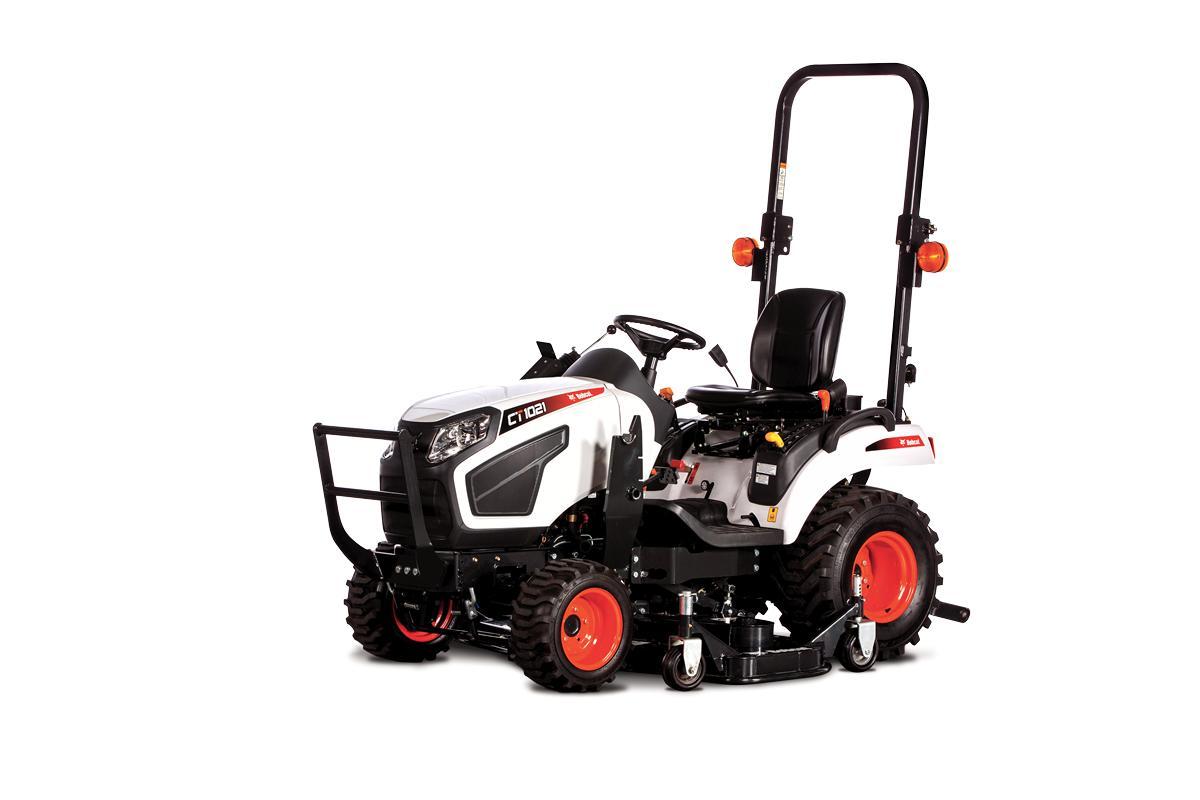

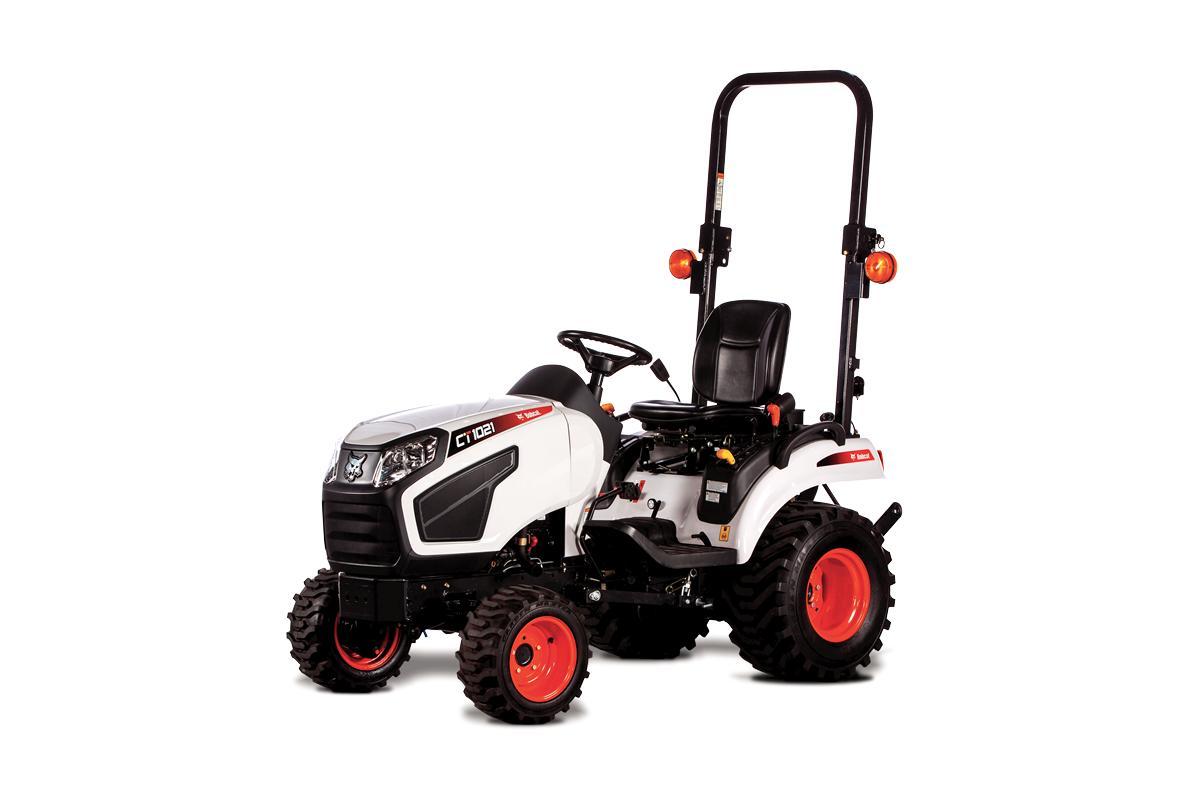

Bobcat® CT1021 Compact Tractor

Bobcat® CT1021 Sub-Compact Tractor
Description

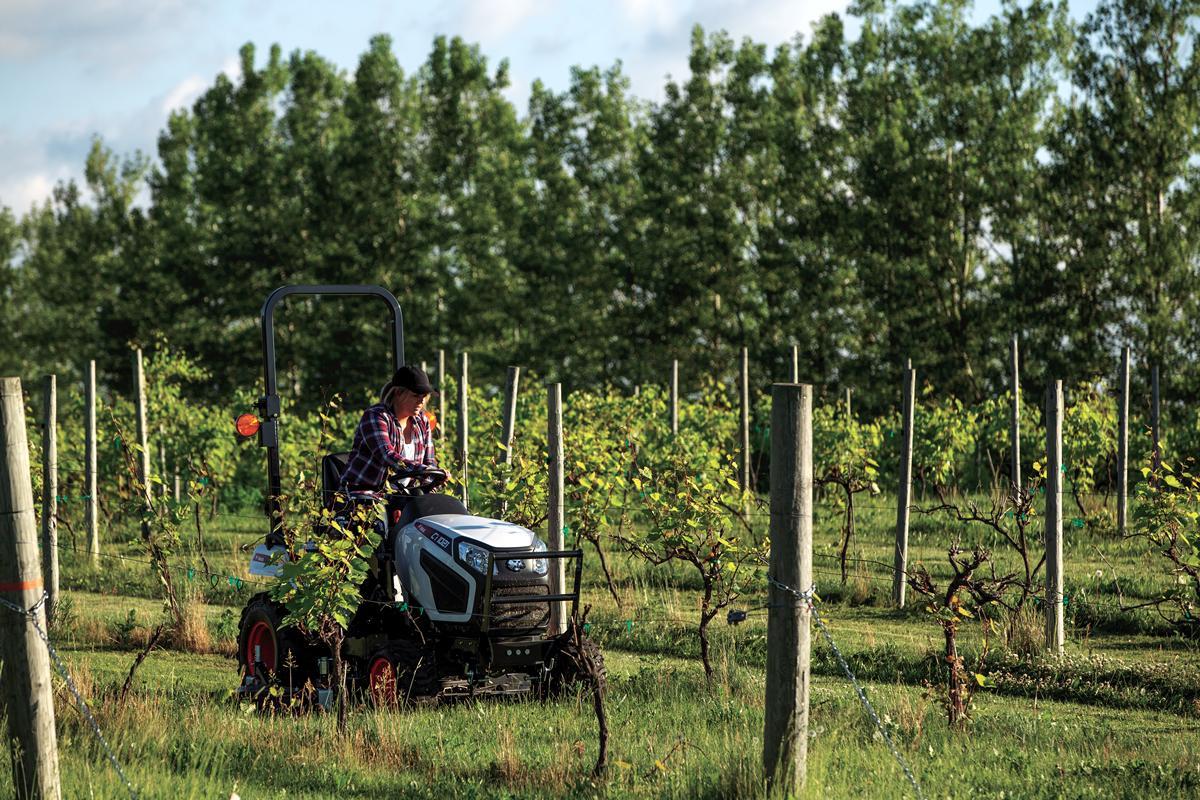

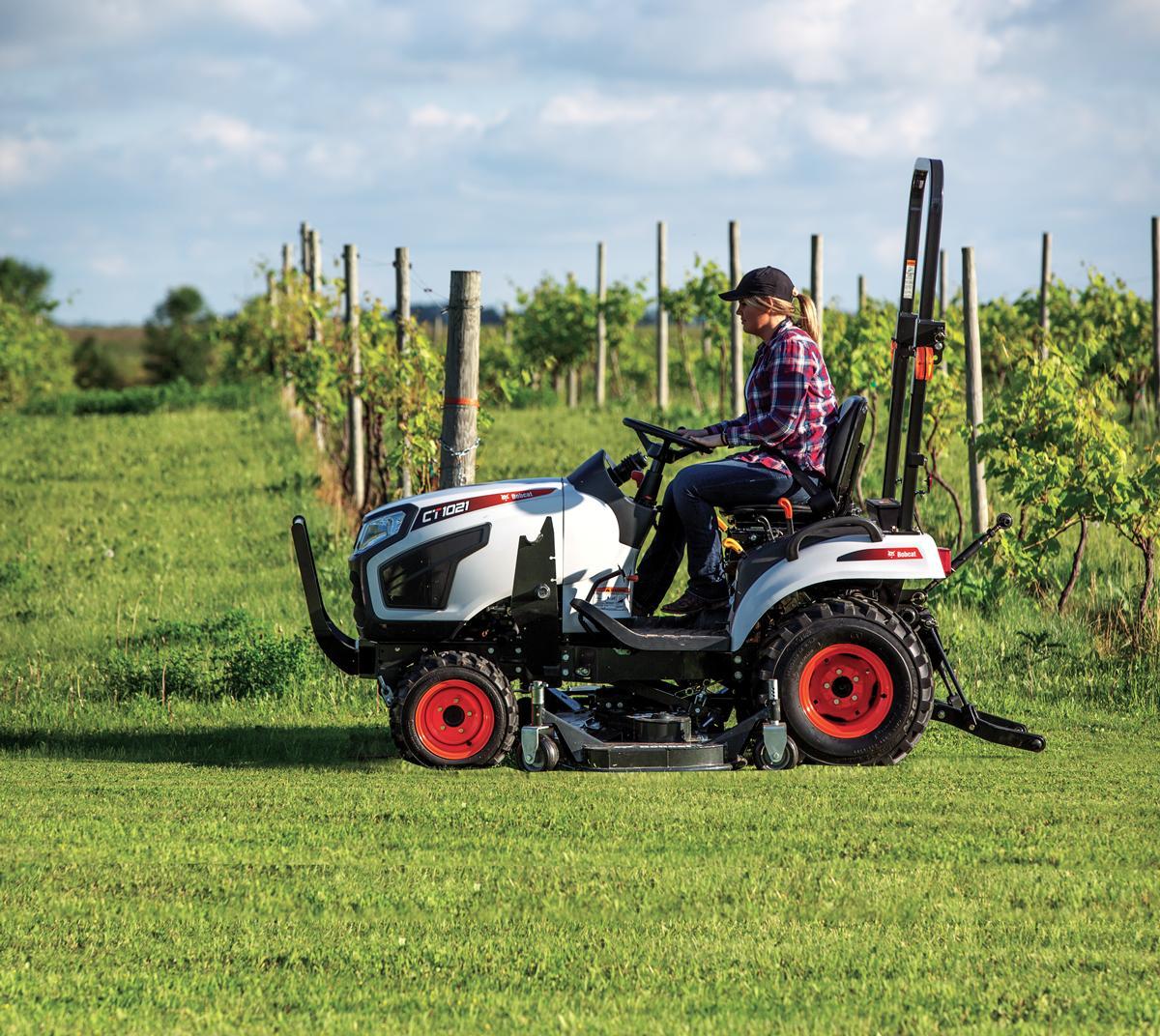

The easy-to-use Bobcat® CT1021 sub-compact tractor maneuvers around barns and sheds, making it perfect for a variety of projects around your small acreage. This versatile, 21-hp diesel sub-compact tractor is larger than lawn and garden tractors, and it offers a Category 1 3-point hitch, hydrostatic transmission and standard four-wheel drive to make quick work of mowing and other light-duty tasks around your home.

Specs
Model Bobcat CT1021 HST

Engine

Emissions Tier (EPA) Tier 4
Horsepower 21.1 hp
Displacement 69 in³
Number of Cylinders 3
Gross HP 21.1 hp
Engine Model S773L-F21
RPM 3000

Performance

Operating Weight 1,488 lb
Travel Speed 10.1 mph
Travel Speed - Reverse 6.7 mph
3-Point Hitch Category 1
3-pt Lift Control Type Position
Lift Capacity at 24" behind Lift Point 700 lb
Rear PTO System Independent
Rear PTO - RPM 540
PTO HP 16.7 hp
Mid PTO - RPM 2200

Capacities

Fuel Tank 7.1 gal

Hydraulic System

Total Hydraulic Flow 6.5 gal/min

Drive System

Brake Type Wet Multi Disc
Transmission Type Infinite, 2 Range Hydrostatic



Dimension

Length 99.3 in
Width 46 in
Height 87.6 in
Ground Clearance 6.3 in
Turning Radius 8' 3"
Wheelbase 4' 7"
Front Tire Size Front AG (TURF, INDUSTRIAL) 18X8.5-10(18X8.5-10)
Rear Tire Size Rear AG (TURF, INDUSTRIAL) 26X12-12(26X12-12)

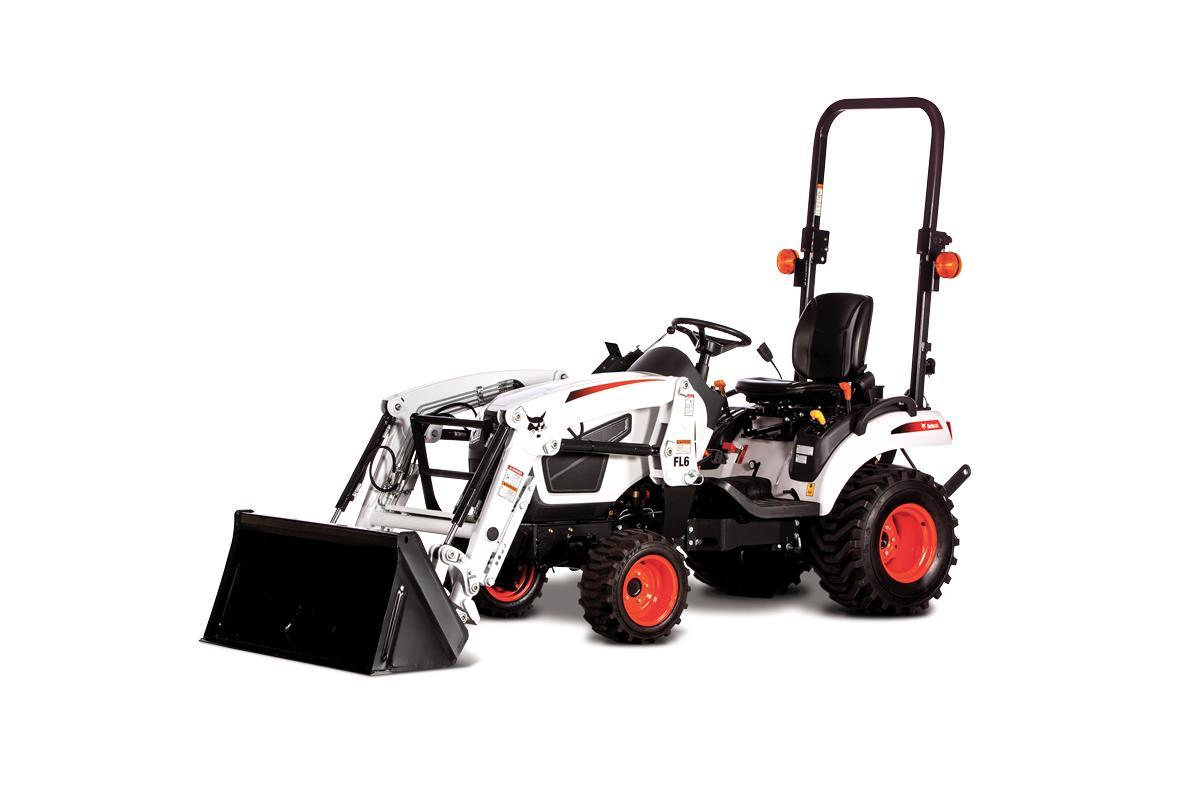

Loader Attachment

Loader Lift Height 6'0"
Lift Capacity @ 500mm ahead of bkt pivot 826 lb
Bucket Width 4' 0"



Features

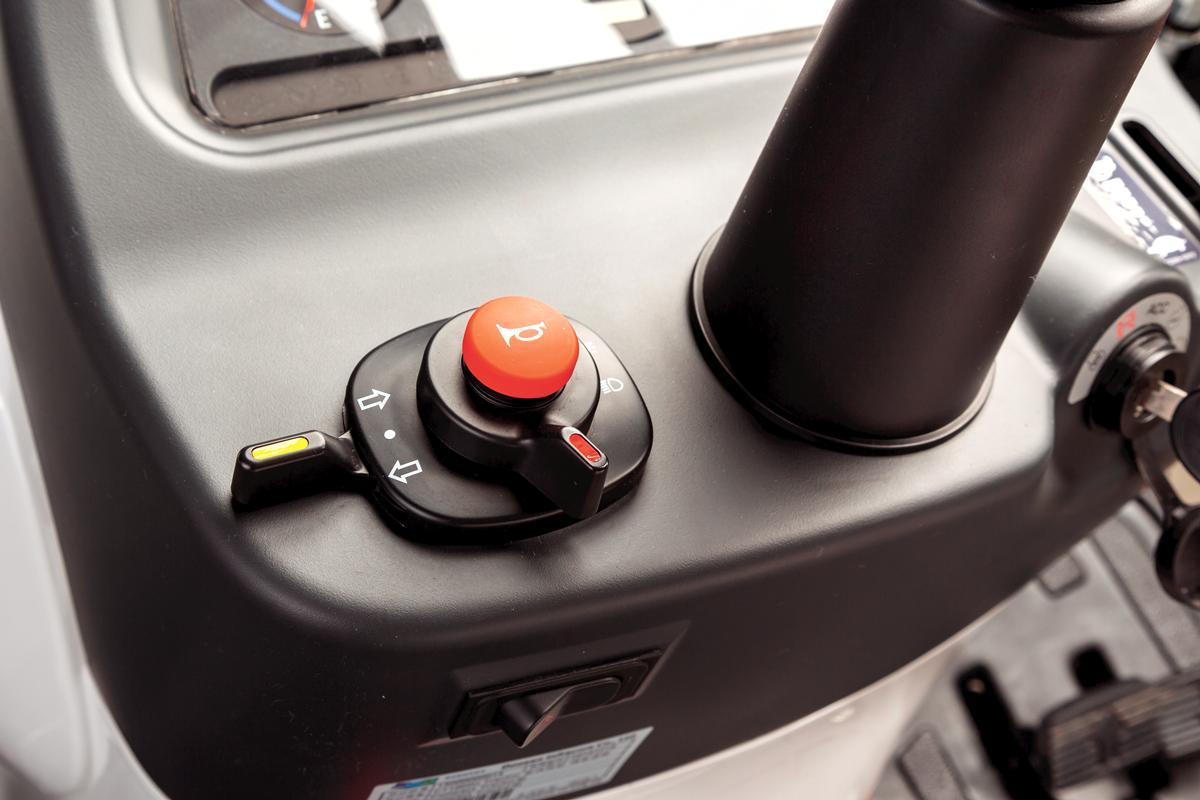

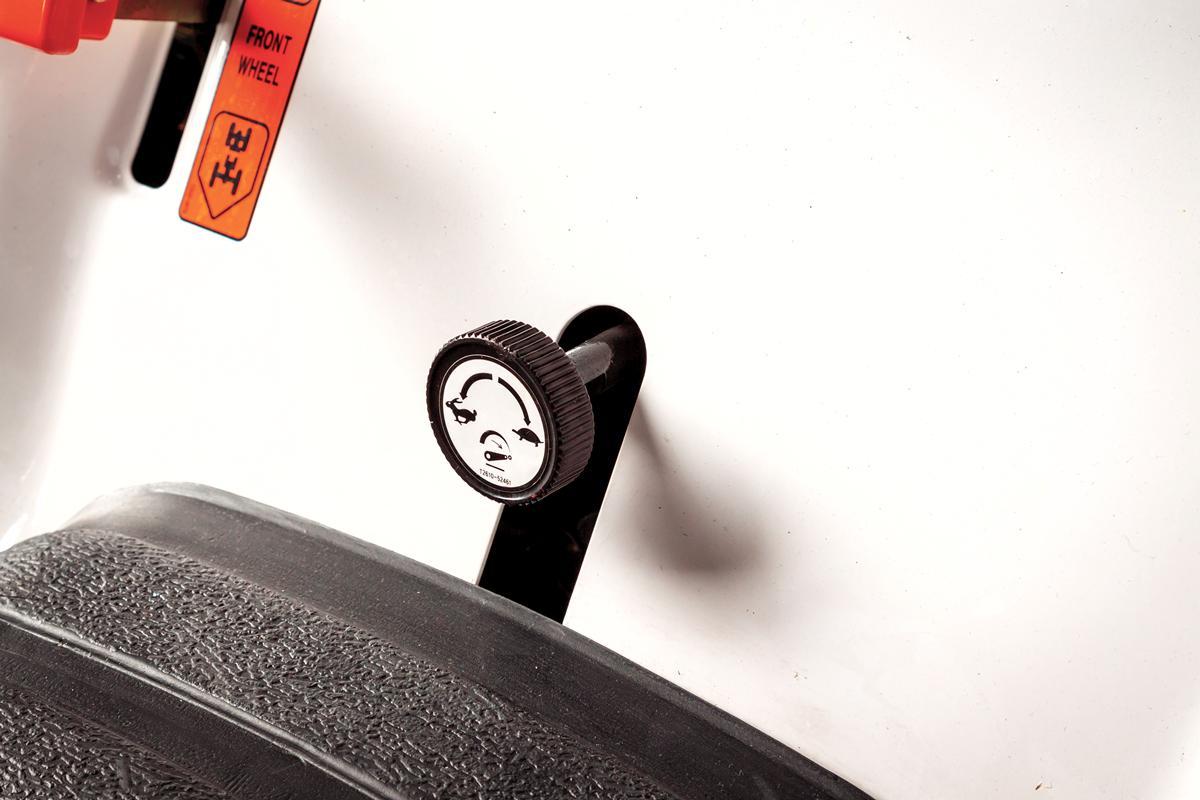

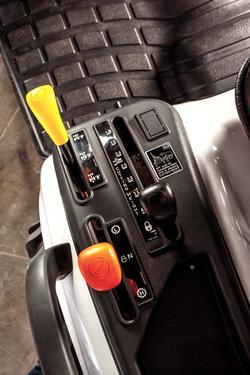

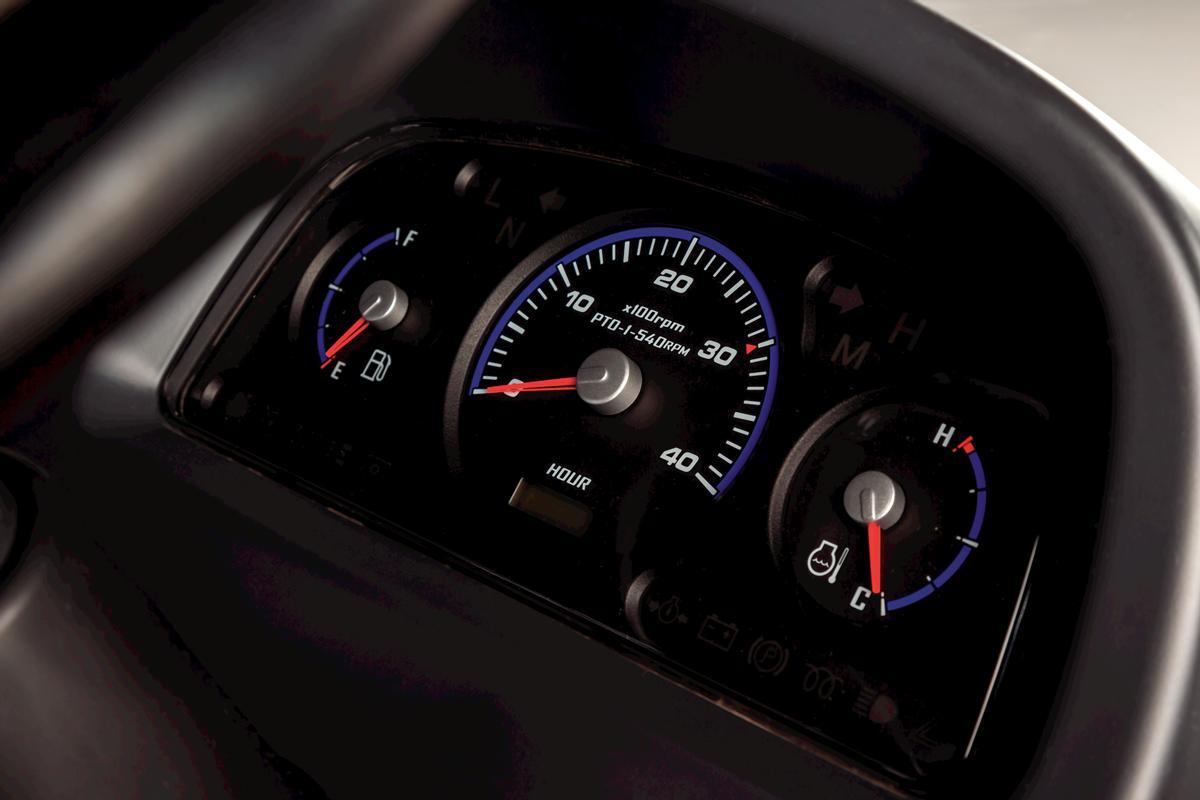

  • Operator-Friendly Controls
  • Work Lights
  • Premium Comfort

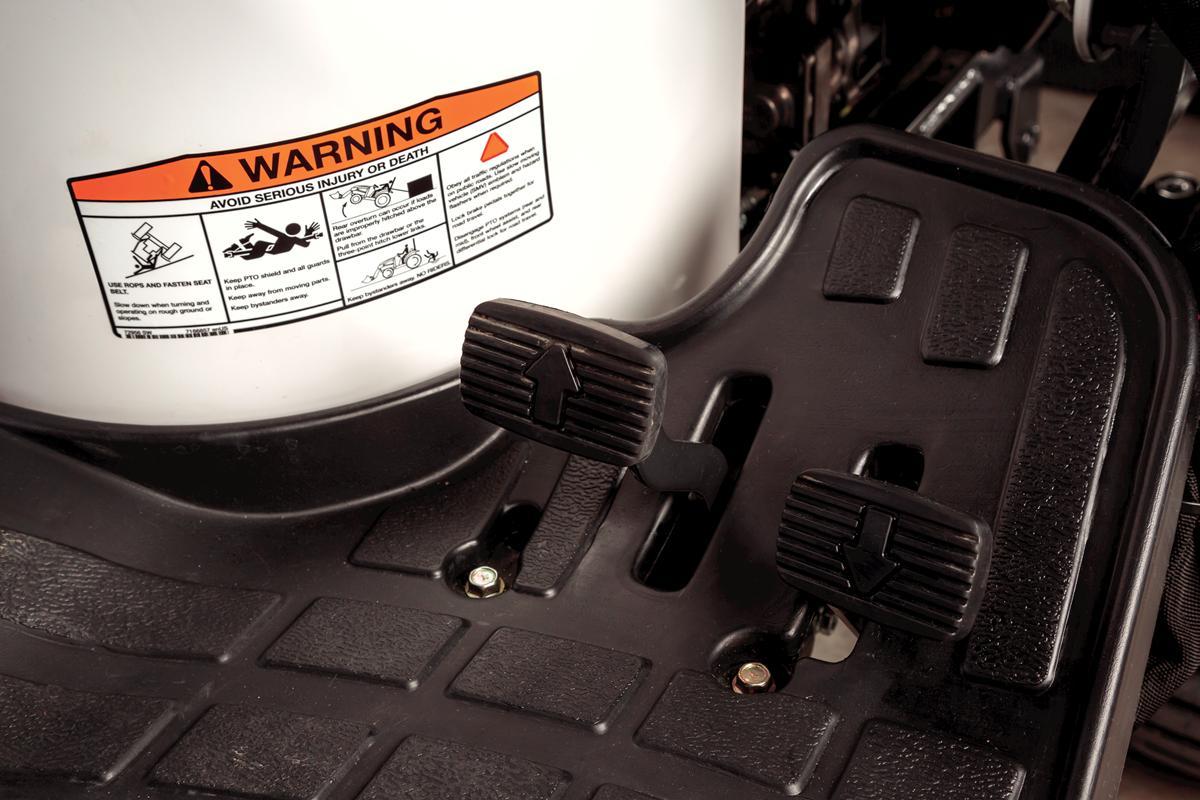

  • 2-Range HST

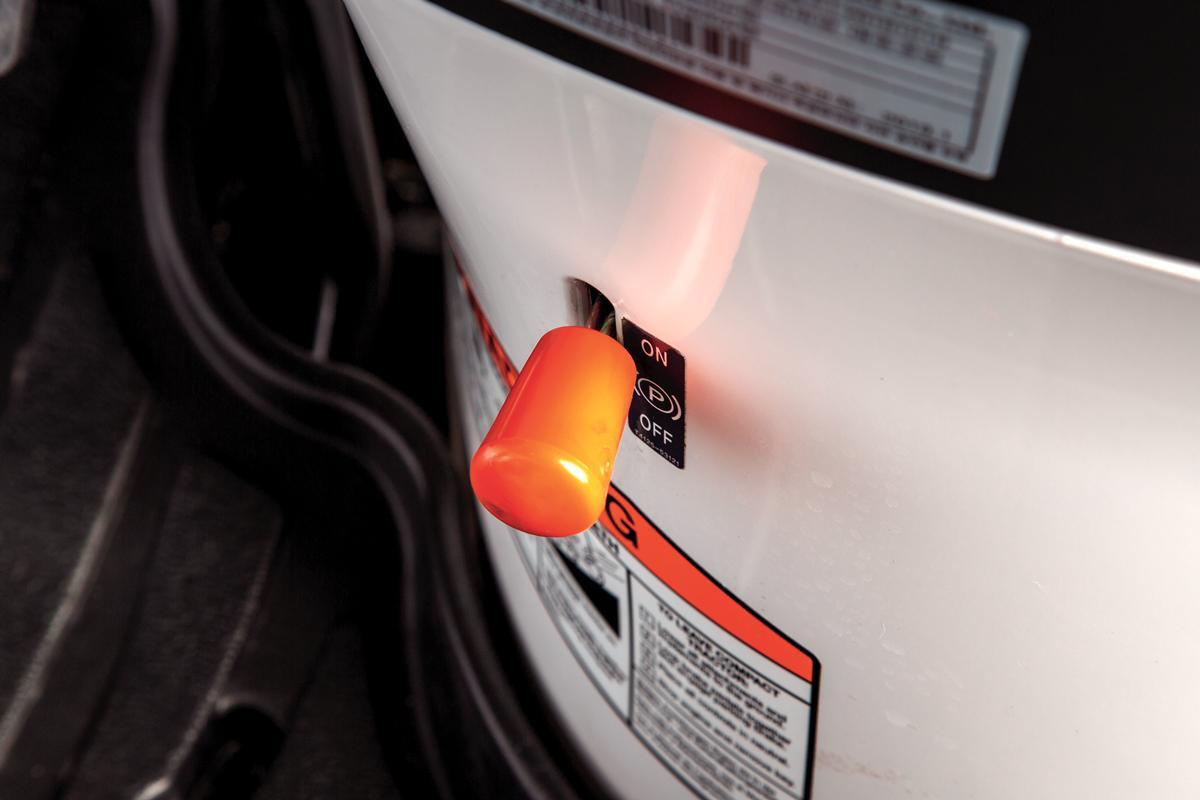

  • Independent PTO
  • PTO
  • Leading Drawbar Towing

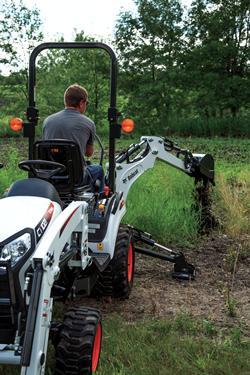

  • 3-Point Hitch
  • Three Tire Options
  • Maximum Maneuverability
  • Roll Over Protective Structure
  • Leading Lift Capacity
