Bobcat® Clamp - Compact Excavators

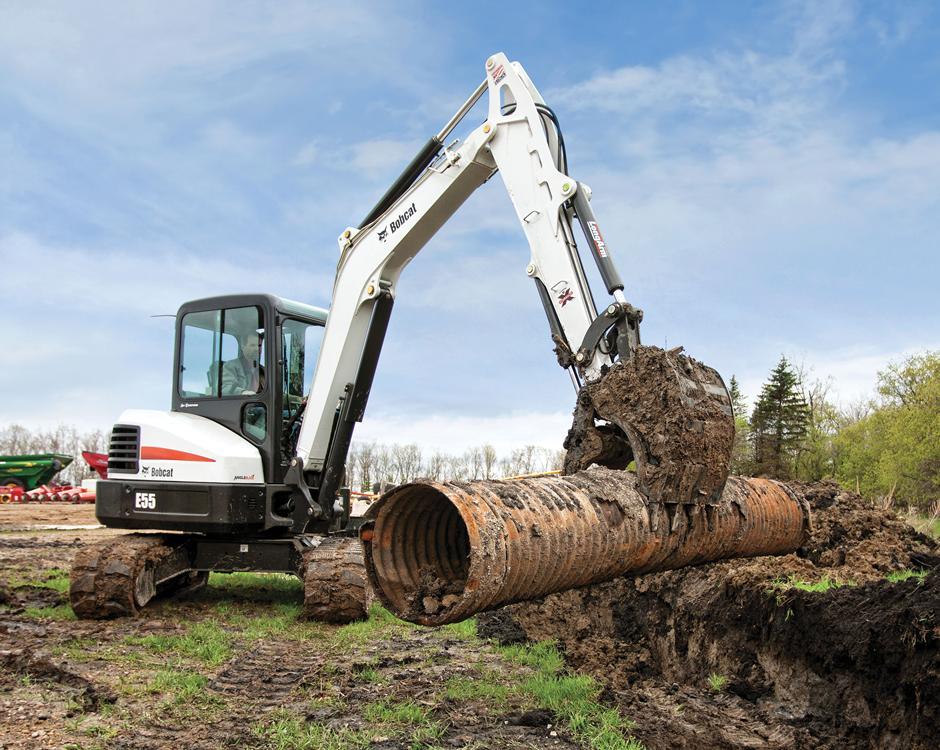

Clamp, lift, move and place more debris with the power of the clamp (or thumb) attachment.

Choose from two different clamp styles designed for Bobcat® compact excavators: the Pro Clamp™ System or the standard clamp.

The Pro Clamp System expands the usual capabilities of a clamp attachment. As an alternative to a clamp attachment, the Pro Clamp System has a standard pin-on work tool and optional grading tool. Maximize your bucket and clamp setup with the adjustable Pro Clamp System.  No tools are required to adjust or remove the work tool.

The Pro Clamp System allows you to:



  • Adjust the Pro Clamp configuration for the job at hand. Grab large, small or irregular objects with greater grip. You can also follow the bucket farther towards rollout compared to a standard clamp attachment.
  • Create a smooth trench bottom with the optional grading tool, avoiding the need for a second “smooth lip” bucket.
  • Clean up spoil piles quickly with the grading tool and reduce manual labor.
  • Remove the tool when trenching, giving you enhanced visibility into the trench area.
  • The Pro Clamp System is available as a factory installed option, and as a dealer-installed accessory for select Bobcat® compact excavators. It is compatible with standard arm and long arm configurations, but cannot be used with the extendable arm option.

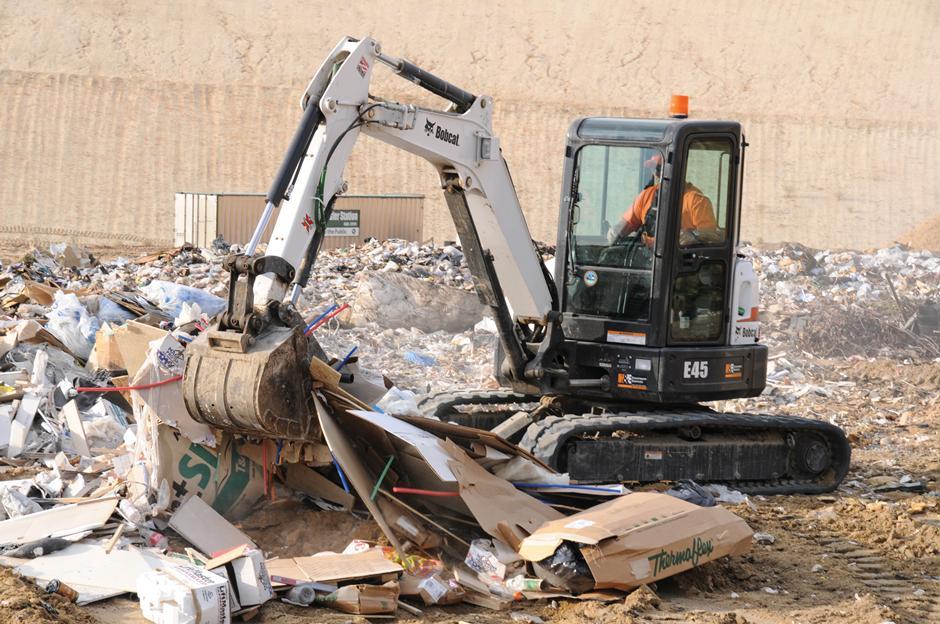

The standard clamp has a smaller opening compared to the Pro Clamp System, however it has a dual-tooth design which maximizes the clamp capabilities, allowing the attachment to clamp onto many odd-shaped objects and debris. Put the clamp attachment to work with a trenching bucket or three-tine grapple and easily move odd-shaped objects such as tree stumps and broken concrete. The clamp attachment is ideal for moving and removing.

How It Works

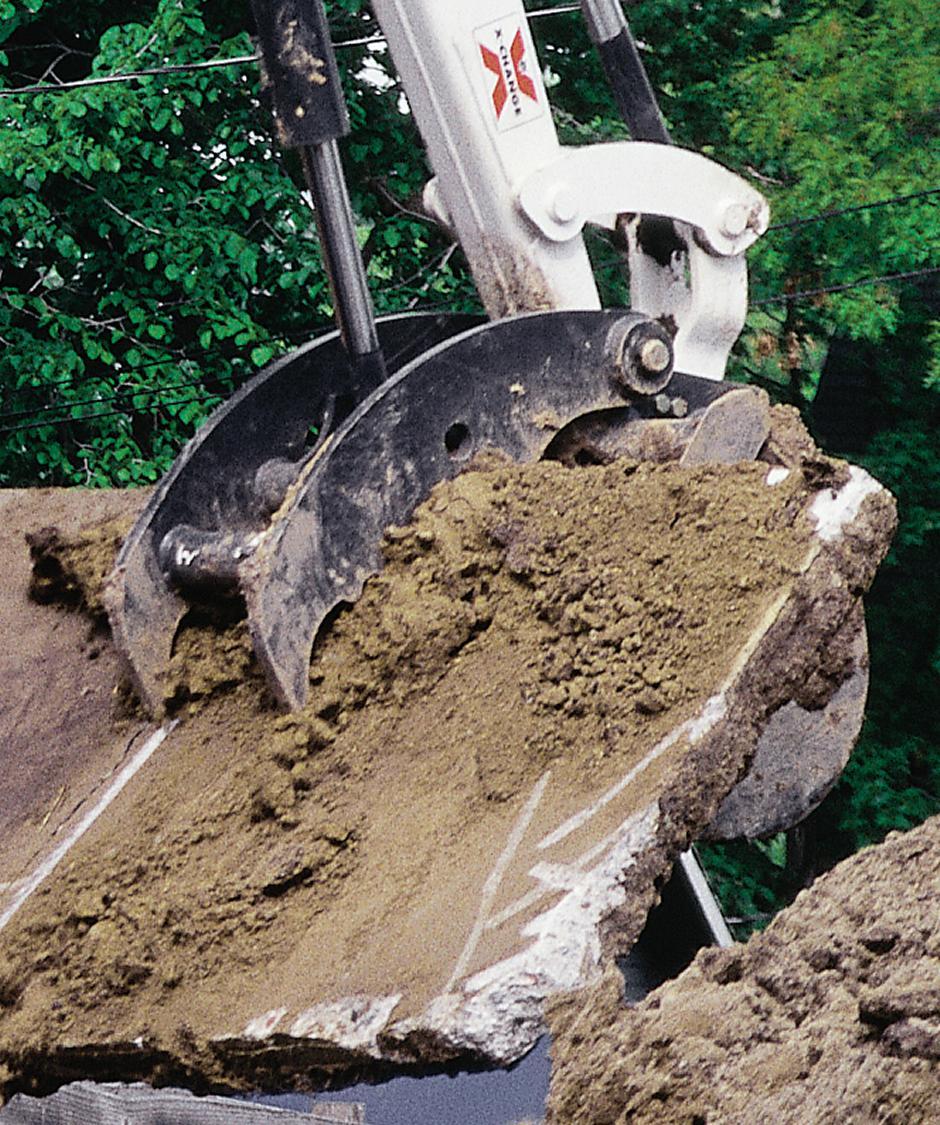

Featuring a dual-tooth design, the clamp extends beyond the cutting edge of the bucket for holding objects. When not in use, the clamp retracts fully against the arm of the excavator to prevent interference with possible digging and trenching work.

Compare the two clamp styles to see which works best for your job.



Pro Clamp™ System Standard Clamp
Top Tasks Top Tasks
Create smooth trench bottoms Move tree strumps, broken concrete and other odd-shaped objects
Carry irregular rocks, broken concrete Seperate timber piles
Perform demolition or tear-out work Carry trees
Clean up soil piles

Remove unwanted brush

Install or repair utilities, removing the tool as needed for optimum visibility Unload pipe and lumber
Lift and place landscapring boulders
Place rock to build retaining walls



Available in two sizes, the Pro Clamp includes a base component and a standard pin-on material work tool. Operators may choose the ideal tool position for grabbing large, small or irregular objects.

The optional grading tool can serve as a smooth cutting edge when grading or trenching with a toothed bucket. It can also be reversed to serve as a clamshell when paired with a smooth lip bucket.

The work tool may be removed when trenching. No tools are required to change or remove the work tool.

Clamp Options Hydraulic Clamp E20 Hydraulic Clamp - E26 Hydraulic Clamp - E32, E35 Hydraulic Clamp - E42, E45 Hydraulic Clamp - E42 Class III Hydraulic Clamp - E50 Hydraulic Clamp - E60 Hydrualic Clamp - E80 Pro Clamp - E32,E35 Class III Pro Clamp - E42, E45



General

Operating Weight 50 lb 126 lb 126 lb 218 lb 171 lb 218 lb 217 lb 449 lb 310 lb 532 lb
Length 19.9 in 27.4 in 27.4 in 32 in 27.2 in 32 in 32.3 in 44 in N/A N/A
Width N/A 13 in 13 in 14.9 in 14.4 in 14.9 in 14.9 in 16.5 in 13.4 in N/A
Height N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Clamp Width 5.5 in 13 in 13 in 14.9 in 14.4 in 14.9 in 14.9 in 16.5 in 13.4 in 15.9 in
Tooth Radius 19.8 in 27.2 in 27.2 in 32 in 27.2 in 32 in 32.3 in 41 in N/A N/A
Tooth Thickness 0.5 in 0.8 in 0.8 in 1 in 0.8 in 1 in 1 in 1 in N/A N/A



Compatible Carriers

Compact Excavators
Bobcat E20

Bobcat E26











Bobcat E32 25 HP







Bobcat E32 M-Series









Bobcat E35 25HP







Bobcat E35 33 HP









Bobcat E35 M-Series







Bobcat E42







Bobcat E45







Bobcat E50











Bobcat E63
