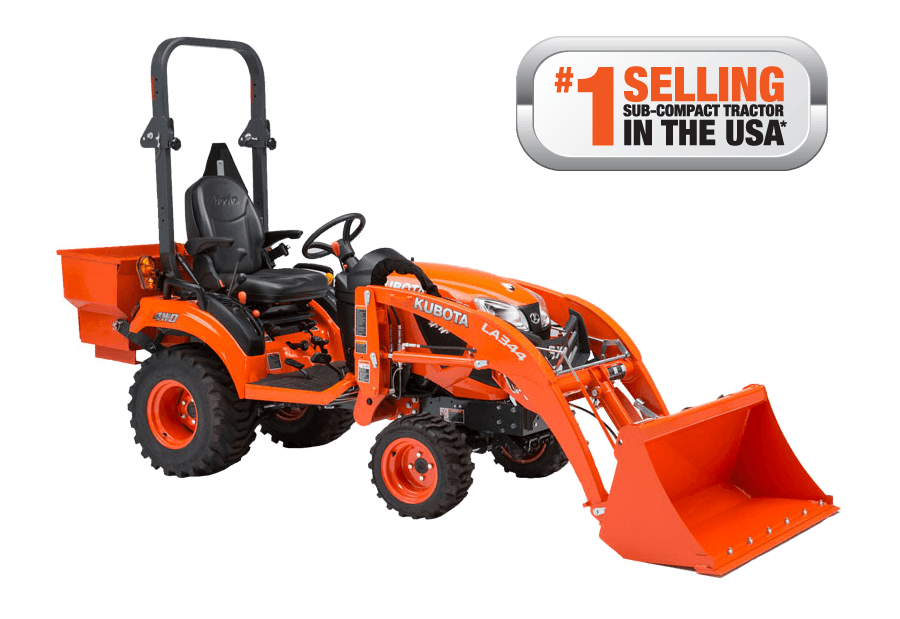

BX23S Sub-Compact Tractor by Kubota
Meticulous engineering leads to legendary reliability and excellent value – hallmarks of a Kubota tractor. At Kubota, we listen to our customers to make improvements for real world applications. Quality, innovation and easy-to-use design – that’s a Kubota. Scroll down to see some of the top BX80 features, designed with you in mind. To see it in action, visit your local Kubota dealer.
Features

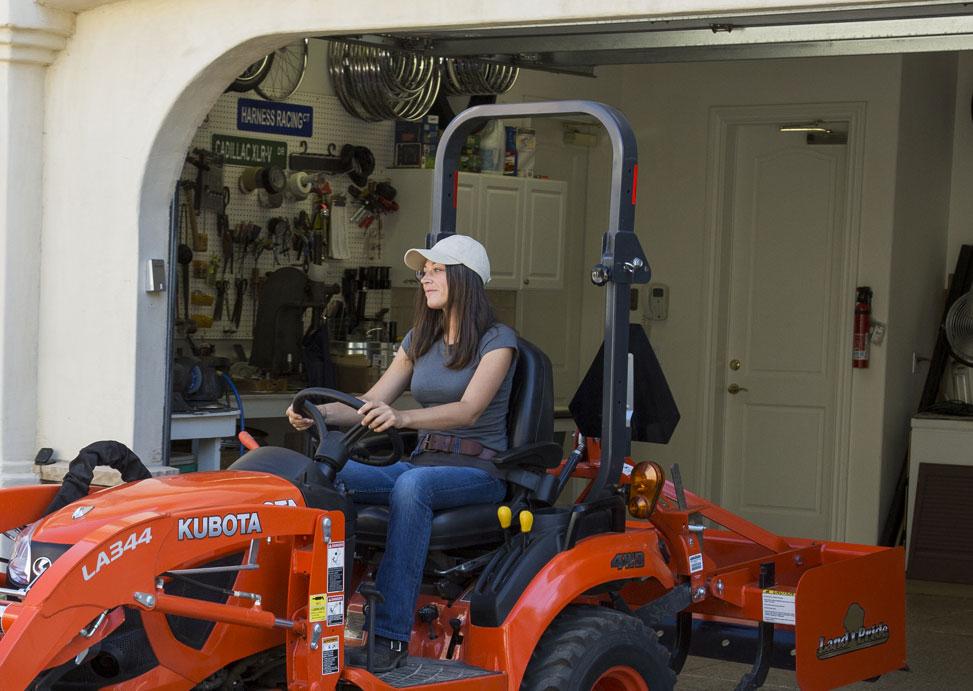

Low Clearance ROPS for Easy Storage
Easily fit through a standard garage door without having to fold the ROPS. The BX80 Series’ Rollover Protective Structure (ROPS) quickly folds without tools, letting the BX80 easily pass under low obstructions. The BX1880, BX2380, and the BX2680 all have a ROPS height of less than 84”, which makes storage in a garage or shed a snap. (Note: Kubota recommends that the ROPS be in the up position during most operations).
Kubota Reputation for Quality
Kubota is known for its quality, reliability and longevity – you can’t fake a good reputation, it can only be awarded to you by your satisfied customers.

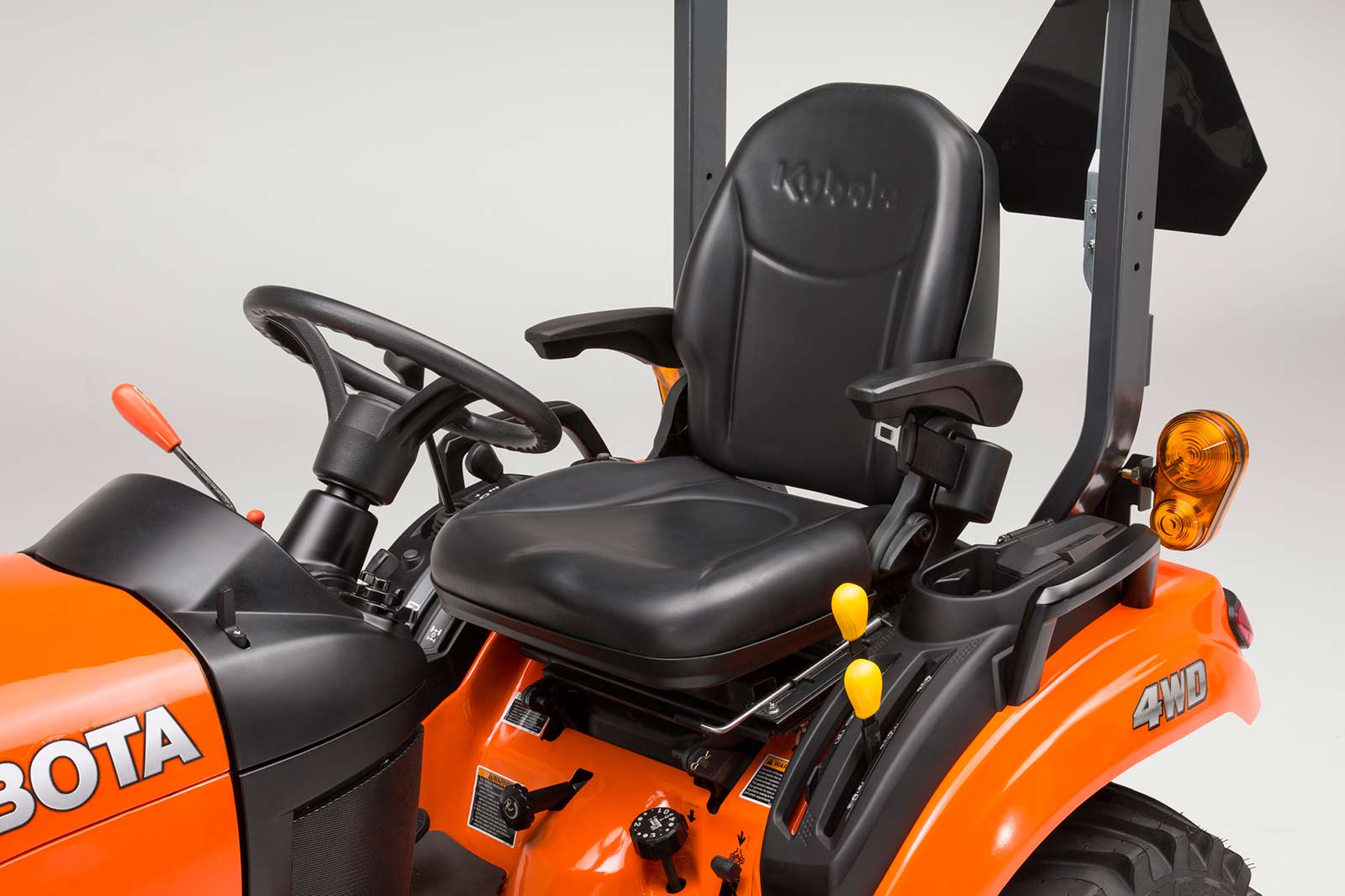

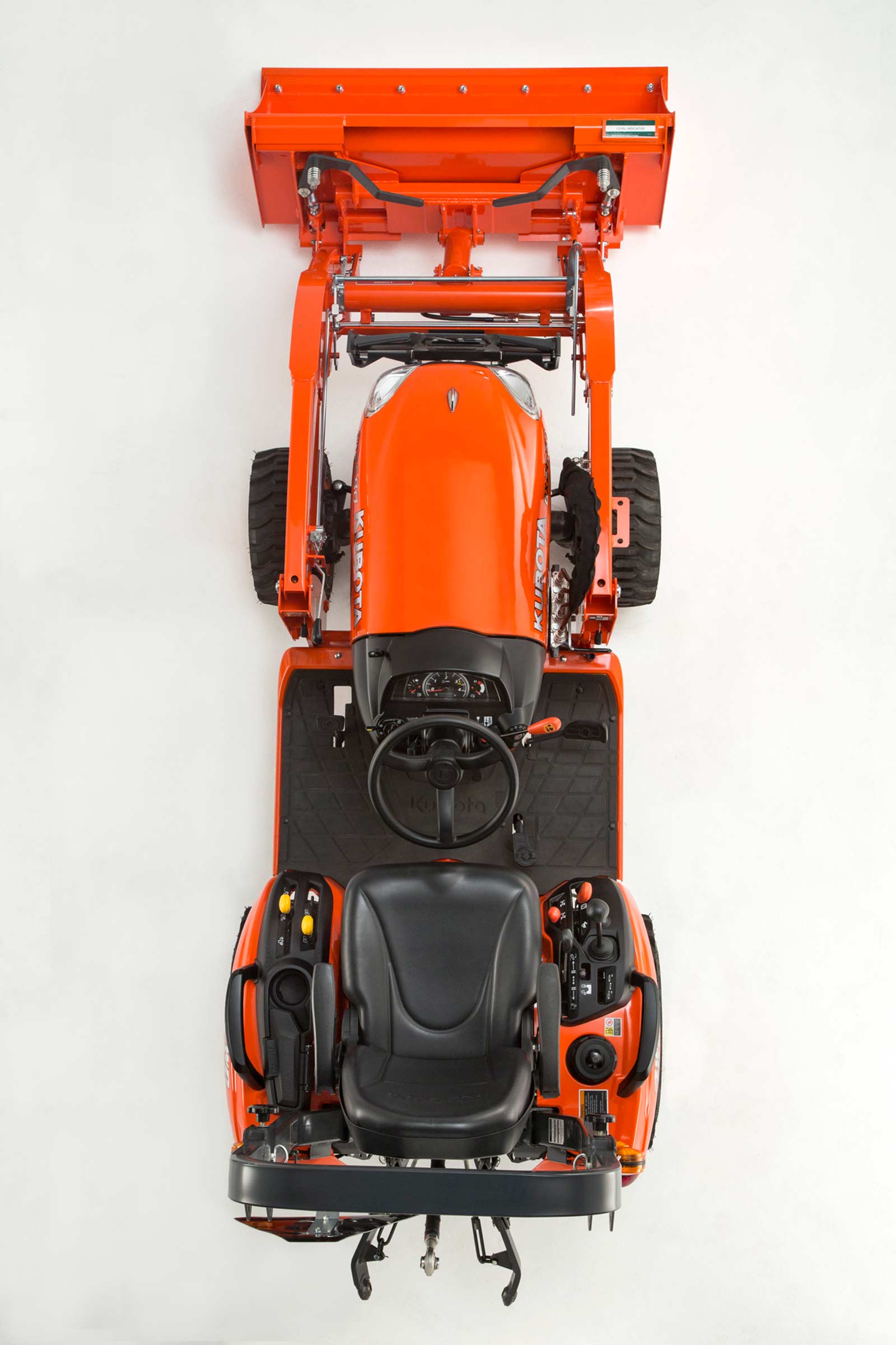

Big Comfort on a Small Tractor
With a flat operating station, tilt steering and a deluxe seat with armrest, the BX2380 and BX2680 offer comfort that is second to none in this class of tractor. Add to that the ergonomic placement of levers and the modern instrument panel and you have one of the finest operators stations ever offered on a sub-compact tractor.

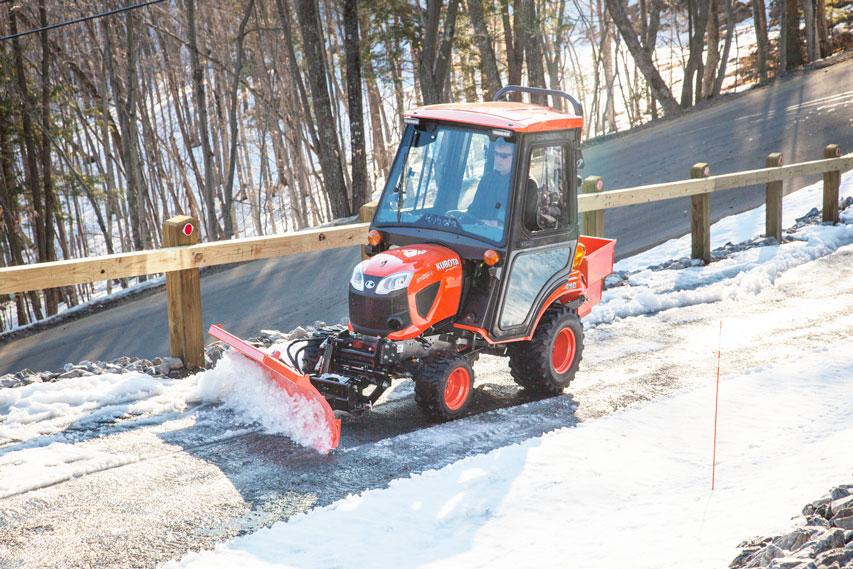

Now Available with a Heated Cab
Specs

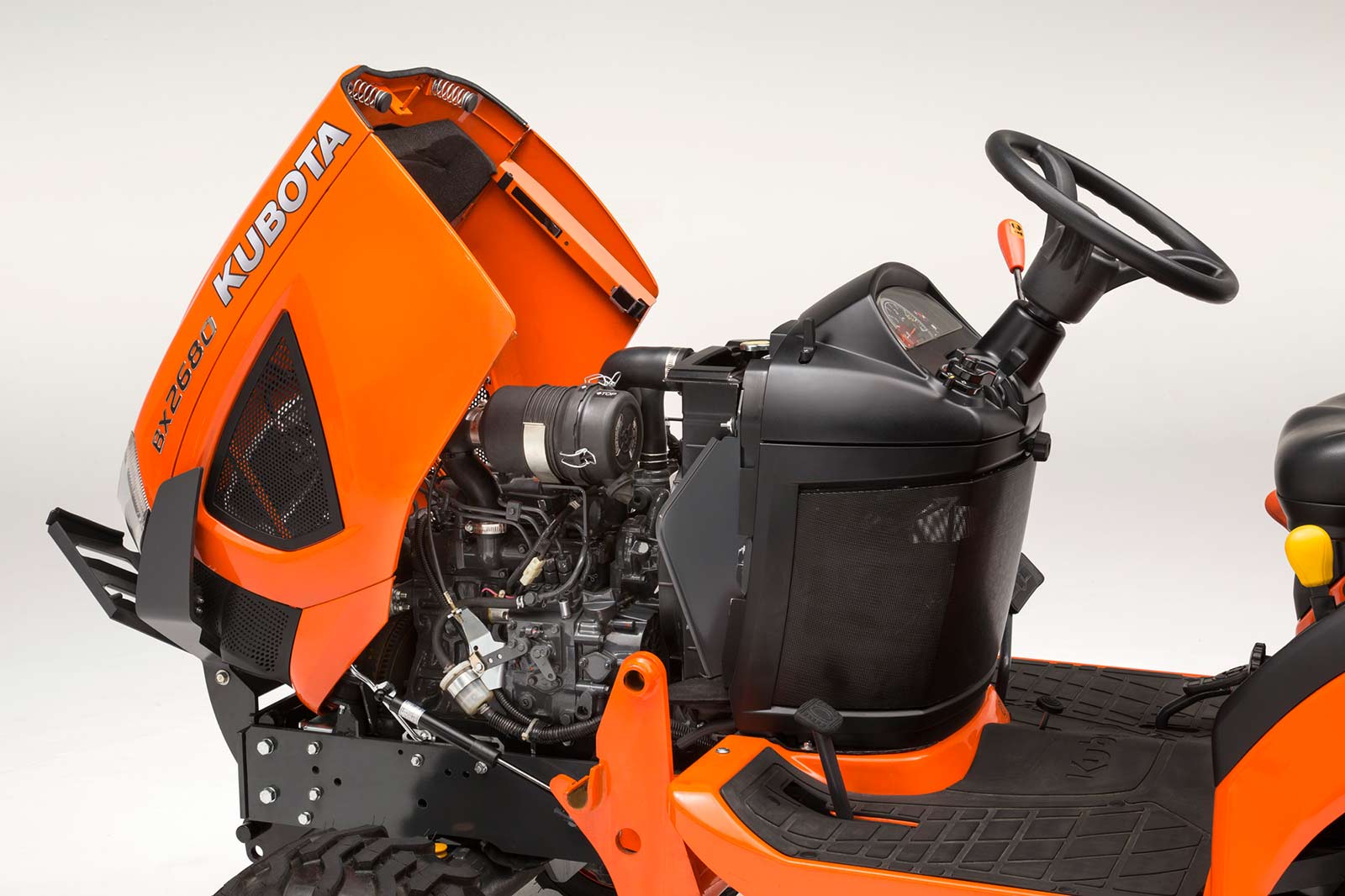

Engine
Type |
Liquid-cooled, 3-Cylinder Diesel |
Model |
Kubota D902 |
Engine Gross HP at 3200 rpm*1 |
21.6 HP |
PTO Horsepower at 3200 rpm |
17.7 HP |
Displacement |
54.8 cu.in. |
Fuel Tank Capacity |
6.6 Gal |
Drive Train
Transmission |
HST, High-Low Gear Shift (2 Forward / Reverse) |
Drive Method |
4WD |
Brakes |
Wet Disc |
PTO |
Live Independent PTO (with Hydraulic Clutch) |
Rear |
STD (540 rpm) |
Mid |
STD (2500 rpm) |
Hydraulics
Pump Output |
6.2 gpm |
3-Point Hitch |
Optional |
Lift Capacity @ 24" Behind Pin lbs |
680 lbs |
Steering |
Hydrostatic Power Steering |
Tire Size
Front Turf/Bar/Industrial |
18 x 8.5-10 / NA / 18 x 8.5-10 |
Rear Turf/Bar/Industrial |
26 x 12-12 / NA / 26 x 12-12 |
Traveling Speeds at Rated Engine rpm (Turf)
Forward |
0-7.8 mph |
Reverse |
0-5.9 mph |
Dimensions
Length with 3-point Hitch |
99 in W/ Front Guard |
Width |
45.1 in |
Height with ROPS |
86.2 in |
Wheelbase |
55.1 in |
Ground Clearance |
8.4 in |
Tread Front / Rear |
36.6 / 32.2 in |
Turning Radius (w/o Brake) |
7.5 ft |
Tractor Weight (w/ ROPS) |
1570 lbs |

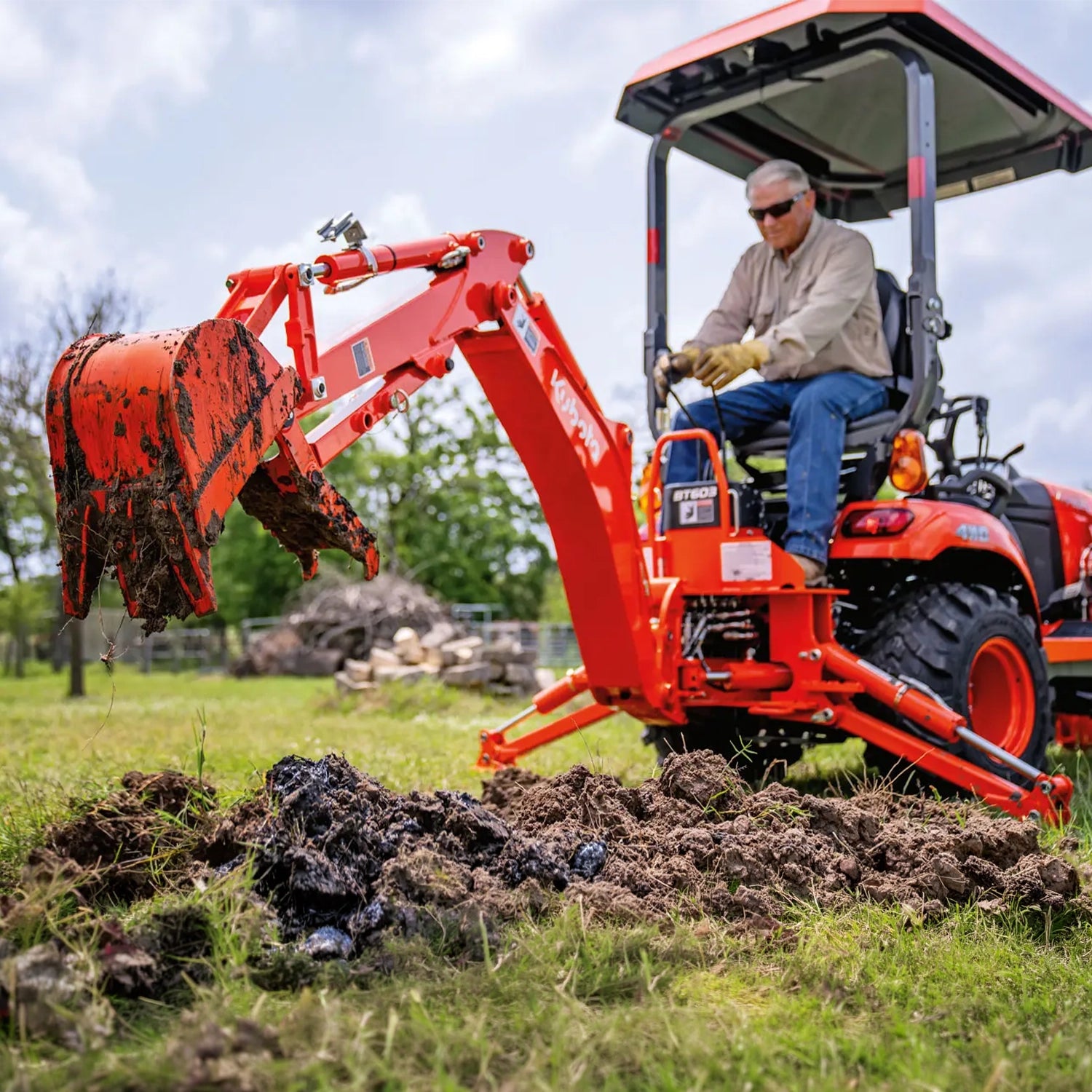

Backhoe Specifications
Model |
BT603 |
Bucket Cylinder Digging Force |
1936 lbf |
Dipperstick Cylinder Digging Force |
1171 lbf |
Boom Swing Mechanism |
One Cylinder |
Shipping Weight (with 12" Bucket) |
607 lbs |
Transport Height |
67.7 in |
Loading Height |
5' ft |
Digging Depth |
6' 1" ft |
Swing Pivot to Rear Axle Center Line |
28.6 in |
Reach from Swing Pivot |
8' 7" ft |
Bucket Rotation |
180 degrees |
Swing Arc |
140 degrees |
Angle of Departure |
20.1 degrees |

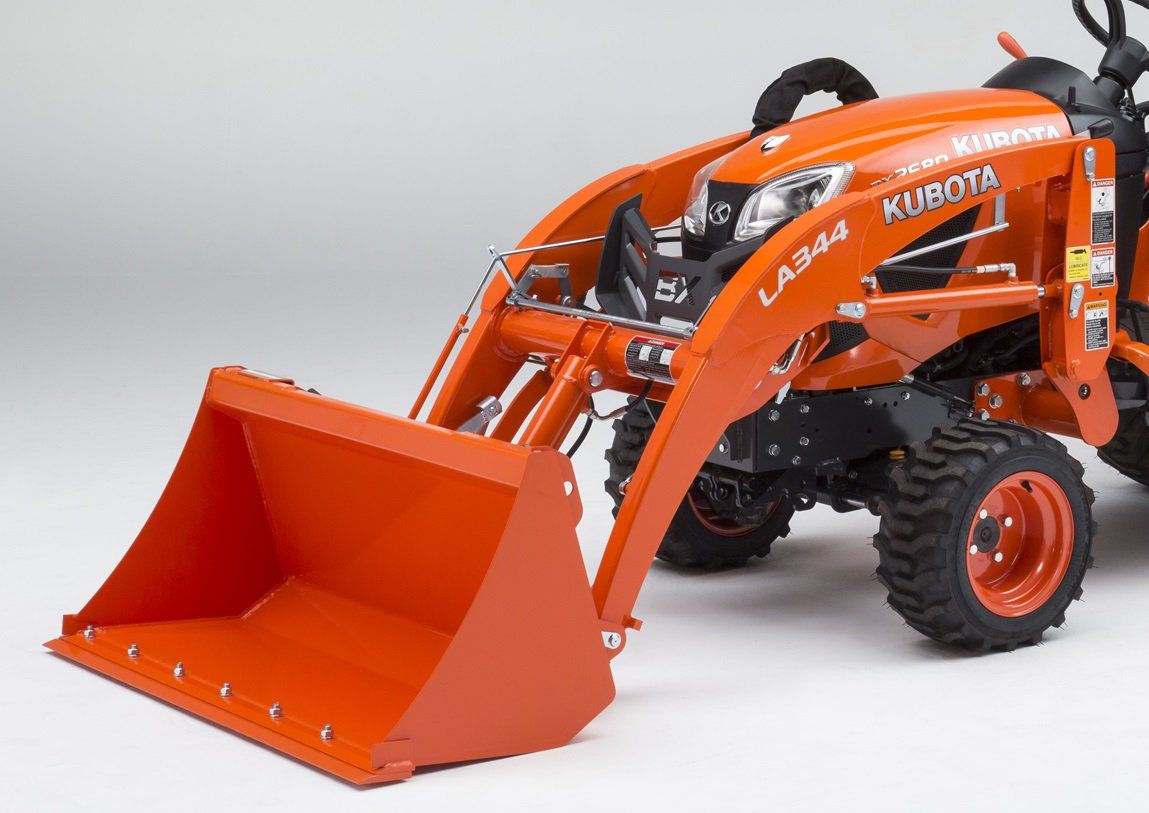

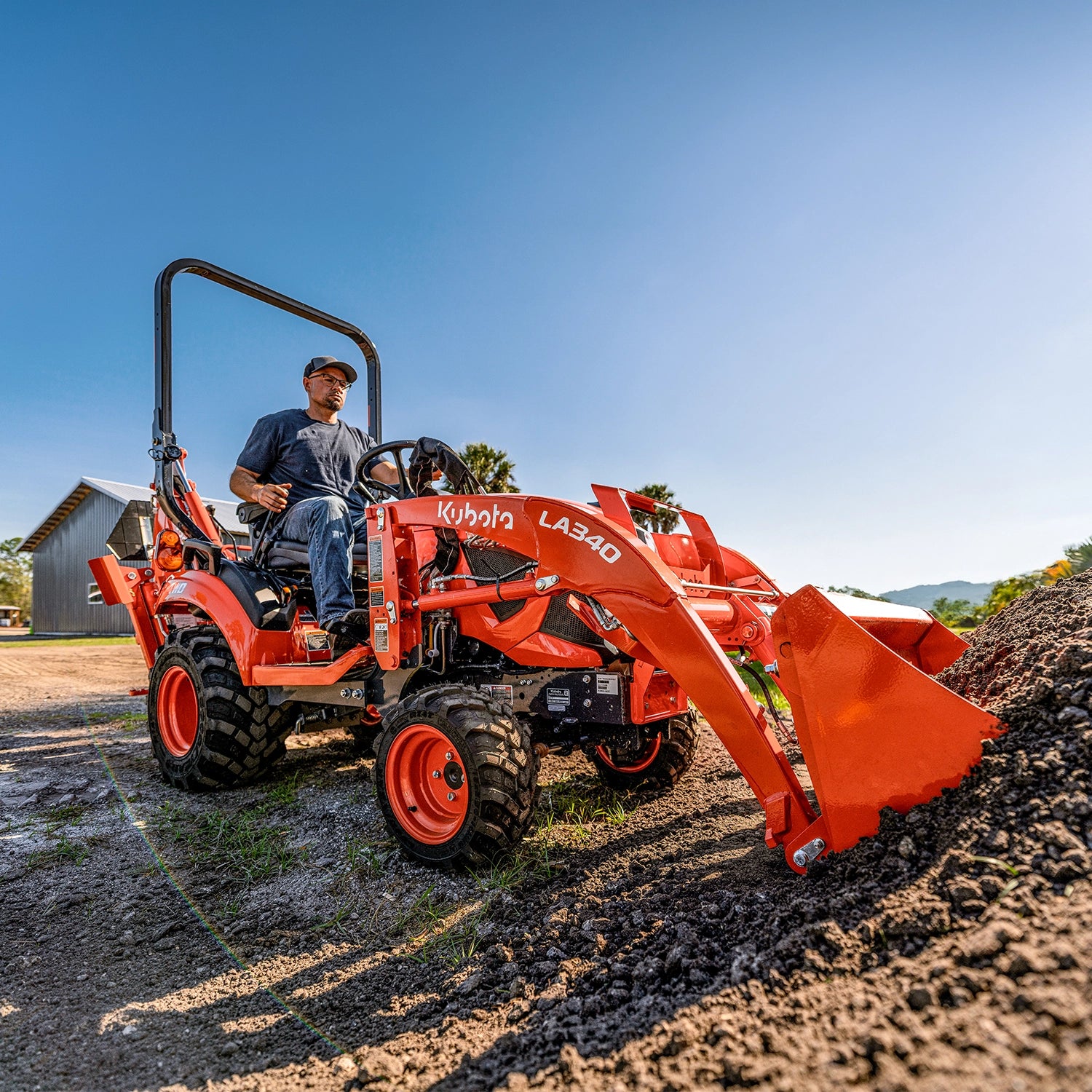

Loader Specifications
Model Type |
LA340 Pin-on |
LA340S Quick Attach |
Max Lift Height (to Bucket Pivot pin) |
71 in |
71 in |
Dumping Clearance |
52.1 in |
50.7 in |
Dumping Reach at Max. Lift Height |
25.4 in |
26.7 in |
Maximum Dump Angle |
45 degrees |
45 degrees |
Reach with Bucket on Ground |
54.8 in |
56.6 in |
Bucket Rollback Angle |
29 degrees |
29 degrees |
Digging Depth |
4.9 in |
4.8 in |
Bucket Width |
48 in |
48 in |
Lift Capacity (500mm fwd, max. Height) |
509 lbs |
423 lbs |
Lift Capacity (Pivot Pin, Max. Height) |
739 lbs |
613 lbs |
Breakout Force (500mm fwd) |
987 lbf |
901 lbf |
Raising Time / Lowering Time (w/o Load) |
3.3 / 2.5 seconds |
3.3 / 2.5 seconds |
Bucket Rollback Time / Dumping Time |
2.3 / 2.7 Seconds |
2.3 / 2.7 Seconds |
