Bobcat® E20 Compact Excavator

Description

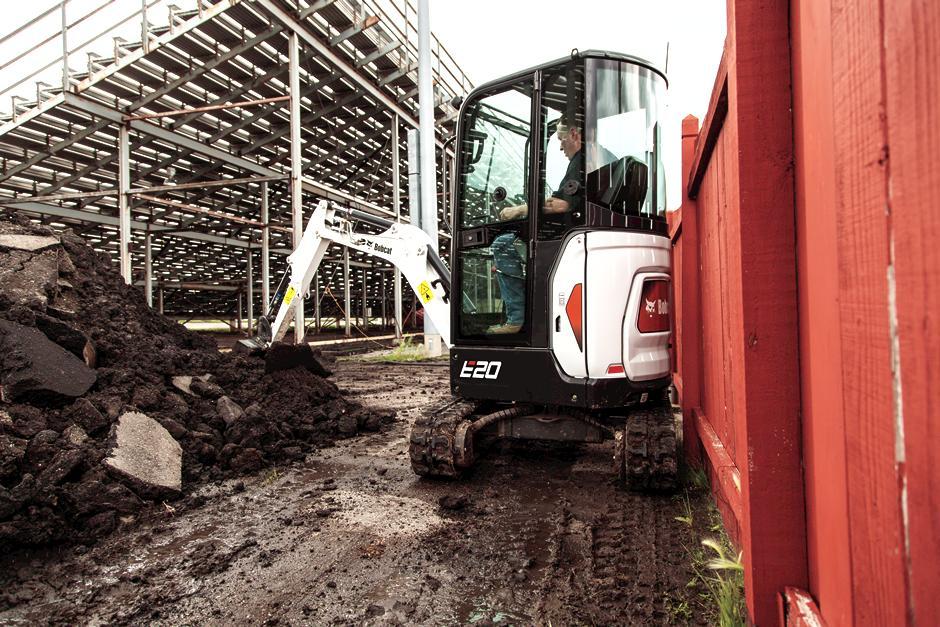

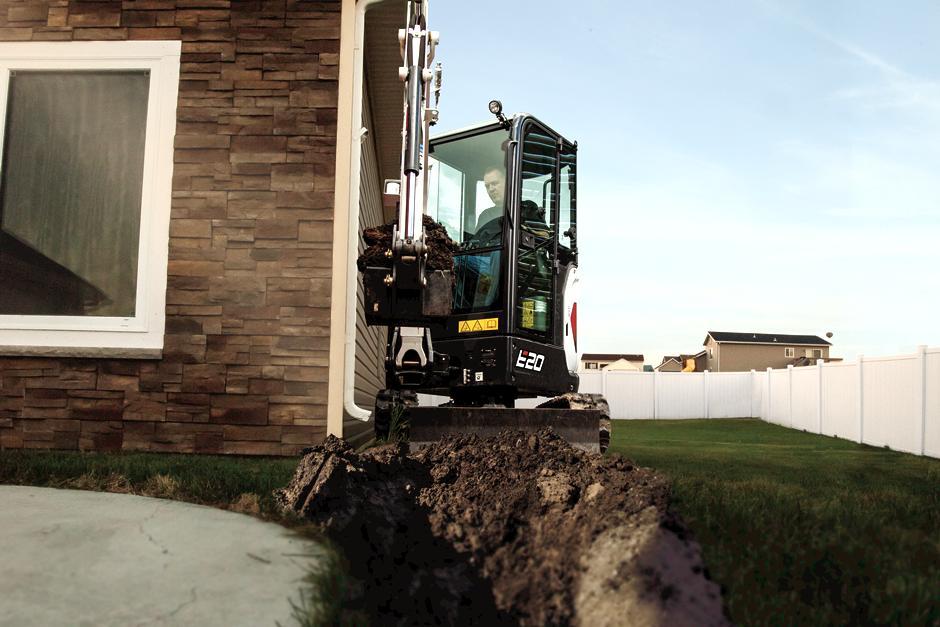

The Bobcat® E20 compact (mini) excavator delivers impressive performance in tight areas with minimal repositioning. Hydraulically retract the undercarriage to only 39 in. to travel through gates or between homes, then expand to 54 in. for a wider footprint and greater performance. Zero tail swing gives you better maneuverability on the most restricted jobsites.

Specs

Configuration

Standard

Engine



Emissions Tier (EPA)	Tier 4
Engine Fuel	Diesel
Maximum Governed RPM	2,500 rpm
Horsepower	13.9 hp
Turbocharged Engine	N/A
Optional Horsepower	N/A

Performance

Operating Weight	4,306 lb
Weight Class	2 t
Travel Speed - High	2.5 mph
Travel Speed - Low	1.5 mph
Arm Digging Force	2,086 lbf
Bucket Digging Force	4,684 lbf
Rated Lift Capacity	1,023 lb
Lift Radius	118 in
Boom Swing - Left	80°
Boom Swing - Right	60°
Maximum Dig Depth	8.5 ft
Max Dump Height	8.8 ft
Maximum Reach at Ground Level	14 ft

Capacities

Fuel Tank

5 gal

Hydraulic System

Auxiliary Std Flow	7.9 gal/min
Auxiliary Pressure	2,610 psi

Dimension

Length	145.2 in
Overall Length in Travel Position	145.2 in
Width	39 in
Height	90.4 in
Height with Operator Cab	90.4 in

Attachments

Features may include:

• Selectable Auxiliary Hydraulic Flow

• Selectable Control Pattern

• Auto Shift

• Fingertip Boom Swing Control

• 2-Speed Travel

• Retractable Blade & Undercarriage

• Engine Monitoring

• In-Track Swing Frame

• Protected Components

• Minimal and Zero Tail Swing

• Keyless Start

• Integrated Slew Brakes

• Fuel Fill Alert

• Simple Machine Tie-Down

• Top Mounted Boom Cylinder

• Cab Comfort

• Ergonomic Controls

• In-Cab Pattern Selector

• Hydraulic Joystick Control

• Soft Grip Joysticks

• Centralized Grease Bank
