General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | E35 |
| Machine Type: | Mini Excavator |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

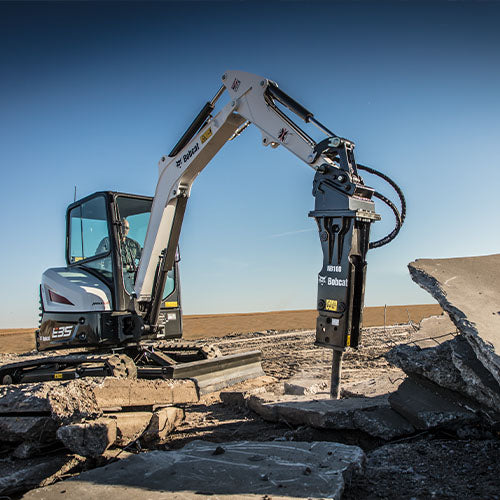

Bobcat® E35 Compact Excavator
Description
Part of the R-Series, the Bobcat® E35 compact (mini) excavator is a popular choice in the 3-ton size class. Zero Tail Swing (ZTS) provides unrestricted rotation, greater flexibility and reduced potential for damage to the machine and surrounding property. It’s available with an angle blade option, long arm option or clamp-ready extendable arm option. Upgrade to an optional 33 hp engine for even more productivity.
Specs
| Configuration | Standard | Long Arm | Extendable Arm |
Engine
| Emissions Tier (EPA) | Tier 4 |
| Engine Fuel | Diesel |
| Maximum Governed RPM | 2,550 rpm |
| Horsepower | 24.8 hp |
| Turbocharged Engine |
N/A |
| Optional Horsepower |
N/A |
Performance
| Operating Weight | 7,699 lb | 8,377 lb | 8,597 lb |
| Weight Class | 3.5 t | 3.8 t | 3.9 t |
| Travel Speed - High | 2.9 mph | 2.9 mph | 2.9 mph |
| Travel Speed - Low | 1.6 mph | 1.6 mph | 1.6 mph |
| Arm Digging Force | 4,859 lbf | 3,986 lbf | 4,478 lbf |
| Bucket Digging Force | 6,968 lbf | 6,968 lbf | 6,968 lbf |
| Rated Lift Capacity | 3232 lb | 3130 lb | 3011 lb |
| Lift Radius | 118 in | 118 in | 118 in |
| Boom Swing - Left | 75° | 75° | 75° |
| Boom Swing - Right | 55° | 55° | 55° |
| Maximum Dig Depth | 10.2 ft | 11.2 ft | 12.9 ft |
| Max Dump Height | 11 ft | 11.6 ft | 12.5 ft |
| Maximum Reach at Ground Level | 17.2 ft | 18.1 ft | 19.7 ft |
Capacities
| Fuel Tank | 13.7 gal |
Hydraulic System
| Auxiliary Std Flow | 16.9 gal/min |
| Auxiliary Pressure | 2,987 psi |
Dimension
| Length | 189.9 in | 190.3 in | 190.5 in |
| Overall Length in Travel Position | 189.9 in | 190.3 in | 190.5 in |
| Width | 69 in | 69 in | 69 in |
| Height | 96.2 in | 96.2 in | 96.2 in |
| Height with Operator Cab | 96.2 in | 96.2 in | 96.2 in |
Attachments
Features may include:- Advanced Hydraulics
- Predictable Control
- Dual Flange Roller System
- Fingertip Boom Swing Control
- Deluxe Instrumentation
- Depth Check System
- Multiple Arm Configurations
- Extendable Arm
- Integrated Rear Counterweight
- Angle Blade
- 2-Speed Travel
- Auto Shift Travel
- Blade Float
- In-Track Swing Frame
- Multiple Tail Swing Configurations
- Protection Technology
- Protected Components
- Keyless Start
- Easy Machine Tie Downs
- Steel Tracks
- Integrated Slew Brakes
- X-Frame Undercarriage
- Reversible Cutting Edge
