Bobcat

Rebates & Special Offers

View All Offers

Pay as low as 0% for up to 60 months* or choose a $3,000 USD* rebate on a Bobcat E20 compact excavator.

Download Spec Sheet

Get detailed specifications, dimensions, and performance data for this E20 | Bobcat.

Download Spec Sheet →
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: E20
Machine Type: Mini Excavator
Coupler: Pin Grabber
Engine
Horsepower: 13.9
Performance
Bucket Digging Force: 4,684 LBF.
Arm Digging Force: 2,086 LBF.
Max Digging Reach (Ground): 14 FT.
Max Digging Depth: 8.4 FT.
Operating Weight: 4306 lb
Travel Speed: 1.3 - 2.6 mph
Hydraulics
Aux. Standard Flow: 7.9 GPM
Dimensions
Width: 39 IN.
Fuel Tank: 5 GAL

Description

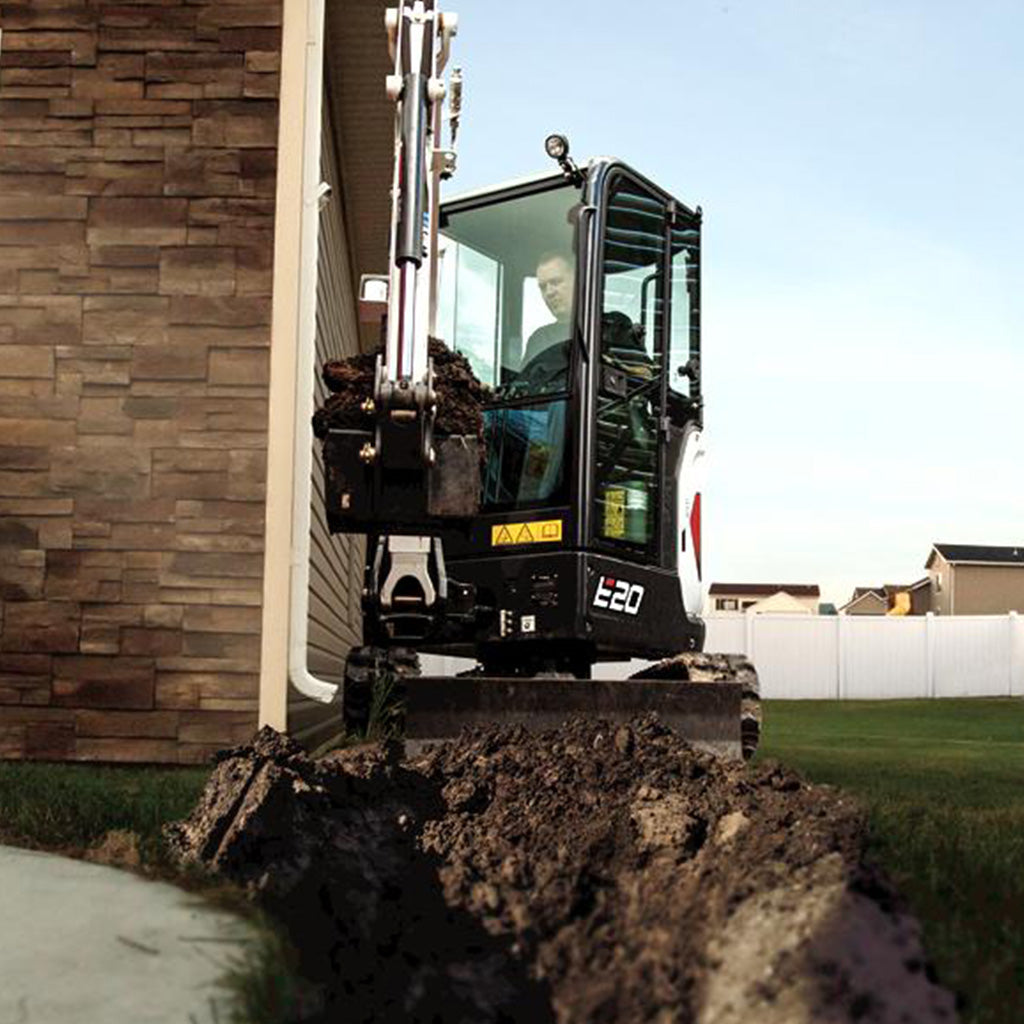

Bobcat® E20 Compact Excavator

Description

The Bobcat® E20 compact (mini) excavator delivers impressive performance in tight areas with minimal repositioning. Hydraulically retract the undercarriage to only 39 in. to travel through gates or between homes, then expand to 54 in. for a wider footprint and greater performance. Zero tail swing gives you better maneuverability on the most restricted jobsites.

Specs
 Configuration Standard

Engine



Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,500 rpm
Horsepower 13.9 hp
Turbocharged Engine

N/A
Optional Horsepower

N/A

Performance

Operating Weight 4,306 lb
Weight Class 2 t
Travel Speed - High 2.5 mph
Travel Speed - Low 1.5 mph
Arm Digging Force 2,086 lbf
Bucket Digging Force 4,684 lbf
Rated Lift Capacity 1,023 lb
Lift Radius 118 in
Boom Swing - Left 80°
Boom Swing - Right 60°
Maximum Dig Depth 8.5 ft
Max Dump Height 8.8 ft
Maximum Reach at Ground Level 14 ft

Capacities

 Fuel Tank 5 gal

Hydraulic System

Auxiliary Std Flow 7.9 gal/min
Auxiliary Pressure 2,610 psi

Dimension

 Length 145.2 in
Overall Length in Travel Position 145.2 in
Width 39 in
Height 90.4 in
Height with Operator Cab 90.4 in
Attachments
Features may include:
  • Selectable Auxiliary Hydraulic Flow
  • Selectable Control Pattern
  • Auto Shift
  • Fingertip Boom Swing Control
  • 2-Speed Travel
  • Retractable Blade & Undercarriage
  • Engine Monitoring
  • In-Track Swing Frame
  • Protected Components
  • Minimal and Zero Tail Swing
  • Keyless Start
  • Integrated Slew Brakes
  • Fuel Fill Alert
  • Simple Machine Tie-Down
  • Top Mounted Boom Cylinder
  • Cab Comfort
  • Ergonomic Controls
  • In-Cab Pattern Selector
  • Hydraulic Joystick Control
  • Soft Grip Joysticks
  • Centralized Grease Bank
Specs
Length 110 in
Overall Length in Travel Position 110 in
Width 28 in
Height 87 in
Emissions Tier Tier 4
Engine Fuel Diesel
Max Governed RPM 2,370 rpm
Horsepower 10.2 hp
Turbocharged Engine No
Operating Weight 2,593 lb
Weight Class 1 Ton
Travel Speed - High 1.7 mph
Travel Speed - Low 1.3 mph
Arm Digging Force 1,248 lbf
Bucket Digging Force 1,865 lbf
Rated Lift Capacity 965 lb
Lift Radius 79 in
Boom Swing - Left 67°
Boom Swing - Right 64°
Maximum Dig Depth 72 in
Maximum Dump Height 72 in
Maximum Reach at Ground Level 122.4 in
Auxiliary Standard Flow 5.3 GPM
Auxiliary Pressure 2,756 PSI
