General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | E145 |
| Machine Type: | Excavator |
| Coupler: | Pin Grabber |
|
Engine
|
|
|---|---|
| Horsepower: | 115.0 |
|
Performance
|
|
|---|---|
| Bucket Digging Force: | 21,471 lbf |
| Arm Digging Force: | 12,228 lbf |
| Max Digging Reach (Ground): | 27.9 FT. |
| Max Digging Depth: | 19.6 FT. |
| Operating Weight: | 34987 lb |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 30.1 GMP |
|
Dimensions
|
|
|---|---|
| Width: | 101 IN. |
| Fuel Tank: | 55.5 GAL |
Description

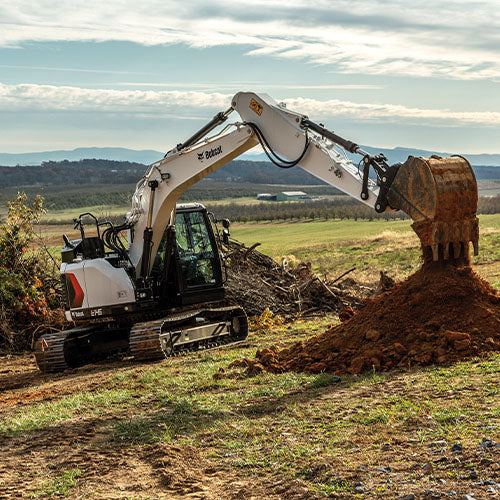

Bobcat E145 Excavator
The turbo-charged Bobcat® E145 large excavator is ideal for roadways, railroad, bridges and infrastructure, commercial and urban jobsites. It’s designed to provide superior stability and optimizes working width for increased performance in heavy digging and lifting operations. The reduced tail swing allows for greater maneuverability in tight jobsites, so you can confidently work around obstacles or against walls.
Class-leading hydraulics provide reliable, steady power to the E145 excavator work group, saving time with every digging cycle. More slewing torque means more power for slewing uphill, backfilling and all-around better productivity.
Bobcat E145 Excavator Specs
| Model | E145 |
|---|---|
| Gross Horsepower | 115.0 hp |
| Net Horsepower | 109.0 hp |
| Operating Weight | 34,946 lb |
| Weight Class | 15.8 t |
| Travel Speed (High) | 2.9 mph |
| Travel Speed (Low) | 1.7 mph |
| Arm Digging Force | 13,228 lbf |
| Bucket Digging Force | 24,471 lbf |
| Max Dig Depth | 235.2 in |
| Max Dump Height | 278.4 in |
| Max Reach at Ground Level | 334.8 in |
| Slew Speed | 9.9 rpm |
| Fuel Tank | 55.0 gal |
| Hydraulic Reservoir | 34.0 gal |
| Auxiliary Pressure | 4,694 psi |
| Hydraulic Flow | 60.2 gpm |
| Length | 315.0 in |
| Width | 102.0 in |
| Height | 123.0 in |
| Height With Cab | 111.0 in |
| Tail Overhang | N/A |
| Track Length on Ground | 119.0 in |
| Tail Swing Type | Reduced |
Description
The E145 large excavator offers leading lift capacity, four power modes and fast cycle times, plus a variety of comfort features, including generous floor space, a pressurized cab with sound-isolating seal, heated seat and automotive-style heat and air conditioning. This machine is easy to service with wide-open access panels, a hinged belly pan and centralized grease banks to make essential daily maintenance quick and easy. Side and rearview cameras are standard on the E145 excavator.Arm Options
Choose the arm configuration that best matches your work.
Standard Arm
Provides maximum breakout force and lifting ability. The best choice when power and digging performance are the priority.
Long Arm
Gives you longer reach and more dig depth. Ideal when you need to work farther from the machine or dig deeper trenches.
Extendable Arm
Delivers the power and performance of a standard arm with extra reach on demand — up to 2 feet greater than the long arm, depending on the model.
Specifications subject to change without notice.
Full Specifications
General
| Condition | Showroom |
| Machine Type | Excavator |
Engine
| Horsepower | 115.0 |
Performance
| Dig Depth | 19.6 FT. |
| Max Reach at Ground Level | 27.9 FT. |
| Bucket Digging Force | 21,471 lbf |
| Arm Digging Force | 12,228 lbf |
Hydraulics
| Aux. Standard Flow | 30.1 GMP |
Dimensions & Weight
| Width | 101 IN. |
| Operating Weight | 34987 lb |
| Fuel Tank | 55.5 GAL |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
