Trim Ex Tree Saw | Fecon

Stock:
In stock

Download Spec Sheet

Get detailed specifications, dimensions, and performance data for this Trim Ex Tree Saw | Fecon.

General Info
Condition: Showroom
Manufacturer: Fecon
Model: TrimEx
Engine
Performance
Operating Weight: 2790 lb
Hydraulics
Aux. High Flow: 30 - 45 GPM
Dimensions
Width: 76"

Description

Fecon Trim Ex Tree Saw

Flow Range: 10-30 GPM

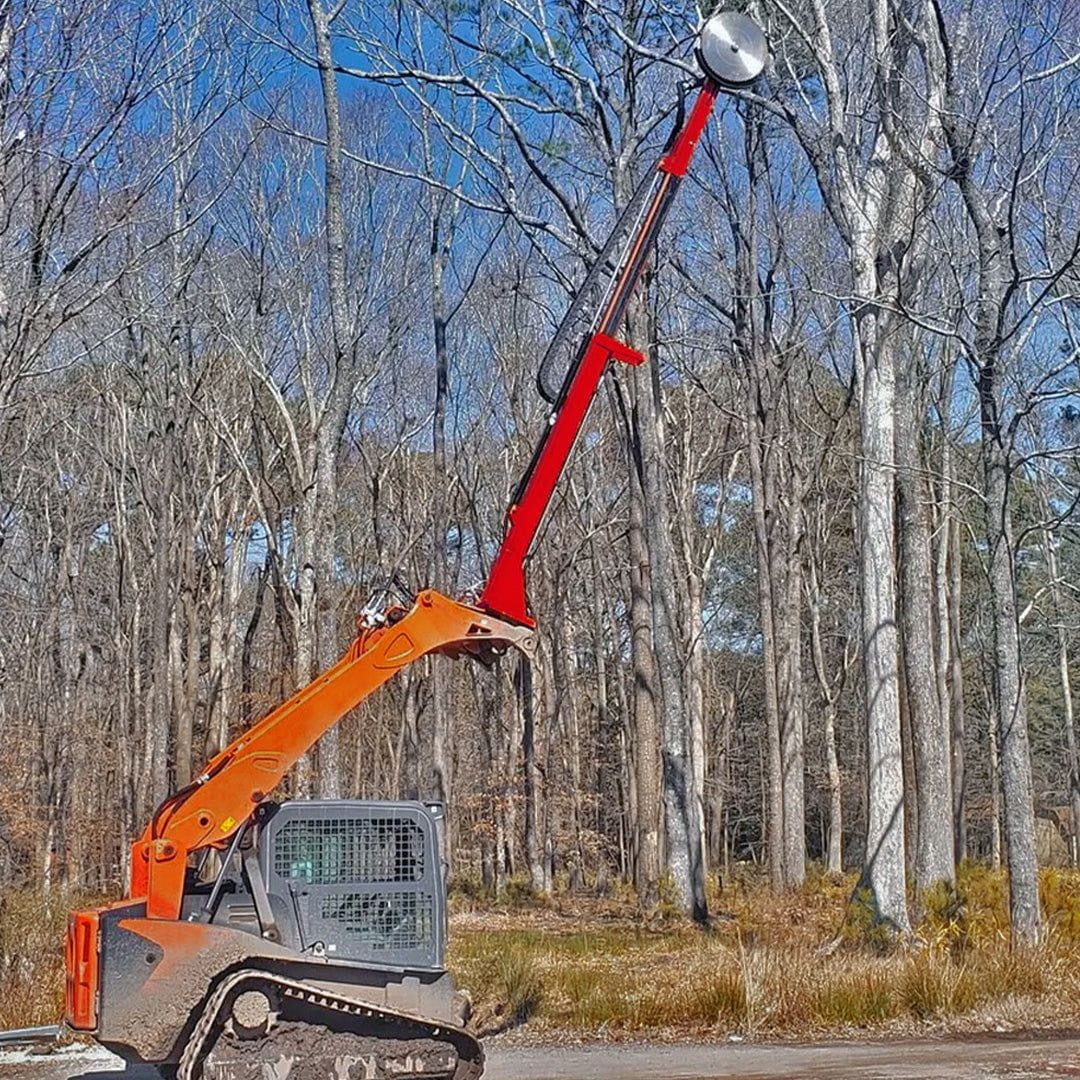

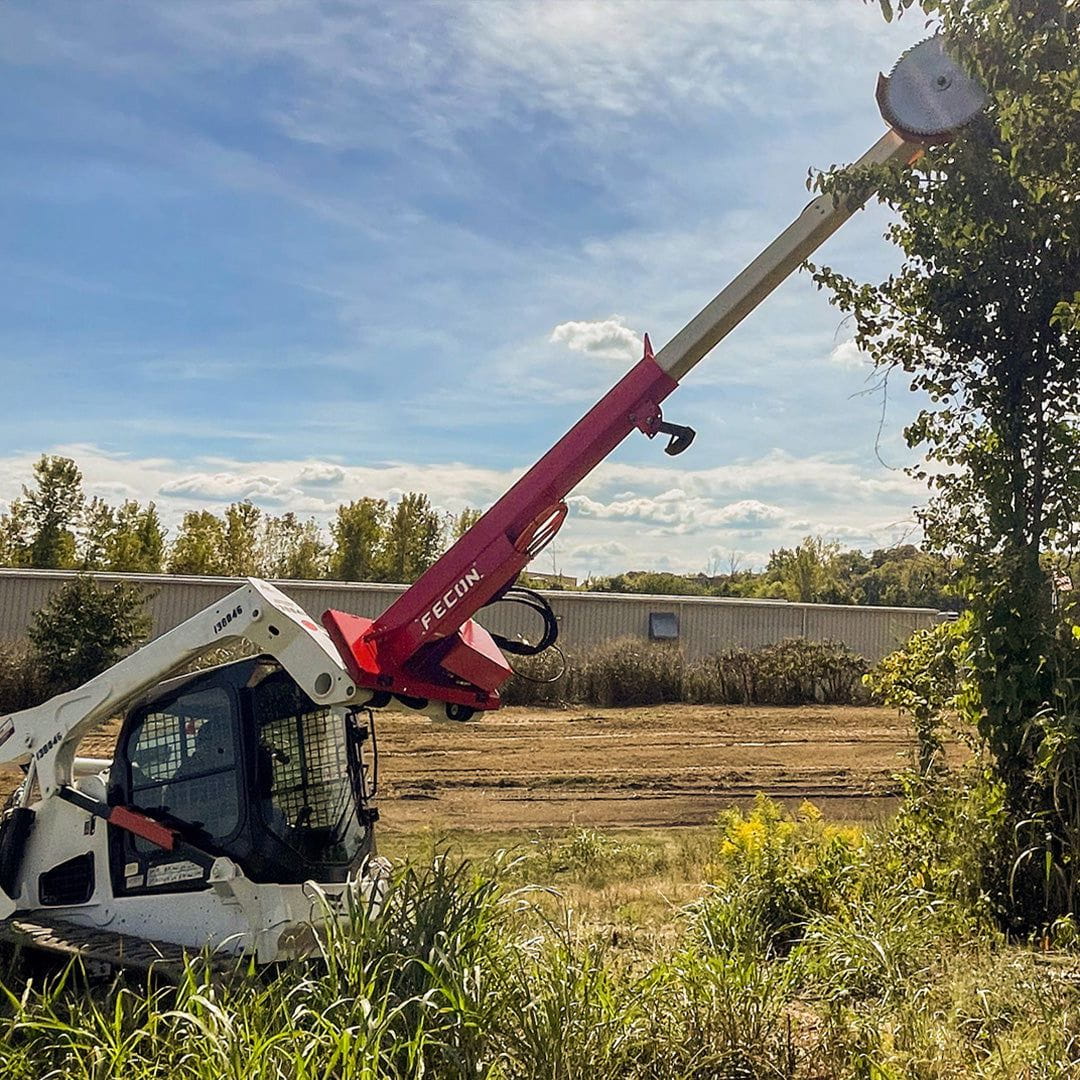

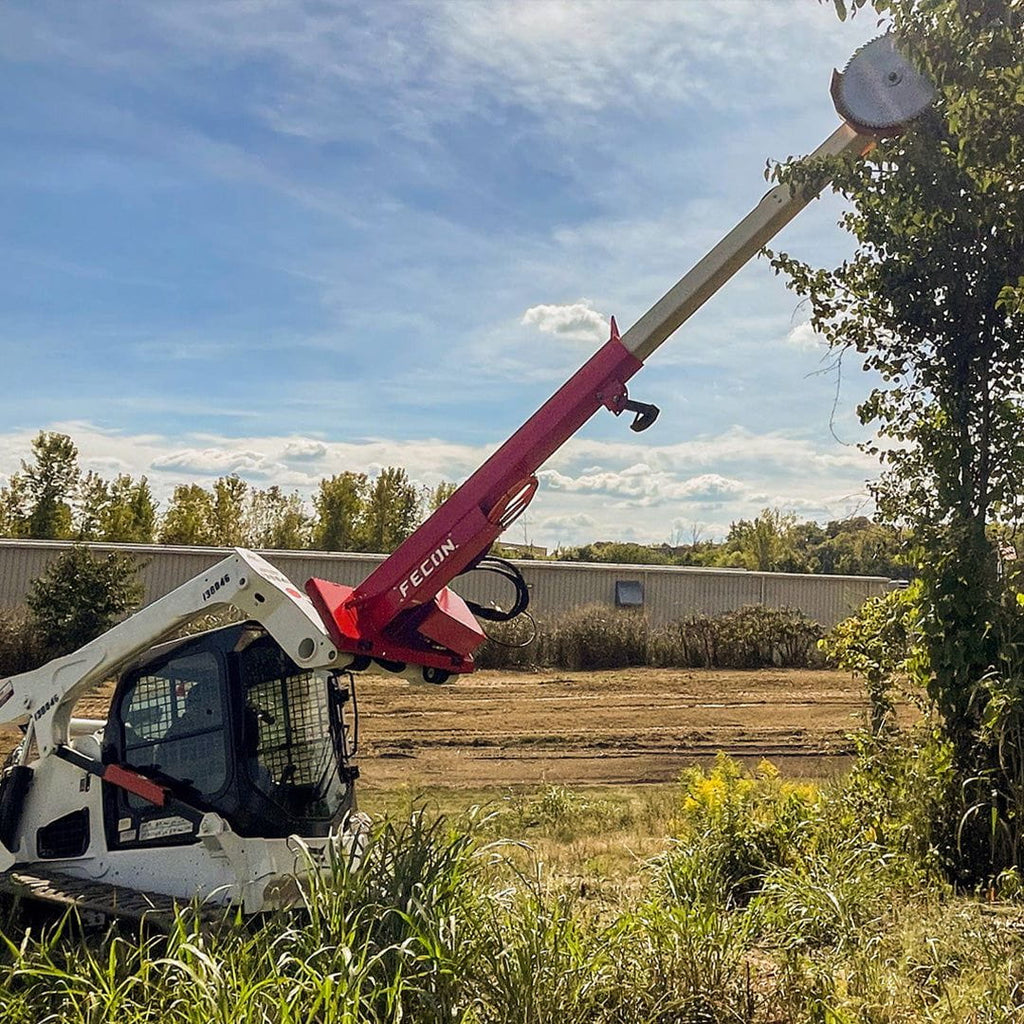

Trim Ex tree trimming saws let you tackle vegetation management with small- to mid-size carriers you already have. With a working height as high as 26 feet and the ability to rotate the blade, the high-speed saw allows you to make continuous clean cuts from one machine position, increasing productivity. Whether in agriculture, landscaping or tree care, take on tree maintenance quickly, safely and efficiently. Boost safety around live wires with the dielectric model.

Features:

Productive & High Performing

  • A 3,000-rpm blade achieves continuous, clean cuts from one machine position.
  • Efficient design saves time and money compared to bucket trucks, chainsaws or dedicated forestry machinery.
  • Dielectric option provides protection around live wires.

Built to make tough jobs easier

  • Saw head rotates 180 degrees to optimize cutting angle.

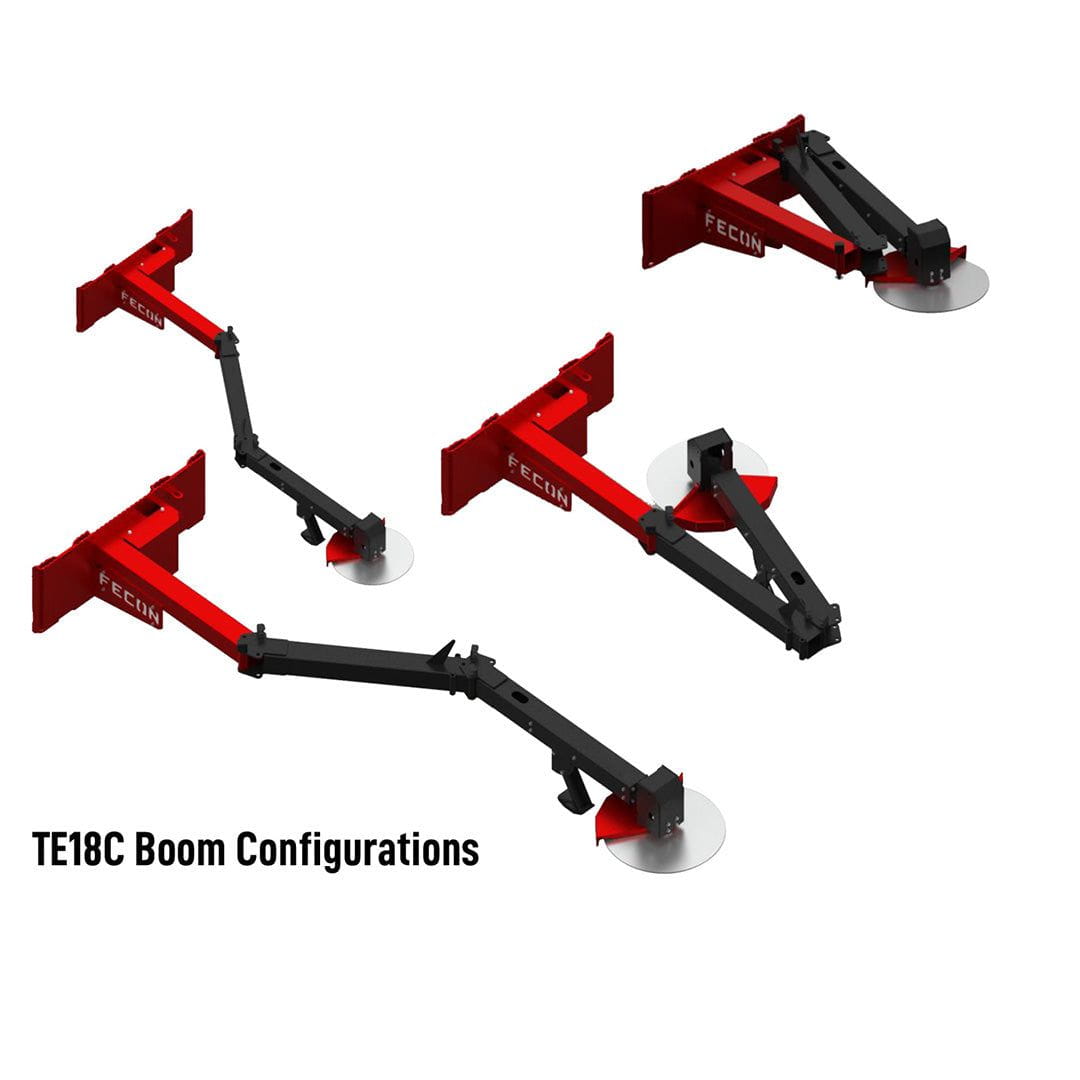

  • TE26 models extend to reach working heights as high as 26 feet. The TE18C reaches up to 18 feet and can fold into a compact position for easier transportation.
  • Compatible with small- to mid-size carriers such as skid steers, compact track loaders, tractors and telehandlers.

Less Maintenance, More time on the job

  • Minimizes maintenance with no loose chains, bar oil or required daily service.
  • Carbide tipped blade can be sharpened and have tips replaced.

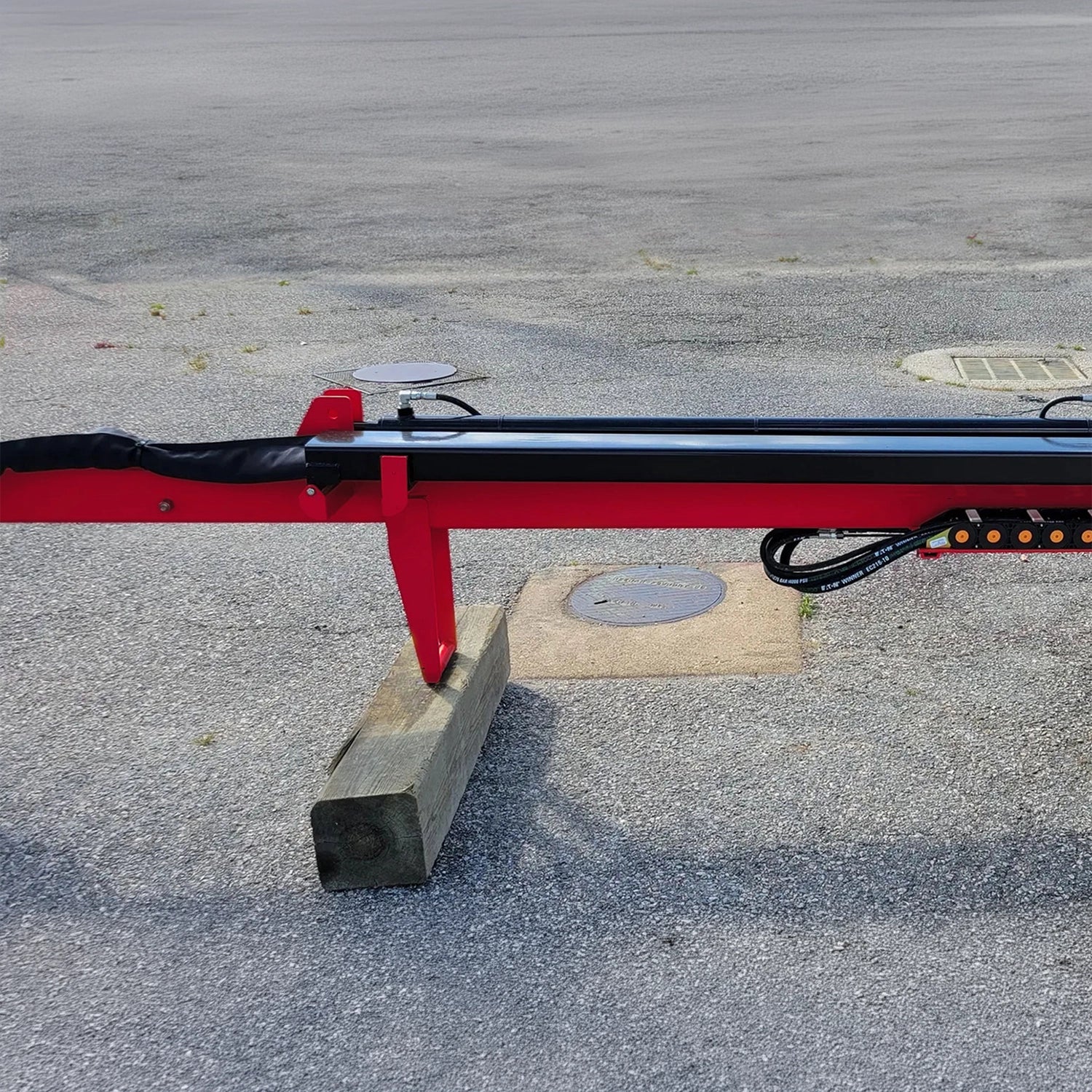

  • Steel housing protects the hydraulic lines.
Compare the Family

Bobcat Compact Track Loaders

Bobcat T450 compact track loader
T550
Bobcat T595 compact track loader
T62
Bobcat T64-2 compact track loader Bobcat T66-2 compact track loader Bobcat T7X all-electric compact track loader Bobcat T650 compact track loader Bobcat T770 compact track loader Bobcat T76-2 compact track loader Bobcat T86-2 compact track loader
T450 T550 T595 T62 T64-2 T66-2 T7X T650 T770 T76-2 T86-2
Frame / RoleCompact classicMid-size classicCurrent classicNon-current mid-frameMid-frameMid-frameAll-electricLarger classicLargest classicLarge-frameHigh-output large-frame
Horsepower55 hp68 hp70 hp68 hp68 hp74 hp100 hp74 hp92 hp74 hp115 hp
Rated Operating Capacity1,490 lbs1,995 lbs2,100 lbs2,150 lbs2,300 lbs2,400 lbs3,056 lbs2,500 lbs3,475 lbs2,900 lbs3,925 lbs
Tipping Load4,257 lbs5,700 lbs6,000 lbs6,143 lbs6,571 lbs6,857 lbs8,743 lbs7,143 lbs9,929 lbs8,285 lbs11,214 lbs
Operating Weight6,424 lbs7,557 lbs7,906 lbs8,612 lbs8,440 lbs8,560 lbs12,590 lbs8,980 lbs10,515 lbs9,592 lbs12,104 lbs
Travel Speed7 / 11 mph7.1 / 10.4 mph7.1 / 10.4 mph7.2 mph6.4 / 9.3 mph5.5 / 9.3 mph5.7 / 8.7 mph6 / 8.7 mph6.6 / 10.7 mph6.8 / 9.2 mph5.5 / 10.7 mph
Standard Aux Flow16.7 gpm17.1 gpm17.1 gpm17.6 gpm17.6 gpm17.6 gpmNo hydraulics23 gpm23 gpm23.3 gpm23 gpm
High / Super Flow26.7 gpm26.7 gpm26.9 gpm26.9 gpm26.9 gpm30.5 gpm36.6 gpm30.3 gpm36.6 / 42 gpm
Height to Hinge Pin109.5 in114.5 in119 in114.5 in120 in120 in128.4 in124 in132 in128.3 in144 in
Overall Width55 in67 in66.6 in67 in67.8 in67.8 in78 in72.9 in78 in73.5 in78 in

Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.

Compact Track Loaders

Two Paths: Classic or Pro

Not sure which tier fits your application? Compare the full CTL lineup side by side.

Explore the Lineup

Full Specifications

Download Spec Sheet
General
ConditionShowroom
Engine
Performance
Capacities
Hydraulics
Auxiliary High Flow30 - 45 GPM
Dimensions & Weight
Width76"
Operating Weight2790 lb
Serviceability

Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
